Hubbell
PRB57550GY TAYMAC FS BOX; ROUND; NON-METALLIC; 5-HOLE; 3/4 NPT

Mouse over image to zoom, click to enlarge

  • PRB57550GY TAYMAC FS BOX; ROUND; NON-METALLIC; 5-HOLE; 3/4 NPT
  • PRB57550GY TAYMAC FS BOX; ROUND; NON-METALLIC; 5-HOLE; 3/4 NPT
  • PRB57550GY TAYMAC FS BOX; ROUND; NON-METALLIC; 5-HOLE; 3/4 NPT
  • PRB57550GY TAYMAC FS BOX; ROUND; NON-METALLIC; 5-HOLE; 3/4 NPT

Description: BELL®, 5361-0, Weatherproof Splice Box, 5 Outlets, 1/2 in Hub, 4 in Diameter, Round Shape, NEMA 3R Enclosure, Lug Mounting, 16 cu-in Capacity, Die Cast Aluminum, Powder Coated, Gray, 1-5/8 in D Dimensions

Manufacturer PN: PRB57550GY

UPC:  09232613034

Kendall Electric Inc PN: 2539834

Invoice Description:

5361-0 RACO 4IN RND SPLICE BOX GRY


SPEC SHEET

▸ See All in Weatherproof Round Boxes


How Can We Make This Page Better?

BELL® 5361-0 Weatherproof Splice Box, Die Cast Aluminum, 16 cu-in Capacity, (5) Outlets, 1-5/8 in D

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

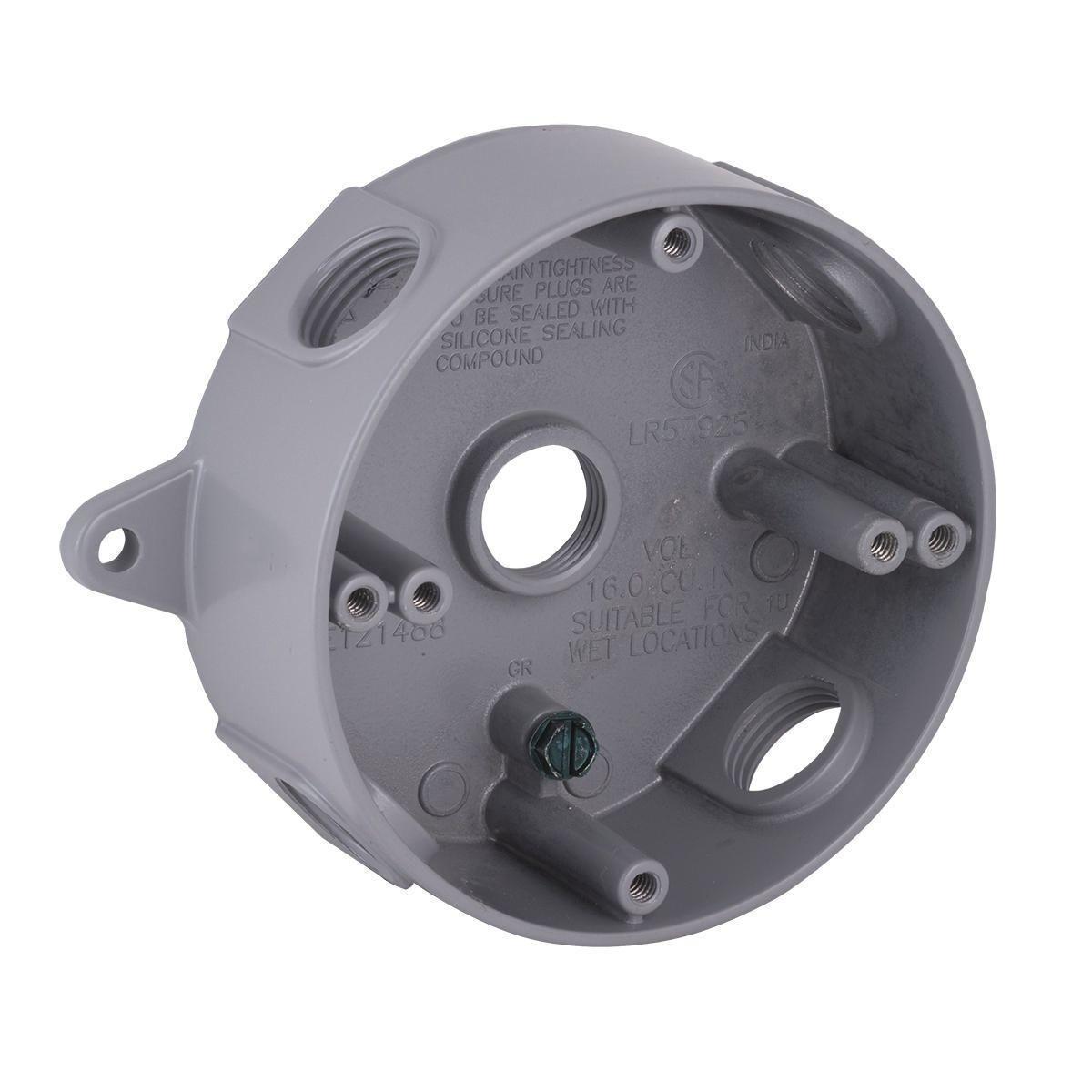

BELL® weatherproof round splice boxes are designed for use as a weatherproof junction box. Bell boxes are for use in branch circuit wiring in wet, damp or dry locations. BELL® round boxes are compatible with BELL® round cluster covers and round lamp holder combinations.
BELL®, 5361-0, Weatherproof Splice Box, 5 Outlets, 1/2 in Hub, 4 in Diameter, Round Shape, NEMA 3R Enclosure, Lug Mounting, 16 cu-in Capacity, Die Cast Aluminum, Powder Coated, Gray, 1-5/8 in D Dimensions

Specifications

 Application Used in branch circuit wiring in wet, damp, dry locations and in electrical applications
 Brand Name BELL®
 Color Gray
 Dimensions 1-5/8 in D
 Enclosure NEMA 3R
 Finish Powder Coated
 Hub Size 1/2 in
 Includes (4) Closure Plug, Mounting Hardware, Cast in Mounting Lugs, (5) Threaded Outlets, Ground Screw and Multi-Lingual Instructions
 Manufacturer Part Number 5361-0
 Material Die Cast Aluminum
 Mounting Type Lug
 Number of Outlets 5
 PART NUMBER KEYWORDS 5361-0 ; 53610 ; 11813561 ; 8704180 ; 050169536100 ; 50169536100 ; 05016953610 ; 00050169536100 ; 0050169536100
 Prop65 Message WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
 Shape Round
 Standards/Approvals UL 514A|UL File No. E195978|CSA C22.2 No. 18|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

▪ Cast-in mounting lugs provide fast, secure installation
▪ Rugged die-cast construction
▪ Reinforced connector outlets
▪ #10-24 tapped holes
▪ Without knockouts
▪ Ground screw installed
▪ State-of-the-art powder coat finish providess maximum weatherability and scratch resistance
▪ Hubs accept all threaded fittings and threaded conduit
▪ May be used as a weatherproof junction box and may be used with bell round cluster covers and round lamp holder combinations
