USB20C5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT C WH ZZZZ

Mouse over image to zoom, click to enlarge

  • USB20C5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT C WH ZZZZ
  • USB20C5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT C WH ZZZZ
  • USB20C5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT C WH ZZZZ
  • USB20C5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT C WH ZZZZ
  • USB20C5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT C WH ZZZZ

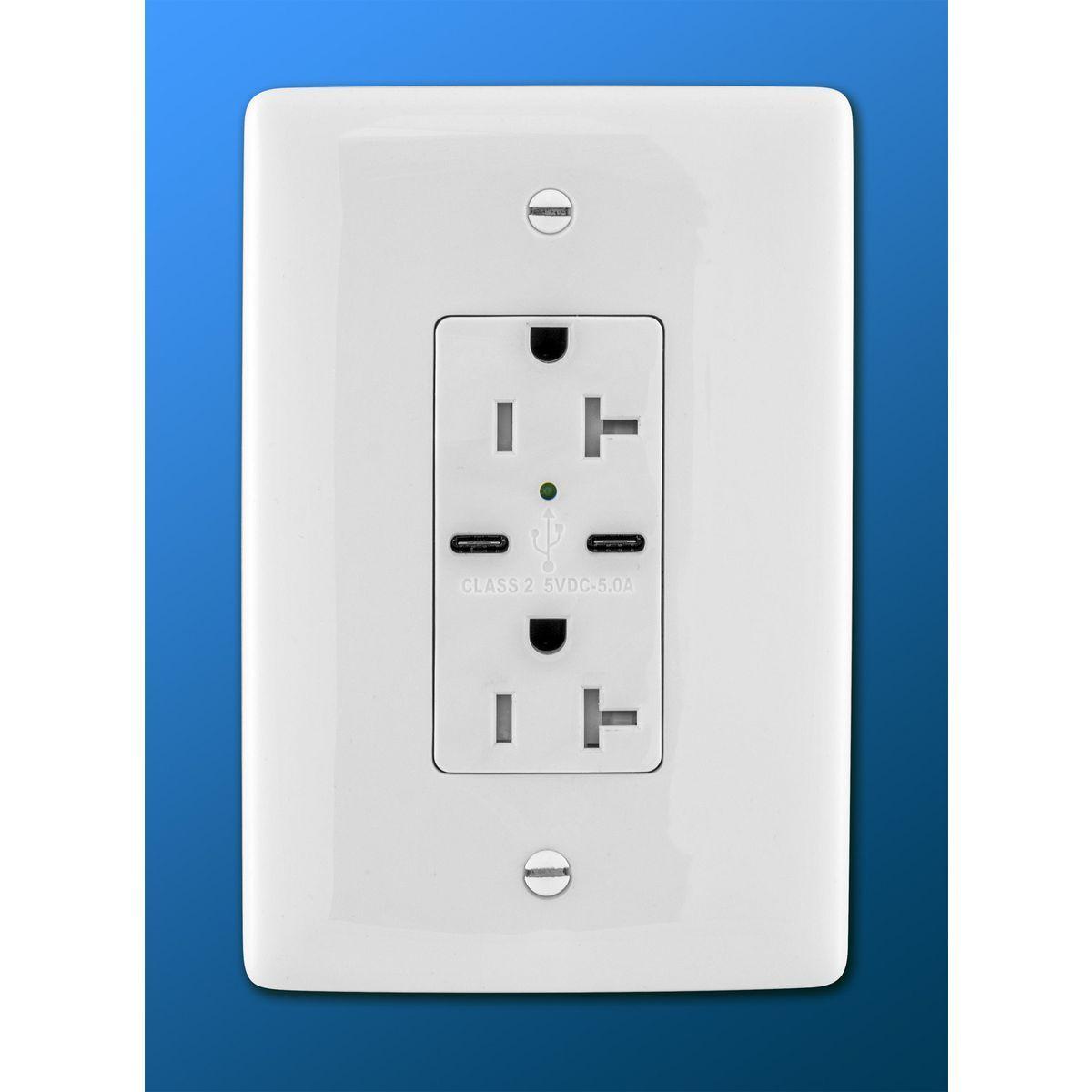

Description: "USB Charger Duplex Receptacle, 20A 125V,2-Pole 3-Wire Grounding, 5-20R, 2) 5A ""C"" USB Ports, White"

Manufacturer PN: USB20C5W

UPC:  88377830752

Kendall Electric Inc PN: 4074203

Invoice Description:

USB20C5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT C WH ZZZZ

UNSPSC: 39121406


SPEC SHEET

How Can We Make This Page Better?

USB20C5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT C WH ZZZZ

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

"USB Charger Duplex Receptacle, 20A 125V,2-Pole 3-Wire Grounding, 5-20R, 2) 5A ""C"" USB Ports, White"

Specifications

 Amperage Rating 20.000000000000000 A
 Application USB Charging/Power
 Brand Name Hubbell Premise Wiring
 Connection Terminal Screws
 Current Amperage Rating 20 A
 EU RoHS Indicator Contact Manufacturer
 Environmental Conditions Indoor Dry Unless Protected by Additional Means
 FV Current Amperage Rating 20 A
 FV Voltage Rating Description 125 V
 Family Color White
 Material Composite
 Mounting Screw Mount
 NEMA Rating 5-20R
 Number of Poles 2-Pole
 Number of Wires 3-Wire
 Pallet Quantity 3000
 Phase 1
 Product Name "USB Charger Duplex Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 2) 5A ""C"" USB Ports, White"
 Series Heavy Duty
 Size Standard Sized Product
 Special Features 5A V5V DC, Style C
 Standard UL/CSA
 Type Two Type-C Port
 Voltage Rating 125 AC
 Voltage Rating Description 125 V
 Wattage 2500 W
