Hubbell

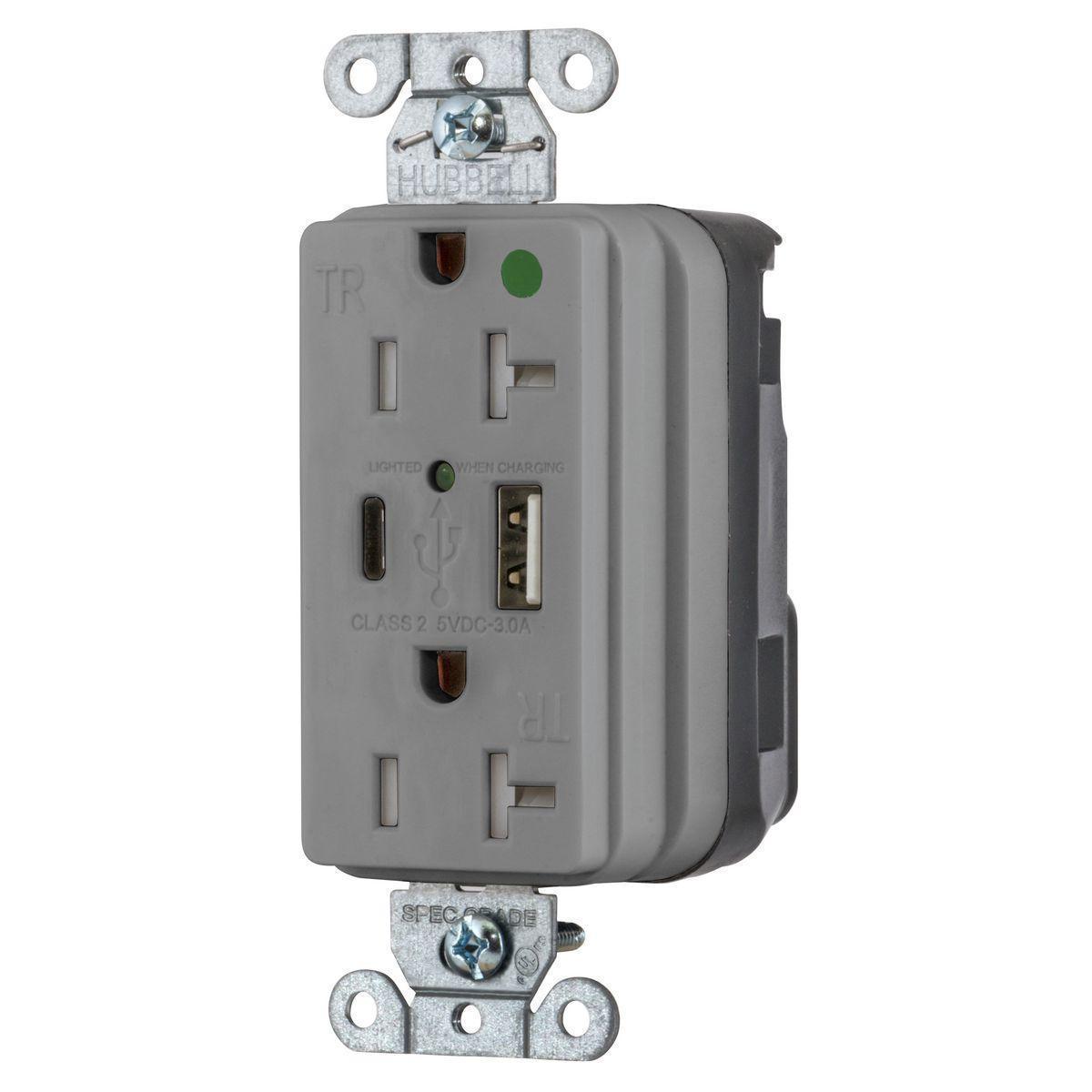

SNAP8300UACGY HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, GY ZZZZ

Mouse over image to zoom, click to enlarge

  • SNAP8300UACGY HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, GY ZZZZ
  • SNAP8300UACGY HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, GY ZZZZ
  • SNAP8300UACGY HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, GY ZZZZ
  • SNAP8300UACGY HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, GY ZZZZ

Description: Hubbell Wiring Device-Kellems SNAPConnect® USB Charger Receptacle, Decorator Duplex Straight Blade, 20 A, 125 V DC, 2500 W Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 3 A, 9 VDC USB, 4.13 in H x 1.84 in D Size, Screw/Snap Connection, Threaded Mounting, Hospital Grade, Wiring Method: Grounding, Nylon/Thermoplastic, Gray, Environmental Conditions: -40 to 75 deg C Operating, NEMA 5-20R Enclosure

Manufacturer PN: SNAP8300UACGY

UPC:  88377830862

Kendall Electric Inc PN: 4048689

Invoice Description:

SNAP8300UACGY HUBBELL USB CHG SNAP HG 20A125V DUP 5A PT AC, GY ZZZZ


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems SNAPConnect® SNAP8300UACGY Decorator Duplex Straight Blade USB Charger Receptacle, 20 A, 125 V DC, 2500 W, 2 Poles, 3 Wires, Gray

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems SNAPConnect® USB Charger Receptacle, Decorator Duplex Straight Blade, 20 A, 125 V DC, 2500 W Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 3 A, 9 VDC USB, 4.13 in H x 1.84 in D Size, Screw/Snap Connection, Threaded Mounting, Hospital Grade, Wiring Method: Grounding, Nylon/Thermoplastic, Gray, Environmental Conditions: -40 to 75 deg C Operating, NEMA 5-20R Enclosure

Specifications

 Brand Name Hubbell Premise Wiring
 Color Gray
 Connection Screw/Snap
 Electrical Ratings 20 A, 125 V DC, 2500 W
 Environmental Conditions -40 to 75 deg C Operating, NEMA 5-20R Enclosure
 Grade Hospital
 Manufacturer Part Number SNAP8300UACGY
 Material Nylon/Thermoplastic
 Mounting Threaded
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS SNAP8300UACGY ; 14568517 ; 883778308628 ; 88377830862 ; 00883778308628
 Size 4.13 in H x 1.84 in D
 Standards/Approvals cULus Listed|UL 498|UL 1310|CSA Certified
 Type Decorator Duplex Straight Blade
 USB Rating 3 A, 9 V DC
 USB Type Type-A USB 2.0/C
 Wiring Method Grounding

Features

▪ Combination Ports, One Type A, One Type C
▪ High Power 3 A up to 9 V USB Output
▪ USB Ports Rated 10,000 Cycles
