Schneider Electric
  • RPM32JD SQD PLUG-IN RELAY 250V 15A ZZZZ
  • RPM32JD SQD PLUG-IN RELAY 250V 15A ZZZZ
  • RPM32JD SQD PLUG-IN RELAY 250V 15A ZZZZ
  • RPM32JD SQD PLUG-IN RELAY 250V 15A ZZZZ
  • RPM32JD SQD PLUG-IN RELAY 250V 15A ZZZZ

Description: Schneider Electric Power Relay, Series: Zelio™ RPM, 15 A, 12 V DC Coil, 3CO 3 Form C 3PDT, 12 V DC, 15 A Contact, Plug-In Mount, Flat Terminal, LED, IP40, -40 to 55 deg C, 1.06 in H x 1.54 in W x 1.22 in D

Manufacturer PN: RPM32JD

UPC:  38911940210

Kendall Electric Inc PN: 4172539

Invoice Description:

RPM32JD SQD PLUG-IN RELAY 250V 15A ZZZZ


SPEC SHEET

How Can We Make This Page Better?

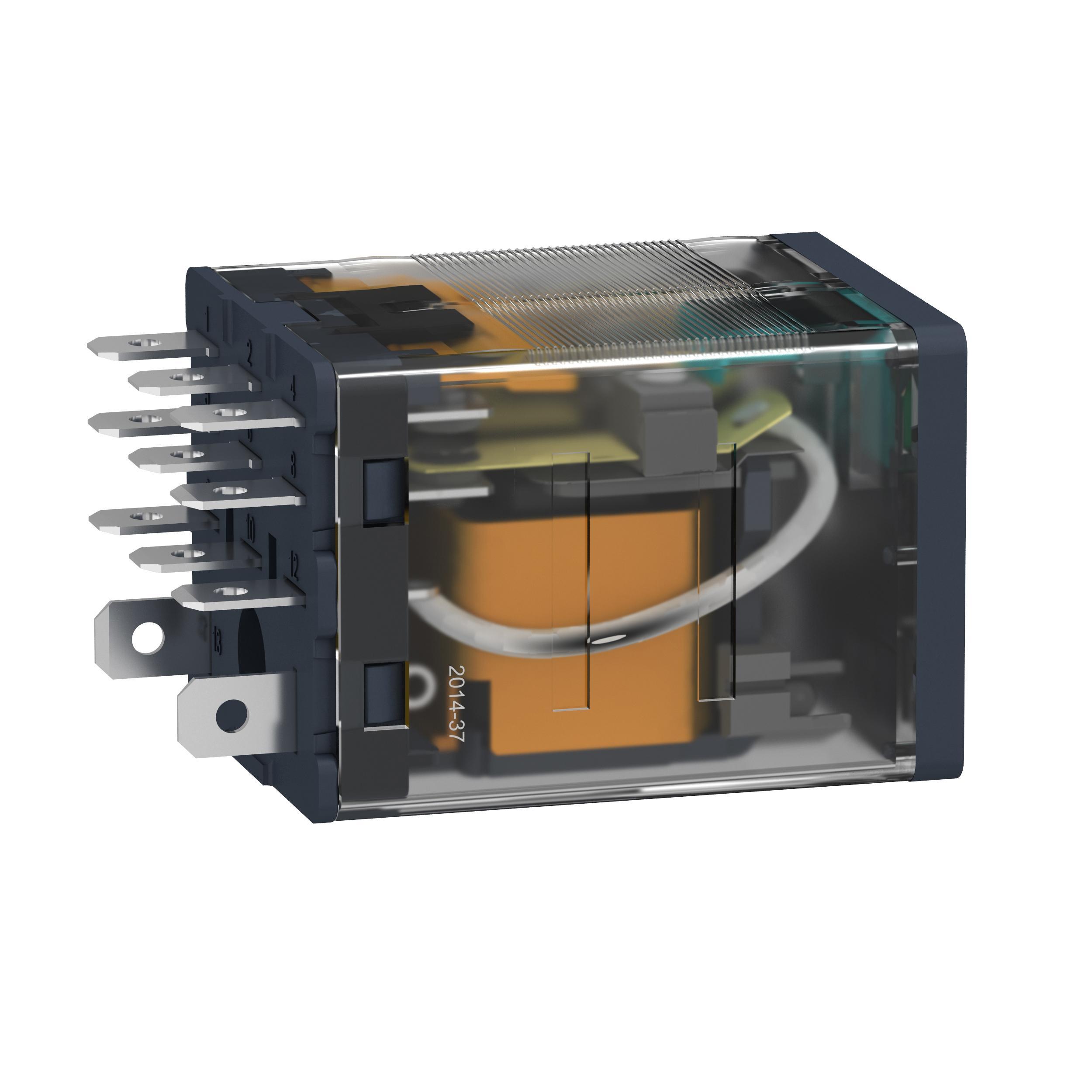

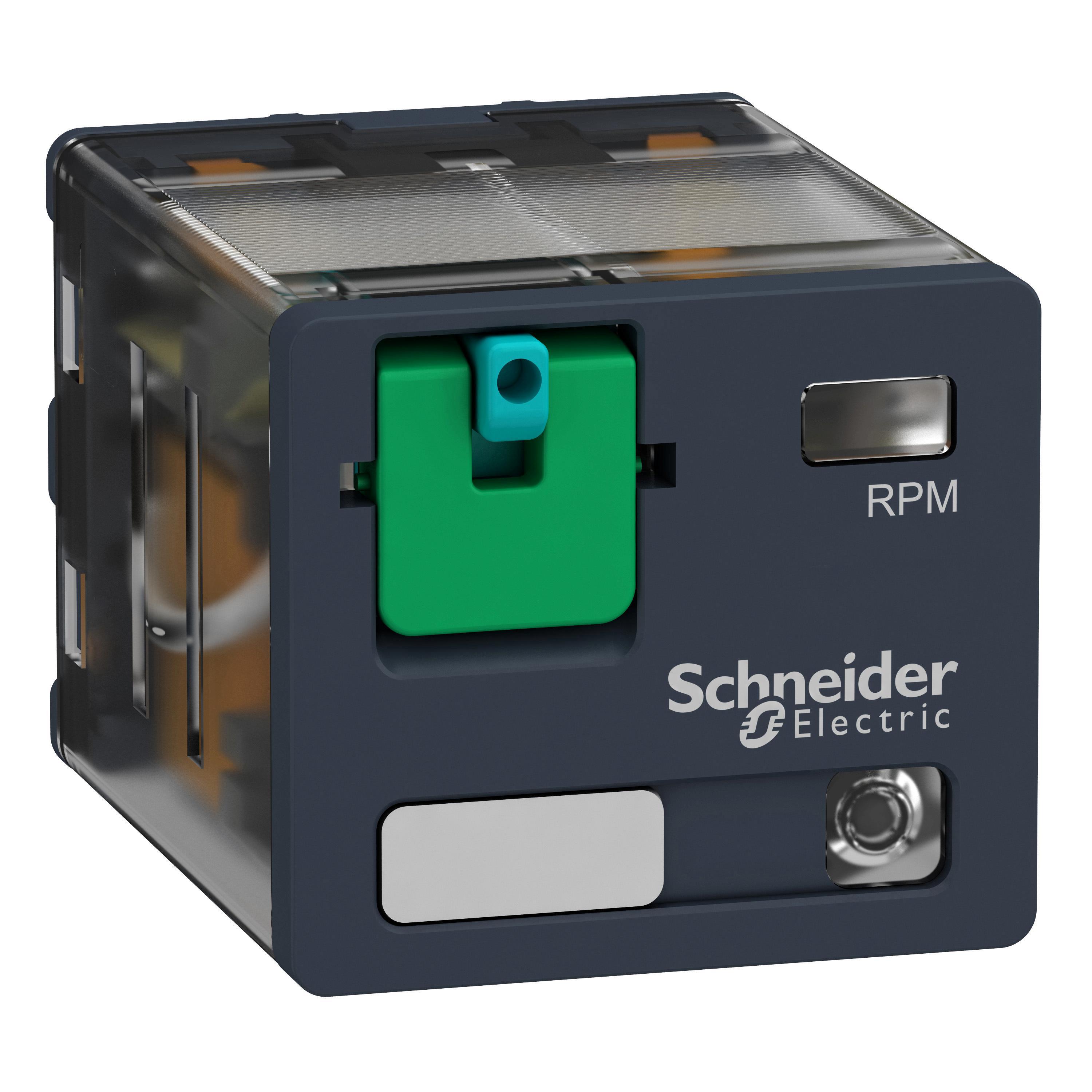

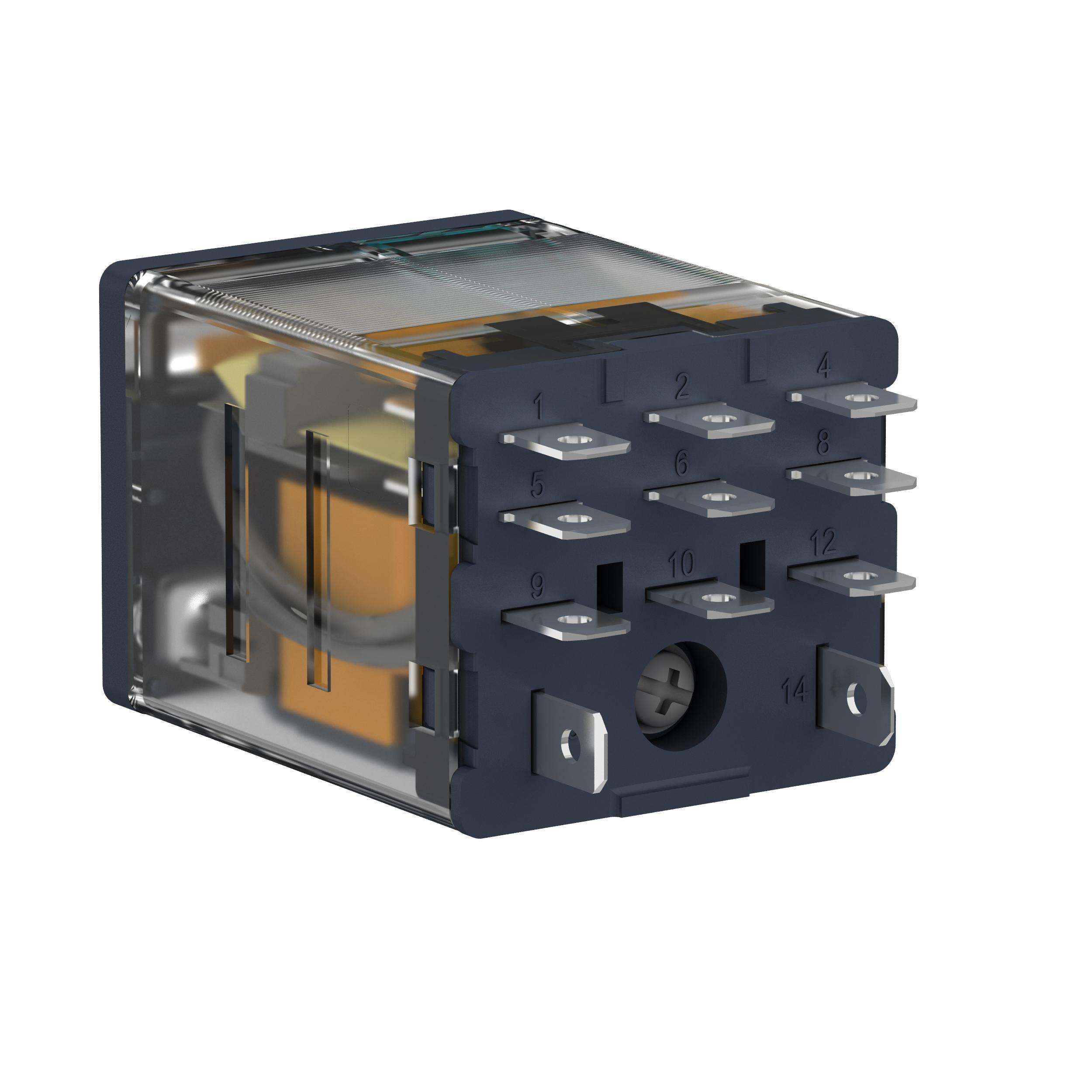

Schneider Electric RPM32JD Zelio™ RPM Power Relay With Lockable Test Button, 15 A, 3CO 3 Form C 3PDT Contact, 12 V DC V Coil

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Schneider Electric Power Relay, Series: Zelio™ RPM, 15 A, 12 V DC Coil, 3CO 3 Form C 3PDT, 12 V DC, 15 A Contact, Plug-In Mount, Flat Terminal, LED, IP40, -40 to 55 deg C, 1.06 in H x 1.54 in W x 1.22 in D

Specifications

 Amperage Rating 15 A
 Application General Purpose Applications
 Brand Name Square D
 Coil Voltage 12 V DC
 Contact Form 3CO 3 Form C 3PDT
 Contact Rating 12 V DC, 15 A
 Dimensions 1.06 in H x 1.54 in W x 1.22 in D
 Enclosure IP40
 Manufacturer Part Number RPM32JD
 Mounting Type Plug-In
 PART NUMBER KEYWORDS RPM32JD ; 9584344 ; 785901984801 ; 78590198480 ; 03389119402101 ; 3389119402101
 Series Zelio™ RPM
 Standards/Approvals RoHS Compliant|Green Premium|REACH Compliant|UL Listed|CSA C22.2 File No. 14|EN 61810-1|IEC 61810-1|UL 508|EAC Certified|WEEE Compliant|EN/IEC 60529|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 55 deg C
 Terminal Type Flat
 Video Links

Features

▪ It has LED indicators, a removable legend and a lock-down door

Resources

 Catalog Page
 Product Data Sheet
 RoHS
