Schneider Electric
  • ZBVJ4 SQD PUSHBUTTON LIGHT MODULE
  • ZBVJ4 SQD PUSHBUTTON LIGHT MODULE
  • ZBVJ4 SQD PUSHBUTTON LIGHT MODULE
  • ZBVJ4 SQD PUSHBUTTON LIGHT MODULE
  • ZBVJ4 SQD PUSHBUTTON LIGHT MODULE

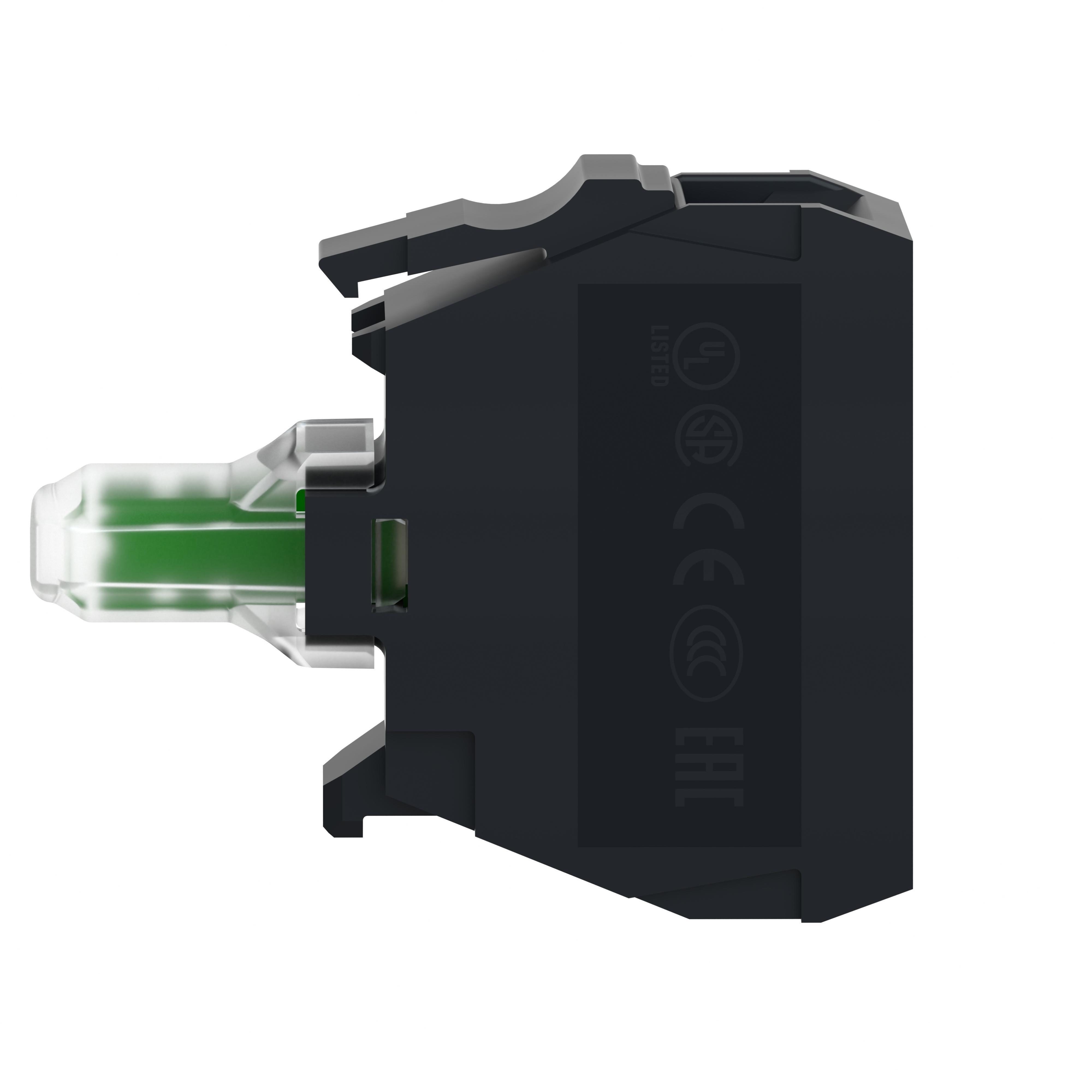

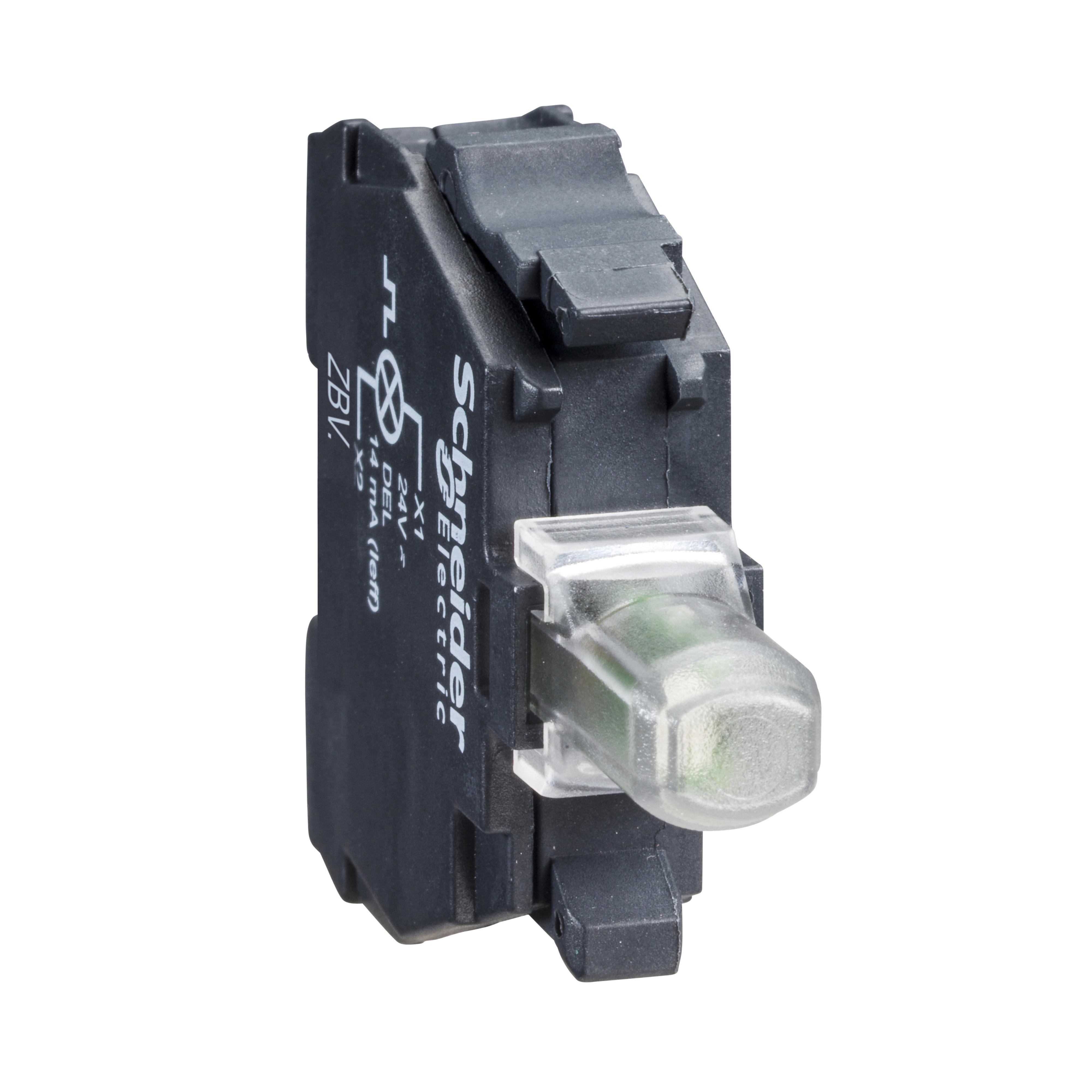

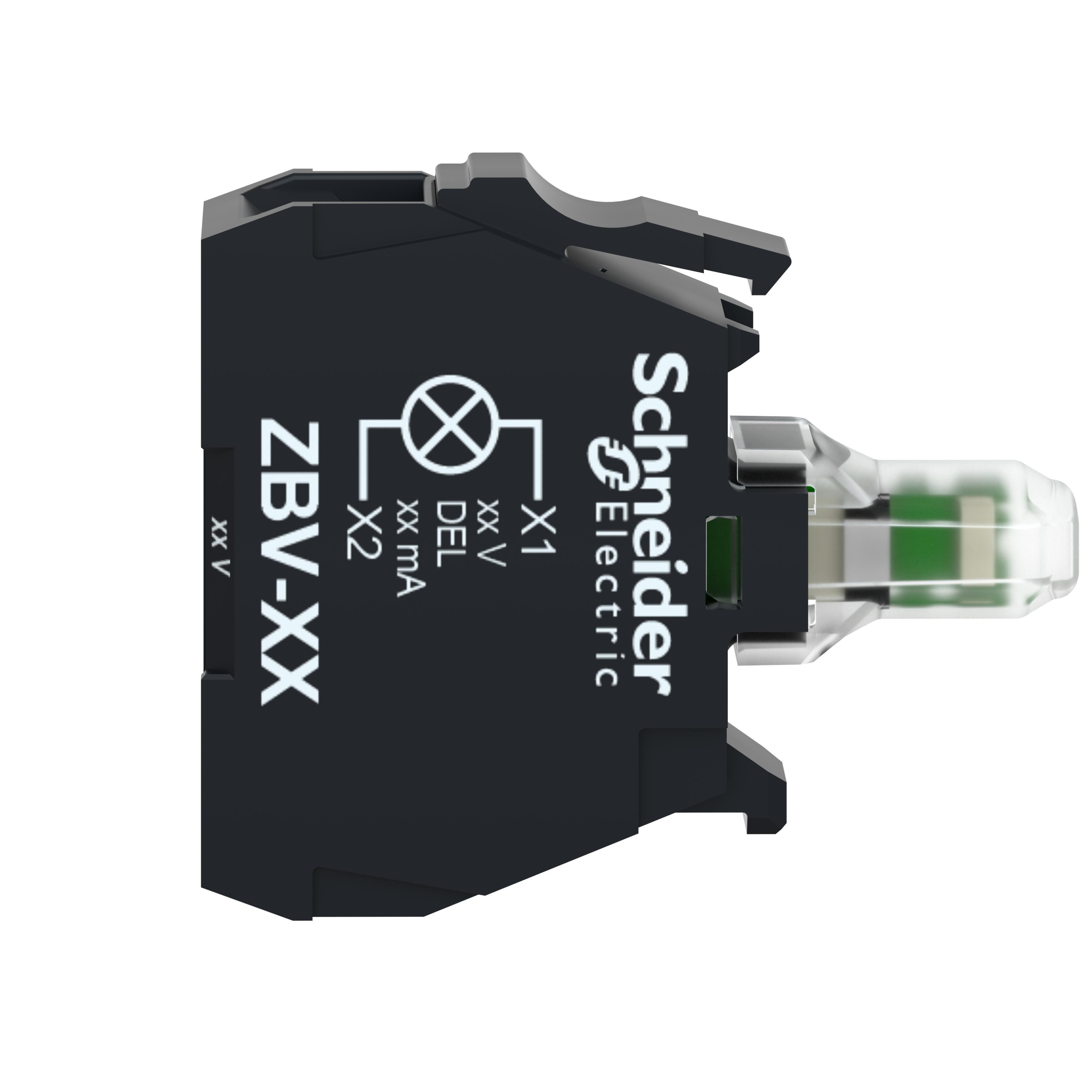

Description: Schneider Electric Harmony™ Square D™ Light Block, Steady Signal, Series: ZBV, 22 mm Size, LED Lamp, 12 V AC/DC, Screw Clamp Terminal, Front Mounting, Plastic, Red, 0.39 in W Dimensions

Manufacturer PN: ZBVJ4

UPC:  38911006998

Kendall Electric Inc PN: 3960290

Invoice Description:

ZBVJ4 SQD PUSHBUTTON LIGHT MODULE


SPEC SHEET

▸ See All in Pushbutton & Switch Lamp Modules


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ ZBVJ4 Steady Signal Light Block, 22 mm, LED Lamp, 12 V AC/DC, Screw Clamp Terminal, Red

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated pushbutton or selector switch units via clip together assembly and connected with simple screw clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Schneider Electric Harmony™ Square D™ Light Block, Steady Signal, Series: ZBV, 22 mm Size, LED Lamp, 12 V AC/DC, Screw Clamp Terminal, Front Mounting, Plastic, Red, 0.39 in W Dimensions

Specifications

 Application For use with XB4/XB5 metal pushbuttons
 Brand Name Square D
 Color Red
 Dimensions 0.39 in W
 Includes Bulb
 Lamp Type LED
 Manufacturer Part Number ZBVJ4
 Material Plastic
 Mounting Type Front
 PART NUMBER KEYWORDS ZBVJ4 ; 8131574 ; 785901696247 ; 78590169624 ; 03389110069983 ; 3389110069983
 Series ZBV
 Size 22 mm
 Standards/Approvals RoHS Compliant|CSA C22.2 No. 14|EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, EN/IEC 60947-5-4|JIS C 4520|UL 508|WEEE Compliant|Green Premium|REACH Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Terminal Type Screw Clamp
 Type Steady Signal
 Video Links
 Voltage Rating 12 V AC/DC
