Schneider Electric
  • ZBVBG1 SQD PUSHBUTTON LIGHT MODULE
  • ZBVBG1 SQD PUSHBUTTON LIGHT MODULE
  • ZBVBG1 SQD PUSHBUTTON LIGHT MODULE
  • ZBVBG1 SQD PUSHBUTTON LIGHT MODULE
  • ZBVBG1 SQD PUSHBUTTON LIGHT MODULE

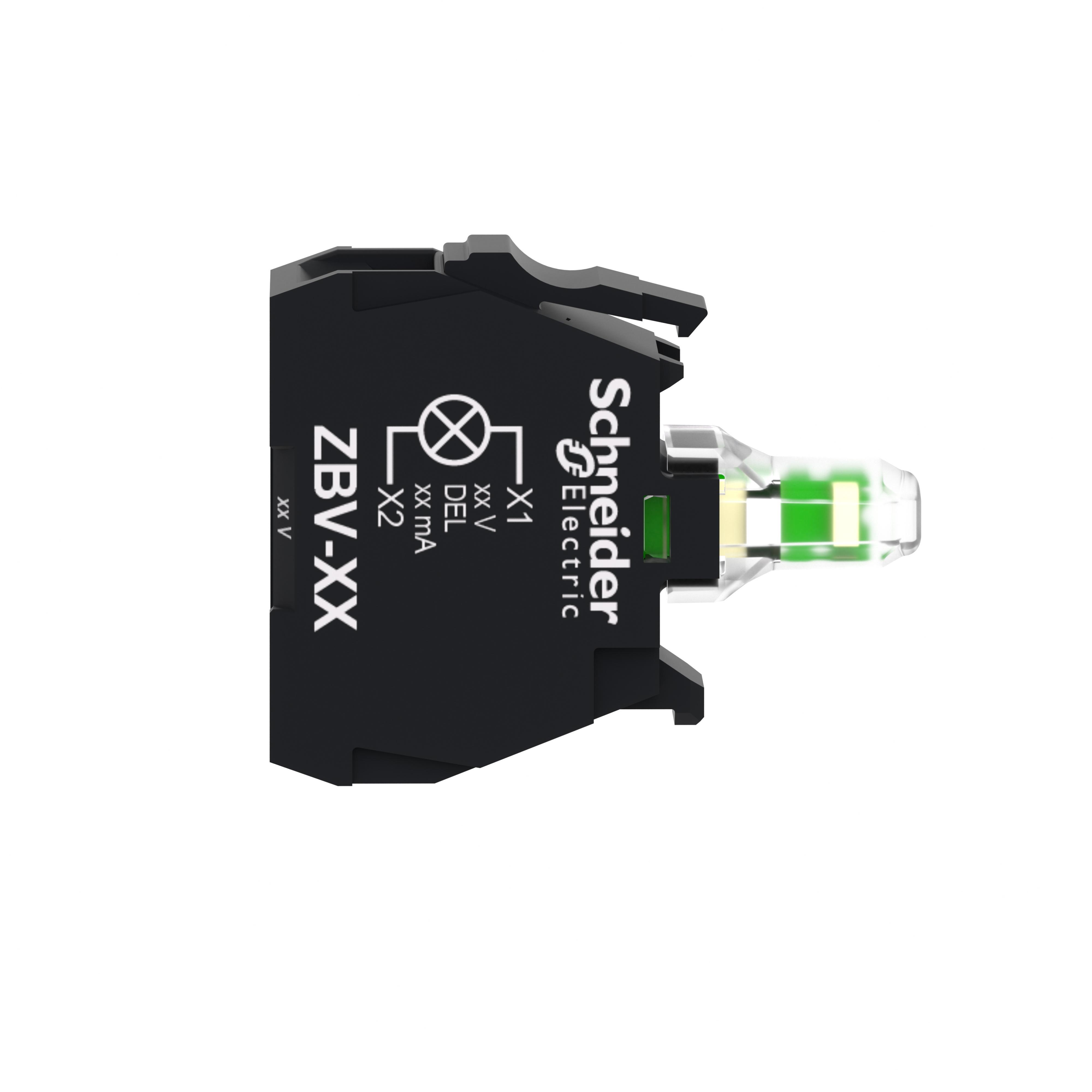

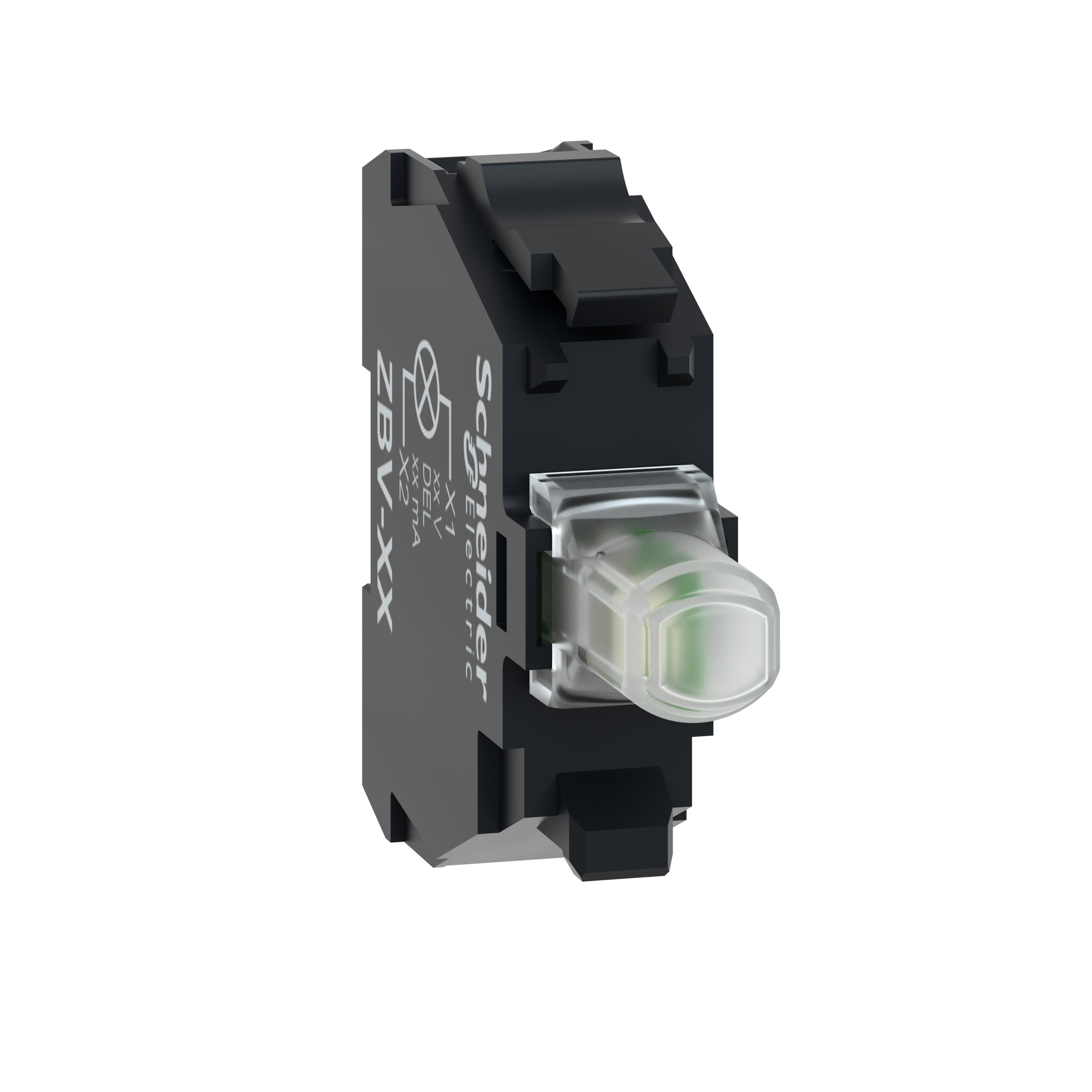

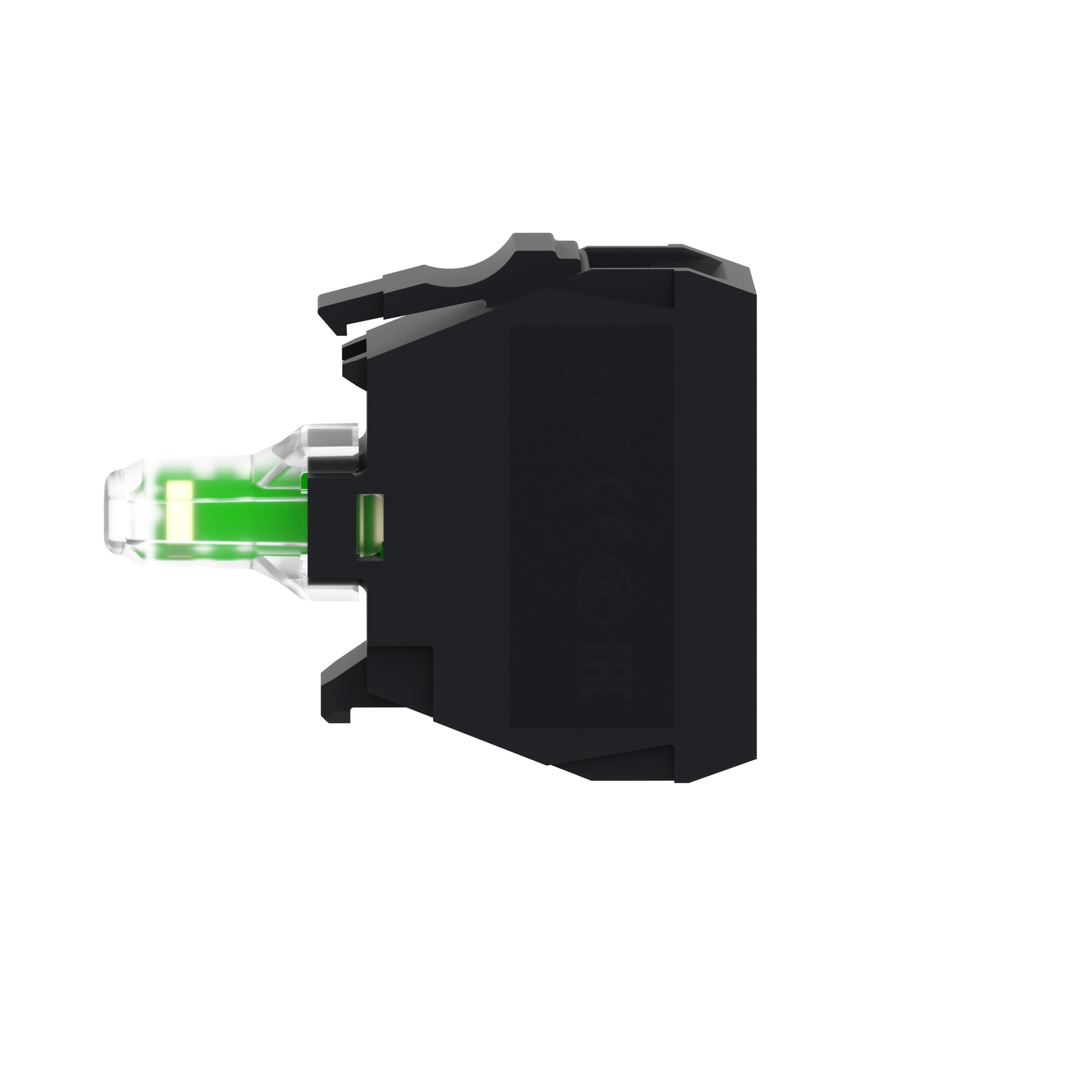

Description: Schneider Electric, ZBVBG1, Light Module, Series: ZBV, 22 mm Dia Size, LED Lamp, 24 to 120 V AC/DC, Screw Clamp Terminal, Front Mounting, White

Manufacturer PN: ZBVBG1

UPC:  38911007042

Kendall Electric Inc PN: 3961188

Invoice Description:

ZBVBG1 SQD PUSHBUTTON LIGHT MODULE


SPEC SHEET

▸ See All in Pushbutton & Switch Lamp Modules


How Can We Make This Page Better?

Schneider Electric ZBVBG1 ZBV Light Module, 22 mm Dia, LED Lamp, 24 to 120 V AC/DC, Screw Clamp Terminal, White

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony ZB, white light block operates with a universal LED. It is supplied with 24V to 120V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Schneider Electric, ZBVBG1, Light Module, Series: ZBV, 22 mm Dia Size, LED Lamp, 24 to 120 V AC/DC, Screw Clamp Terminal, Front Mounting, White

Specifications

 Application Xb4 and Xb5 Series 20 Mm Size Pushbutton
 Brand Name Square D
 Color White
 Lamp Type LED
 Manufacturer Part Number ZBVBG1
 Mounting Type Front
 Series ZBV
 Size 22 mm Dia
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 508|CSA C22.2 #14|JIS C-4520|EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Screw Clamp
 Video Links
 Voltage Rating 24 to 120 V AC/DC

Features

▪ Compatible with improved color heads
▪ Universal LED block to be used for all colors
▪ Quick and easy assembly and disassembly
▪ Excellent mechanical connection with operator head
▪ Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
