Schneider Electric
  • ZBVB35 SQD 24V AC/DC LEDGREEN ZZZZ
  • ZBVB35 SQD 24V AC/DC LEDGREEN ZZZZ
  • ZBVB35 SQD 24V AC/DC LEDGREEN ZZZZ
  • ZBVB35 SQD 24V AC/DC LEDGREEN ZZZZ
  • ZBVB35 SQD 24V AC/DC LEDGREEN ZZZZ

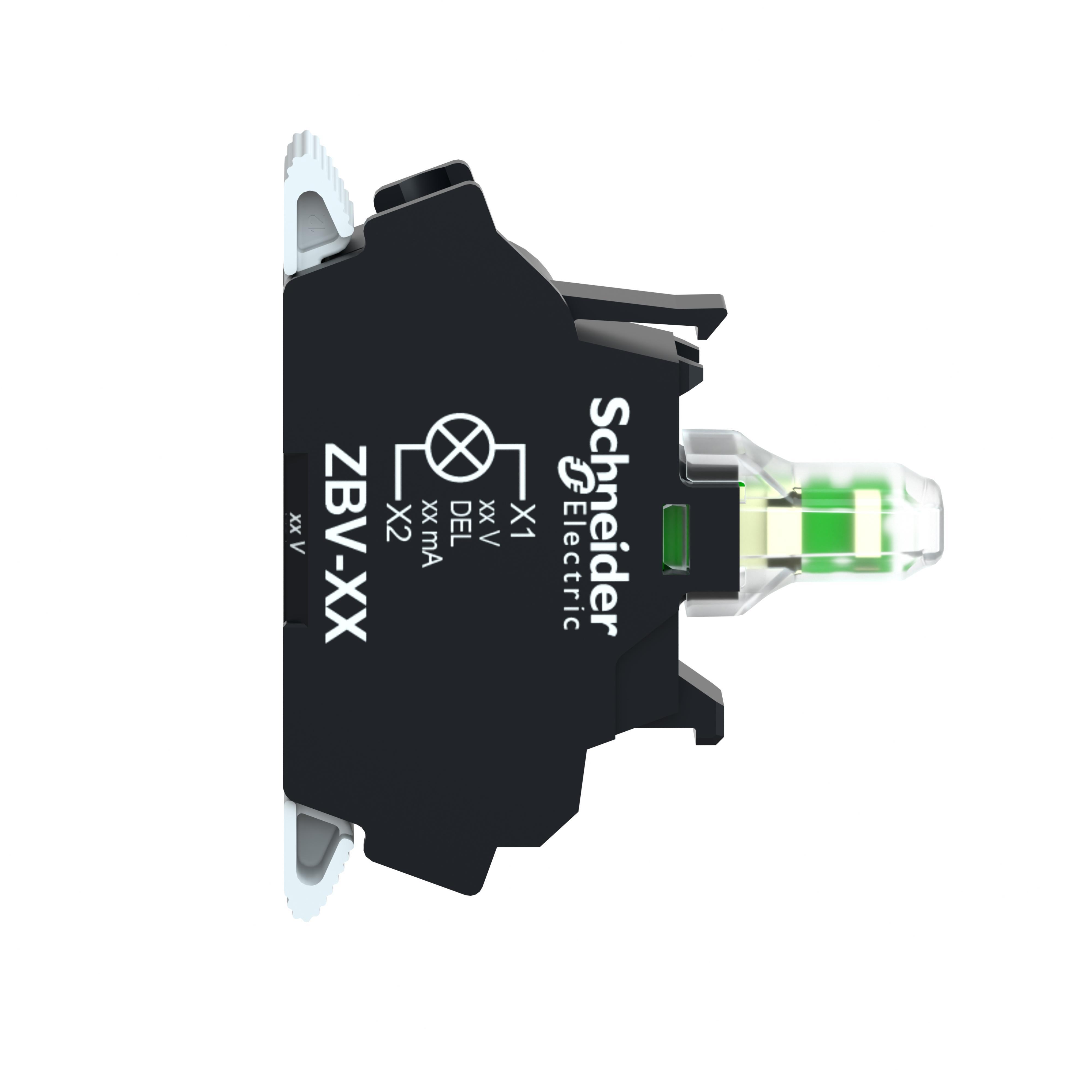

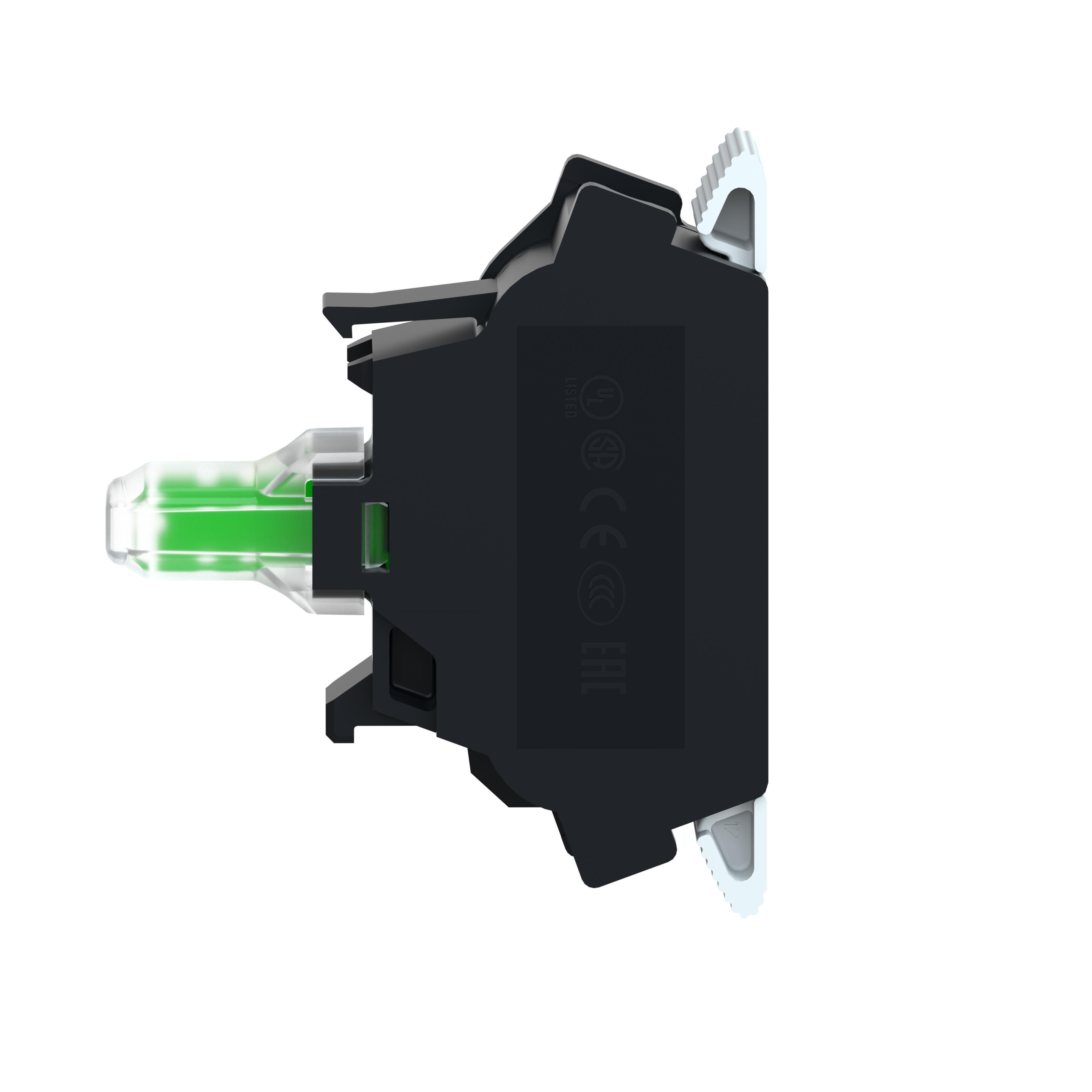

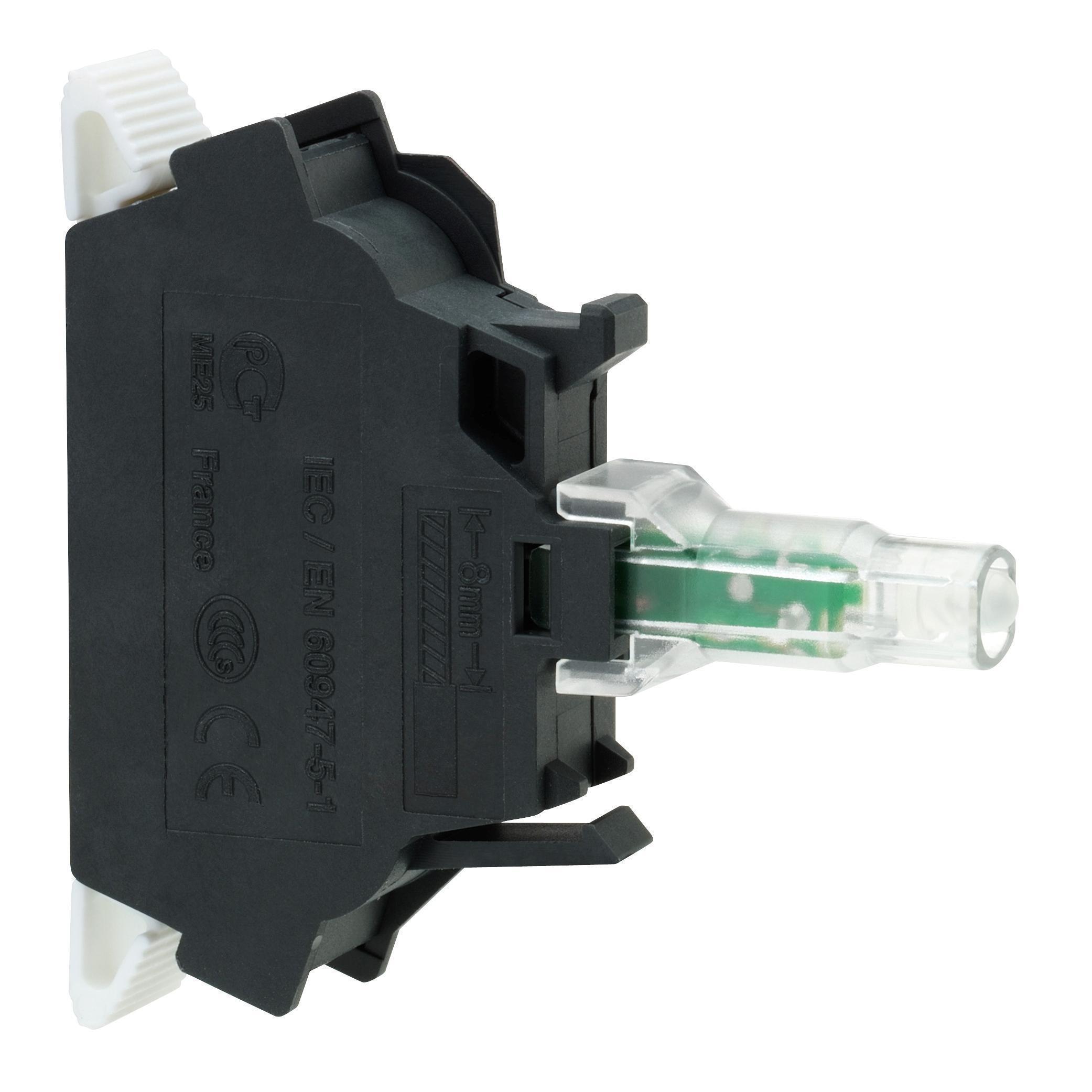

Description: Schneider Electric, ZBVB35, Light Module, Series: ZBV, 22 mm Dia Size, LED Lamp, 24 V AC/DC, Spring Clamp Terminal, Front Mounting, Green

Manufacturer PN: ZBVB35

UPC:  38911903750

Kendall Electric Inc PN: 3963005

Invoice Description:

ZBVB35 SQD 24V AC/DC LEDGREEN ZZZZ


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric ZBVB35 ZBV Light Module, 22 mm Dia, LED Lamp, 24 V AC/DC, Spring Clamp Terminal, Green

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated pushbutton or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Schneider Electric, ZBVB35, Light Module, Series: ZBV, 22 mm Dia Size, LED Lamp, 24 V AC/DC, Spring Clamp Terminal, Front Mounting, Green

Specifications

 Application Xb4 and Xb5 Series 20 Mm Size Pushbutton
 Brand Name Square D
 Color Green
 Lamp Type LED
 Manufacturer Part Number ZBVB35
 Mounting Type Front
 PART NUMBER KEYWORDS ZBVB35 ; 10866217 ; 16648663 ; 785901553403 ; 78590155340 ; 03389119037501 ; 3389119037501
 Series ZBV
 Size 22 mm Dia
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 508|CSA C22.2 #14|JIS C-4520|EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Spring Clamp
 Voltage Rating 24 V AC/DC

Features

▪ Green light source color
▪ Protected LED light source and integral LED bulb base
▪ 50/60 Hz frequency
▪ IP20 conforming to IEC 60529 degree of protection
▪ Steady type signaling
▪ 18 mA current consumption
▪ 100000 hr at rated voltage and 25 deg C service life
▪ -40 to 158 deg F operating temperature
▪ Green light source
▪ Steady signaling type
