Schneider Electric

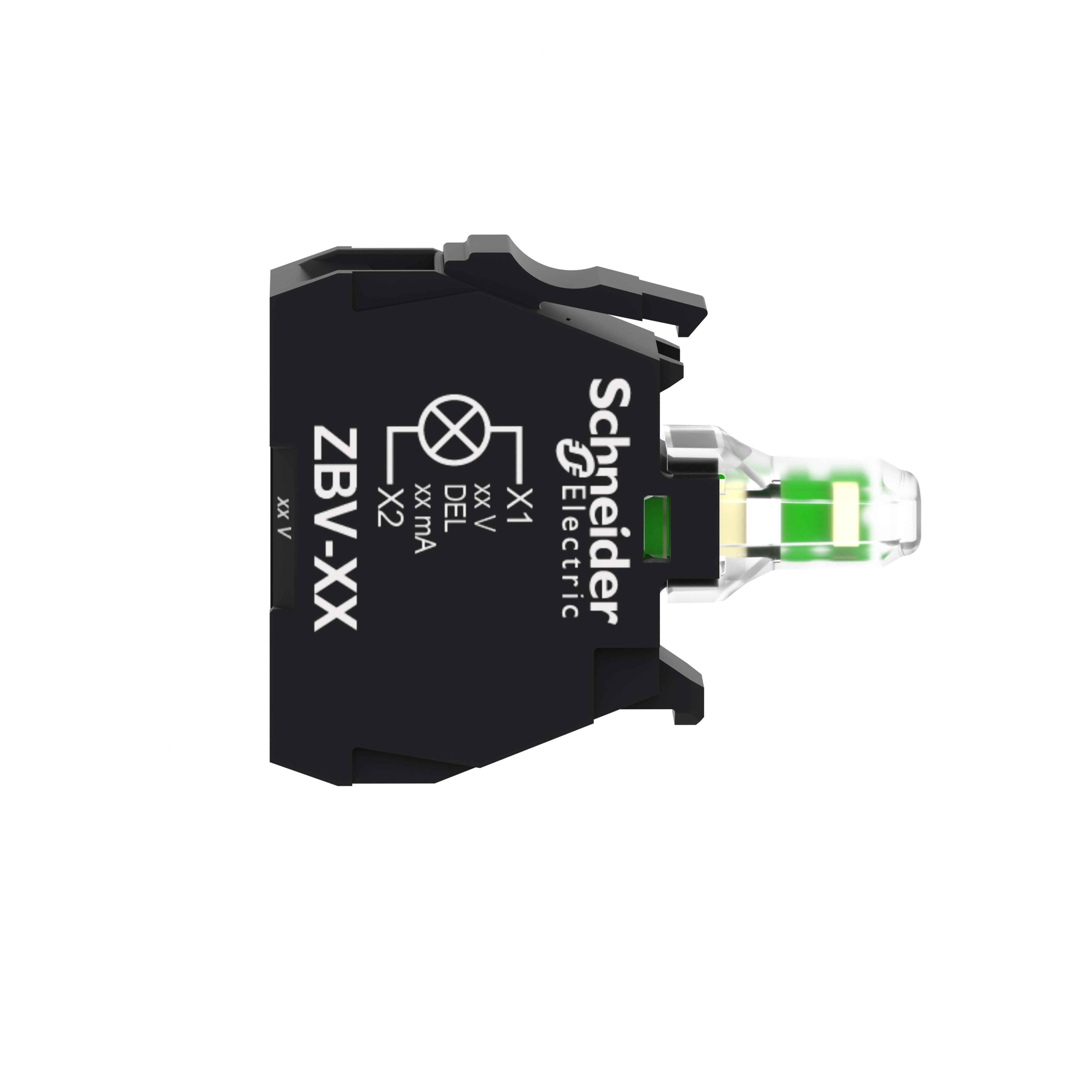

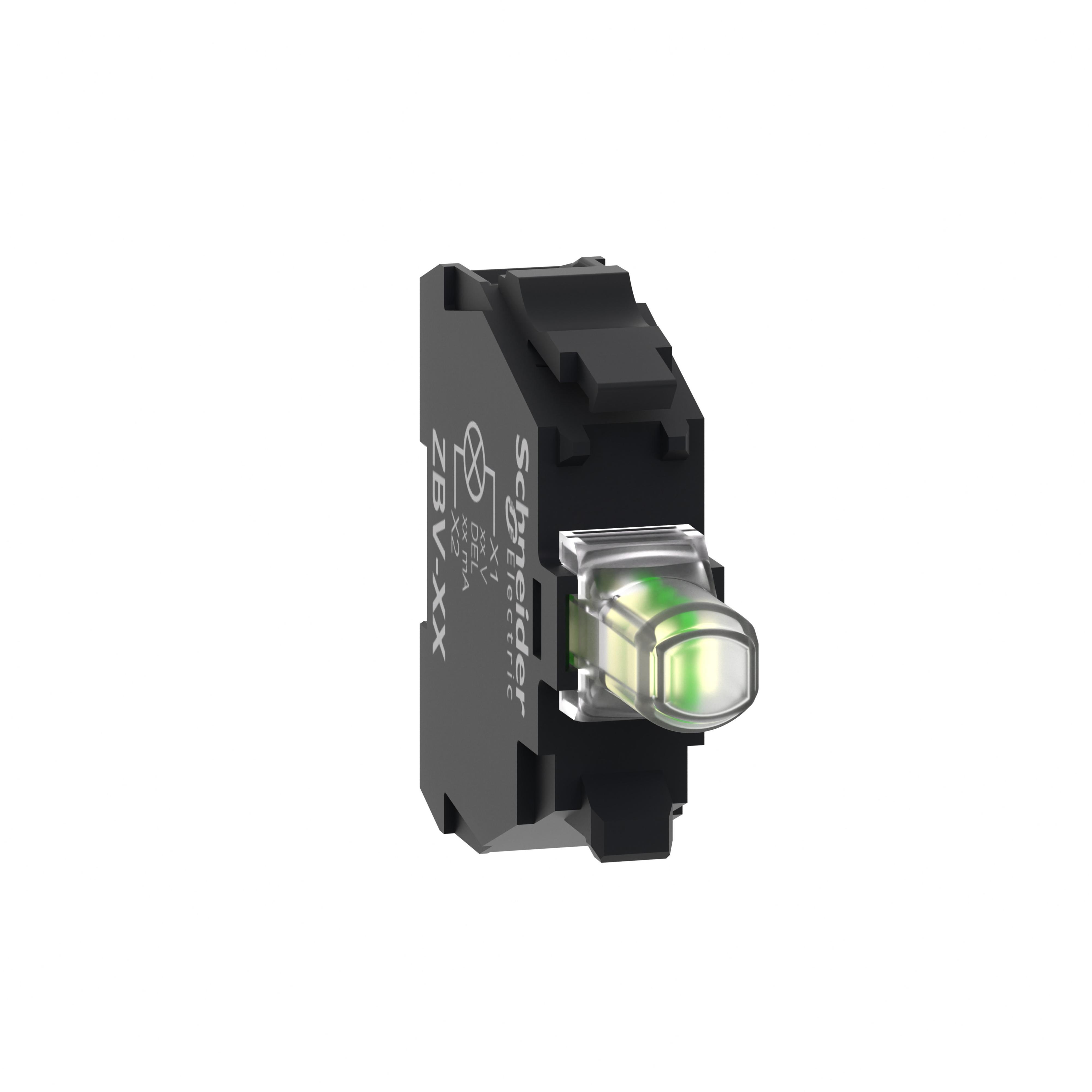

  • ZBVB1 SQD PUSHBUTTON LIGHT MODULE
  • ZBVB1 SQD PUSHBUTTON LIGHT MODULE
  • ZBVB1 SQD PUSHBUTTON LIGHT MODULE
  • ZBVB1 SQD PUSHBUTTON LIGHT MODULE
  • ZBVB1 SQD PUSHBUTTON LIGHT MODULE

Description: Schneider Electric, ZBVB1, Light Block, Round, Series: ZBV, 22 mm Dia Size, LED Lamp, 24 V AC/DC, Screw Clamp Terminal, Front Mounting

Manufacturer PN: ZBVB1

UPC:  38911008961

Kendall Electric Inc PN: 3959324

Invoice Description:

ZBVB1 SQD PUSHBUTTON LIGHT MODULE


SPEC SHEET

▸ See All in Pushbutton & Switch Lamp Modules


How Can We Make This Page Better?

Schneider Electric ZBVB1 ZBV Round Light Block, 22 mm Dia, LED Lamp, 24 V AC/DC, Screw Clamp Terminal

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony ZB, XB5 white Light block operates with a universal LED. It is supplied with 24V AC/DC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Schneider Electric, ZBVB1, Light Block, Round, Series: ZBV, 22 mm Dia Size, LED Lamp, 24 V AC/DC, Screw Clamp Terminal, Front Mounting

Specifications

 Application For use with XB4 and XB5 series 20 mm pushbutton
 Brand Name Square D
 Includes Body/fixing Collar
 Lamp Type LED
 Manufacturer Part Number ZBVB1
 Mounting Type Front
 PART NUMBER KEYWORDS ZBVB1 ; 7999719 ; 785901355380 ; 78590135538 ; 03389110089615 ; 3389110089615
 Series ZBV
 Size 22 mm Dia
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 508|CSA C22.2 No. 14|EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5|JIS C 4520|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Screw Clamp
 Type Round
 Voltage Rating 24 V AC/DC

Features

▪ Compatible with improved color heads
▪ Universal LED block to be used for all colors
▪ Quick and easy assembly and disassembly
▪ Excellent mechanical connection with operator head
▪ Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
