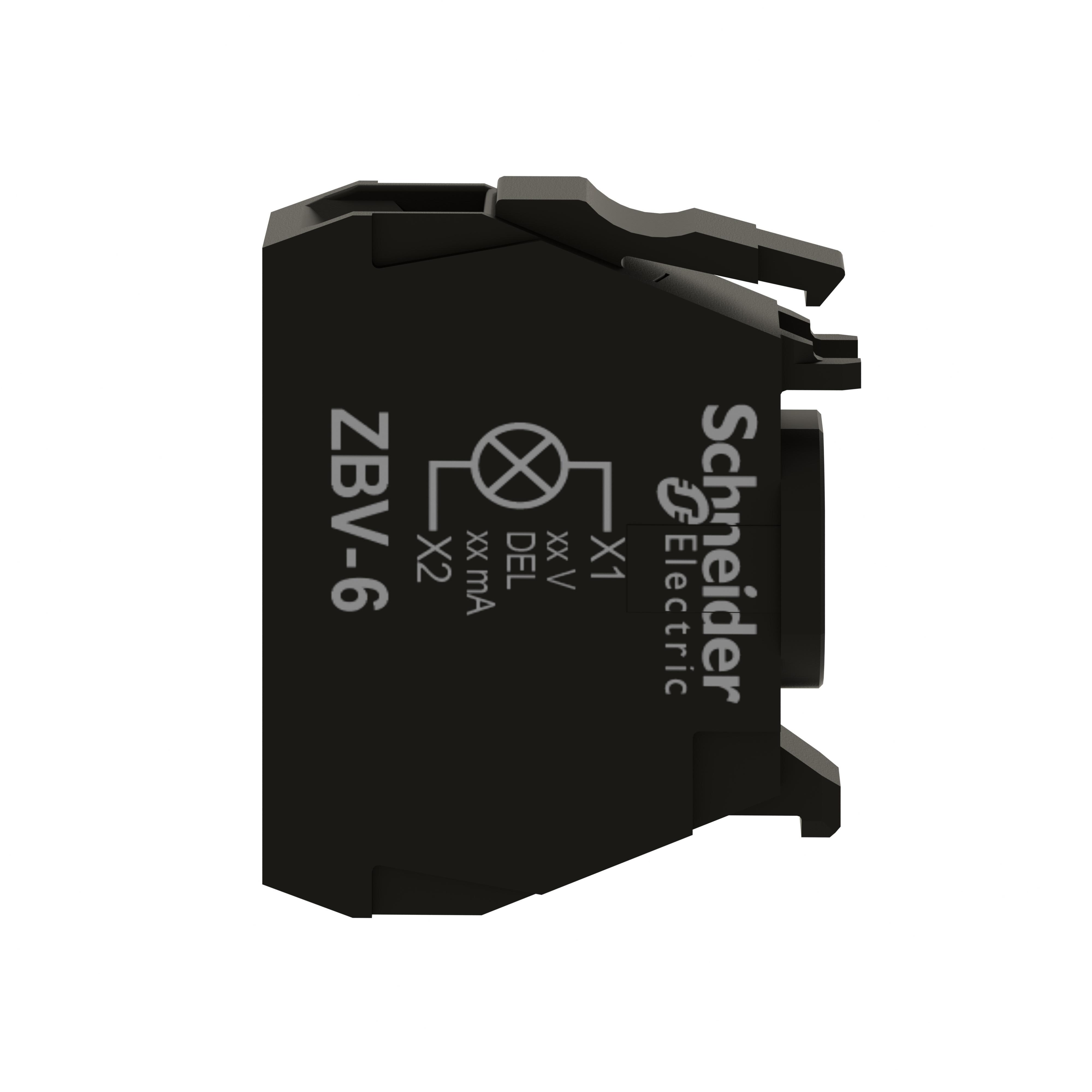

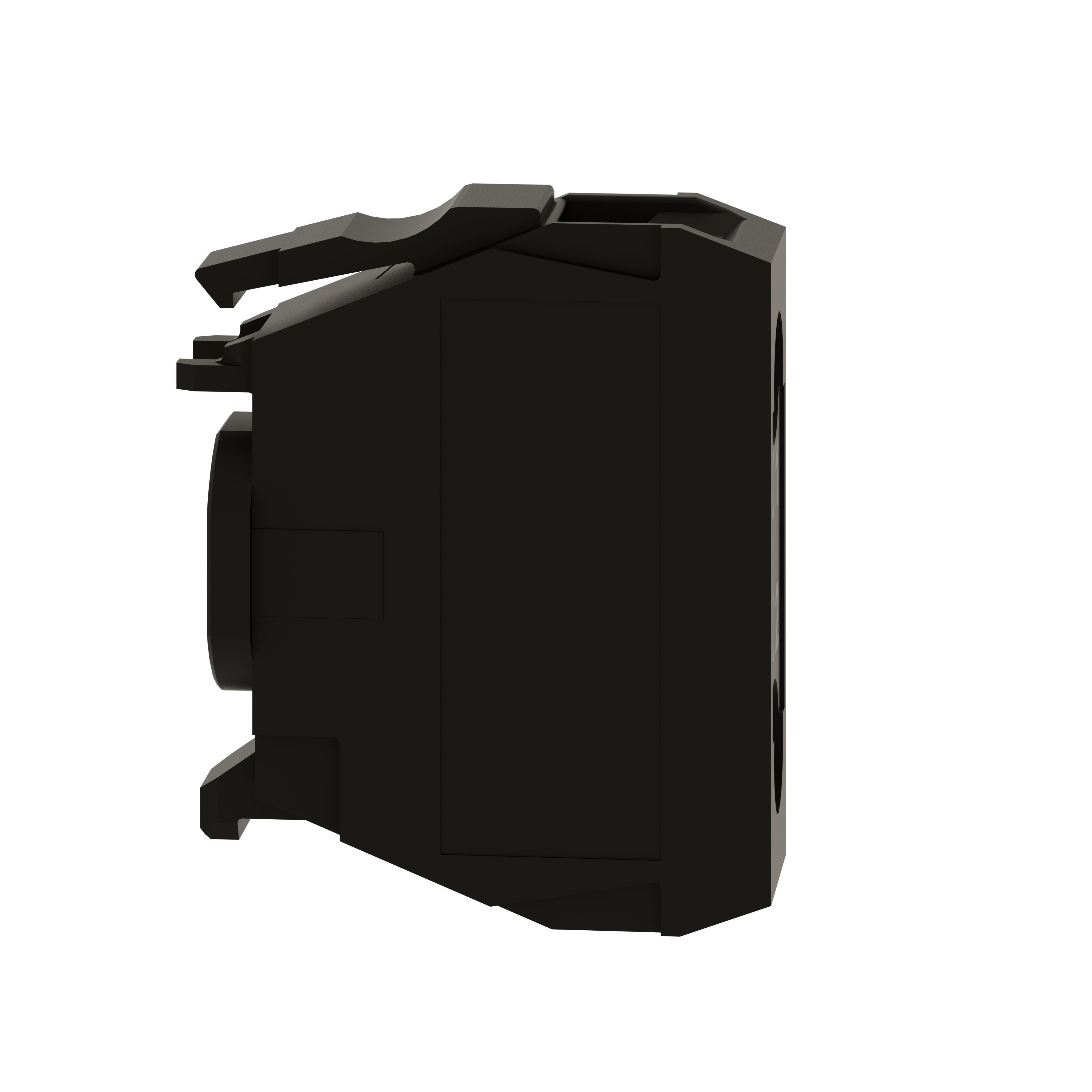

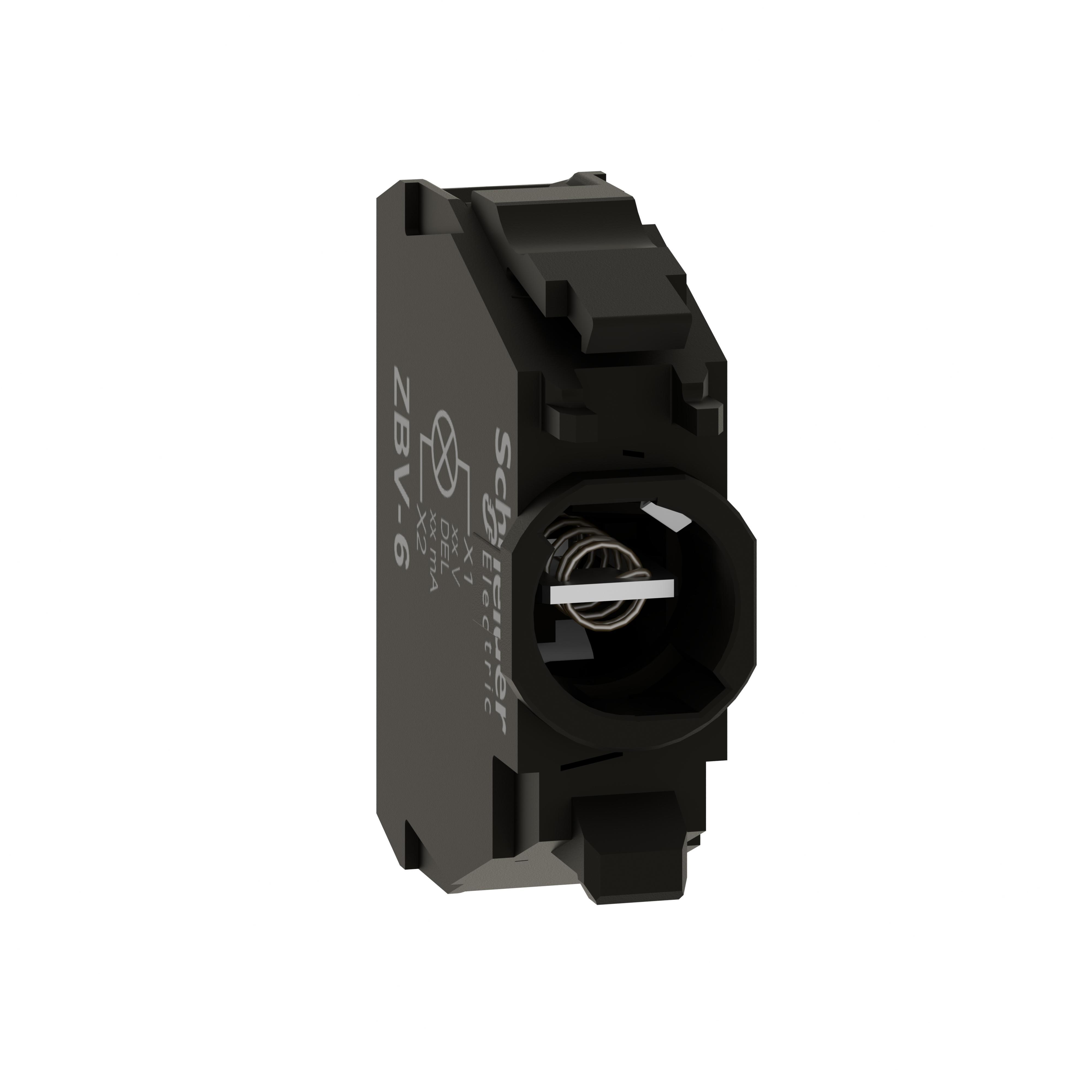

Description: Schneider Electric, ZBV6, Light Block, Round, Series: ZBV, 22 mm Dia Size, Incandescent Lamp, 250 V AC, Screw Clamp Terminal, Front Mounting

Manufacturer PN: ZBV6

UPC:  38911008960

Kendall Electric Inc PN: 4001160

Invoice Description:

ZBV6 SQD PUSHBUTTON LIGHT MODULE


SPEC SHEET

▸ See All in Pushbutton & Switch Lamp Modules


How Can We Make This Page Better?

Schneider Electric ZBV6 ZBV Round Light Block, 22 mm Dia, Incandescent Lamp, 250 V AC, Screw Clamp Terminal

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony ZB, light block without bulb operates with BA9s Base. It is supplied with 250V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by connected with BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Schneider Electric, ZBV6, Light Block, Round, Series: ZBV, 22 mm Dia Size, Incandescent Lamp, 250 V AC, Screw Clamp Terminal, Front Mounting

Specifications

 Application For use with XB4, XB5 series 20 mm size pushbutton
 Brand Name Square D
 Includes Body/fixing Collar
 Lamp Type Incandescent
 Manufacturer Part Number ZBV6
 Mounting Type Front
 PART NUMBER KEYWORDS ZBV6 ; 7999713 ; 785901355373 ; 78590135537 ; 03389110089608 ; 3389110089608
 Series ZBV
 Size 22 mm Dia
 Standards/Approvals RoHS Compliant|UL 508|CSA C22.2 No. 14|JIS C-4520|EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov

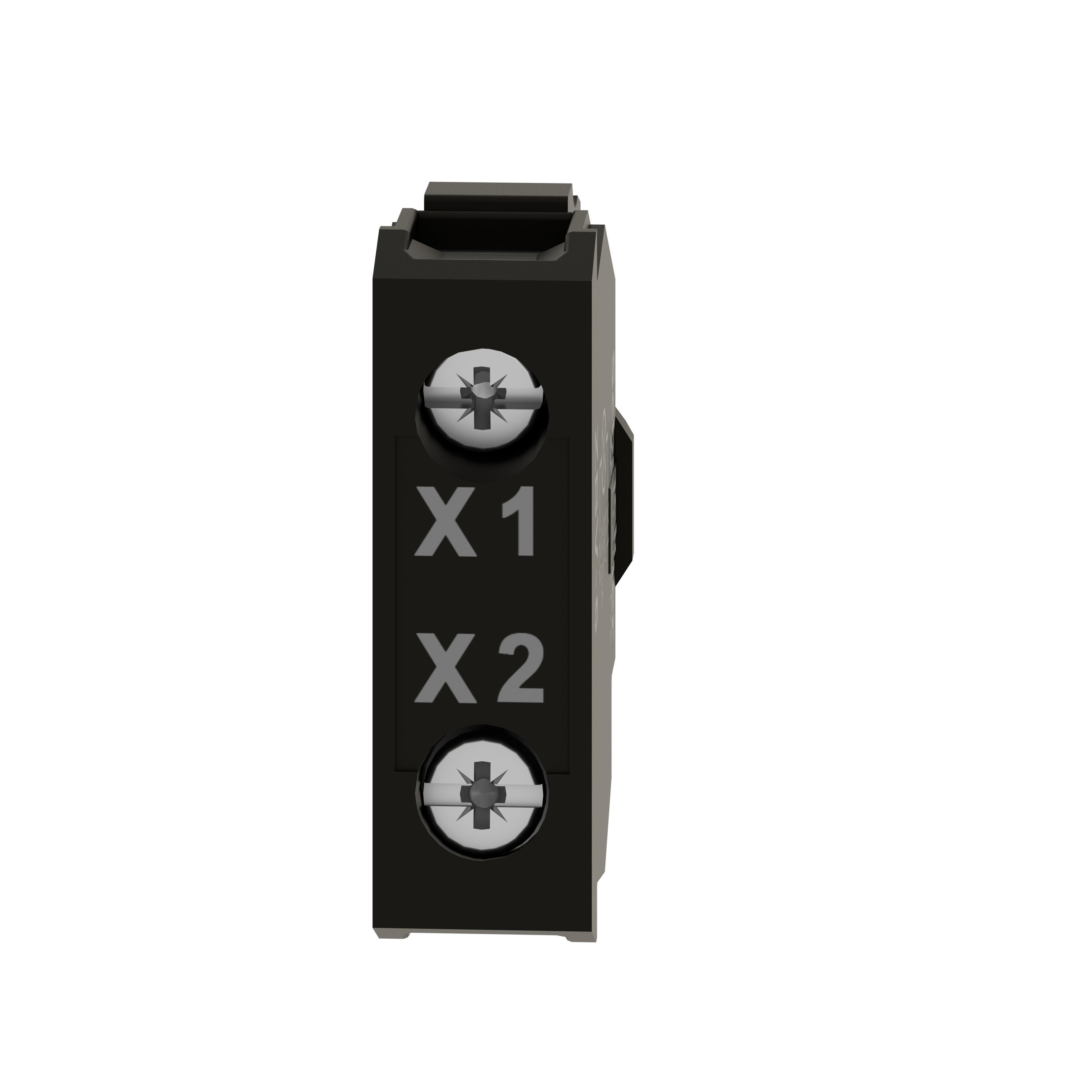

 Terminal Type Screw Clamp
 Type Round
 Voltage Rating 250 V AC

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector or spring terminal
▪ Excellent mechanical connection with operator head
▪ Large set of accessories to customize your panels
