Description: Schneider Electric Harmony™ Square D™ Contact Block, 2-Pole Electrical Component, Series: ZB6, 16 mm Size, 1NO-1NC Contact Configuration, 6 A at 250 V AC/B300 to R300 Contact, Silver Alloy Contact, 1 Contacts, Momentary Action, Slow Break Operator, IP65 Enclosure, Faston Terminal, Direct Mounting, Plastic, 0.71 in W x 1.57 in D x 0.71 in H Dimensions

Manufacturer PN: ZB6Z5B

UPC:  38911077537

Kendall Electric Inc PN: 4001145

Invoice Description:

ZB6Z5B SQD 16MM NONC CONT


SPEC SHEET

▸ See All in Contact Block Mounting Latches


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ ZB6Z5B 2-Pole Electrical Component Contact Block With Body/Fixing Collar, 16 mm, 1NO-1NC Contact, 6 A at 250 V AC/B300 to R300 Contact, Silver Alloy Contact, Momentary Action

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony ZB6Z5B is a single contact block with body/fixing collar, 1 NO + 1 NC faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Schneider Electric Harmony™ Square D™ Contact Block, 2-Pole Electrical Component, Series: ZB6, 16 mm Size, 1NO-1NC Contact Configuration, 6 A at 250 V AC/B300 to R300 Contact, Silver Alloy Contact, 1 Contacts, Momentary Action, Slow Break Operator, IP65 Enclosure, Faston Terminal, Direct Mounting, Plastic, 0.71 in W x 1.57 in D x 0.71 in H Dimensions

Specifications

 Application For pushbutton and selector switches applications
 Brand Name Square D
 Contact Configuration 1NO-1NC
 Contact Material Silver Alloy
 Contact Rating 6 A at 250 V AC/B300 to R300

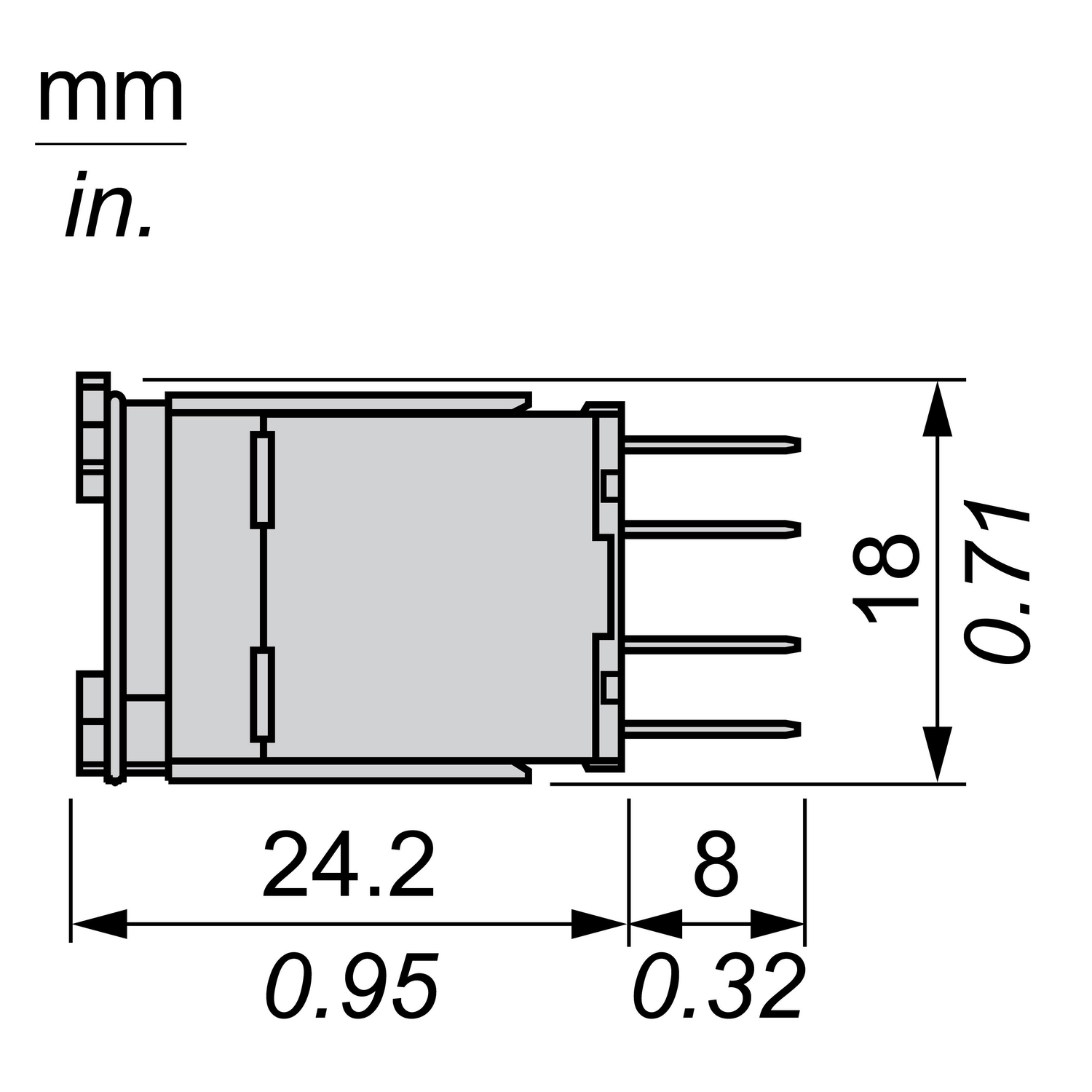

 Dimensions 0.71 in W x 1.57 in D x 0.71 in H
 Enclosure IP65
 Manufacturer Part Number ZB6Z5B
 Material Plastic
 Mounting Type Direct
 PART NUMBER KEYWORDS ZB6Z5B ; 8010817 ; 785901367277 ; 78590136727 ; 03389110775372 ; 3389110775372
 Series ZB6
 Size 16 mm
 Standards/Approvals CCC/CE Marked|CSA C22.2 No. LR44087 Class 3211 03|EN/IEC 60947-5-4/60947-1/60947-5-1|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov|RoHS Compliant|UL 508 File No. E164353 CCN NKCR
 Terminal Type Faston
 Type 2-Pole Electrical Component

Features

▪ Wide range of operating temperature from -25C to 70C
