ZB5AP6S SQD BLUE BOOTED PUSH BUTTON

Mouse over image to zoom, click to enlarge

Description: Schneider Electric Square D™ Harmony™ Head, Unmarked, Series: ZB5 Series, 30 mm W x 33 mm D x 30 mm H Size, Round Shape, Dark Gray Plastic, Blue

Manufacturer PN: ZB5AP6S

UPC:  38911099941

Kendall Electric Inc PN: 4042625

Invoice Description:

ZB5AP6S SQD BLUE BOOTED PUSH BUTTON


SPEC SHEET

▸ See All in Pushbutton & Switch Protective Boots


How Can We Make This Page Better?

Schneider Electric Square D™ Harmony™ ZB5AP6S Unmarked Head, 30 mm W x 33 mm D x 30 mm H, Round Shape, Dark Gray Plastic, Blue

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This blue colored silicone booted button head provides an ergonomic interface for controlling your machine. It provides also a simple solution to prevent dirt and other contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Schneider Electric Square D™ Harmony™ Head, Unmarked, Series: ZB5 Series, 30 mm W x 33 mm D x 30 mm H Size, Round Shape, Dark Gray Plastic, Blue

Specifications

 Application For Harmony™ non-illuminated pushbutton switch
 Brand Name Square D
 Color Blue
 Manufacturer Part Number ZB5AP6S
 Material Dark Gray Plastic
 PART NUMBER KEYWORDS ZB5AP6S ; 14567483 ; 3389110999419 ; 338911099941 ; 03389110999419 ; 3389110999419
 Series ZB5 Series
 Shape Round

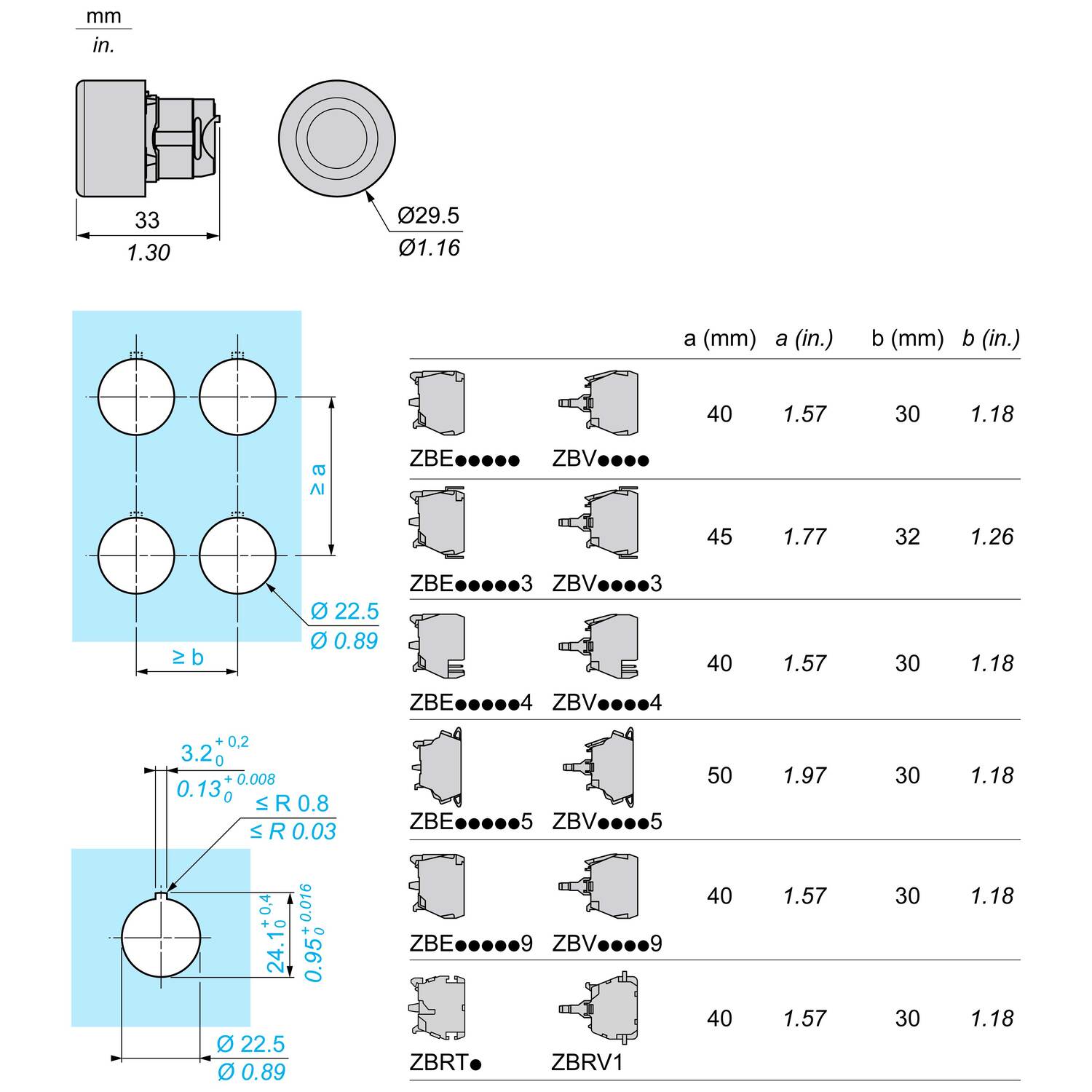

 Size 30 mm W x 33 mm D x 30 mm H
 Standards/Approvals RoHS Compliant|JIS C8201-5-1|IEC 60529|Green Premium™|REACH Compliant|LROS|REACH Compliant|Class II|IEC 60536|IEC 60068-2-6|IEC 60068-2-27|IEC 50102|IEC 60529|IP69|IEC 60529|IP69K ISO 20653|NEMA 4X|CSA C22.2 File No 14|EN/IEC 60947-5-4|EN/IEC 60947-5-1|EN/IEC 60947-1|JIS C8201-1|UL Listed|DNV|RINA|CSA Certified|BV|GL|IEC 60068-2-27|UL 508|PROP65: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type Unmarked

Features

▪ Resistance to chemical agents, double electrical insulation
▪ Designed to fit standard 22mm control and signaling units
▪ Wide range of operating temperature from -40C to 70C
