Schneider Electric
  • ZB5AG0 SQD KEY SWITCH
  • ZB5AG0 SQD KEY SWITCH
  • ZB5AG0 SQD KEY SWITCH
  • ZB5AG0 SQD KEY SWITCH
  • ZB5AG0 SQD KEY SWITCH
  • ZB5AG0 SQD KEY SWITCH

Description: Schneider Electric Harmony™ Selector Switch Head, 3-Position 45 deg Maintained Non-Illuminated Standard Unmarked, Series: ZB5, 22 mm Dia Size, Round Shape, Plastic, Black

Manufacturer PN: ZB5AG0

UPC:  38911090576

Kendall Electric Inc PN: 4001112

Invoice Description:

ZB5AG0 SQD KEY SWITCH


SPEC SHEET

▸ See All in Non-Illumin. Twist/Key Release Operators


How Can We Make This Page Better?

Schneider Electric Harmony™ ZB5AG0 3-Position 45 deg Maintained Non-Illuminated Standard Unmarked Selector Switch Head, 22 mm Dia, Round Shape, Plastic, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

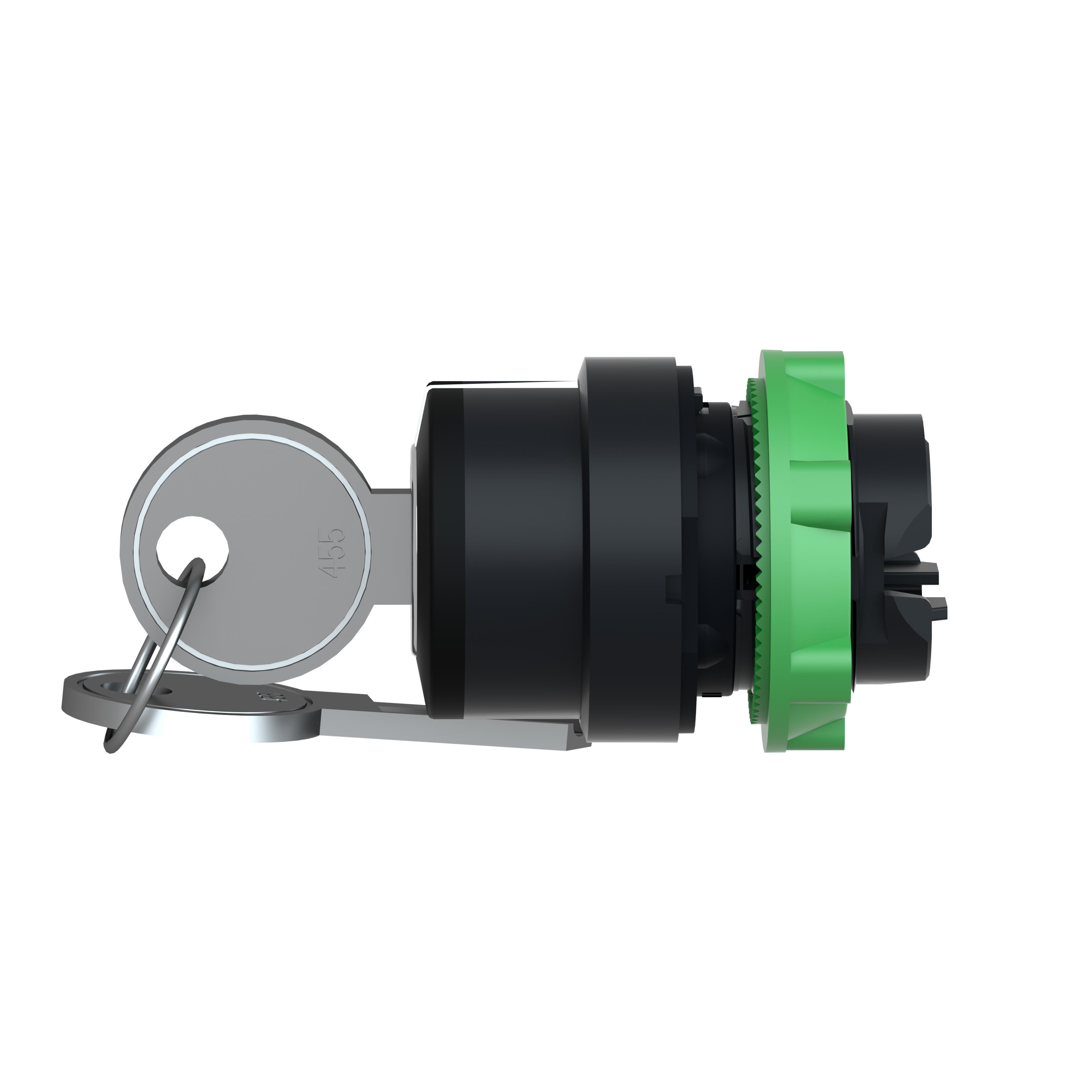

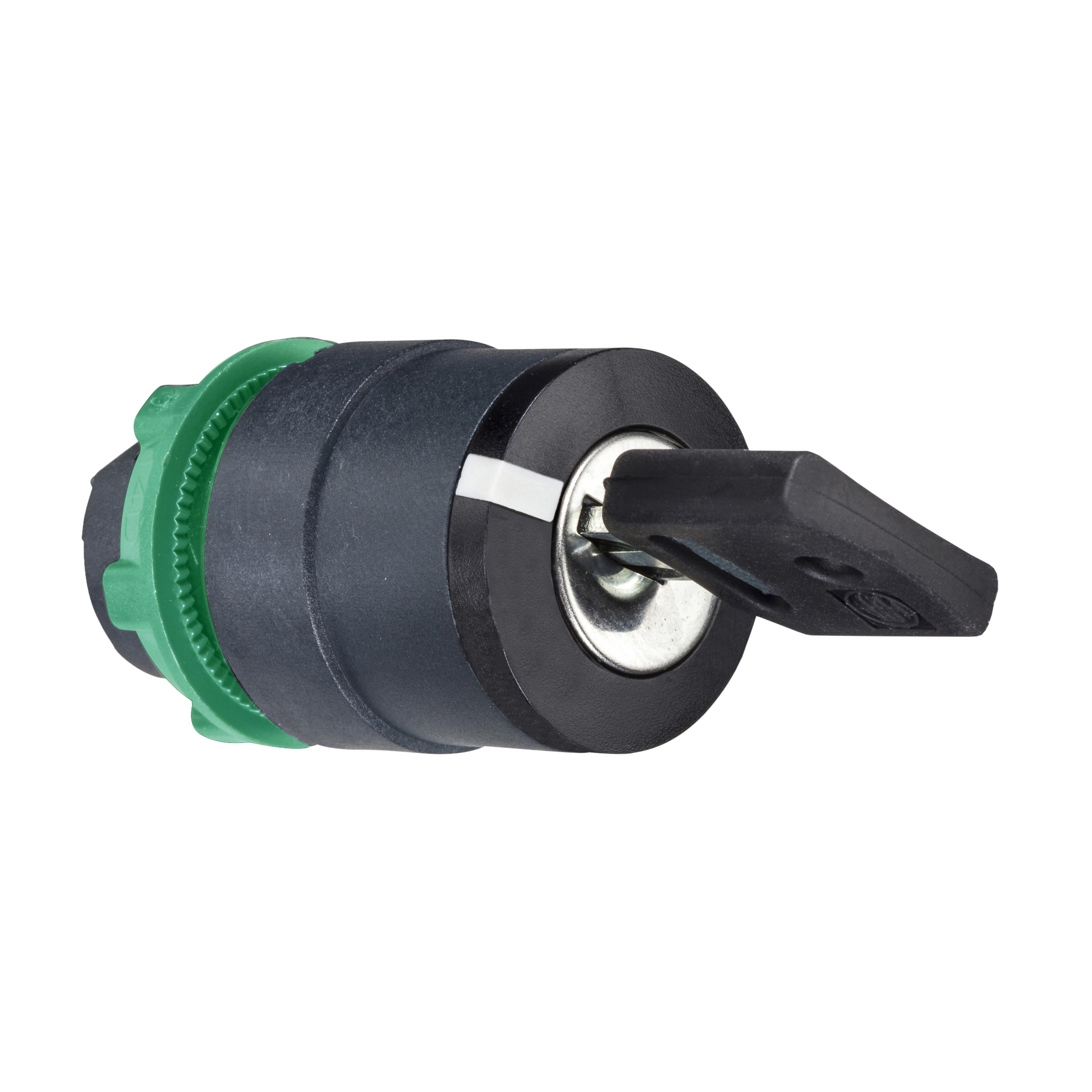

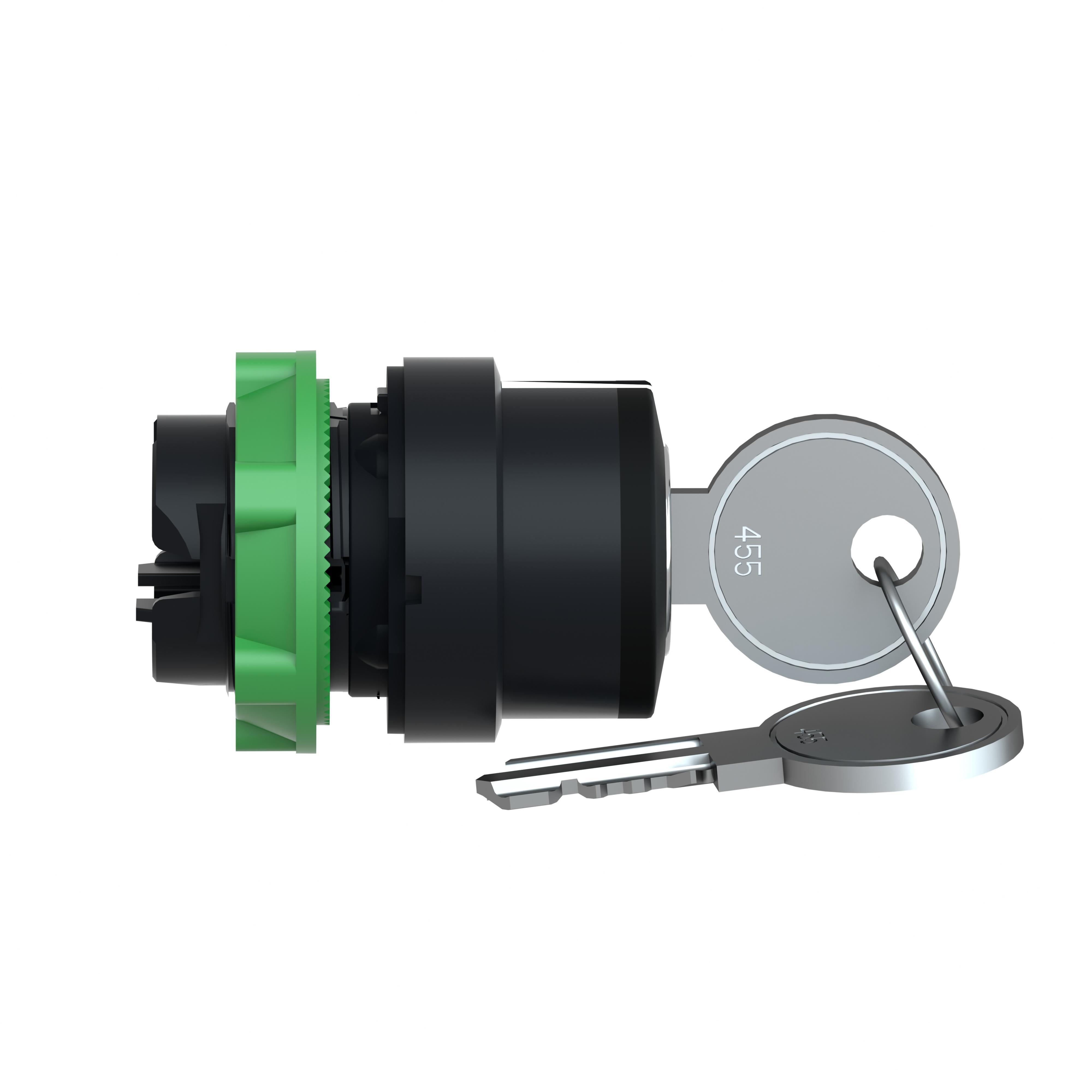

This Harmony XB5, head with key (key no.455) for key selector switch has 3 positions, operates with stay-put mechanism with key withdrawal on left, center and right position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Schneider Electric Harmony™ Selector Switch Head, 3-Position 45 deg Maintained Non-Illuminated Standard Unmarked, Series: ZB5, 22 mm Dia Size, Round Shape, Plastic, Black

Specifications

 Application Control and Signaling Applications
 Brand Name Square D
 Color Black
 Manufacturer Part Number ZB5AG0
 Material Plastic
 PART NUMBER KEYWORDS ZB5AG0 ; 7999441 ; 785901354901 ; 78590135490 ; 03389110905762 ; 3389110905762
 Series ZB5
 Shape Round

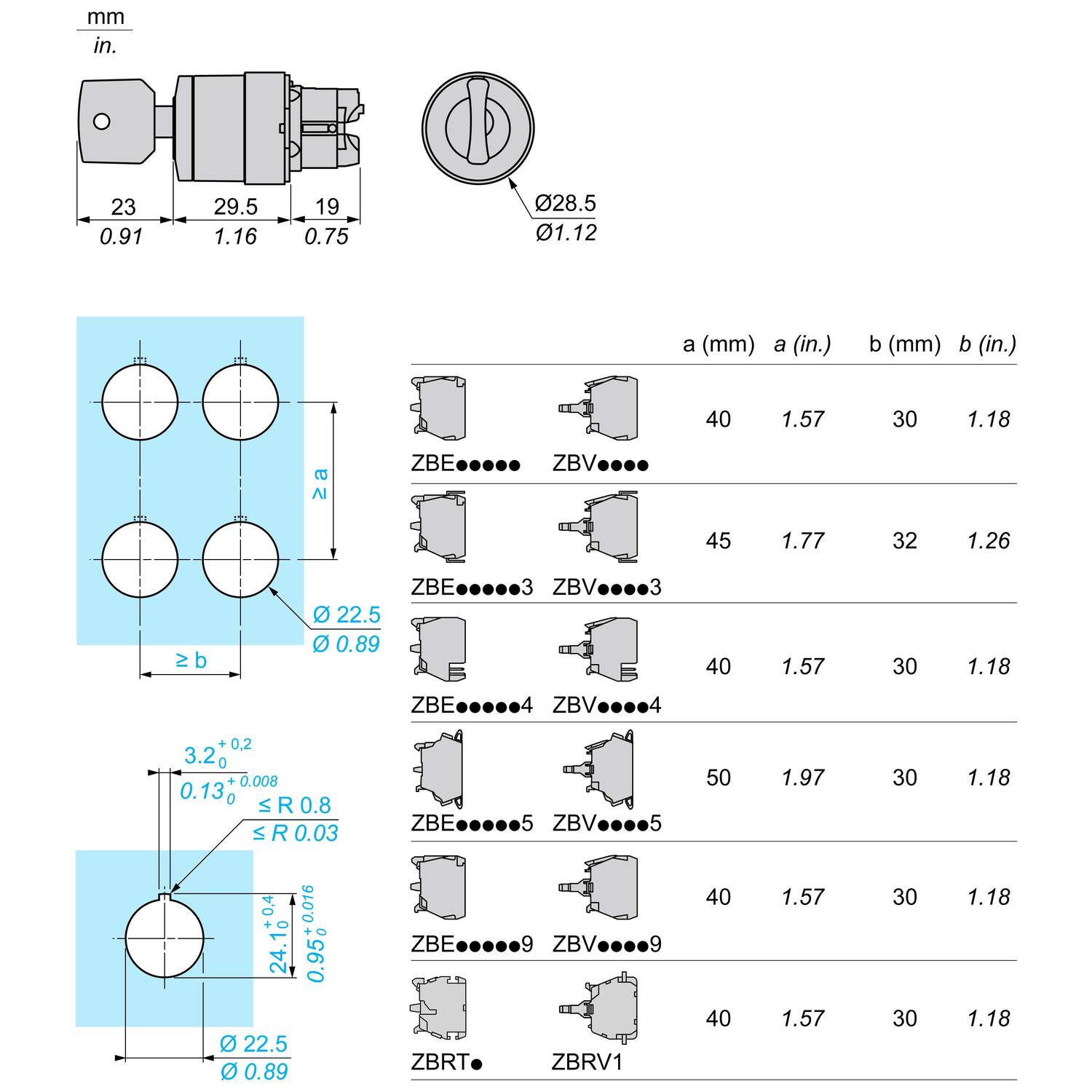

 Size 22 mm Dia
 Standards/Approvals RoHS Compliant|UL 508 E164353 CCN NKCR|CSA C22.2 14 LR44087 Class 3211 03|CE Marked|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|JIS C 4520|BV Certified|DNV Certified|GL Certified|Lloyd's Register Certified|RINA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Type 3-Position 45 deg Maintained Non-Illuminated Standard Unmarked
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
▪ Excellent mechanical connection with operator head
▪ A large set of accessories to customize your panels
