Schneider Electric

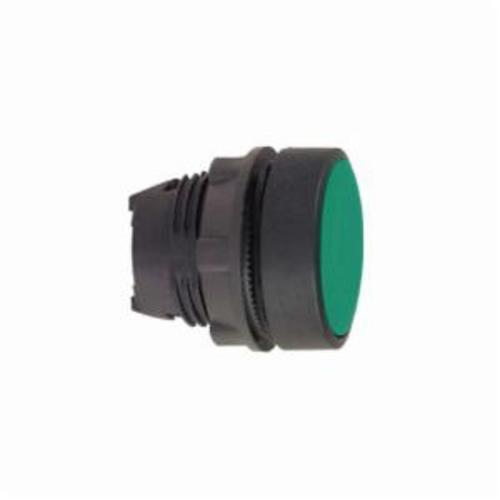

  • ZB5AA3 SQD PUSH BUTTON OPERATOR /
  • ZB5AA3 SQD PUSH BUTTON OPERATOR /
  • ZB5AA3 SQD PUSH BUTTON OPERATOR /

Description: Schneider Electric, ZB5AA3, Plastic Non-Illuminated Pushbutton Operator, Series: ZB5, 22 mm Size, Momentary Contact Mode, Flush Button/Standard/Round/Unmarked/Spring Return Operator, NEMA 1/2/3/4/4X/13/IP65/IP66/IP67/IP69/IP69K/IK03 Enclosure, Bezel/Housing: Plastic, -40 to 70 deg C, Black/Green

Manufacturer PN: ZB5AA3

UPC:  38911090452

Kendall Electric Inc PN: 3959310

Invoice Description:

ZB5AA3 SQD PUSH BUTTON OPERATOR /


SPEC SHEET

▸ See All in Non-Illuminated Pushbutton Operators


How Can We Make This Page Better?

Schneider Electric ZB5AA3 ZB5 Plastic Non-Illuminated Pushbutton Operator, 22 mm, Black/Green

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB5, flush green button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Schneider Electric, ZB5AA3, Plastic Non-Illuminated Pushbutton Operator, Series: ZB5, 22 mm Size, Momentary Contact Mode, Flush Button/Standard/Round/Unmarked/Spring Return Operator, NEMA 1/2/3/4/4X/13/IP65/IP66/IP67/IP69/IP69K/IK03 Enclosure, Bezel/Housing: Plastic, -40 to 70 deg C, Black/Green

Specifications

 Bezel Housing Plastic
 Brand Name Square D
 Color Black/Green
 Enclosure NEMA 1/2/3/4/4X/13/IP65/IP66/IP67/IP69/IP69K/IK03
 Manufacturer Part Number ZB5AA3
 Material Plastic
 PART NUMBER KEYWORDS ZB5AA3 ; 10719767 ; 785901355328 ; 78590135532 ; 03389110904529 ; 3389110904529
 Series ZB5
 Size 22 mm
 Standards/Approvals Buy American Act Compliant|CCN Listed|CCN NKCR|CE Marked|Class II Conforming to IEC 60536|CSA C22.2 No. 14 Class 321103|CSA File No. LR44087|CSA File No. LR44087 Class 321103|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|JIS C 4520|NKCR Listed|RoHS Compliant|UL 508|UL File No. E164353|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 70 deg C

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
▪ Excellent mechanical connection with operator head
▪ A large set of accessories to customize your panels
