Schneider Electric
  • ZB5AA0 SQD PUSH BUTTON
  • ZB5AA0 SQD PUSH BUTTON
  • ZB5AA0 SQD PUSH BUTTON
  • ZB5AA0 SQD PUSH BUTTON
  • ZB5AA0 SQD PUSH BUTTON
  • ZB5AA0 SQD PUSH BUTTON

Description: Schneider Electric Harmony™ Pushbutton Head Operator, Non-Illuminated, Series: ZB5, 22 mm Dia, Round, Plastic, Black

Manufacturer PN: ZB5AA0

UPC:  38911090435

Kendall Electric Inc PN: 3959418

Invoice Description:

ZB5AA0 SQD PUSH BUTTON


SPEC SHEET

▸ See All in Non-Illuminated Pushbutton Operators


How Can We Make This Page Better?

Schneider Electric Harmony™ ZB5AA0 Non-Illuminated Pushbutton Head Operator, 22 mm Dia, Round Shape, Plastic, Black

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

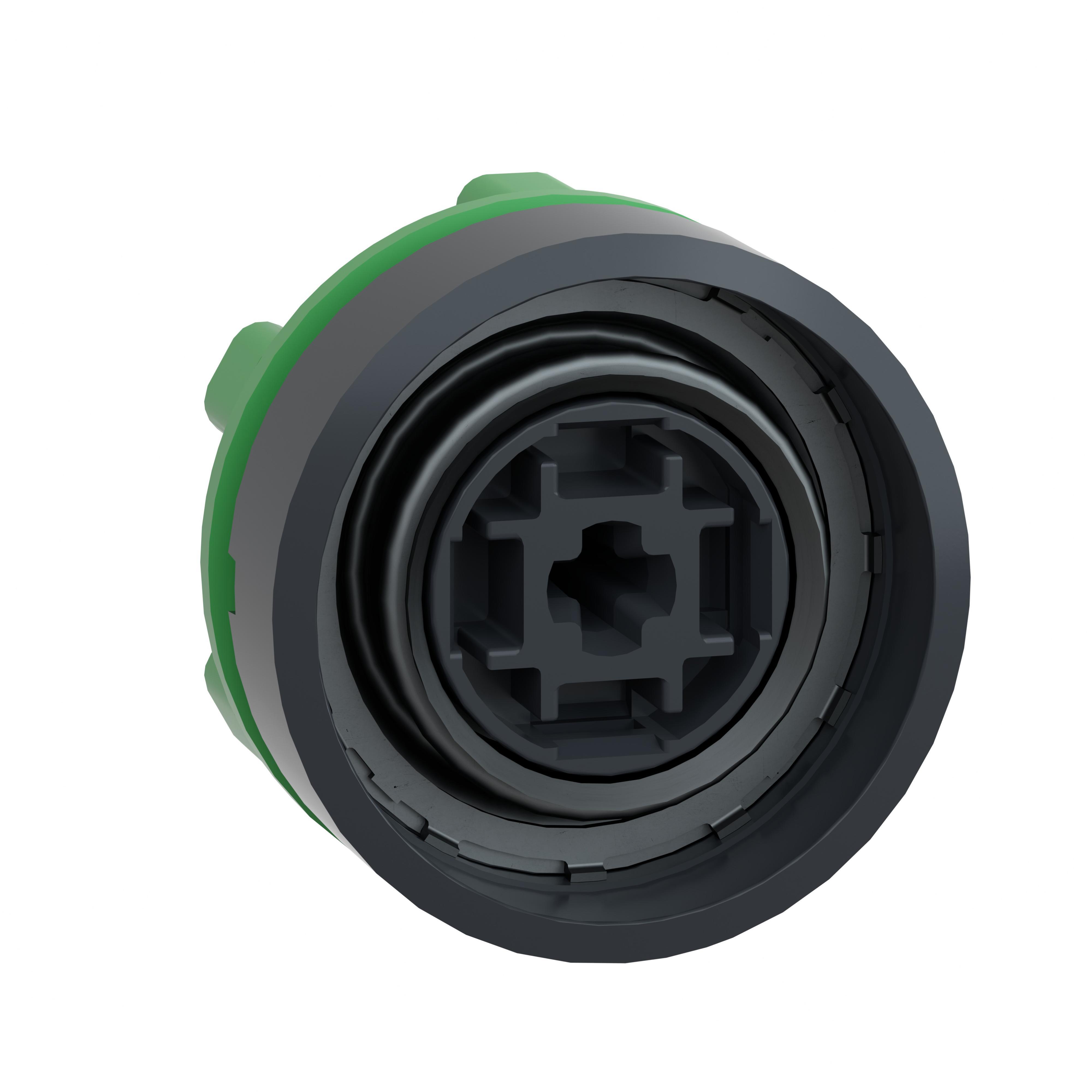

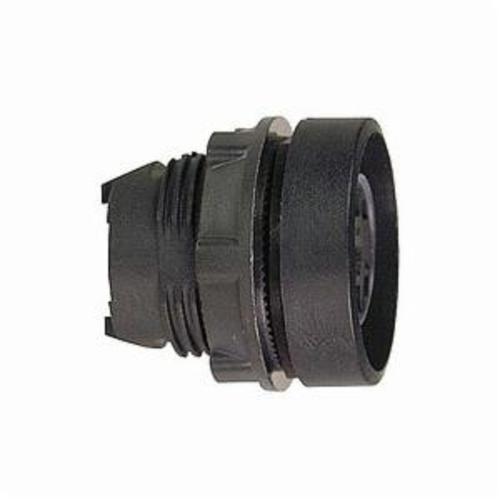

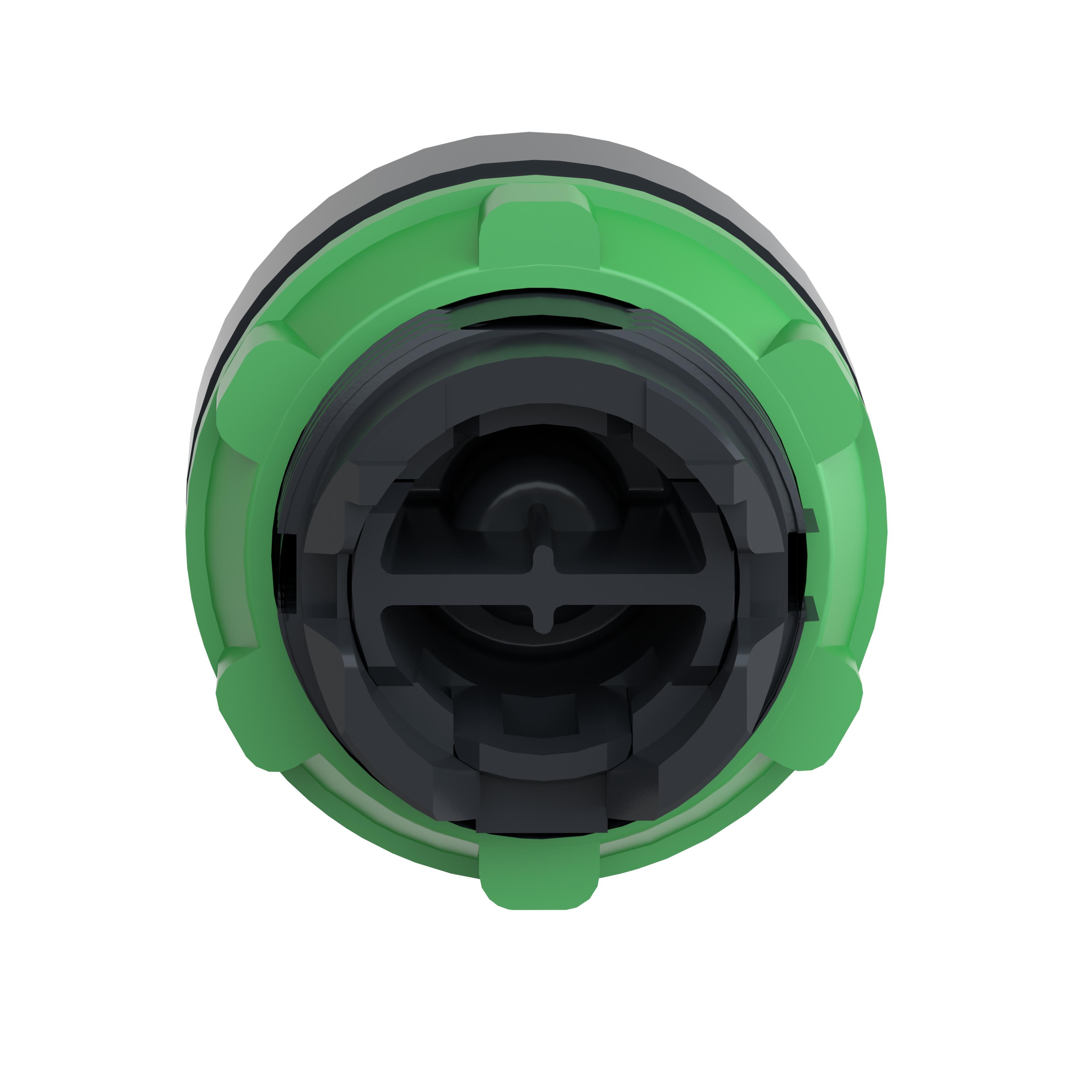

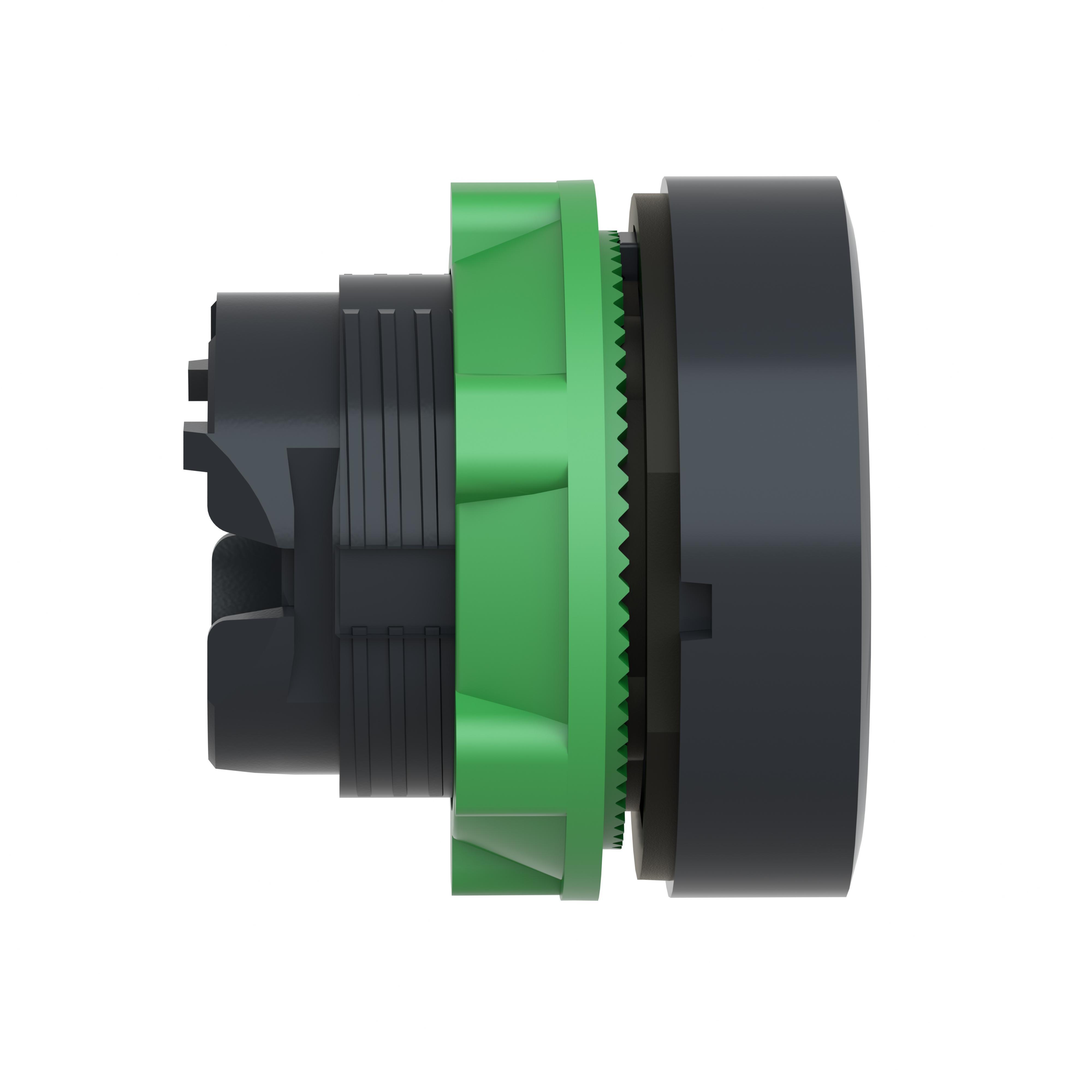

This Harmony XB5, flush button head without cap operates with a spring return / impulse mechanism. This button head without cap allows users to customize it with any compatible desired cap to support your machines and operating functions. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Schneider Electric Harmony™ Pushbutton Head Operator, Non-Illuminated, Series: ZB5, 22 mm Dia, Round, Plastic, Black

Specifications

 Brand Name Square D
 Color Black
 Manufacturer Part Number ZB5AA0
 Material Plastic
 PART NUMBER KEYWORDS ZB5AA0 ; 7999336 ; 785901354772 ; 78590135477 ; 03389110904352 ; 3389110904352
 Series ZB5
 Shape Round
 Size 22 mm Dia
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 508|E164353 Listed|CSA C22.2 #14|LR44087|CE Marked|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-1|EN/IEC 60947-5-5 Standard|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type Non-Illuminated
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
▪ Excellent mechanical connection with operator head
▪ A large set of accessories to customize your panels
