Schneider Electric

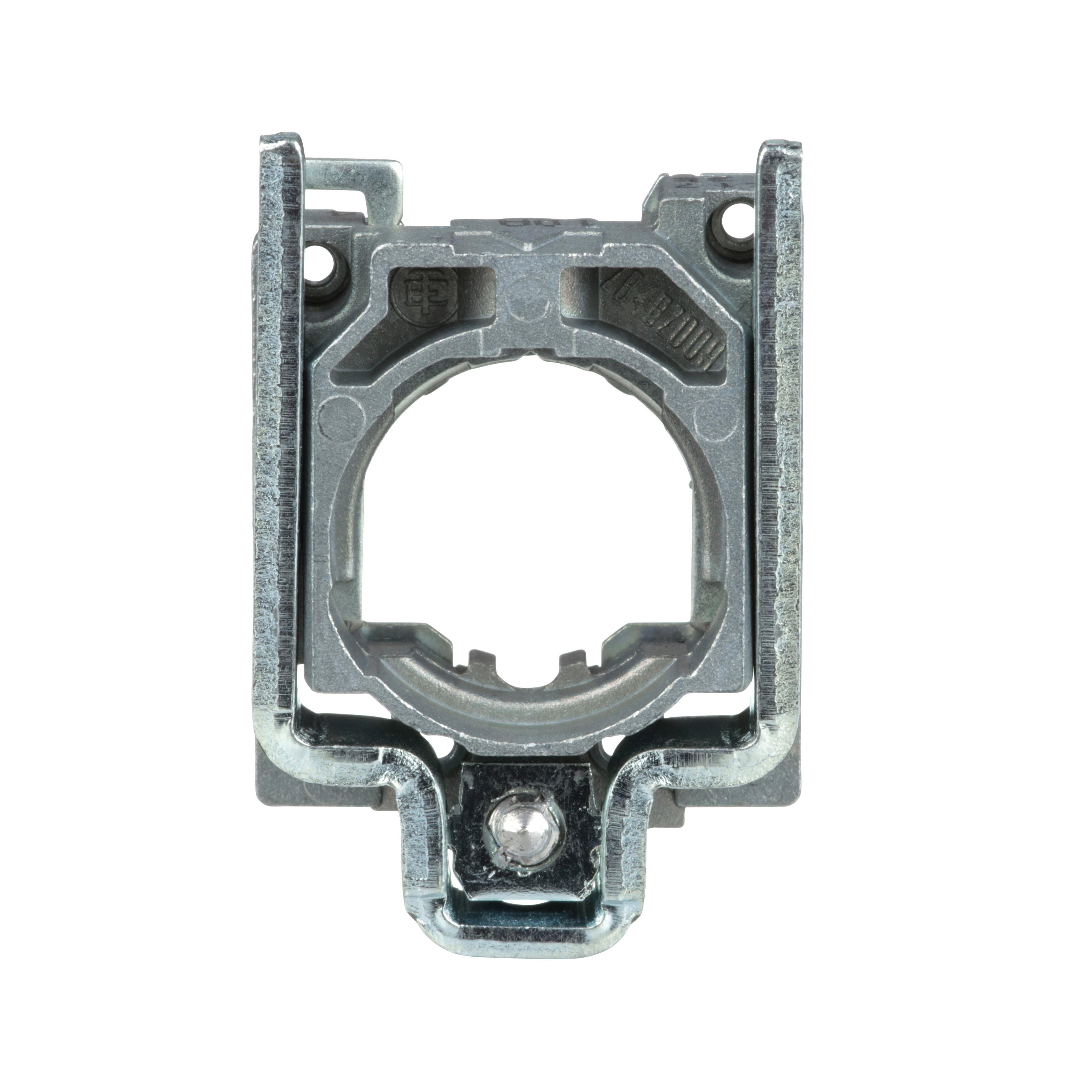

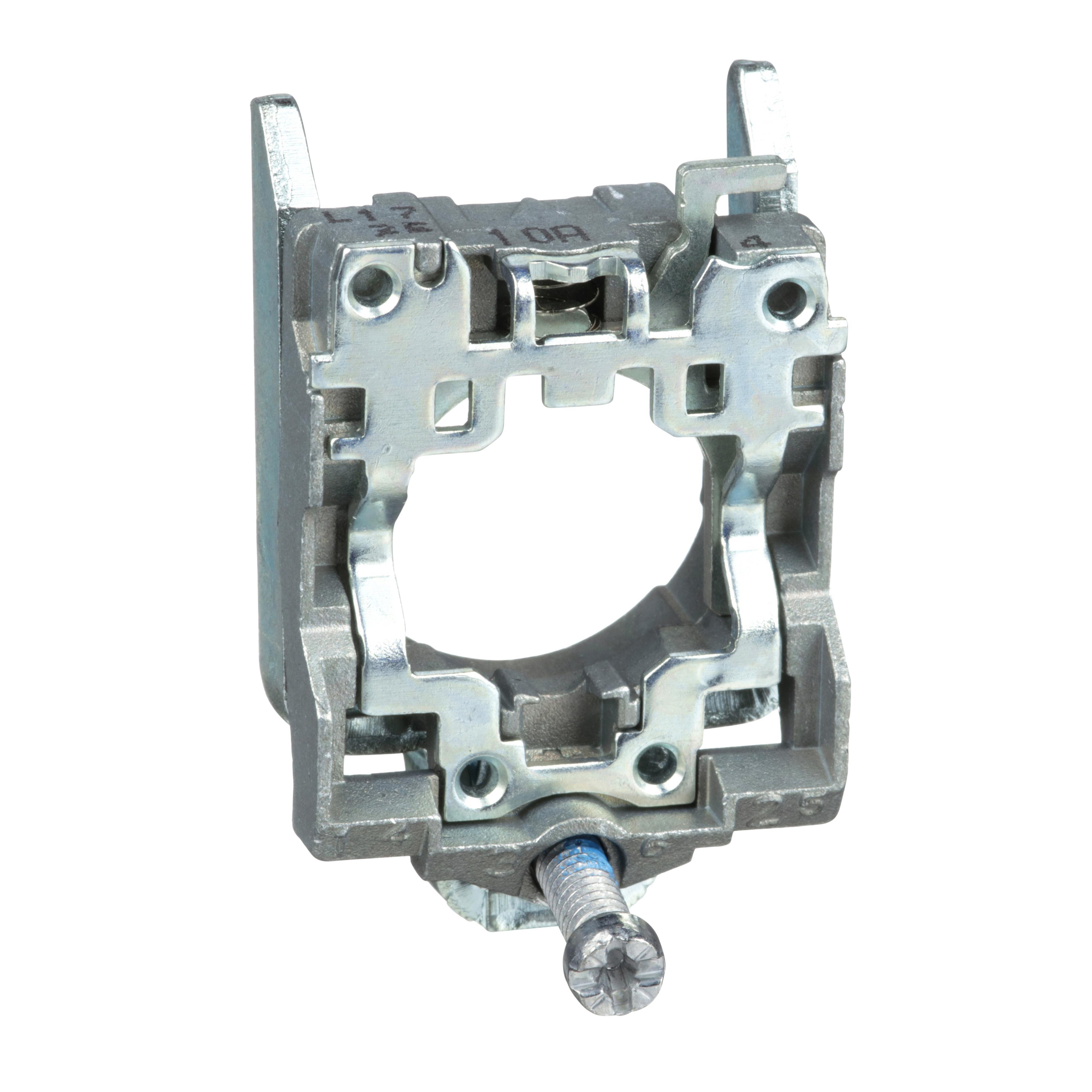

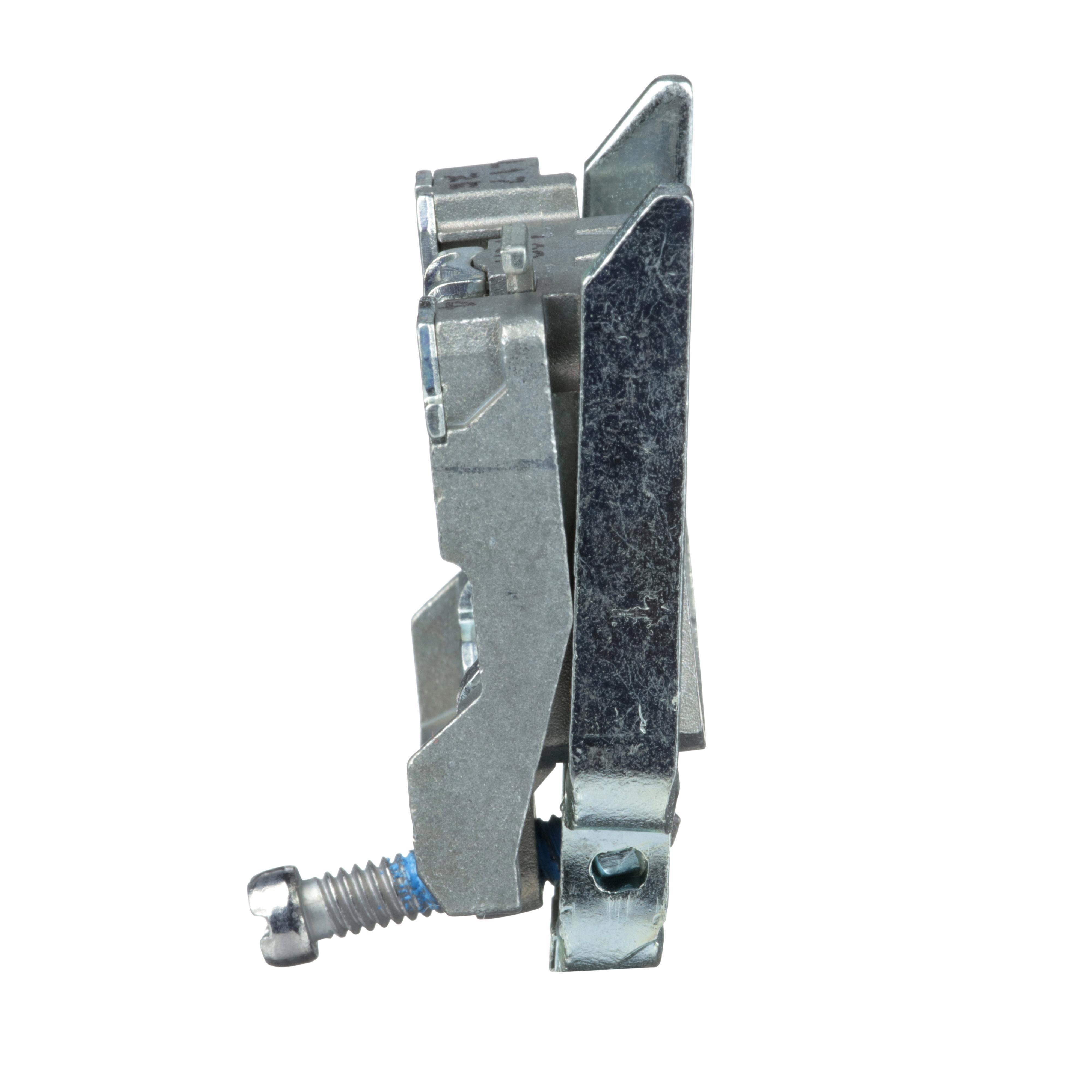

  • ZB4BZ009 SQD HARMONY 22MM PUSH BUTTON XB4B OPERATORS METAL MOUNTING COLLAR
  • ZB4BZ009 SQD HARMONY 22MM PUSH BUTTON XB4B OPERATORS METAL MOUNTING COLLAR
  • ZB4BZ009 SQD HARMONY 22MM PUSH BUTTON XB4B OPERATORS METAL MOUNTING COLLAR
  • ZB4BZ009 SQD HARMONY 22MM PUSH BUTTON XB4B OPERATORS METAL MOUNTING COLLAR
  • ZB4BZ009 SQD HARMONY 22MM PUSH BUTTON XB4B OPERATORS METAL MOUNTING COLLAR

Description: Schneider Electric Harmony™ Fixing Collar Pillar, For Use With: Harmony™ Electrical Block, Specifications: -25 to 70 deg C Operating, IP65, Surface Mount, 22 mm Pushbutton, Metal

Manufacturer PN: ZB4BZ009

UPC:  38911010202

Kendall Electric Inc PN: 4001100

Invoice Description:

ZB4BZ009 SQD HARMONY 22MM PUSH BUTTON XB4B OPERATORS METAL MOUNTING COLLAR


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Harmony™ ZB4BZ009 Fixing Collar Pillar, For Use With Harmony™ Electrical Block, -25 to 70 deg C Operating, IP65, Surface Mount, 22 mm Pushbutton, Metal

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Schneider Electric Harmony™ Fixing Collar Pillar, For Use With: Harmony™ Electrical Block, Specifications: -25 to 70 deg C Operating, IP65, Surface Mount, 22 mm Pushbutton, Metal

Specifications

 Application For electrical block mounted on printed circuit board
 Brand Name Square D
 Manufacturer Part Number ZB4BZ009
 Material Metal
 PART NUMBER KEYWORDS ZB4BZ009 ; 8000308 ; 785901356004 ; 78590135600 ; 03389110102024 ; 3389110102024
 Specifications -25 to 70 deg C Operating, IP65, Surface Mount, 22 mm Pushbutton
 Standards/Approvals RoHS Compliant|UL File No. E164353|CCN Certified|NKCR Listed|CSA File No. LR44087 Class 321103|CE Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Suitable For Use With Harmony™ Electrical Block
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector or spring terminal
▪ Excellent mechanical connection with operator head
▪ Large set of accessories to customize your panels
