Description: Schneider Electric Harmony™ Pushbutton Head Operator, Illuminated, Series: ZB4, 22 mm Dia Size, Round Shape, Metal, Blue

Manufacturer PN: ZB4BW163

UPC:  38911088988

Kendall Electric Inc PN: 4001089

Invoice Description:

ZB4BW163 SQD ILLUM EXTENDED


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Harmony™ ZB4BW163 Illuminated Pushbutton Head Operator, 22 mm Dia, Round Shape, Metal, Blue

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

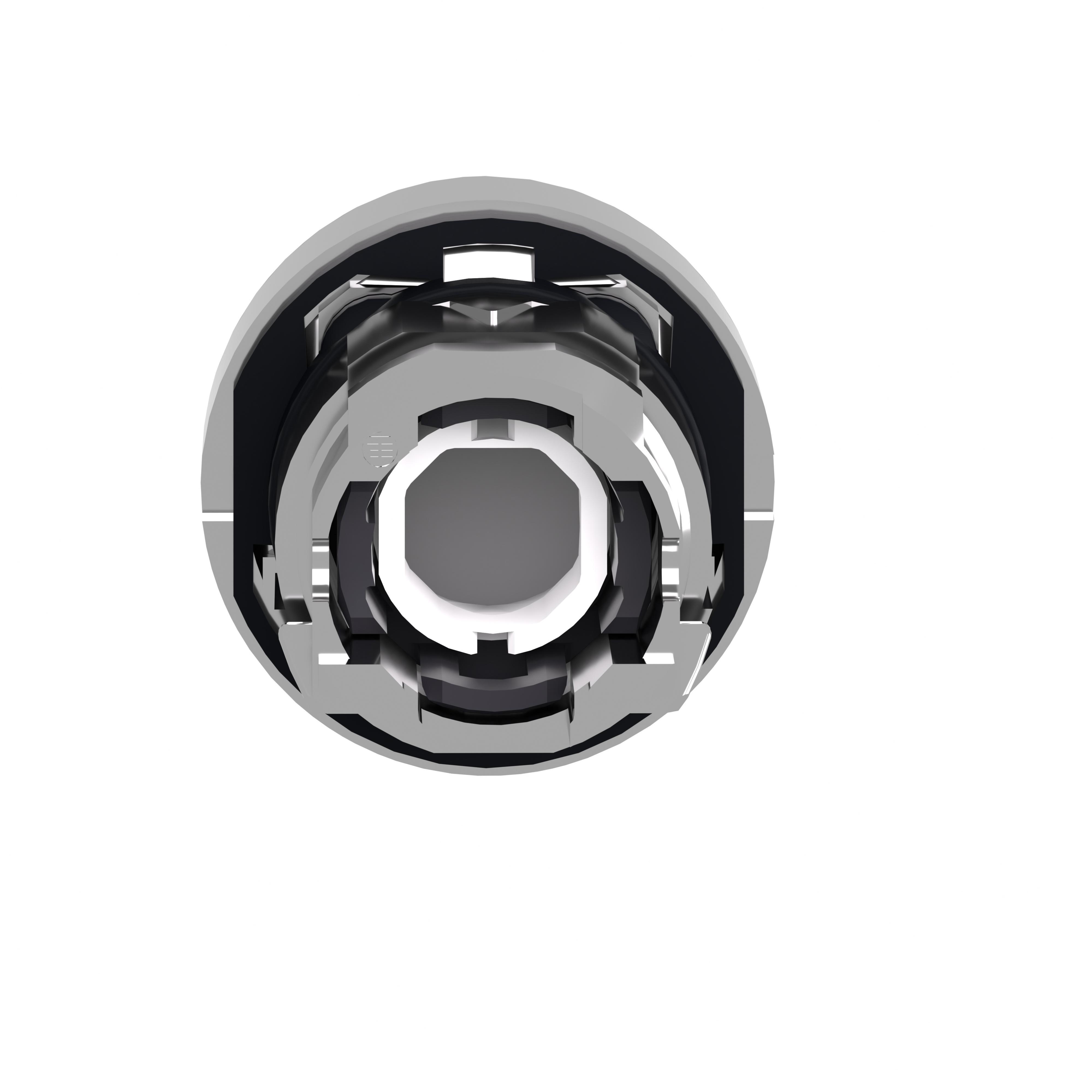

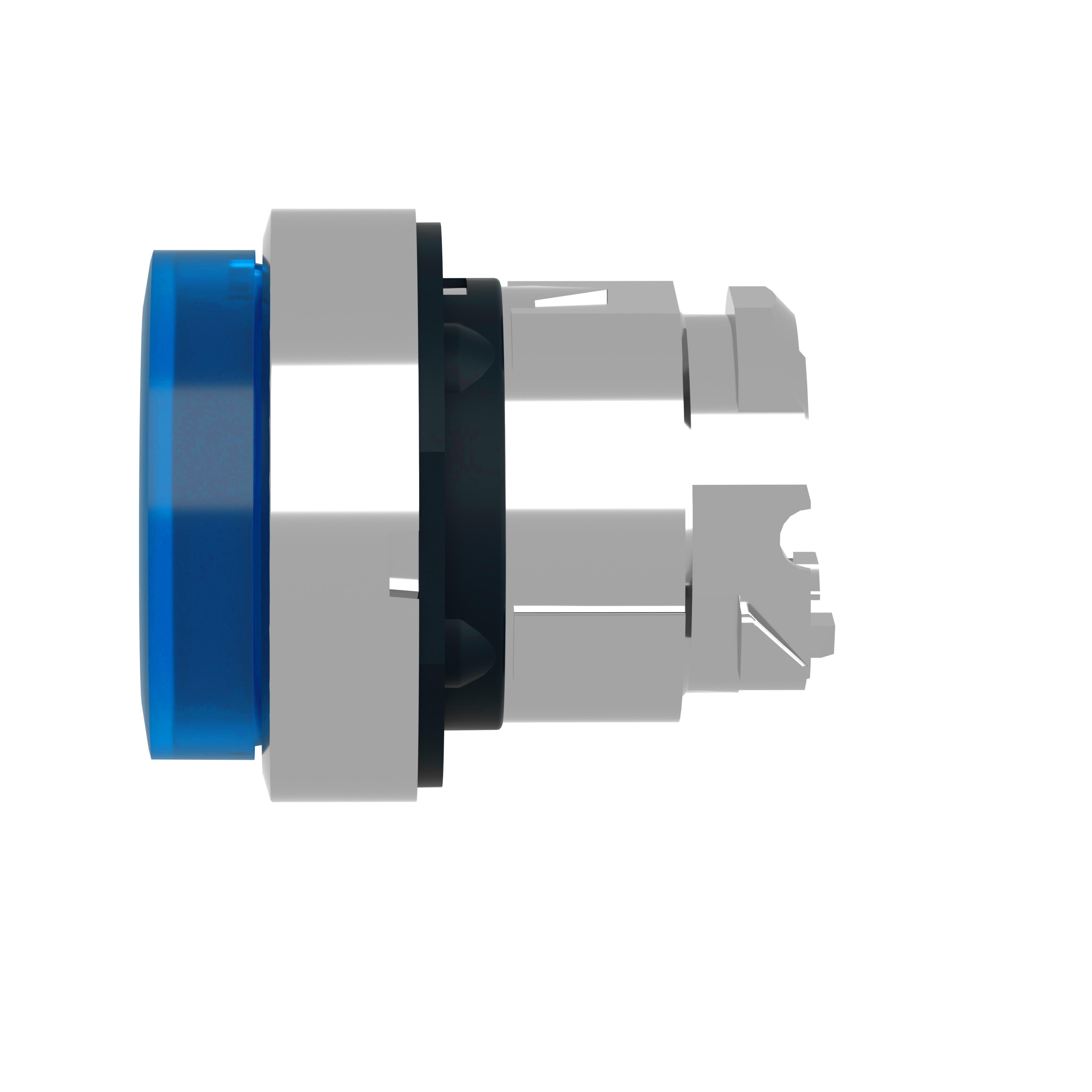

Description

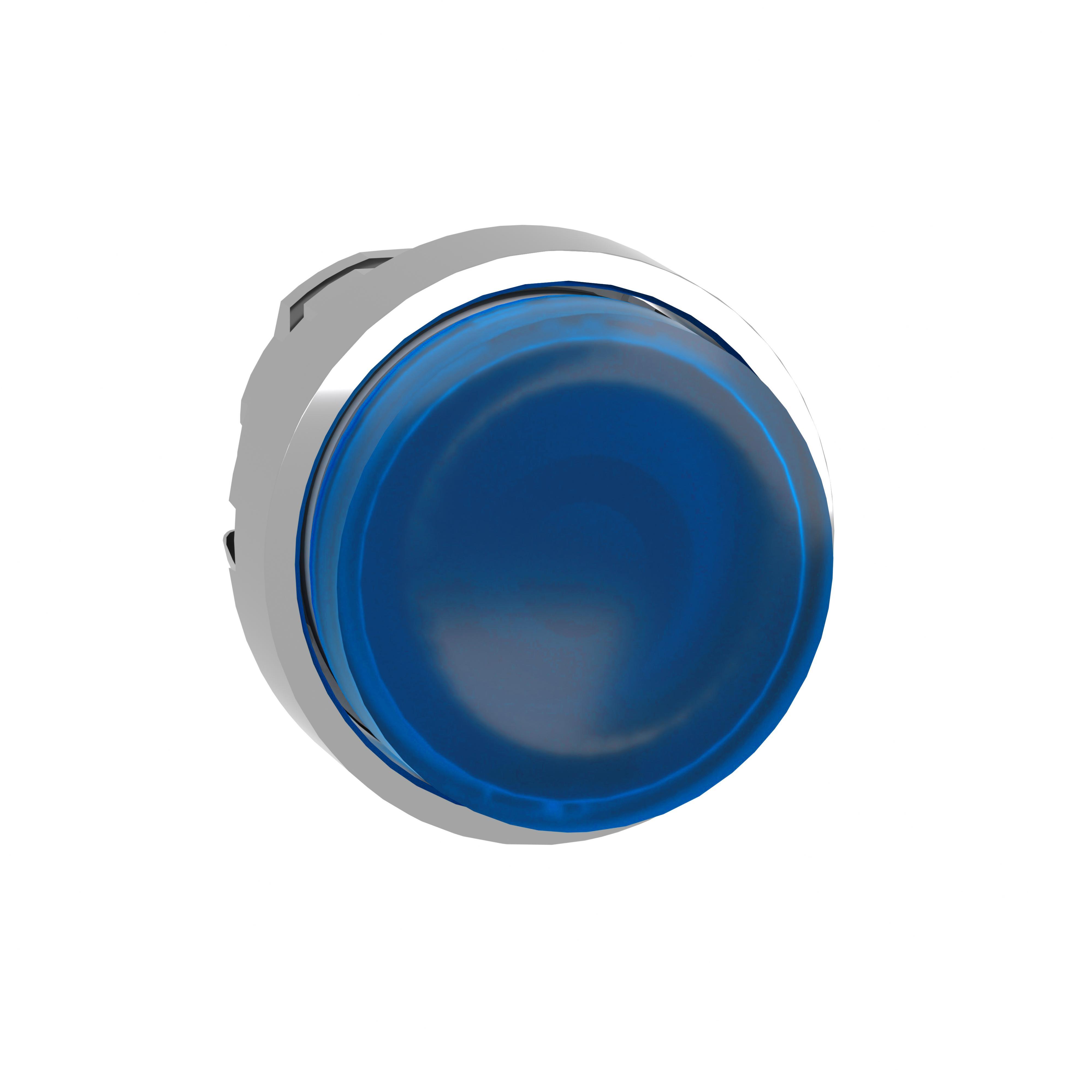

This Harmony XB4, plain lens illuminated projecting blue button head operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Schneider Electric Harmony™ Pushbutton Head Operator, Illuminated, Series: ZB4, 22 mm Dia Size, Round Shape, Metal, Blue

Specifications

 Brand Name Square D
 Color Blue
 Manufacturer Part Number ZB4BW163
 Material Metal
 PART NUMBER KEYWORDS ZB4BW163 ; 8015669 ; 785901376439 ; 78590137643 ; 03389110889888 ; 3389110889888
 Series ZB4
 Shape Round
 Size 22 mm Dia
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|CE Marked|CSA C22.2 #14 LR44087|Class I Conforming to IEC 60536|EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5|JIS C-4520|UL 508/E164353 CCN NKCR|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type Illuminated
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
▪ Excellent mechanical connection with operator head
▪ Large set of accessories to customize your panels

Resources

 Catalog Page

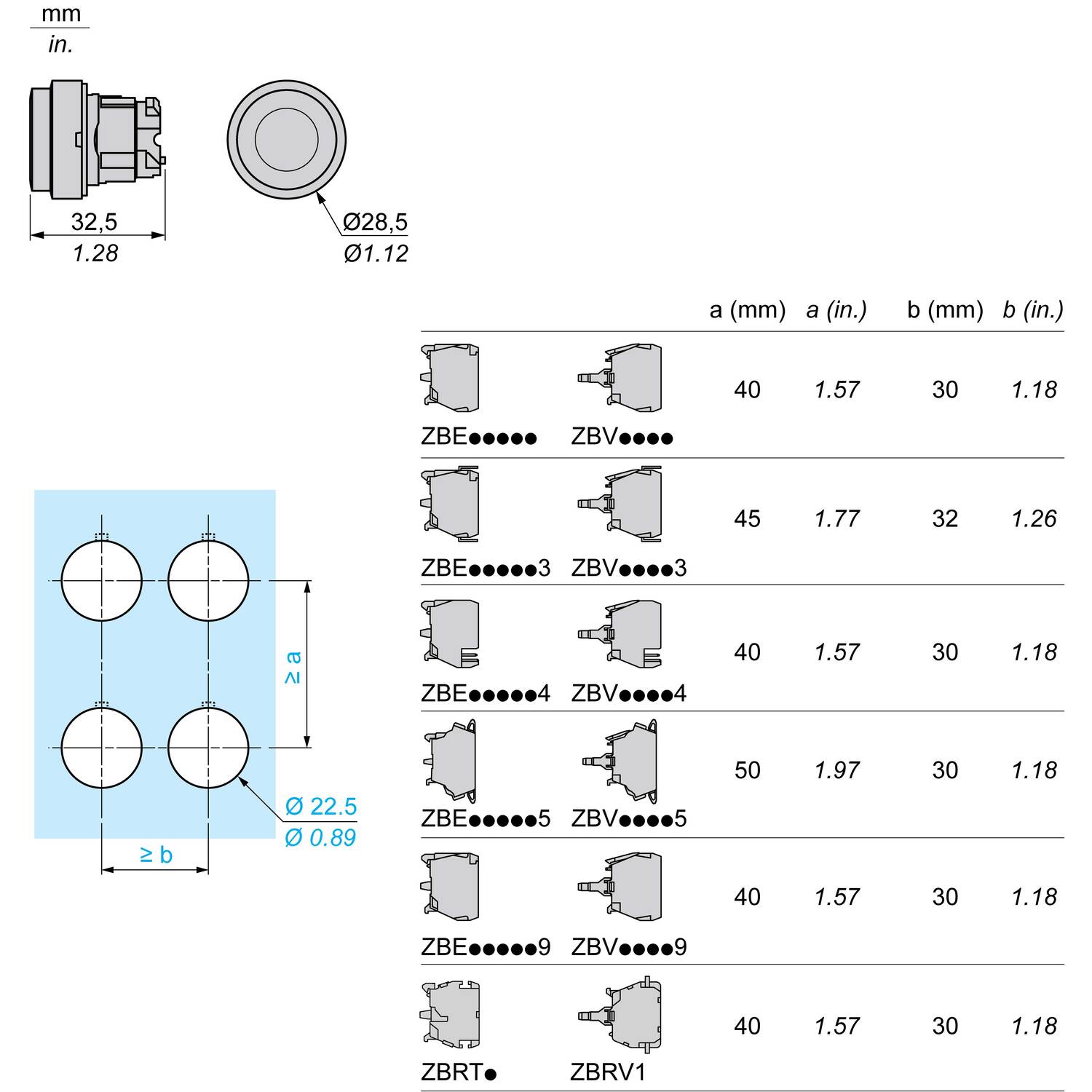

 Full Engineering Drawing
 Installation Instructions htt
 Product Data Sheet
