Schneider Electric
  • ZB4BW0B61 SQD BLUE 24V PROTECTED
  • ZB4BW0B61 SQD BLUE 24V PROTECTED
  • ZB4BW0B61 SQD BLUE 24V PROTECTED
  • ZB4BW0B61 SQD BLUE 24V PROTECTED
  • ZB4BW0B61 SQD BLUE 24V PROTECTED

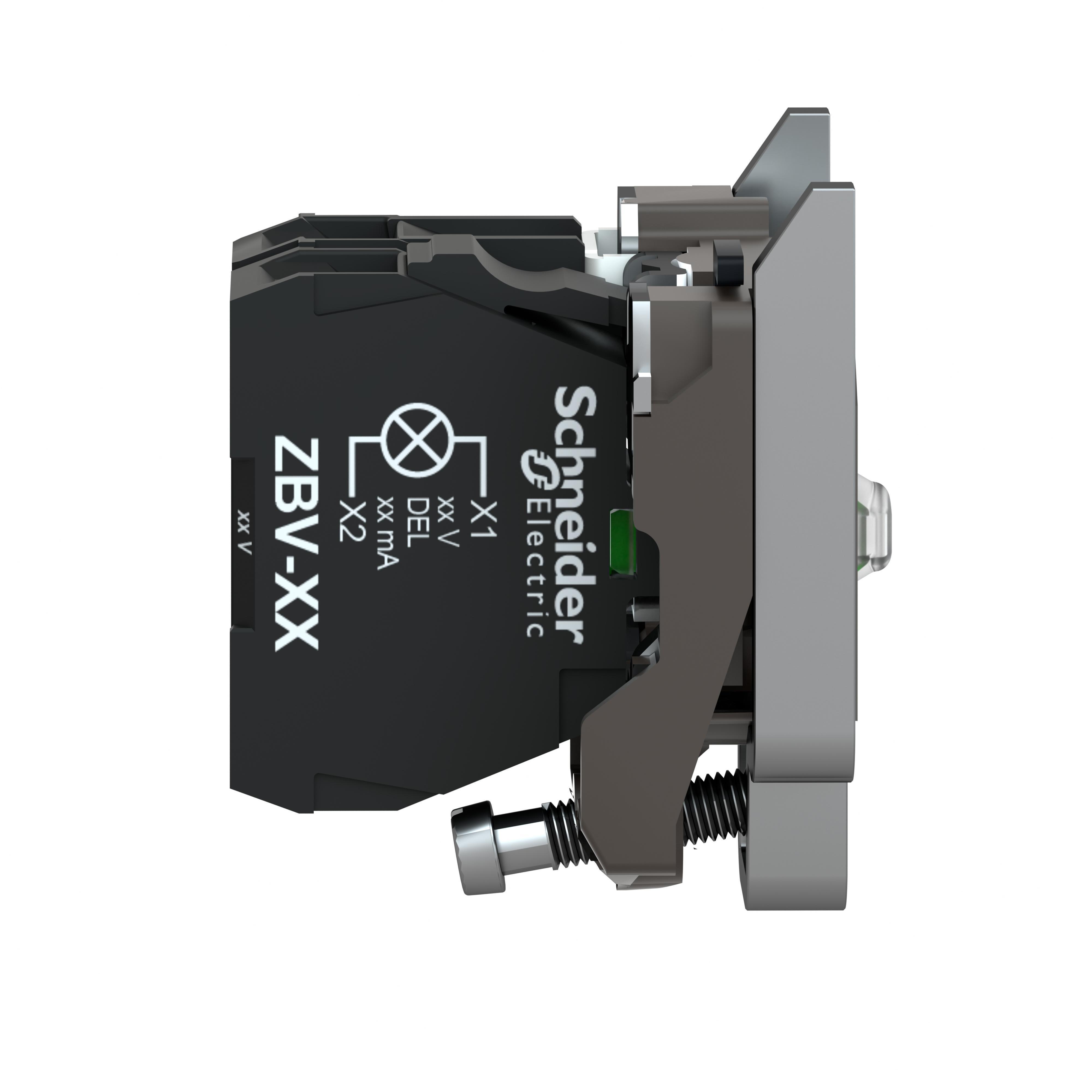

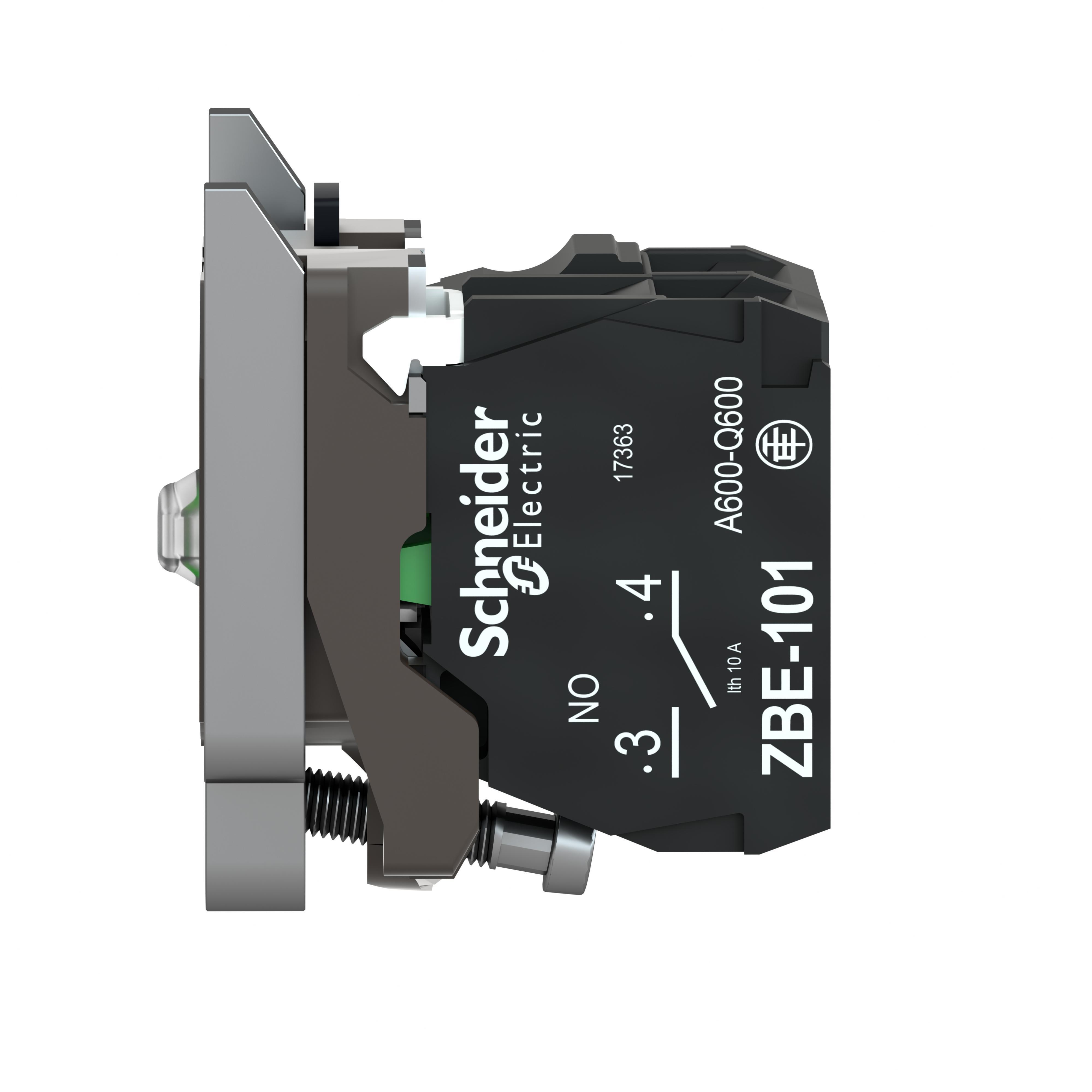

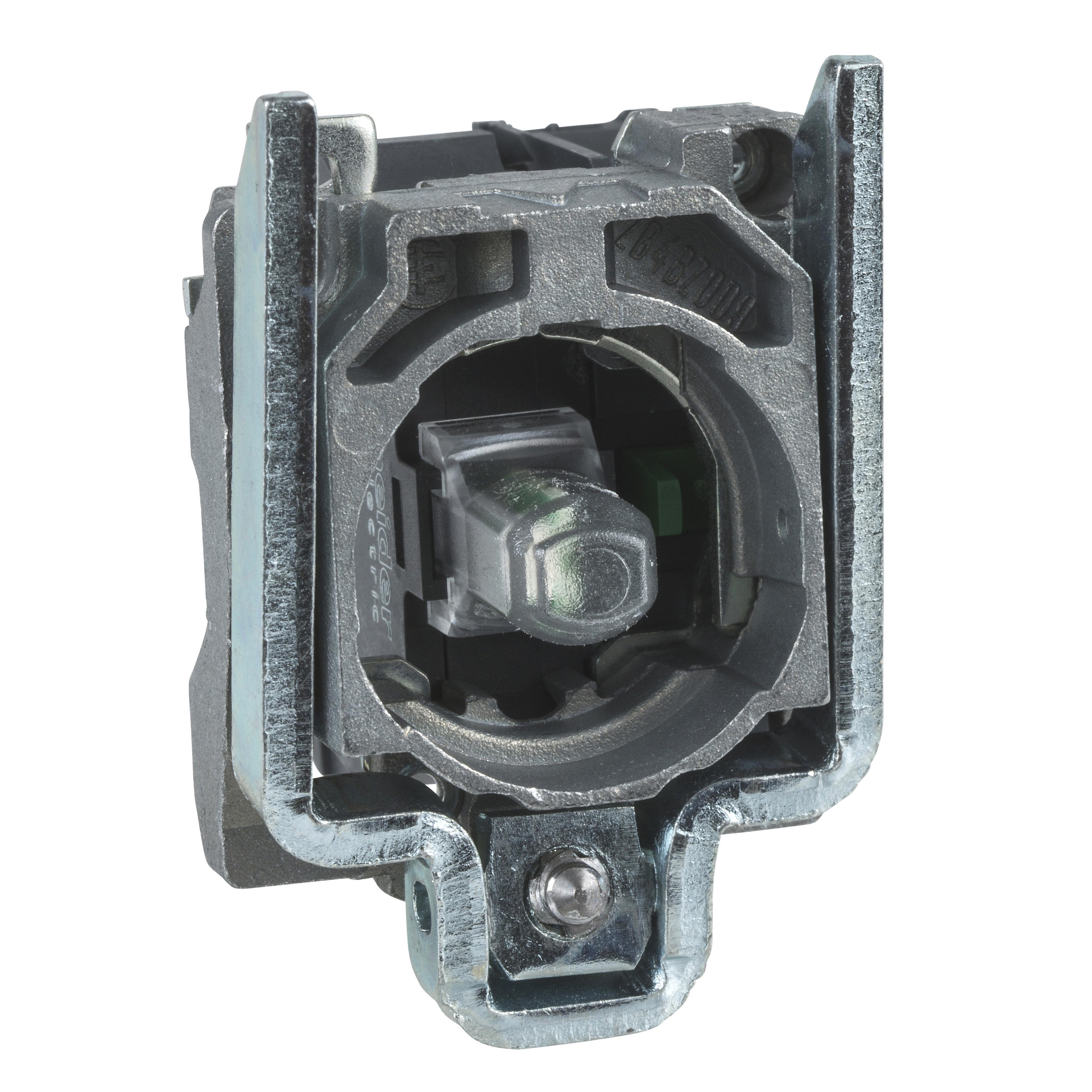

Description: Schneider Electric, ZB4BW0B61, Complete Body/Light Block/Contact Assembly, Slow Break, Series: ZB4, 22 mm Dia Size, LED Lamp, 600 V AC, Screw Clamp Terminal, Flush Mounting, Silver Alloy, Blue, 1.18 in W x 1.85 in H Dimensions

Manufacturer PN: ZB4BW0B61

UPC:  38911089324

Kendall Electric Inc PN: 3961110

Invoice Description:

ZB4BW0B61 SQD BLUE 24V PROTECTED


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric ZB4BW0B61 ZB4 Slow Break Complete Body/Light Block/Contact Assembly, 22 mm Dia, LED Lamp, 600 V AC, Screw Clamp Terminal, Blue

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated pushbutton or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66, making it ideal for operation in harsh environments.
Schneider Electric, ZB4BW0B61, Complete Body/Light Block/Contact Assembly, Slow Break, Series: ZB4, 22 mm Dia Size, LED Lamp, 600 V AC, Screw Clamp Terminal, Flush Mounting, Silver Alloy, Blue, 1.18 in W x 1.85 in H Dimensions

Specifications

 Application Xb4 Series 22 mm Pushbutton
 Brand Name Square D
 Color Blue
 Dimensions 1.18 in W x 1.85 in H
 Includes Mounting Collar, Single Contact Block and Light Module with Protected LED
 Lamp Type LED
 Manufacturer Part Number ZB4BW0B61
 Material Silver Alloy
 Mounting Type Flush
 PART NUMBER KEYWORDS ZB4BW0B61 ; 8019334 ; 785901382904 ; 78590138290 ; 03389110893243 ; 3389110893243
 Series ZB4
 Size 22 mm Dia
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 508|CSA C22.2 #14|JIS C-4520|EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Screw Clamp
 Type Slow Break
 Video Links
 Voltage Rating 600 V AC

Features

▪ 1NO contact configuration
▪ Slow break contact operation
▪ 7.08 to 10.62 lbf-in tightening torque
▪ Steady signaling type
▪ Blue light source color
▪ -40 to 158 deg F ambient air temperature for operation
▪ Silver alloy (Ag/Ni) contacts material
▪ Protected LED light source and integral LED bulb base
▪ Zamak fixing collar
▪ 50/60 Hz frequency
▪ 7.08 to 10.62 in-lb tightening torque
▪ 600 VAC insulation voltage
▪ 6 kV conforming to EN 60947-1 rated impulse withstand voltage
▪ Steady type signaling
▪ 18 mA current consumption
▪ 100000 hr at rated voltage and 25 deg C service life
