Description: Schneider Electric Harmony™ Contact Assembly, Complete Body Light Block Standard, Series: ZB4, 30 mm, 47 mm, LED Lamp, 1NC, 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC, A600 - Q600 Contact, Silver Alloy Contact, 600 V AC, NEMA 1/2/3/4/4X/12/13, Slow Break Operator, IP66, Screw Terminal, Flush Mount, Metal, Red, 1.18 in W x 1.85 in H

Manufacturer PN: ZB4BW0B42

UPC: 38911089317

Kendall Electric Inc PN: 3960194

Invoice Description:

ZB4BW0B42 SQD RED 24V PROTECTED LED

SPEC SHEET

How Can We Make This Page Better?

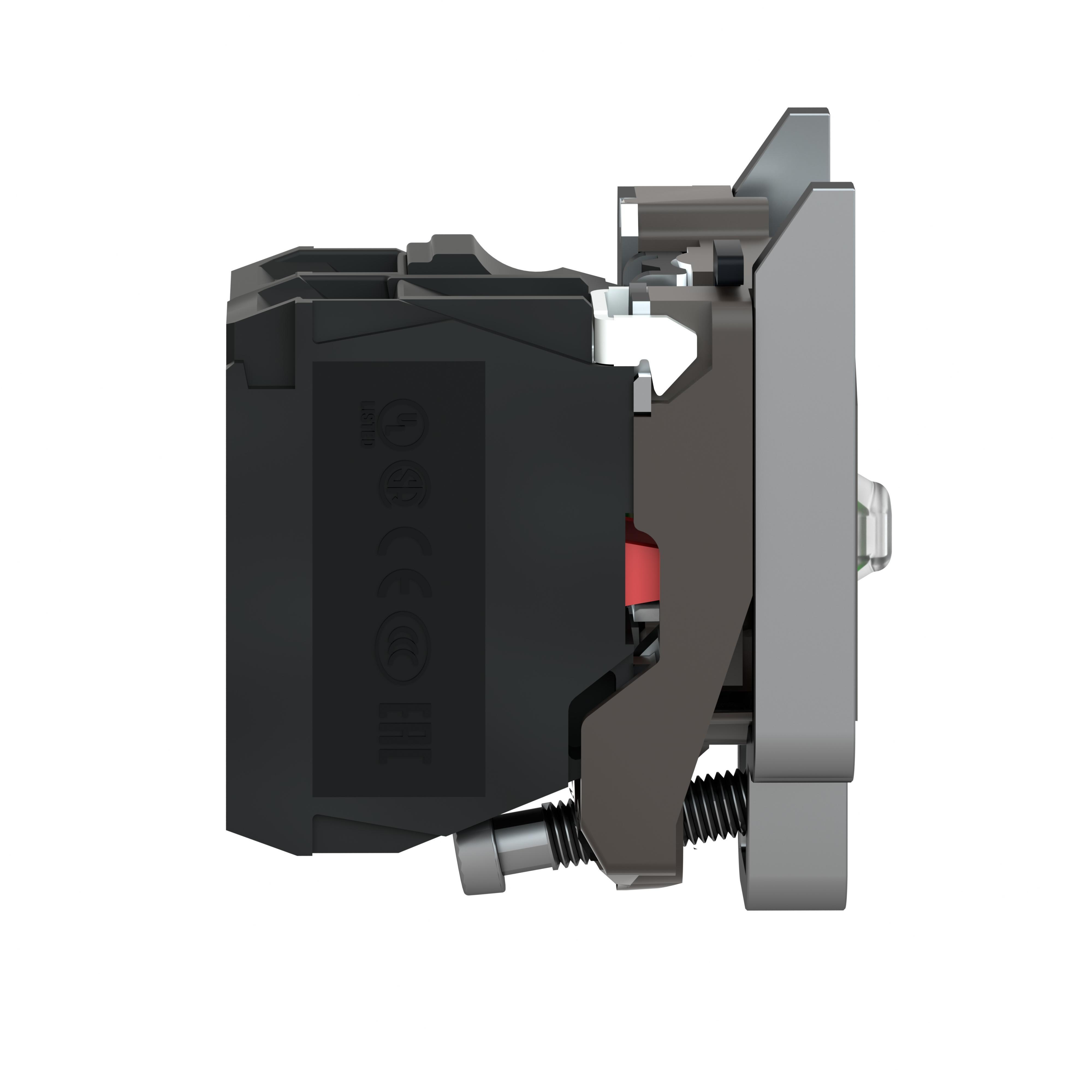

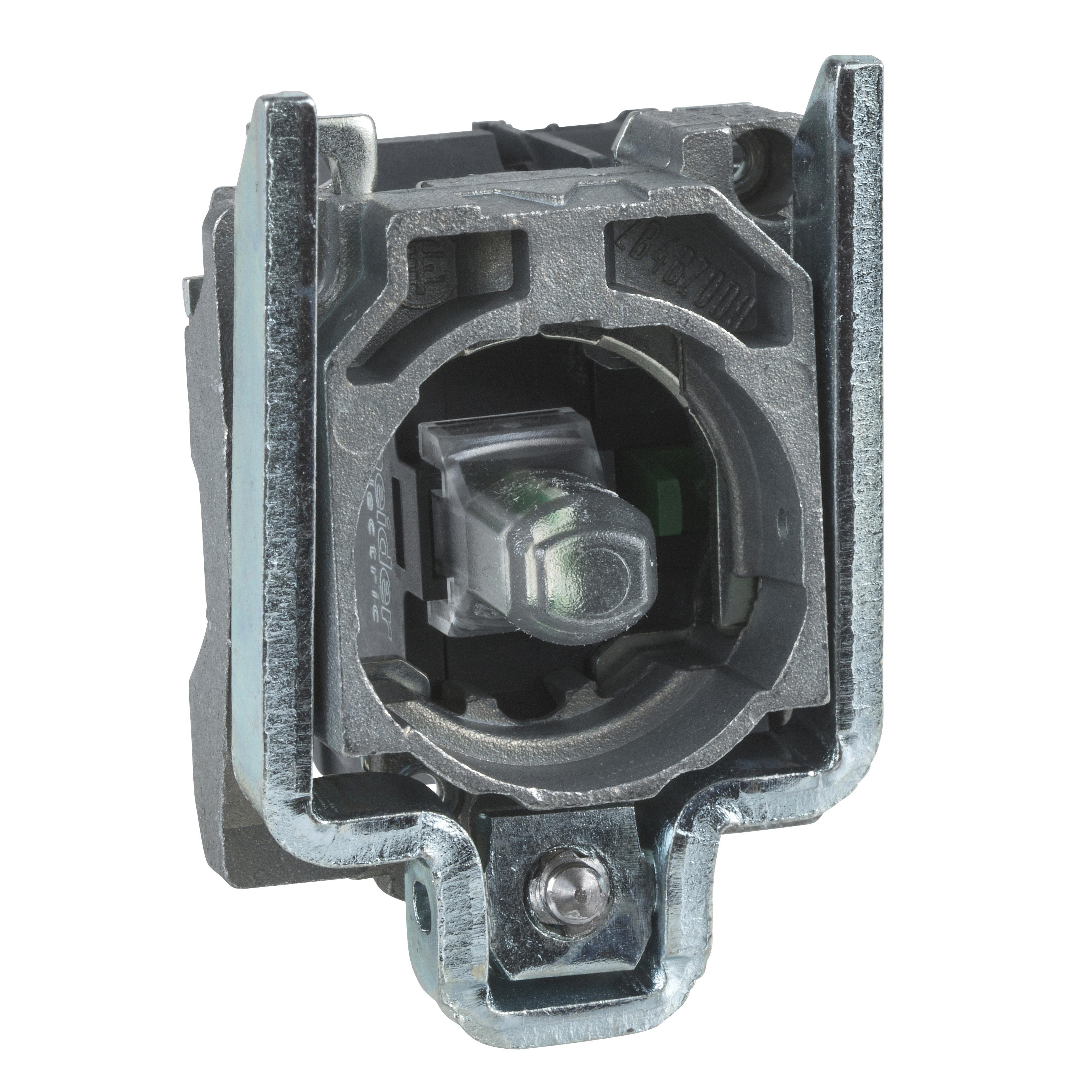

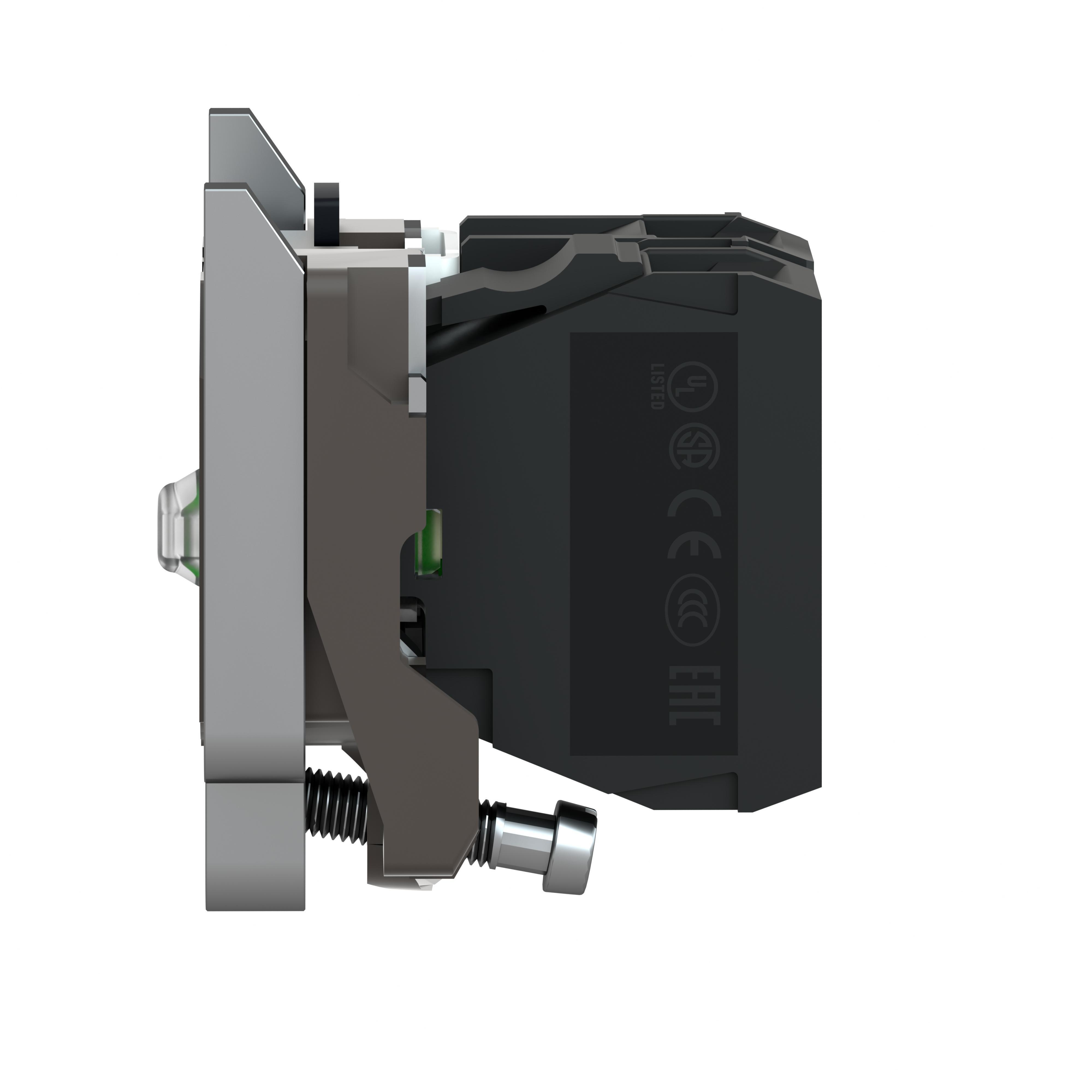

Schneider Electric Harmony™ ZB4BW0B42 Complete Body Light Block Standard Contact Assembly, 30 mm, 47 mm, LED Lamp, 1NC Contact, 600 V AC, Red

Note: Lead times are estimates only

Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description Specifications Resources

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated pushbutton or selector switch units via clip together assembly and connected with simple screw clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66, making it ideal for operation in harsh environments.

Schneider Electric Harmony™ Contact Assembly, Complete Body Light Block Standard, Series: ZB4, 30 mm, 47 mm, LED Lamp, 1NC, 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC, A600 - Q600 Contact, Silver Alloy Contact, 600 V AC, NEMA 1/2/3/4/4X/12/13, Slow Break Operator, IP66, Screw Terminal, Flush Mount, Metal, Red, 1.18 in W x 1.85 in H

Specifications

Brand Name	Square D
Color	Red
Contact Configuration	1NC
Contact Material	Silver Alloy
Contact Rating	6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, A600 - Q600
Dimensions	1.18 in W x 1.85 in H
Enclosure	IP66
Lamp Type	LED
Manufacturer Part Number	ZB4BW0B42
Material	Metal
Mounting Type	Flush
NEMA Rating	NEMA 1/2/3/4/4X/12/13
PART NUMBER KEYWORDS	ZB4BW0B42 ; 8019308 ; 785901382836 ; 78590138283 ; 03389110893175 ; 3389110893175
Series	ZB4
Size	30 mm, 47 mm
Standards/Approvals	RoHS Compliant\|EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/IEC 60947-1, EN/IEC 60947-5-4\|CSA C22.2 14\|UL 508\|JIS C 4520\|RINA Certified\|GL Certified\|Lloyd's Register Certified\|BV Certified\|DNV Certified\|REACH Compliant\|Green Premium\|WEEE Compliant\|ECCN: EAR99\|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Terminal Type	Screw
Type	Complete Body Light Block Standard
Video Links
Voltage Rating	600 V AC
