Schneider Electric
  • ZB4BW0B13 SQD WHITE 24V PROTECTED
  • ZB4BW0B13 SQD WHITE 24V PROTECTED
  • ZB4BW0B13 SQD WHITE 24V PROTECTED
  • ZB4BW0B13 SQD WHITE 24V PROTECTED
  • ZB4BW0B13 SQD WHITE 24V PROTECTED

Description: Schneider Electric, ZB4BW0B13, Complete Body/Light Block/Contact Assembly, Slow Break, Series: ZB4, 22 mm Dia Size, LED Lamp, 600 V AC, Screw Terminal, Flush Mounting, Silver Alloy, White, 1.18 in W x 1.85 in H Dimensions

Manufacturer PN: ZB4BW0B13

UPC:  38911089310

Kendall Electric Inc PN: 3961108

Invoice Description:

ZB4BW0B13 SQD WHITE 24V PROTECTED


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric ZB4BW0B13 ZB4 Slow Break Complete Body/Light Block/Contact Assembly, 22 mm Dia, LED Lamp, 600 V AC, Screw Terminal, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

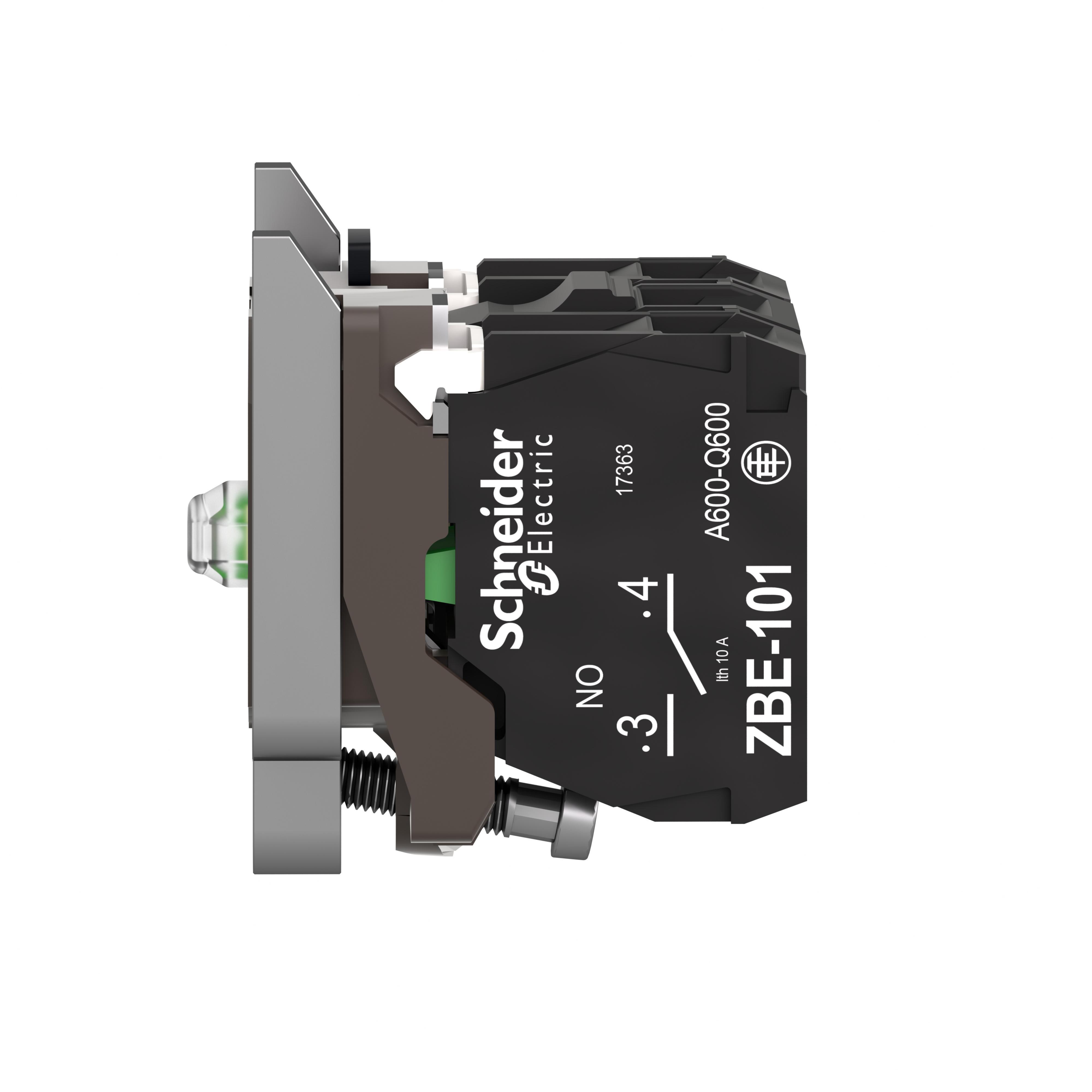

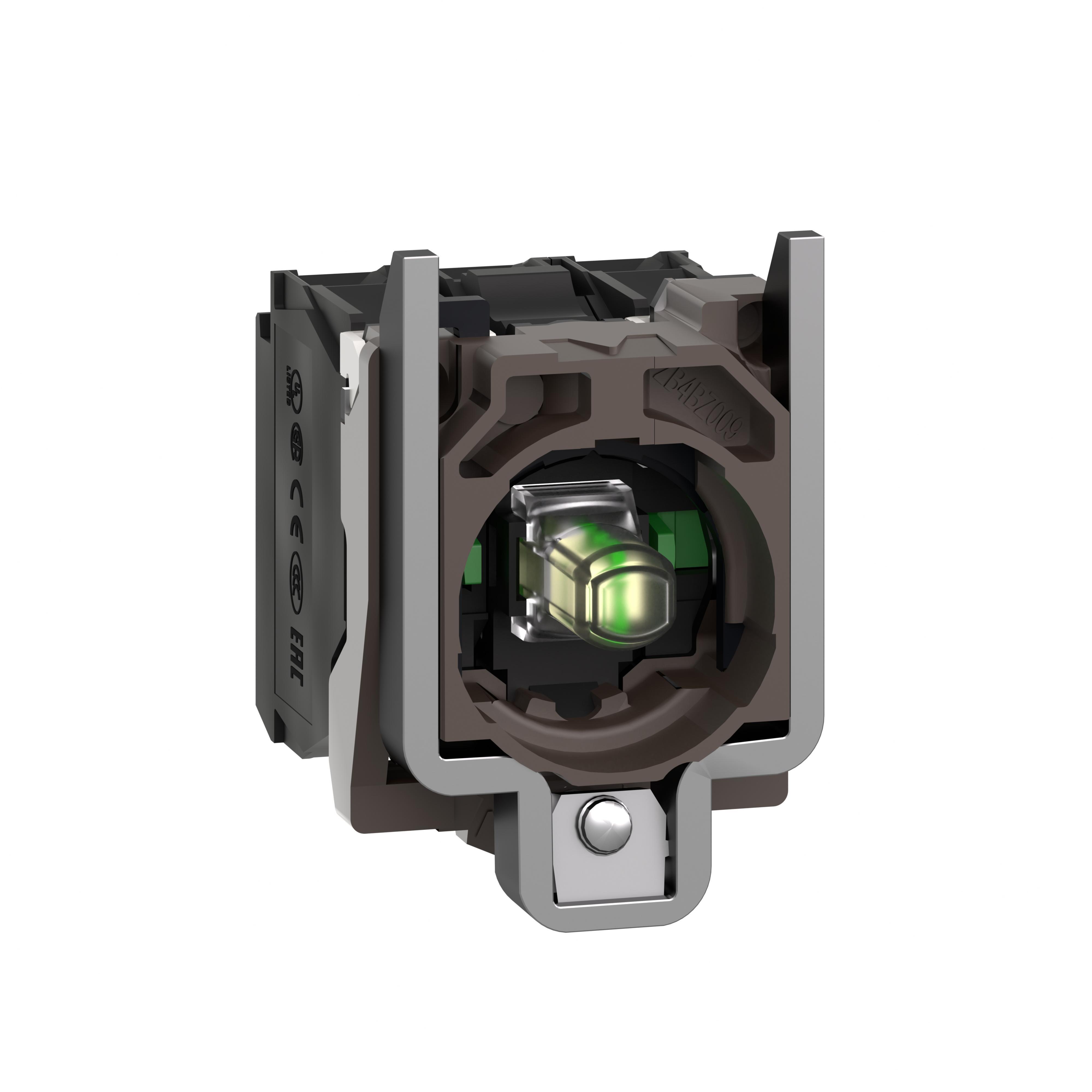

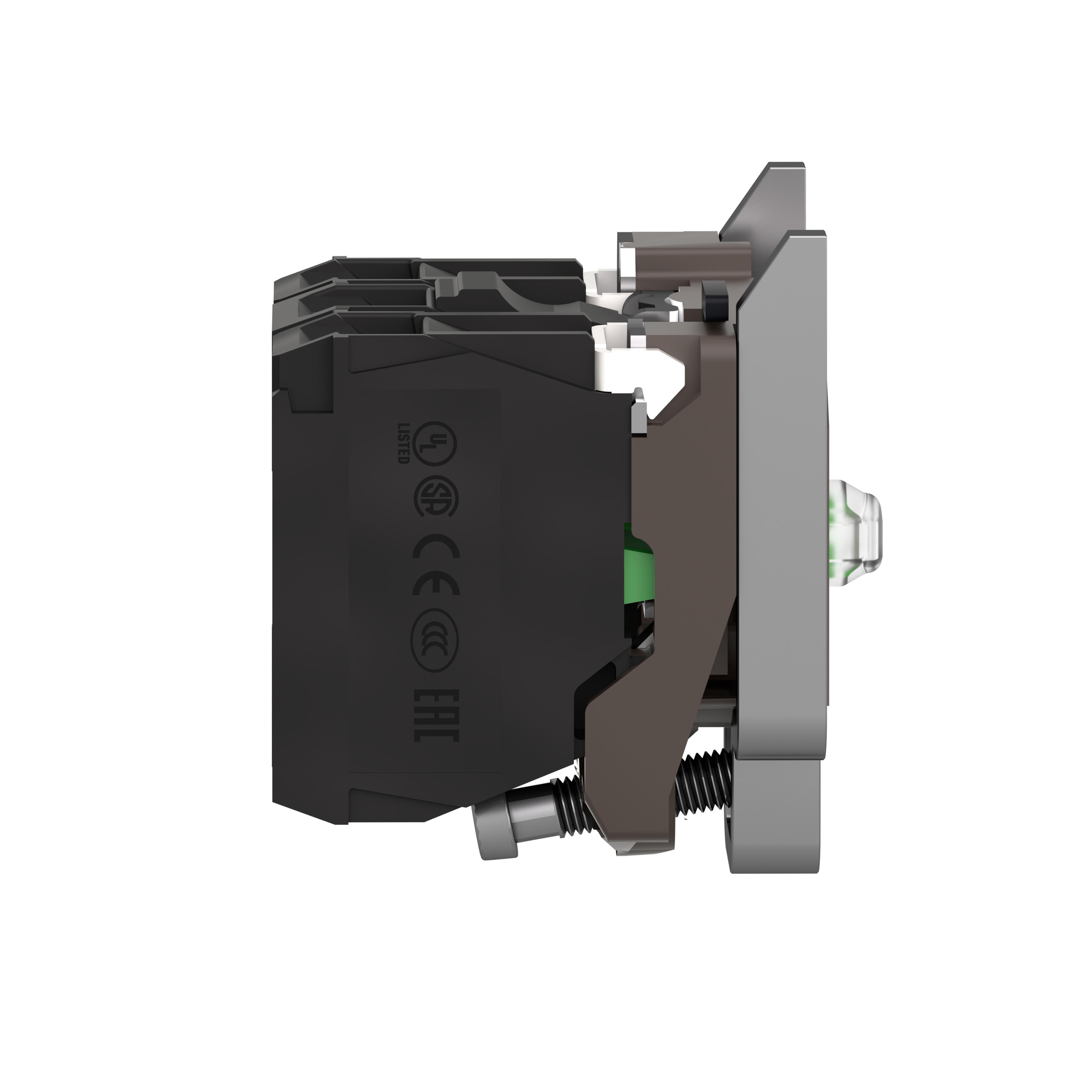

This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has 2 x NO contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Schneider Electric, ZB4BW0B13, Complete Body/Light Block/Contact Assembly, Slow Break, Series: ZB4, 22 mm Dia Size, LED Lamp, 600 V AC, Screw Terminal, Flush Mounting, Silver Alloy, White, 1.18 in W x 1.85 in H Dimensions

Specifications

 Application Xb4 Series 22 mm Pushbutton
 Brand Name Square D
 Color White

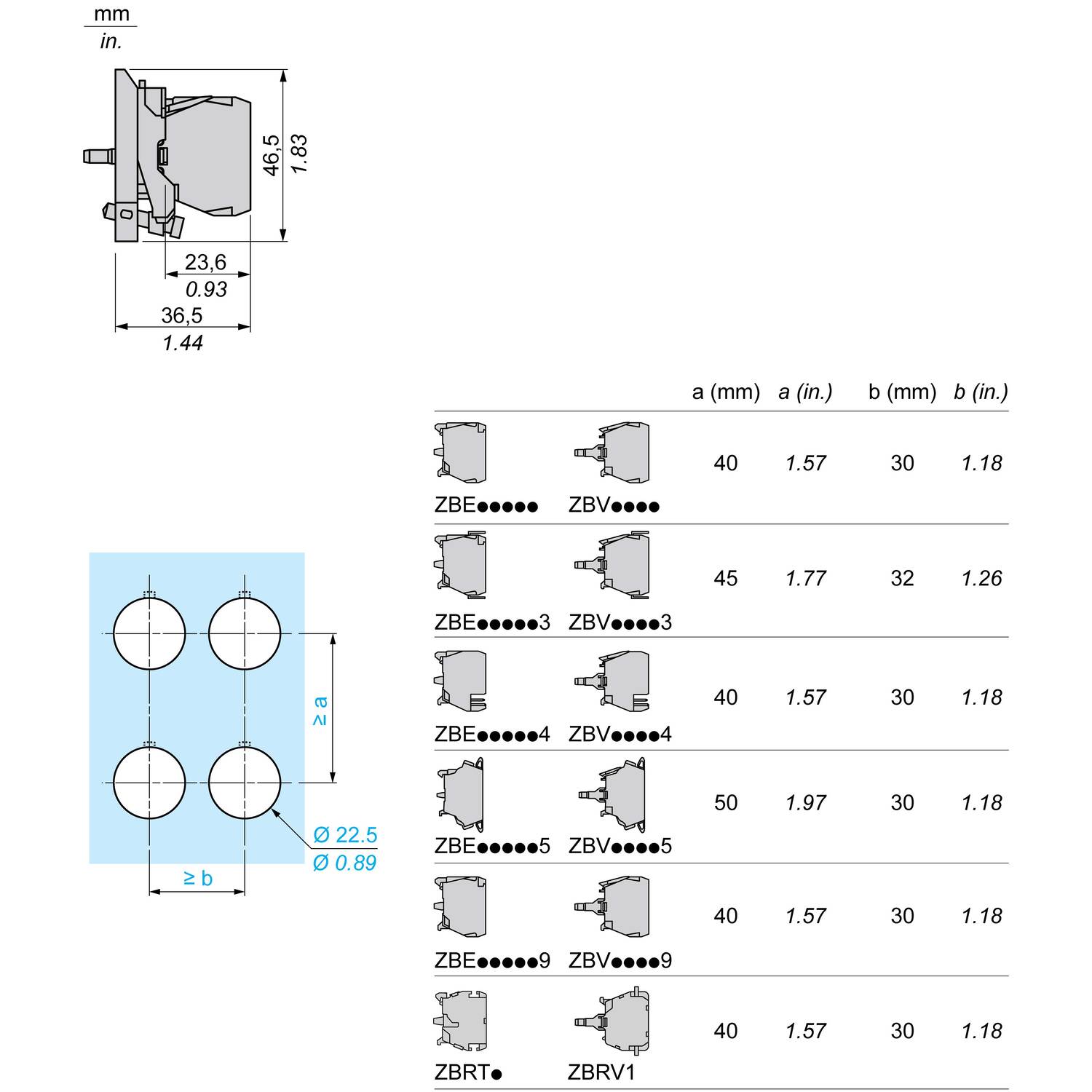

 Dimensions 1.18 in W x 1.85 in H
 Includes Mounting Collar, Single Contact Block and Light Module with Protected LED
 Lamp Type LED
 Manufacturer Part Number ZB4BW0B13
 Material Silver Alloy
 Mounting Type Flush
 PART NUMBER KEYWORDS ZB4BW0B13 ; 8019288 ; 785901382768 ; 78590138276 ; 03389110893106 ; 3389110893106
 Series ZB4
 Size 22 mm Dia
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL 508|CSA C22.2 #14|JIS C-4520|EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Screw
 Type Slow Break
 Video Links
 Voltage Rating 600 V AC

Features

▪ Compatible with improved color heads
▪ Universal LED block to be used for all colors
▪ Quick and easy assembly and disassembly
▪ Excellent mechanical connection with operator head
▪ Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
