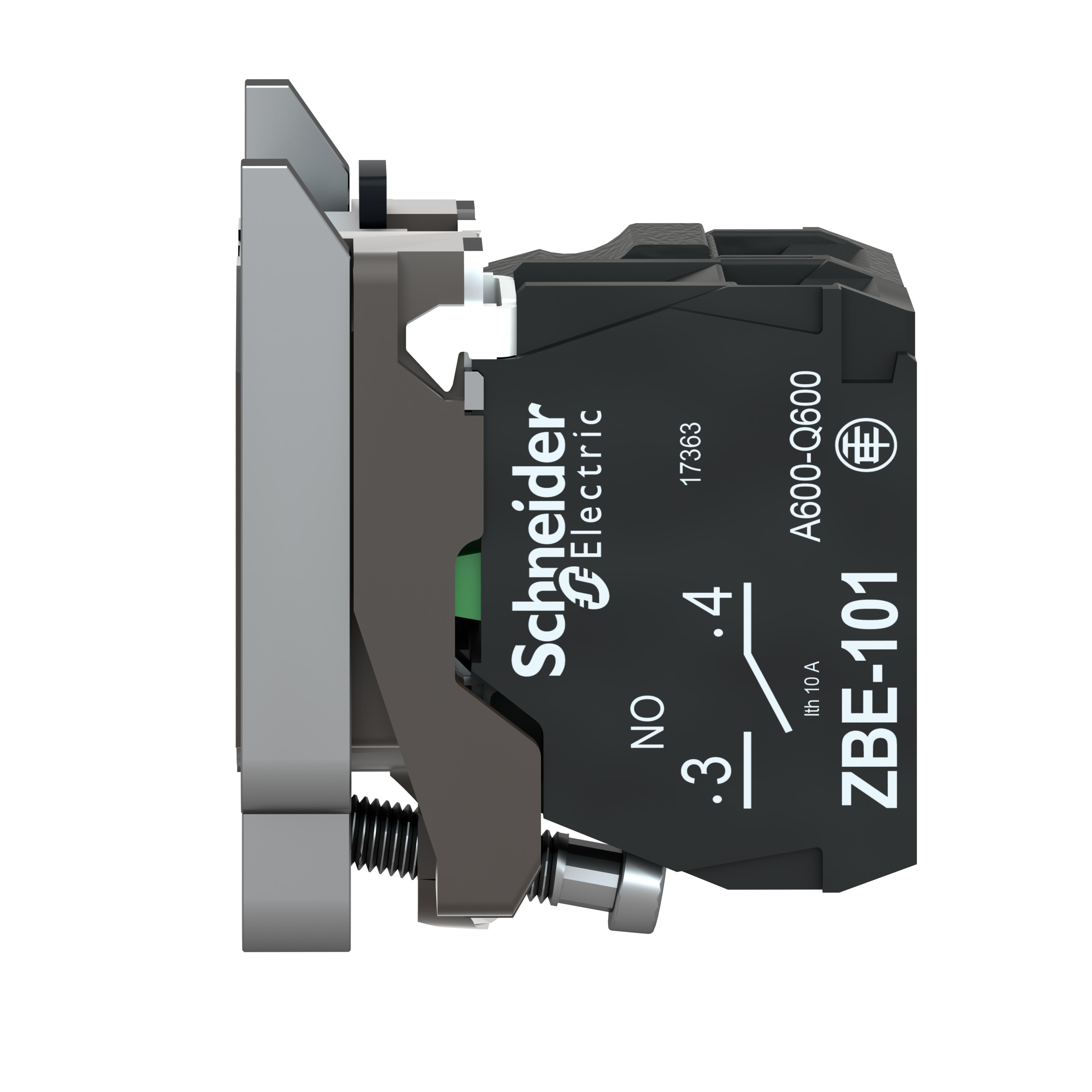

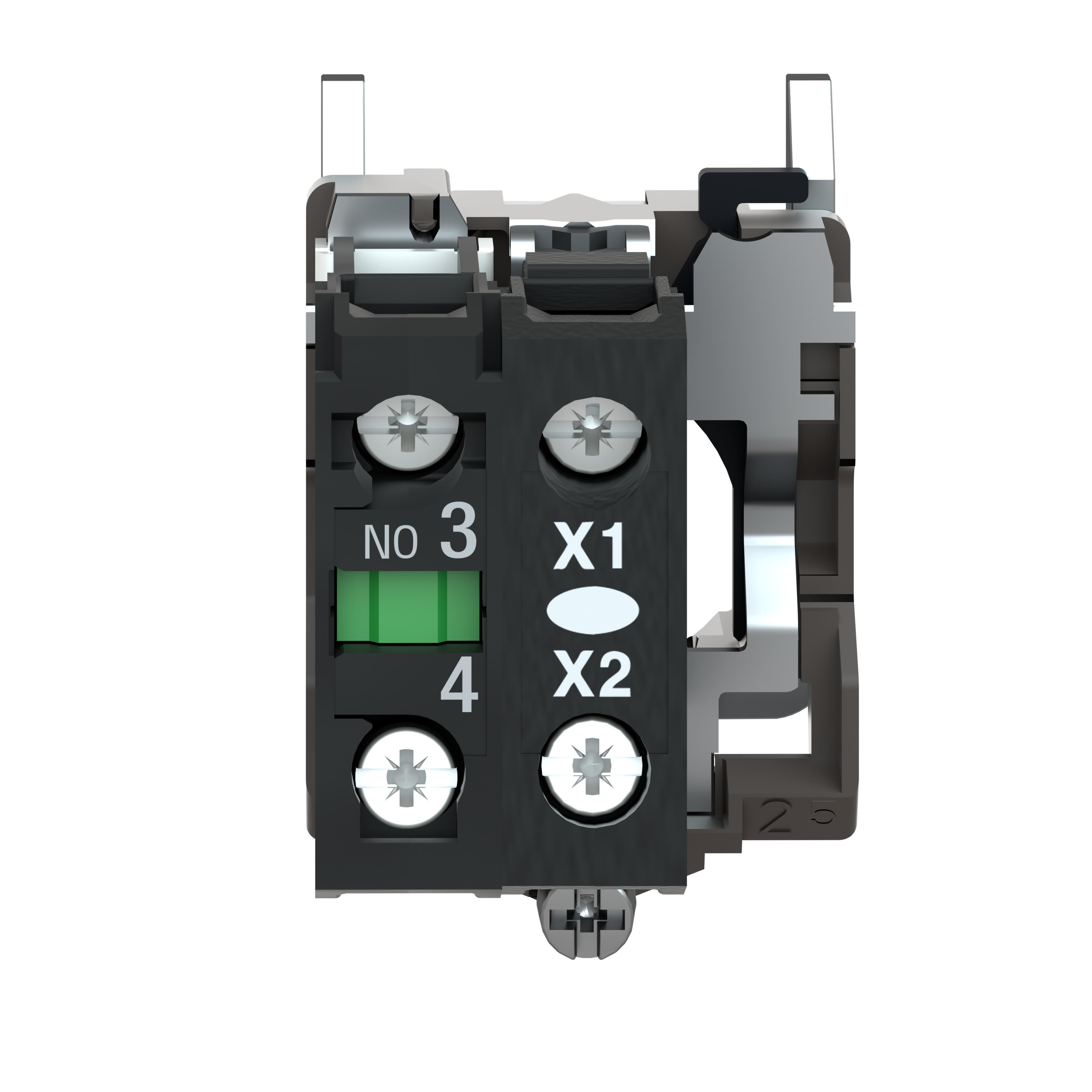

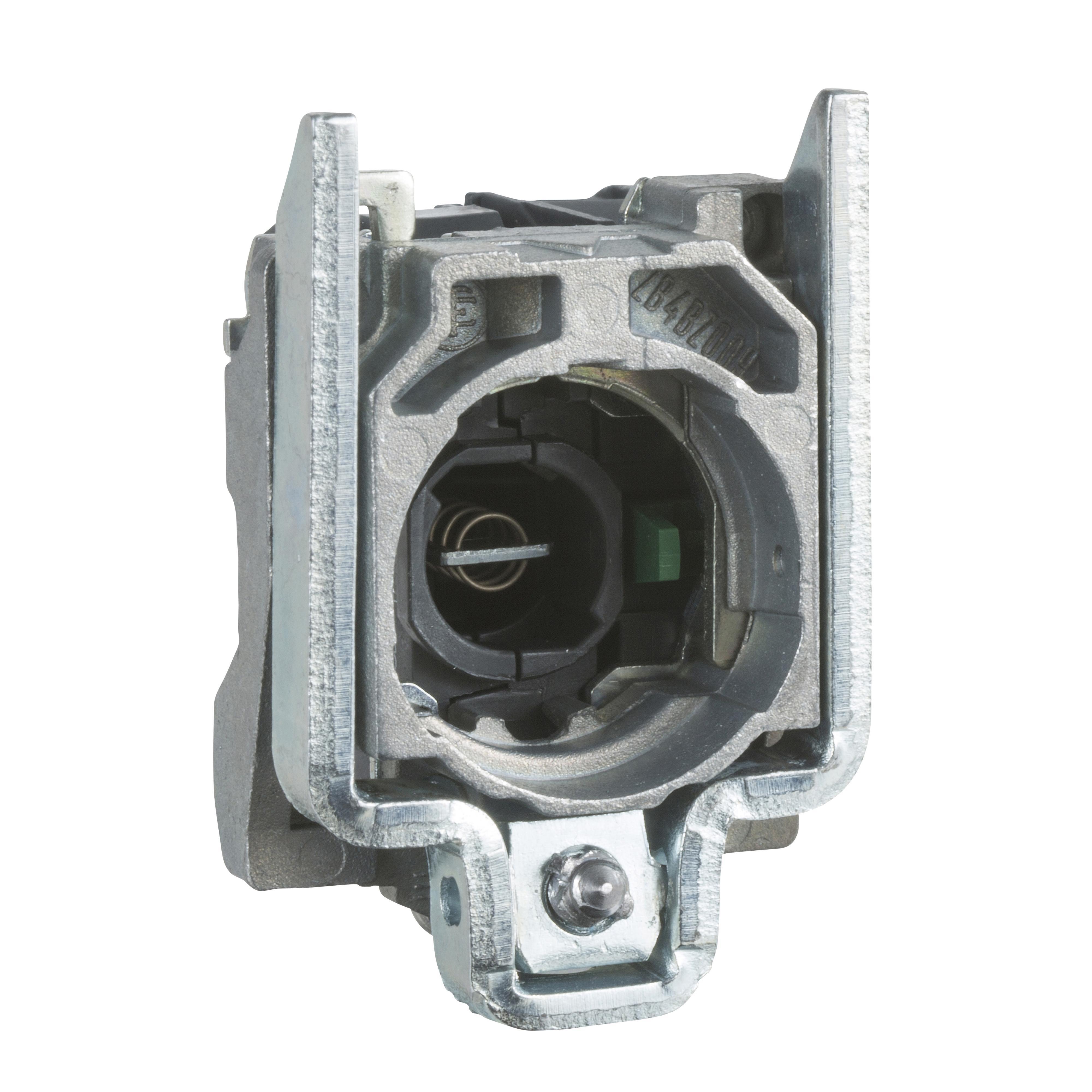

Description: Schneider Electric Harmony™ Complete Body/Light Block/Contact Assembly, Slow Break, Series: ZB4, 22 mm Dia Size, Incandescent Lamp, 600 V AC, Screw Clamp Terminal, Silver Alloy, 1.18 in W x 1.46 in D x 1.85 in H Dimensions

Manufacturer PN: ZB4BW061

UPC:  38911089112

Kendall Electric Inc PN: 4001081

Invoice Description:

ZB4BW061 SQD MOUNTING COLLAR W


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Harmony™ ZB4BW061 Slow Break Complete Body/Light Block/Contact Assembly, 22 mm Dia, Incandescent Lamp, 600 V AC, Screw Clamp Terminal

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB4, light block with body/fixing collar isoperates with BA9s bulb. It has 1 x NO contact and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by connected with BA9s bulb. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Schneider Electric Harmony™ Complete Body/Light Block/Contact Assembly, Slow Break, Series: ZB4, 22 mm Dia Size, Incandescent Lamp, 600 V AC, Screw Clamp Terminal, Silver Alloy, 1.18 in W x 1.46 in D x 1.85 in H Dimensions

Specifications

 Application BA9s Light Modules and Harmony™ XB4/XB5 Series UNMARKED Pushbuttons
 Brand Name Square D
 Dimensions 1.18 in W x 1.46 in D x 1.85 in H
 Includes Body/Fixing Collar
 Lamp Type Incandescent
 Manufacturer Part Number ZB4BW061
 Material Silver Alloy
 PART NUMBER KEYWORDS ZB4BW061 ; 8013208 ; 785901371687 ; 78590137168 ; 03389110891126 ; 3389110891126
 Series ZB4
 Size 22 mm Dia
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5|JIS C-4520|UL 508|CSA C22.2 #14|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Screw Clamp
 Type Slow Break
 Video Links
 Voltage Rating 600 V AC

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector or spring terminal
▪ Excellent mechanical connection with operator head
▪ Large set of accessories to customize your panels
