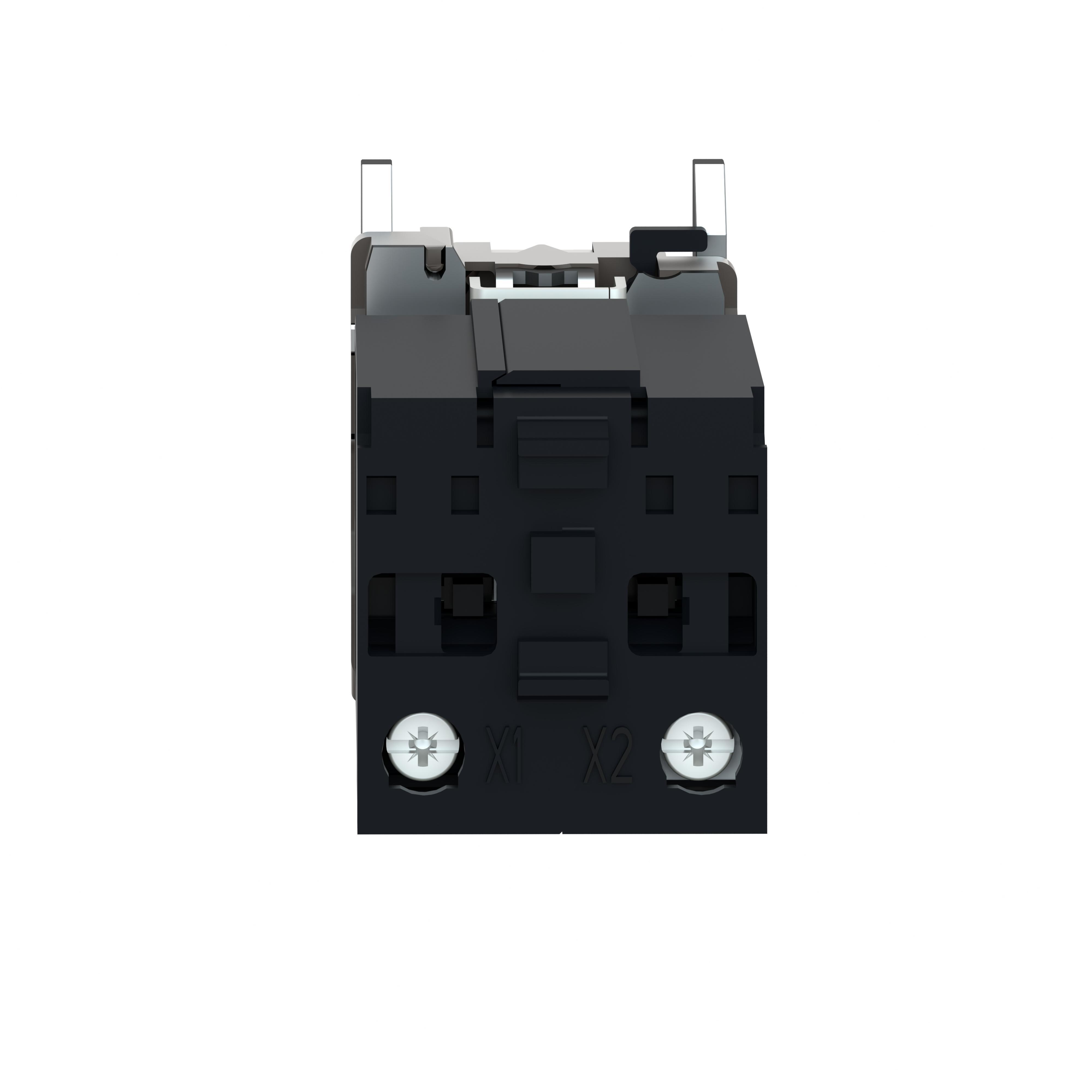

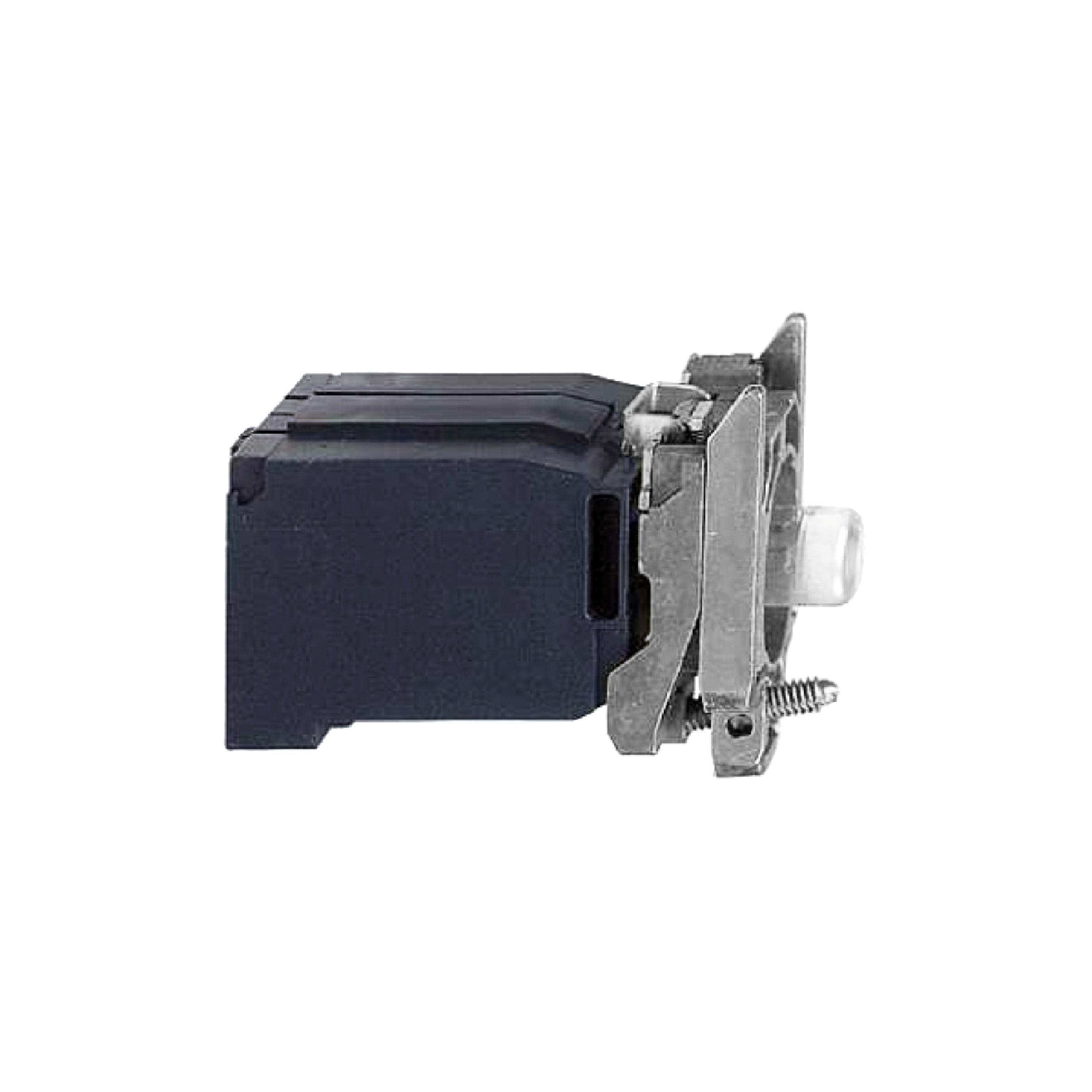

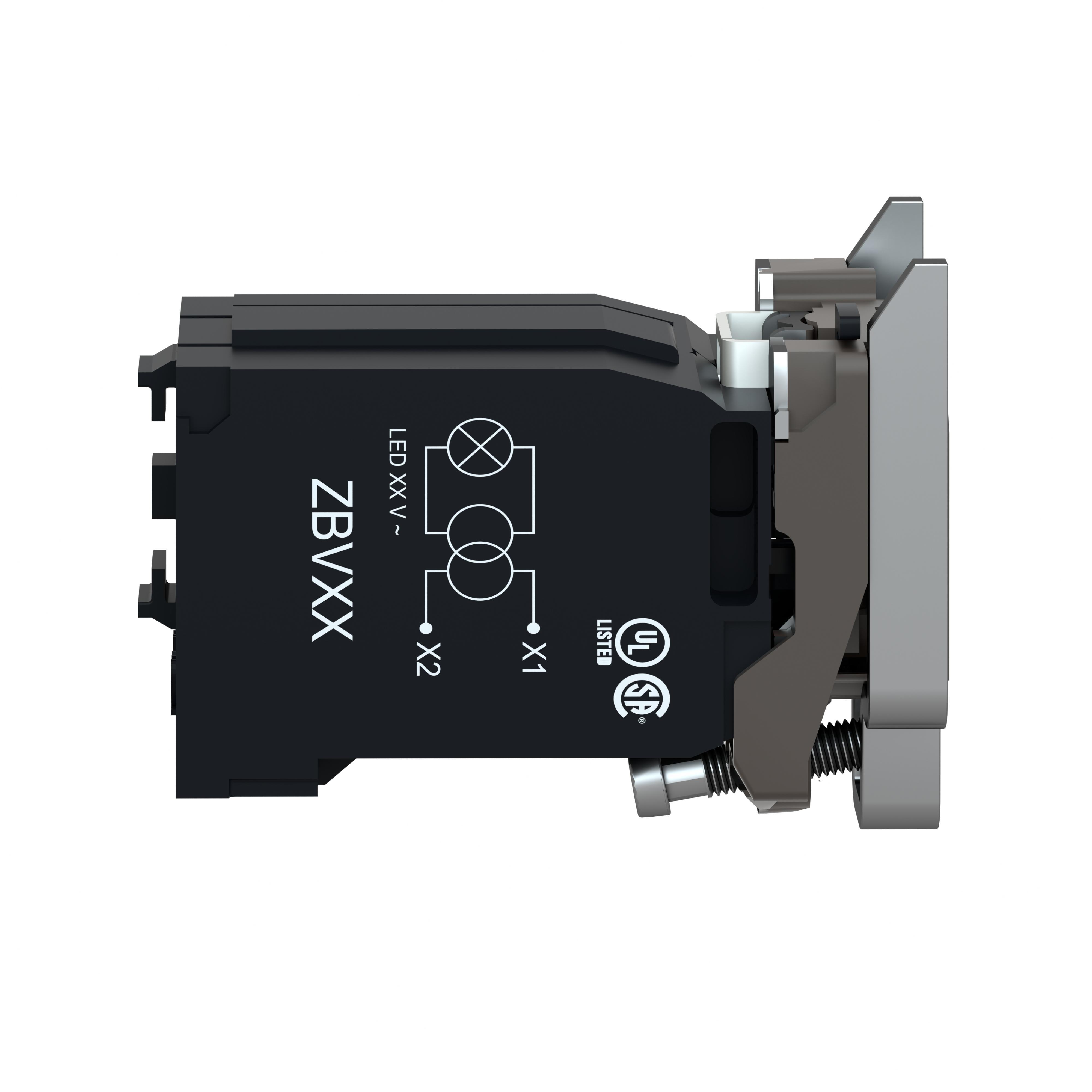

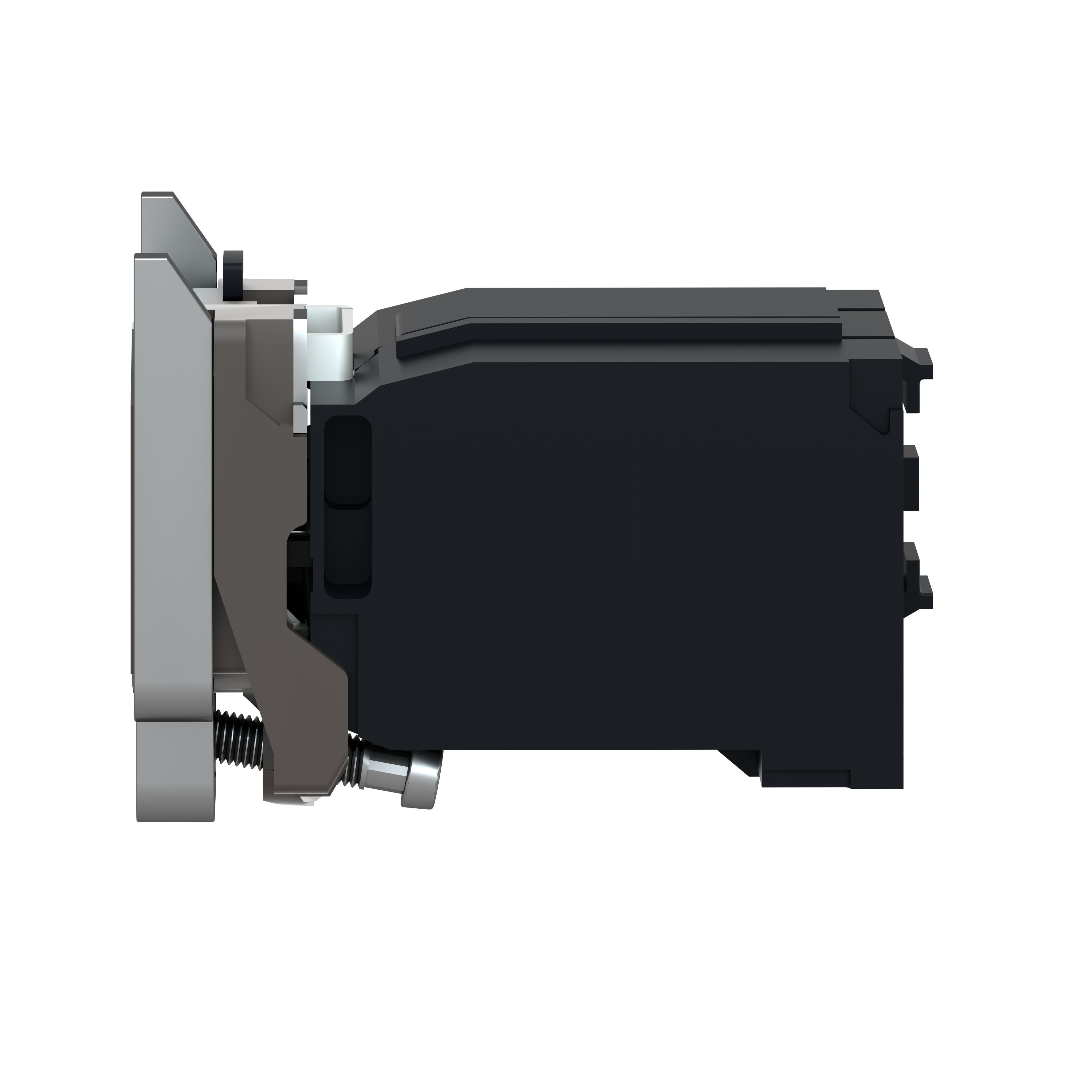

Description: Schneider Electric Harmony™ Complete Body/Light Block Assembly, Series: ZB4, 22 mm Dia Size, Incandescent Lamp, 440 to 480 V AC, Screw Clamp Terminal, Front Mounting, 1.18 in W x 2.36 in D x 1.85 in H Dimensions

Manufacturer PN: ZB4BV8

UPC:  38911088967

Kendall Electric Inc PN: 4562079

Invoice Description:

ZB4BV8 SQD TRANSFORMER LIGHT MODULE


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Harmony™ ZB4BV8 Complete Body/Light Block Assembly, 22 mm Dia, Incandescent Lamp, 440 to 480 V AC, Screw Clamp Terminal

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB4, light block with body/fixing collar operates with BA9s base Integral LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Schneider Electric Harmony™ Complete Body/Light Block Assembly, Series: ZB4, 22 mm Dia Size, Incandescent Lamp, 440 to 480 V AC, Screw Clamp Terminal, Front Mounting, 1.18 in W x 2.36 in D x 1.85 in H Dimensions

Specifications

 Application Xb4 Series 22 Mm Round Pushbutton and Ba9s Base Bulb
 Brand Name Square D

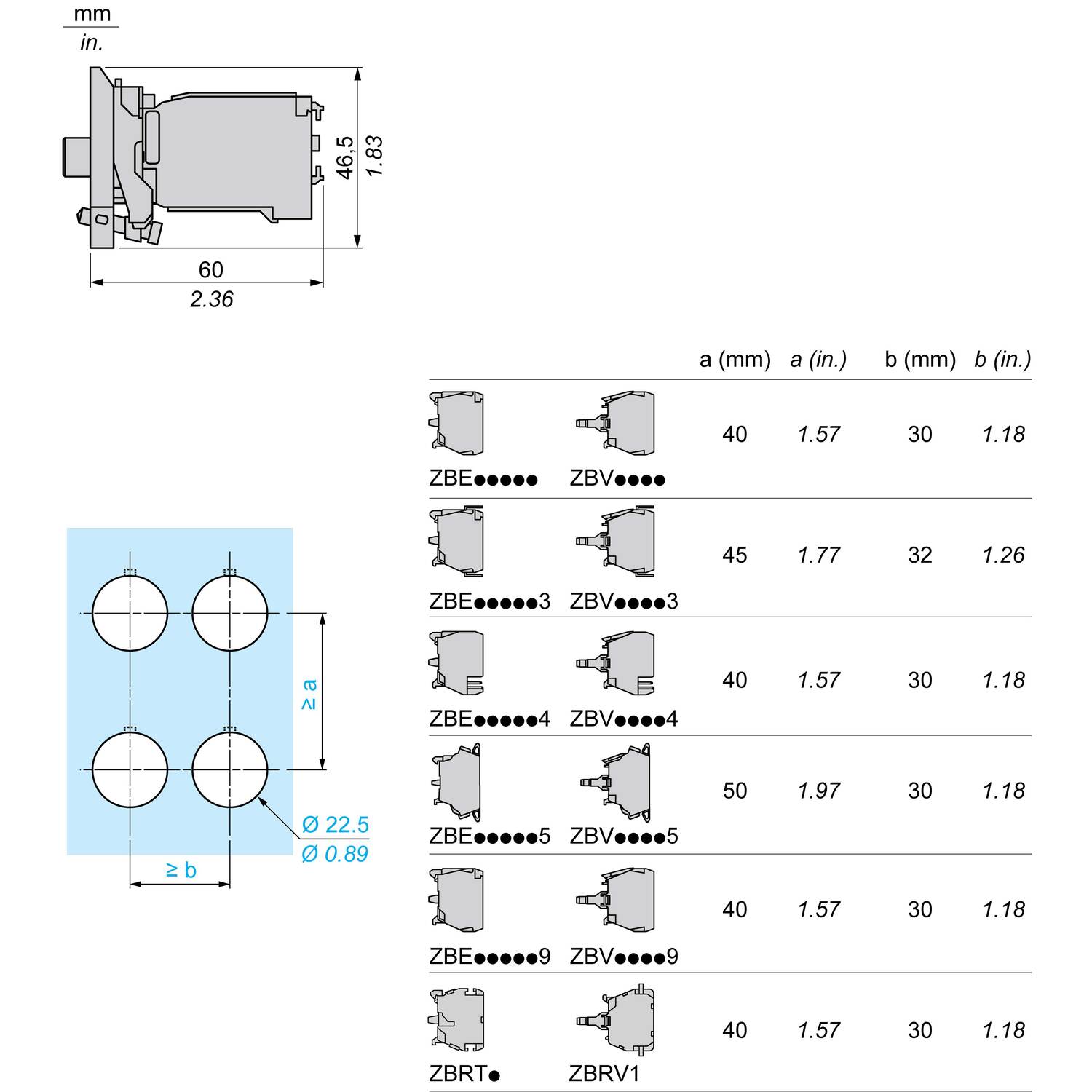

 Dimensions 1.18 in W x 2.36 in D x 1.85 in H
 Includes Body/Fixing Collar
 Lamp Type Incandescent
 Manufacturer Part Number ZB4BV8
 Mounting Type Front
 PART NUMBER KEYWORDS ZB4BV8 ; 8054904 ; 785901458890 ; 78590145889 ; 03389110889673 ; 3389110889673
 Series ZB4
 Size 22 mm Dia
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|CSA C22.2 #14|EN/IEC 60947-1/60947-5-1/60947-5-4|JIS C-4520/852|UL 508|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Screw Clamp
 Video Links
 Voltage Rating 440 to 480 V AC

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector or spring terminal
▪ Excellent mechanical connection with operator head
▪ Large set of accessories to customize your panels
