Schneider Electric
ZB4BL6 SQD PUSH BUTTON

Mouse over image to zoom, click to enlarge

Description: Schneider Electric Harmony™ Non-Illuminated Pushbutton Operator, Extended Standard, Series: ZB4, 22 mm Size, Momentary Contact Mode, Spring Return Operator, NEMA 4X/13/IP66/IP67/IP69/IP69K Enclosure, Bezel/Housing: Polished Chrome Metal, -40 to 70 deg C, Aluminum Zinc Alloy, Blue

Manufacturer PN: ZB4BL6

UPC:  38911088782

Kendall Electric Inc PN: 4005320

Invoice Description:

ZB4BL6 SQD PUSH BUTTON

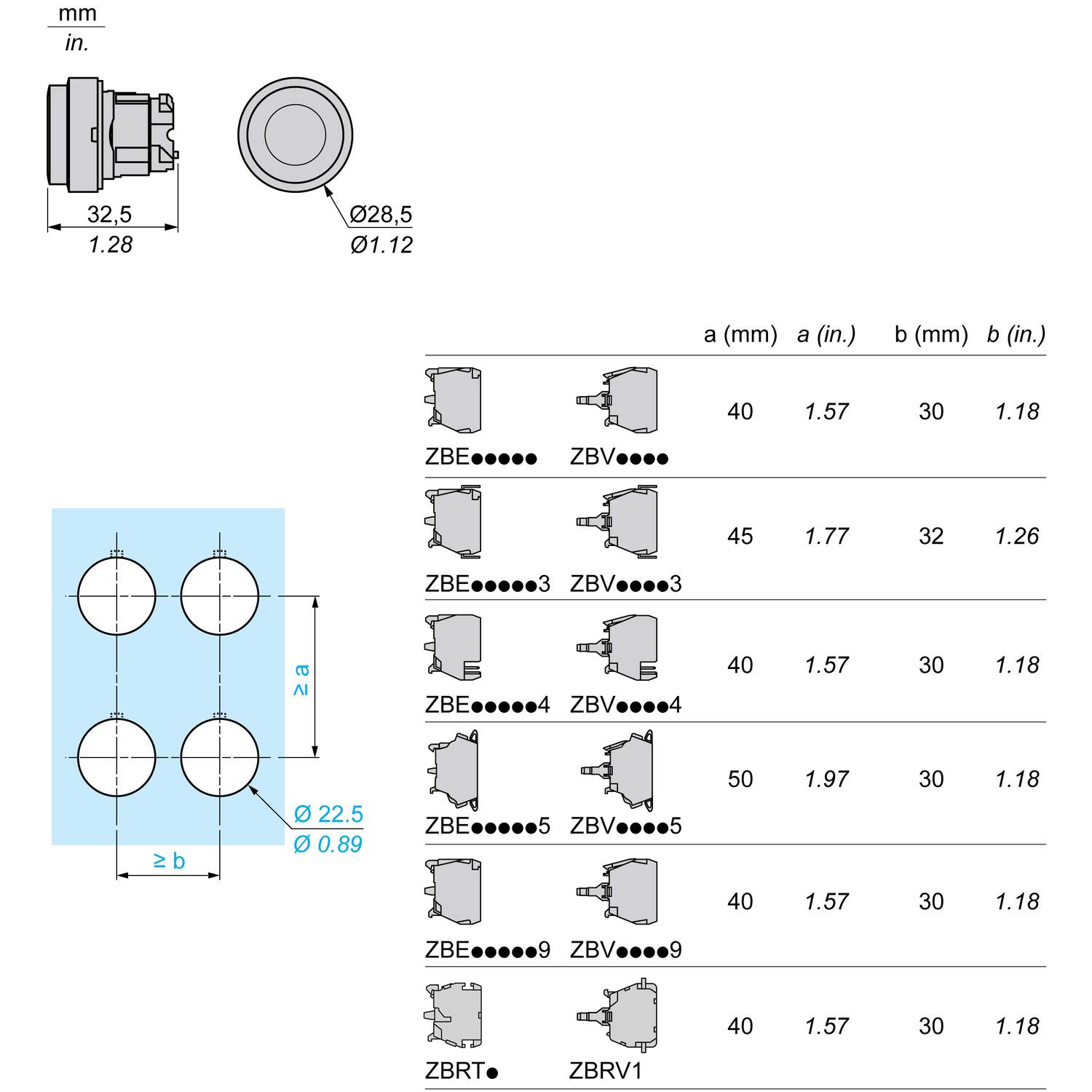

SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Harmony™ ZB4BL6 Extended Standard Non-Illuminated Pushbutton Operator, 22 mm, Blue

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB4, projecting blue button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Schneider Electric Harmony™ Non-Illuminated Pushbutton Operator, Extended Standard, Series: ZB4, 22 mm Size, Momentary Contact Mode, Spring Return Operator, NEMA 4X/13/IP66/IP67/IP69/IP69K Enclosure, Bezel/Housing: Polished Chrome Metal, -40 to 70 deg C, Aluminum Zinc Alloy, Blue

Specifications

 Bezel Housing Polished Chrome Metal
 Brand Name Square D
 Color Blue
 Enclosure NEMA 4X/13/IP66/IP67/IP69/IP69K
 Manufacturer Part Number ZB4BL6
 Material Aluminum Zinc Alloy
 PART NUMBER KEYWORDS ZB4BL6 ; 8013087 ; 785901371373 ; 78590137137 ; 03389110887822 ; 3389110887822
 Series ZB4
 Size 22 mm
 Standards/Approvals BAA Compliant|RoHS Compliant|EN/IEC 60947-1/60947-5-4/60947-5-5/60947-5-1|UL 508 File #E164353 CCN NKCR|CSA C22.2 #14 File #LR44087 Class 3211 03/3211 10|CE Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating -40 to 70 deg C
 Type Extended Standard

Features

▪ This Schneider Electric Harmony XB4 projecting blue button head operates with a spring return / impulse mechanism
▪ It has a round shape and a chromium-plated metal bezel
