Schneider Electric

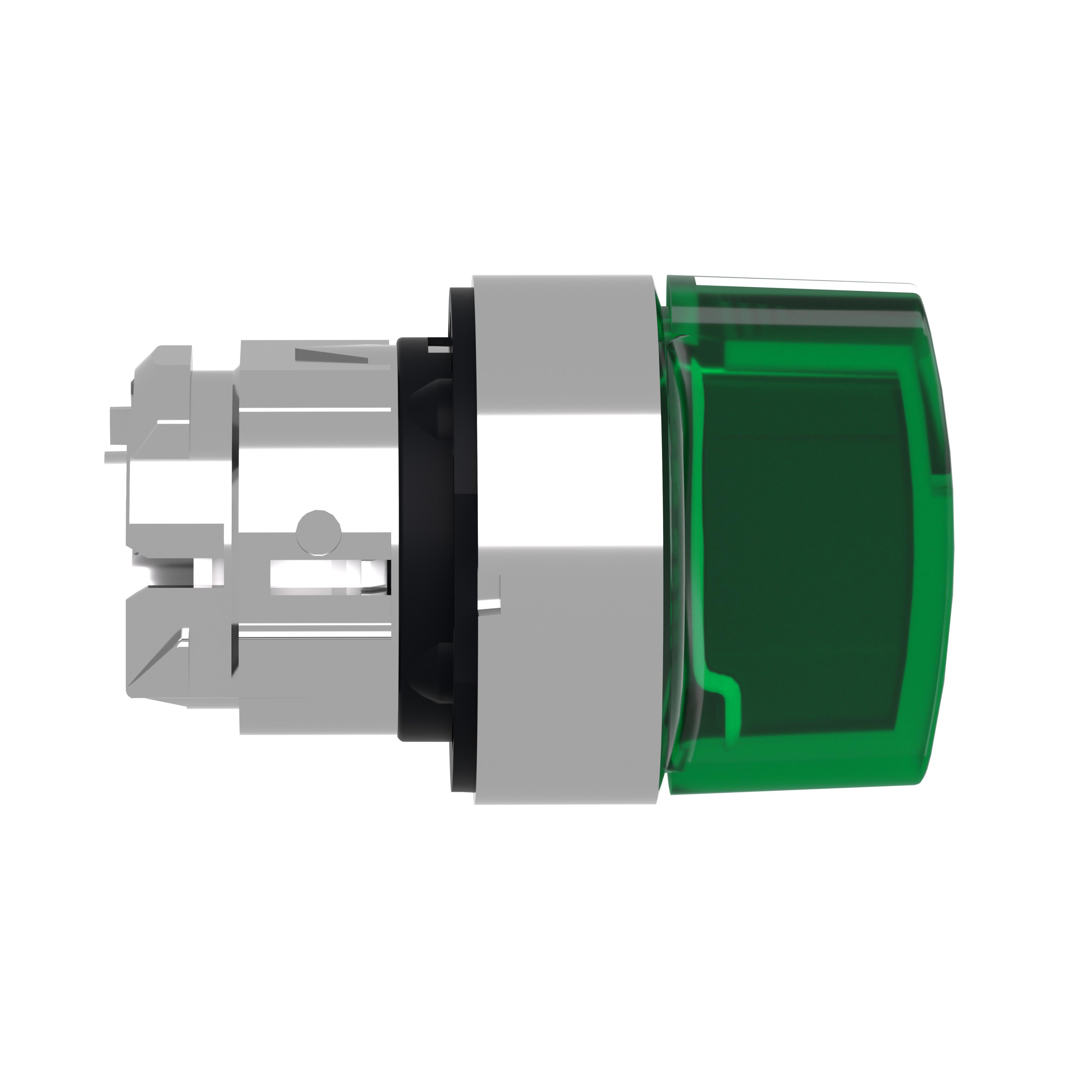

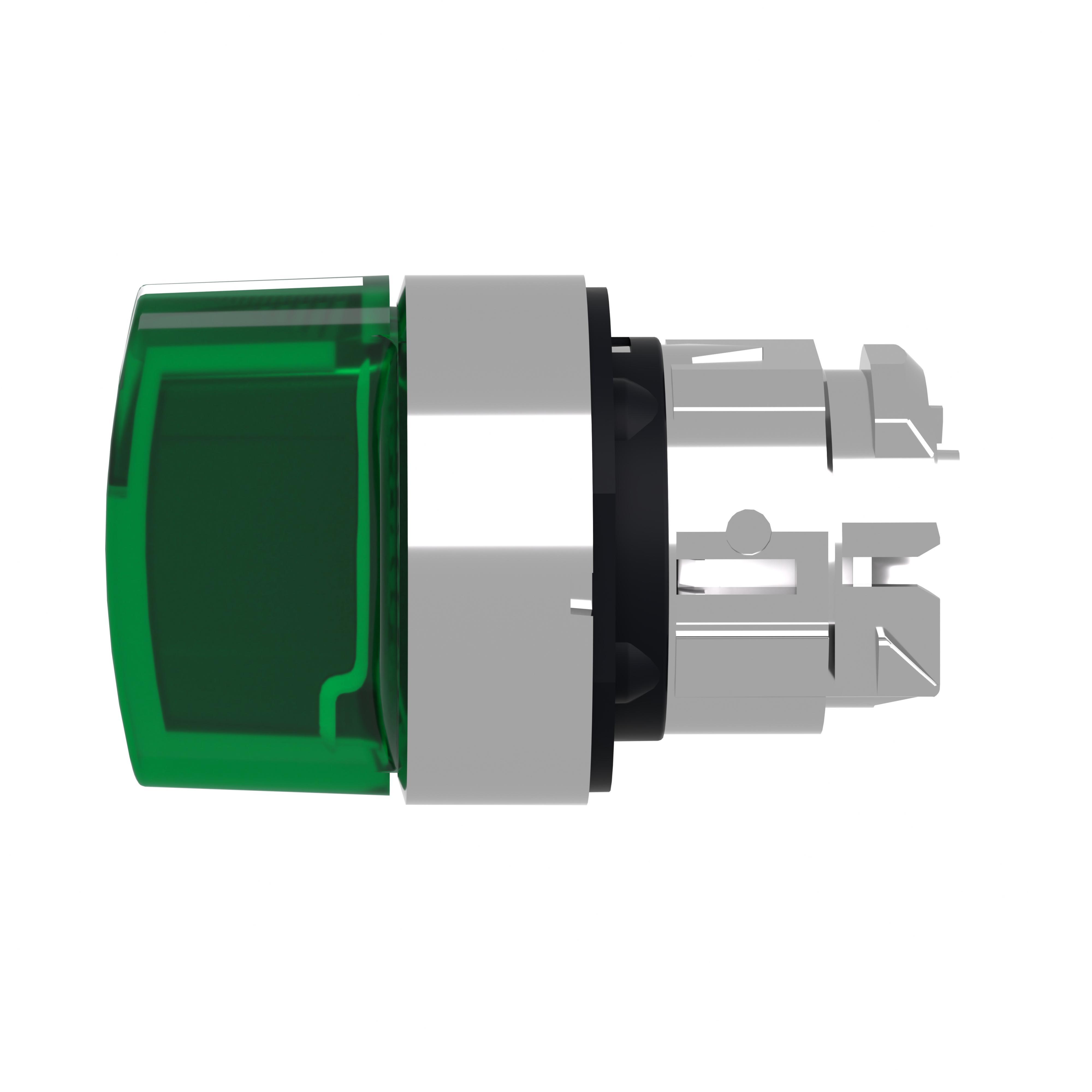

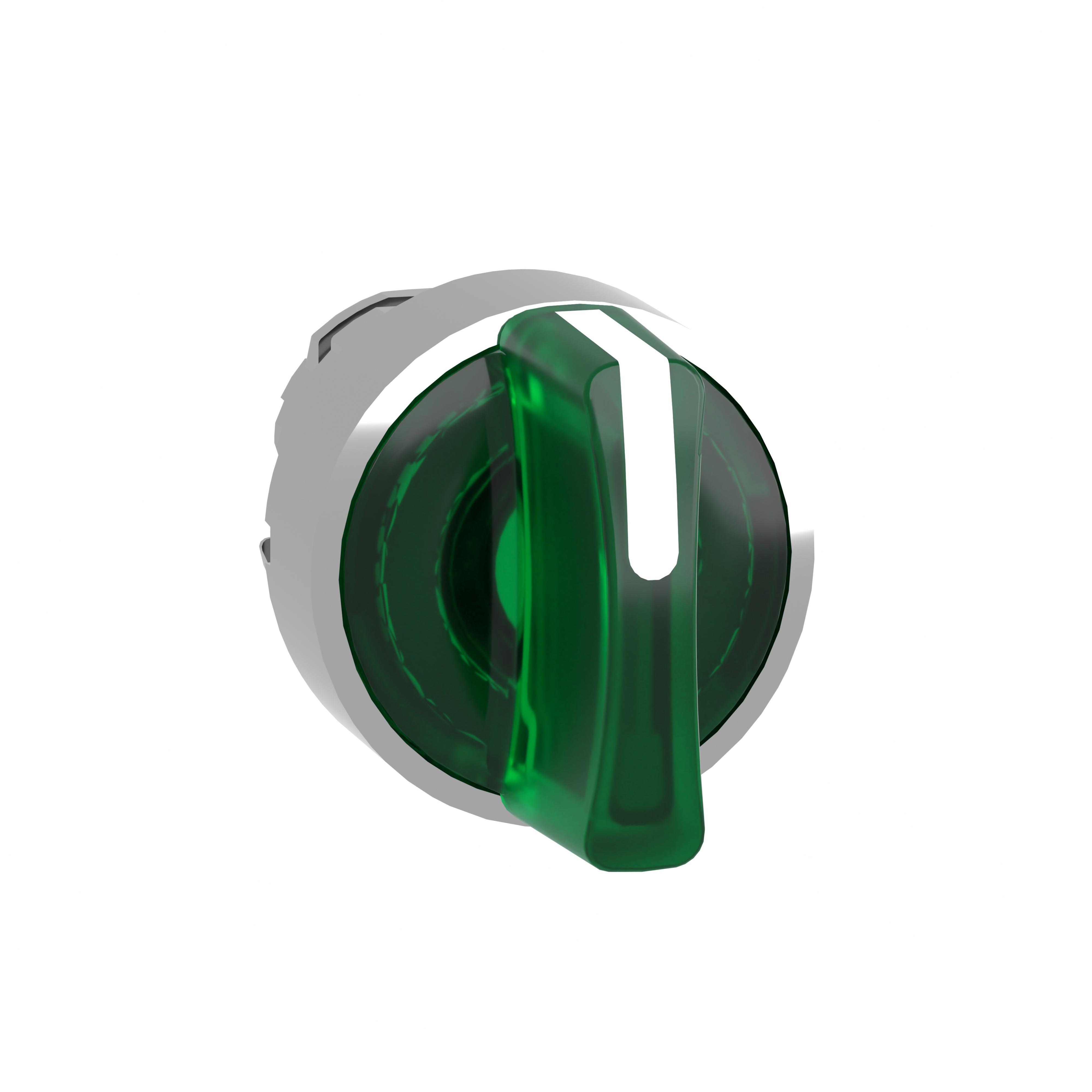

  • ZB4BK1333 SQD SELECTOR SWITCH
  • ZB4BK1333 SQD SELECTOR SWITCH
  • ZB4BK1333 SQD SELECTOR SWITCH
  • ZB4BK1333 SQD SELECTOR SWITCH
  • ZB4BK1333 SQD SELECTOR SWITCH
  • ZB4BK1333 SQD SELECTOR SWITCH

Description: Schneider Electric Harmony™ Square D™ Illuminated Selector Switch Operator, Series: ZB4, 22 mm Size, Maintained Contact Mode, Round Operator, 3 Positions, 45 deg Left/Center/Right Throw, Integral LED Lamp, NEMA 1/2/3/4/4X/13/IP65 Enclosure, Screw Clamp Terminal, Front Mounting, Bezel/Housing: Chromium Plated Metal, -40 to 158 deg F, Green

Manufacturer PN: ZB4BK1333

UPC:  38911089072

Kendall Electric Inc PN: 3959750

Invoice Description:

ZB4BK1333 SQD SELECTOR SWITCH


SPEC SHEET

▸ See All in Illuminated Selector Switch Operators


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ ZB4BK1333 Illuminated Selector Switch Operator, 22 mm, Round Operator, 3 Positions, Green

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB4, illuminated green selector switch head for universal LED with standard handle has 3 positions, operates with stay-put mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Schneider Electric Harmony™ Square D™ Illuminated Selector Switch Operator, Series: ZB4, 22 mm Size, Maintained Contact Mode, Round Operator, 3 Positions, 45 deg Left/Center/Right Throw, Integral LED Lamp, NEMA 1/2/3/4/4X/13/IP65 Enclosure, Screw Clamp Terminal, Front Mounting, Bezel/Housing: Chromium Plated Metal, -40 to 158 deg F, Green

Specifications

 Bezel Housing Chromium Plated Metal
 Brand Name Square D
 Color Green
 Enclosure NEMA 1/2/3/4/4X/13/IP65
 Lamp Type Integral LED
 Manufacturer Part Number ZB4BK1333
 Mounting Type Front
 Number of Positions 3
 Series ZB4
 Size 22 mm
 Standards/Approvals CCN NKCR|CE Marked|CSA C22.2 No. 14|CSA File No. LR44087 Class 321103|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|JIS C 4520|RoHS Compliant|UL 508|UL File No. E164353|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 158 deg F
 Terminal Type Screw Clamp
 Throw 45 deg Left/Center/Right
 Type Illuminated
 Video Links

Features

▪ Compatible with universal LED block to be used for all colors
▪ Improved color intensity and brightness
▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Large set of accessories to customize your panels
