Schneider Electric

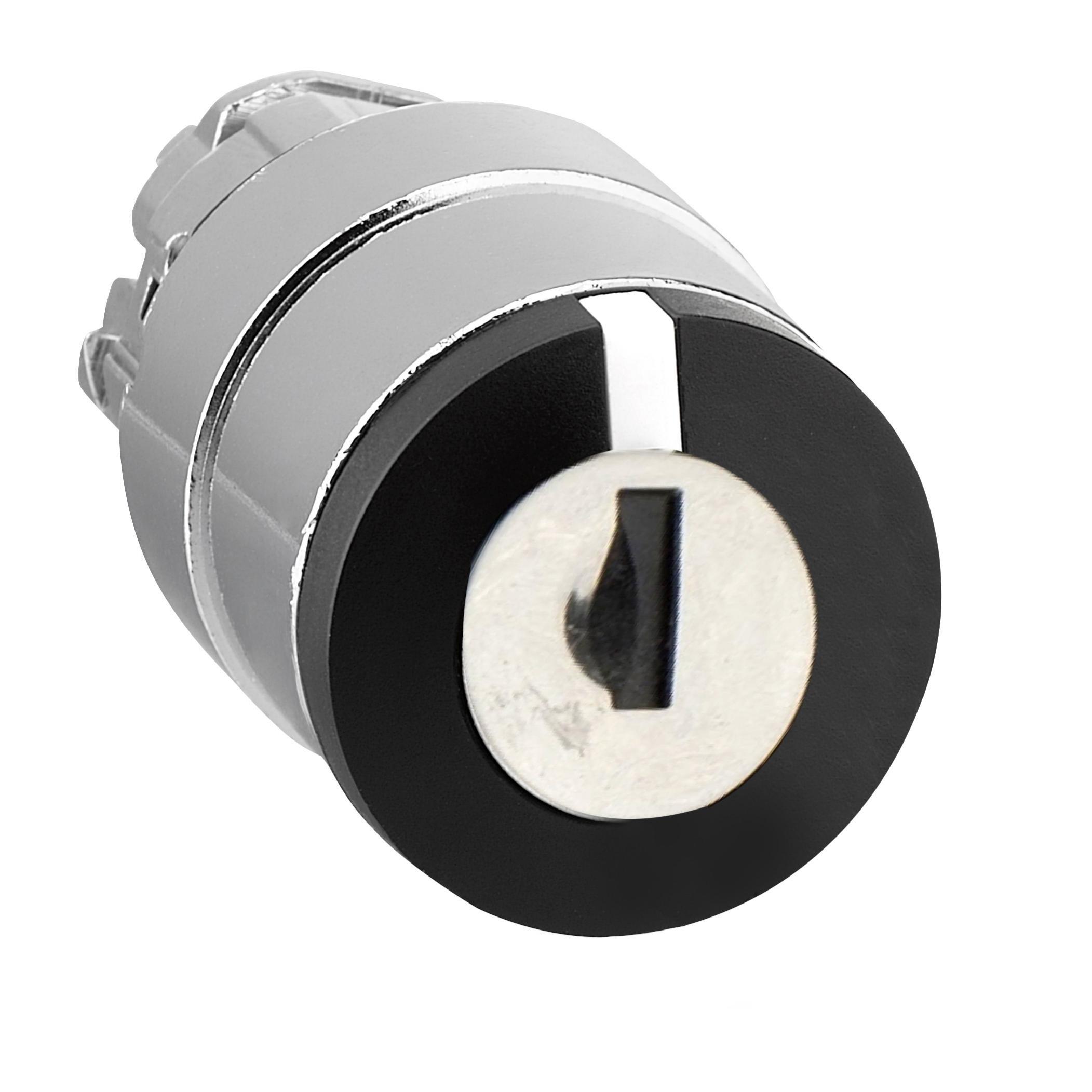

  • ZB4BG0 SQD KEY SWITCH

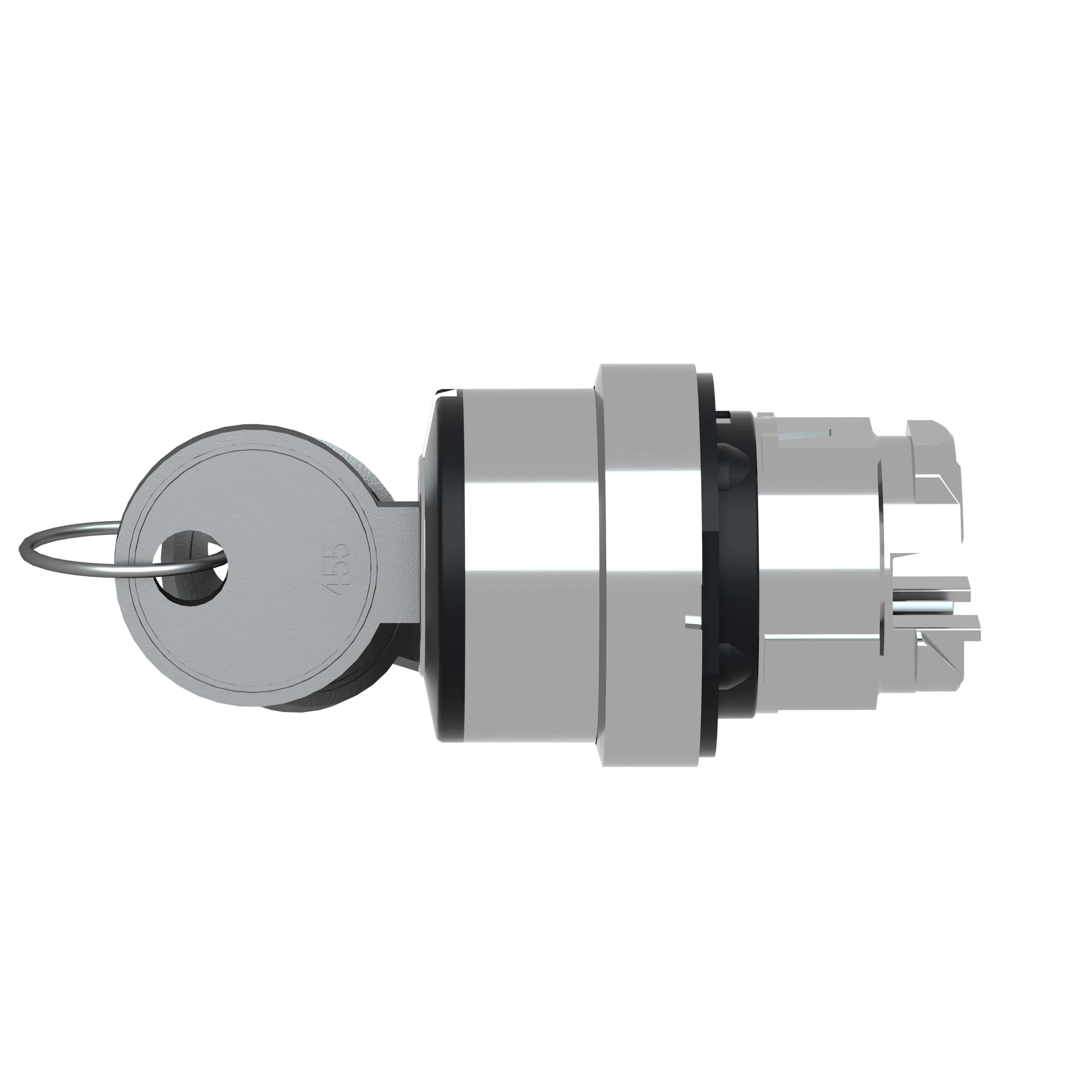

  • ZB4BG0 SQD KEY SWITCH

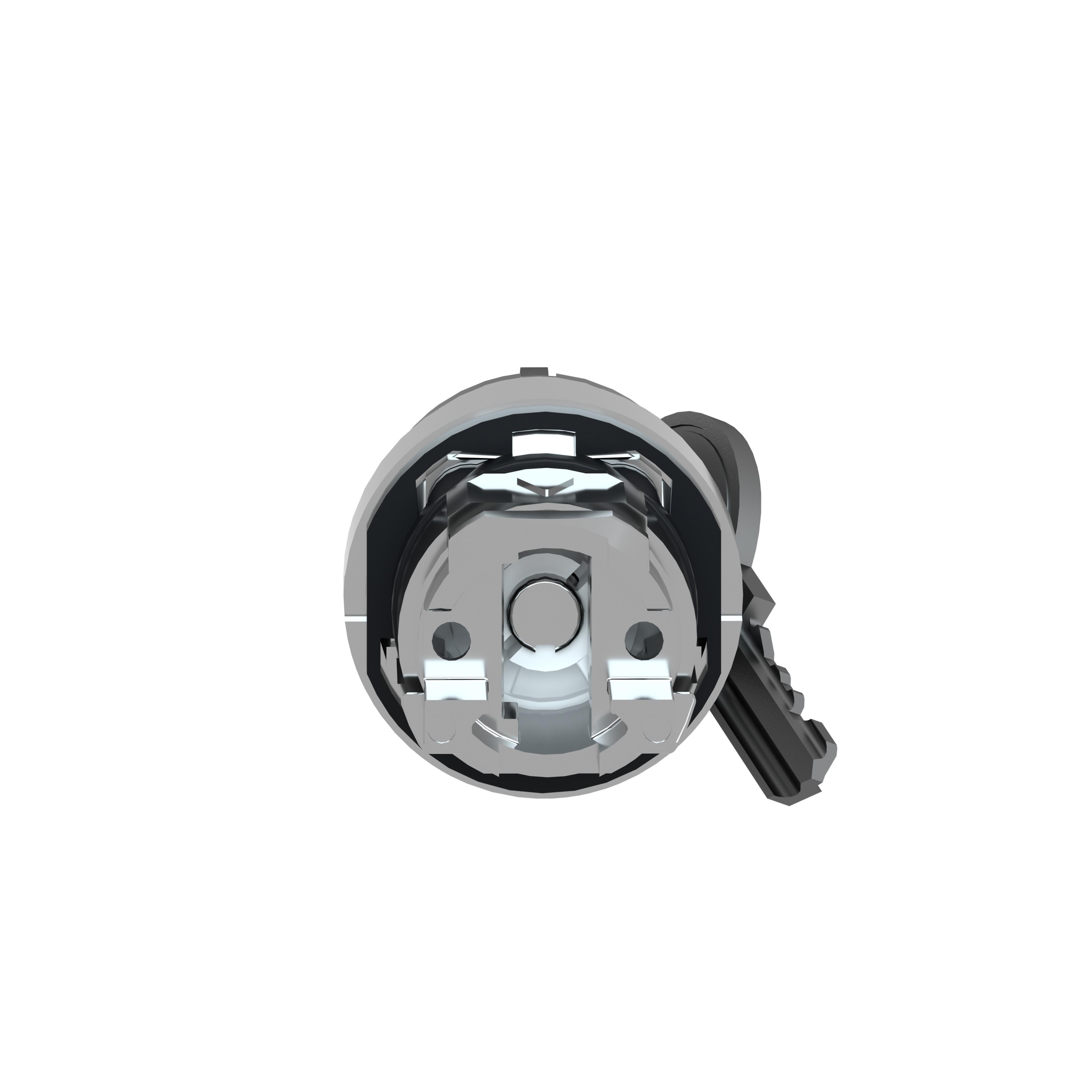

  • ZB4BG0 SQD KEY SWITCH

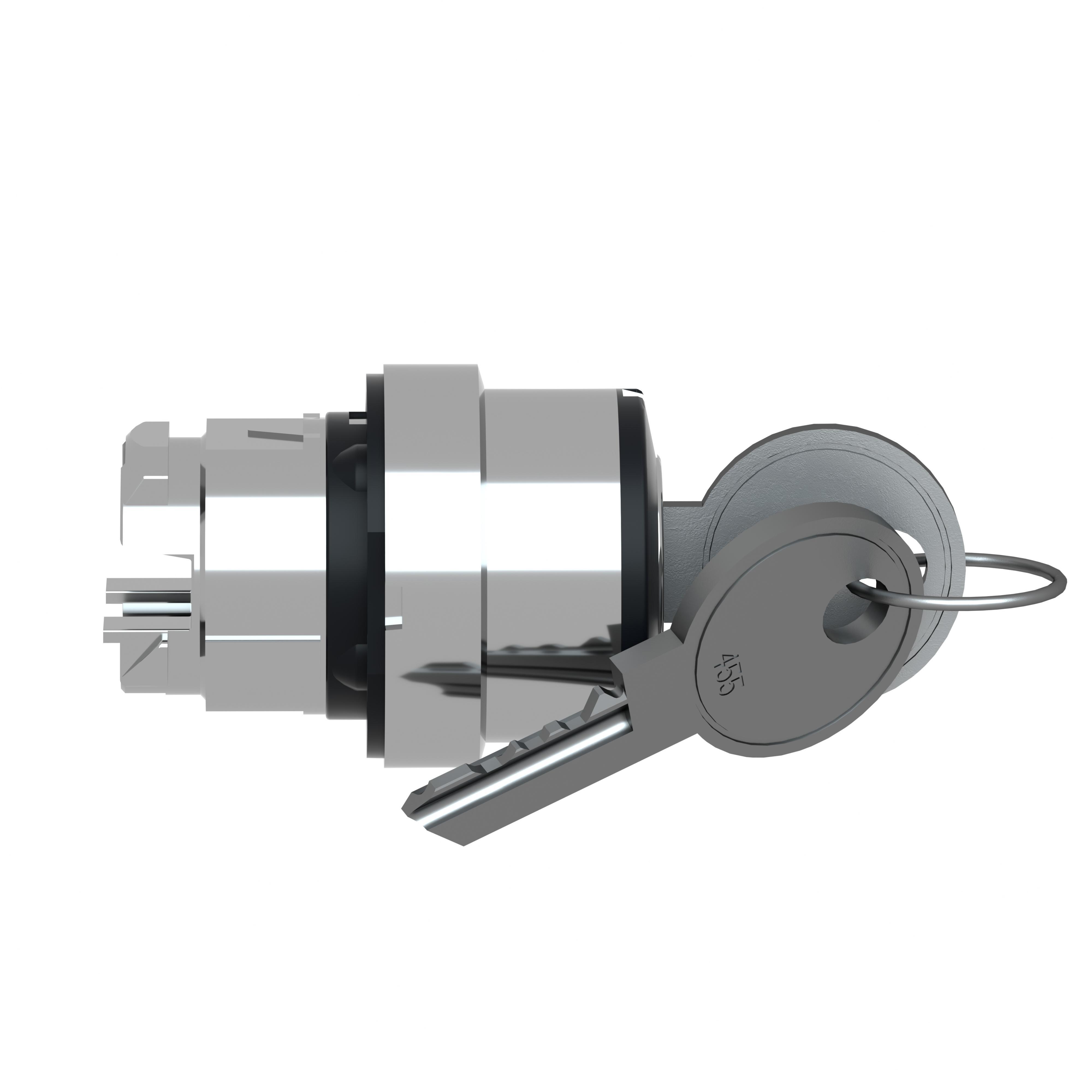

  • ZB4BG0 SQD KEY SWITCH
  • ZB4BG0 SQD KEY SWITCH
  • ZB4BG0 SQD KEY SWITCH

Description: Schneider Electric Harmony™ Square D™ Non-Illuminated Selector Switch Operator, Series: ZB4, 22 mm Size, Maintained Contact Mode, Keyed Operator, 3 Positions, 45 deg Left/Center/Right Throw, NEMA 1/2/3/4/4X/13/IP65/IP66/IP67/IP69/IP69K Enclosure, Front Mounting, Bezel/Housing: Chromium Plated Metal, -40 to 158 deg F, Black

Manufacturer PN: ZB4BG0

UPC:  38911088925

Kendall Electric Inc PN: 3959282

Invoice Description:

ZB4BG0 SQD KEY SWITCH


SPEC SHEET

▸ See All in Non-Illumin. Twist/Key Release Operators


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ ZB4BG0 Non-Illuminated Selector Switch Operator, 22 mm, Keyed Operator, 3 Positions, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB4, black head with key (key no.455) for key selector switch has 3 positions, operates with stay-put mechanism with key withdrawal on left, center and right position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Schneider Electric Harmony™ Square D™ Non-Illuminated Selector Switch Operator, Series: ZB4, 22 mm Size, Maintained Contact Mode, Keyed Operator, 3 Positions, 45 deg Left/Center/Right Throw, NEMA 1/2/3/4/4X/13/IP65/IP66/IP67/IP69/IP69K Enclosure, Front Mounting, Bezel/Housing: Chromium Plated Metal, -40 to 158 deg F, Black

Specifications

 Bezel Housing Chromium Plated Metal
 Brand Name Square D
 Color Black
 Enclosure NEMA 1/2/3/4/4X/13/IP65/IP66/IP67/IP69/IP69K
 Manufacturer Part Number ZB4BG0
 Mounting Type Front
 Number of Positions 3
 PART NUMBER KEYWORDS ZB4BG0 ; 7999263 ; 785901354697 ; 78590135469 ; 03389110889253 ; 3389110889253
 Series ZB4
 Size 22 mm
 Standards/Approvals CCN NKCR|CE Marked|CSA C22.2 No. 14|CSA File No. LR44087 Class 321103|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|GB 14048.5|RoHS Compliant|UL 508|UL File No. E164353|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 158 deg F
 Throw 45 deg Left/Center/Right
 Type Non-Illuminated
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector or spring terminal
▪ Excellent mechanical connection with operator head
▪ Large set of accessories to customize your panels
