Schneider Electric
  • ZB4BD4 SQD SEL SWITCH
  • ZB4BD4 SQD SEL SWITCH
  • ZB4BD4 SQD SEL SWITCH
  • ZB4BD4 SQD SEL SWITCH
  • ZB4BD4 SQD SEL SWITCH
  • ZB4BD4 SQD SEL SWITCH

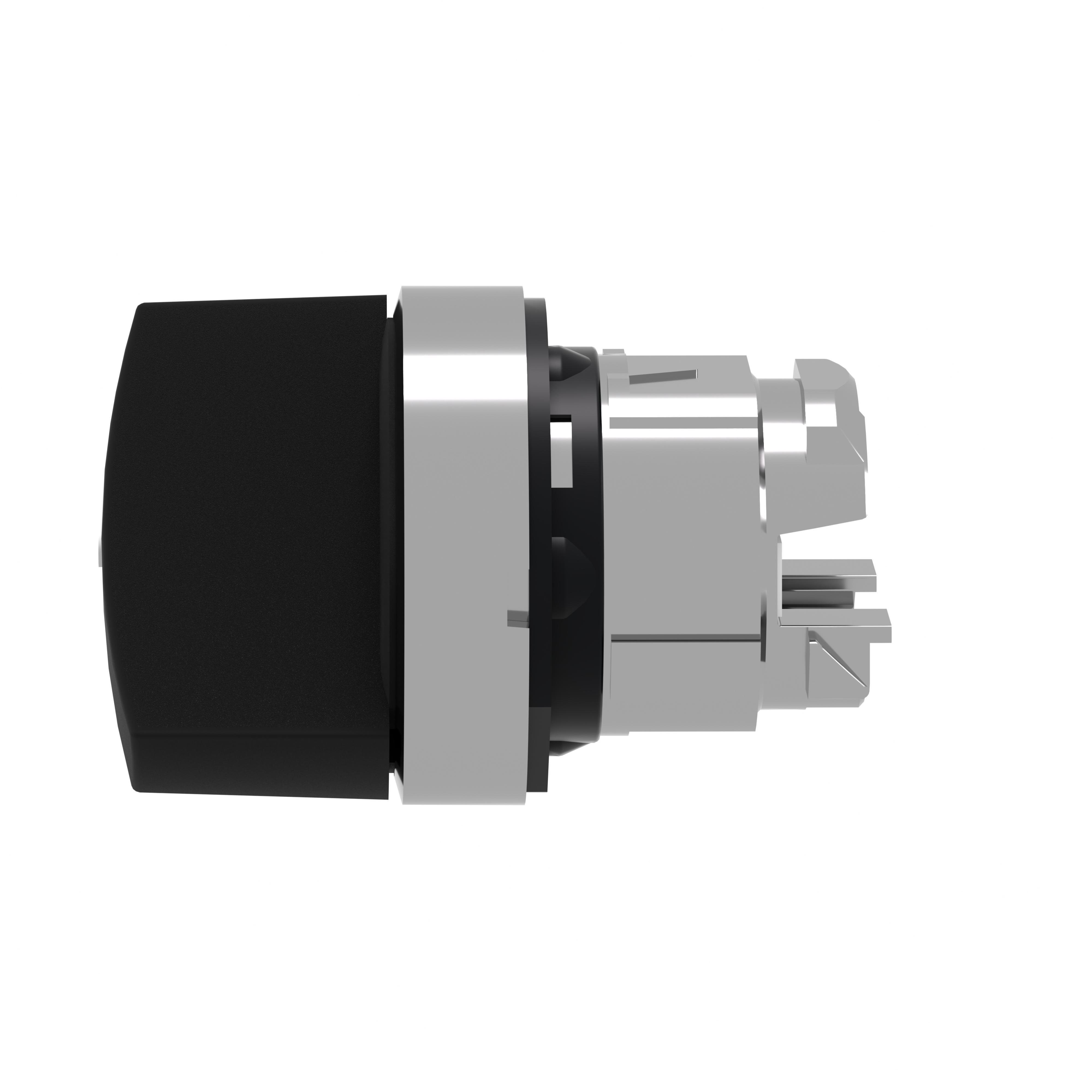

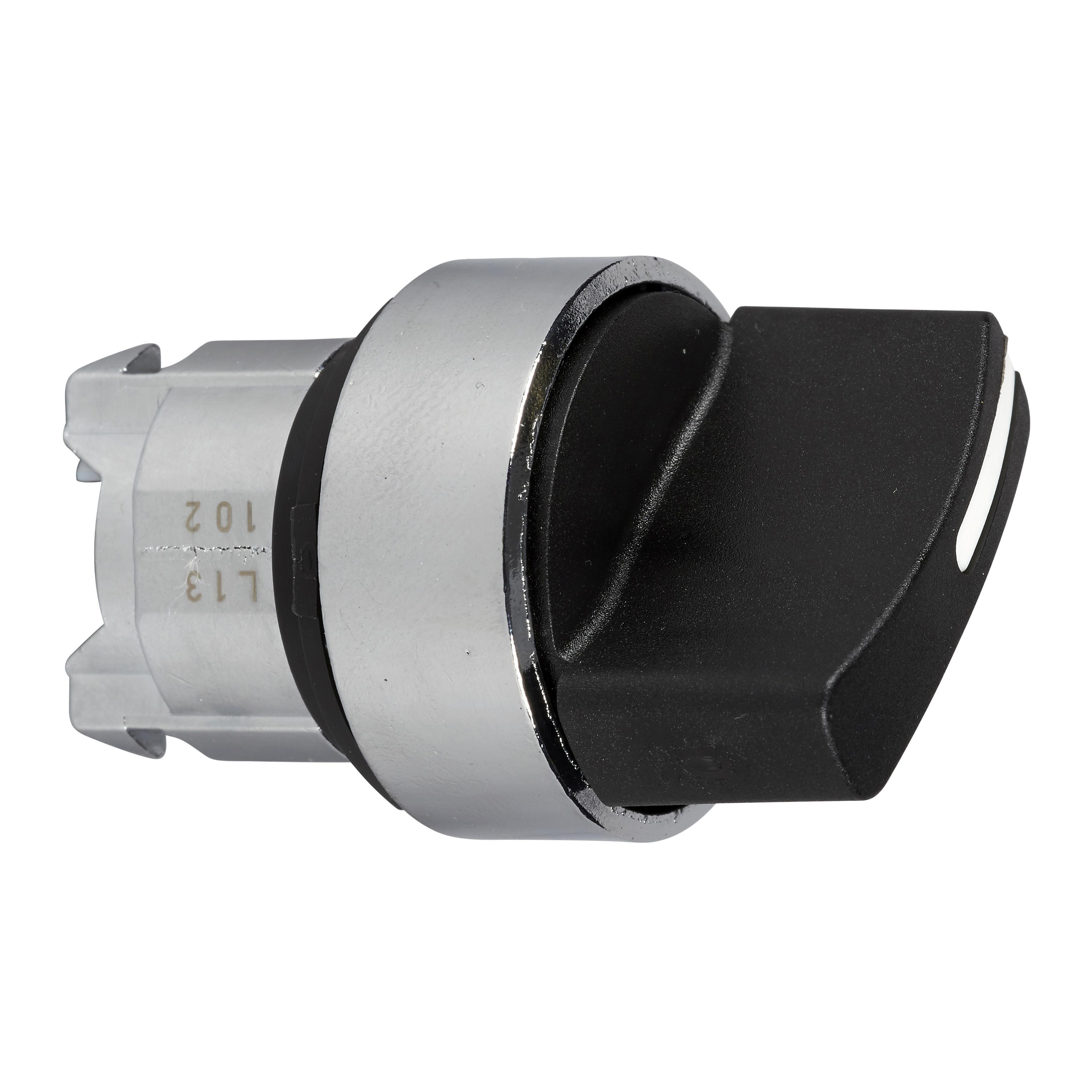

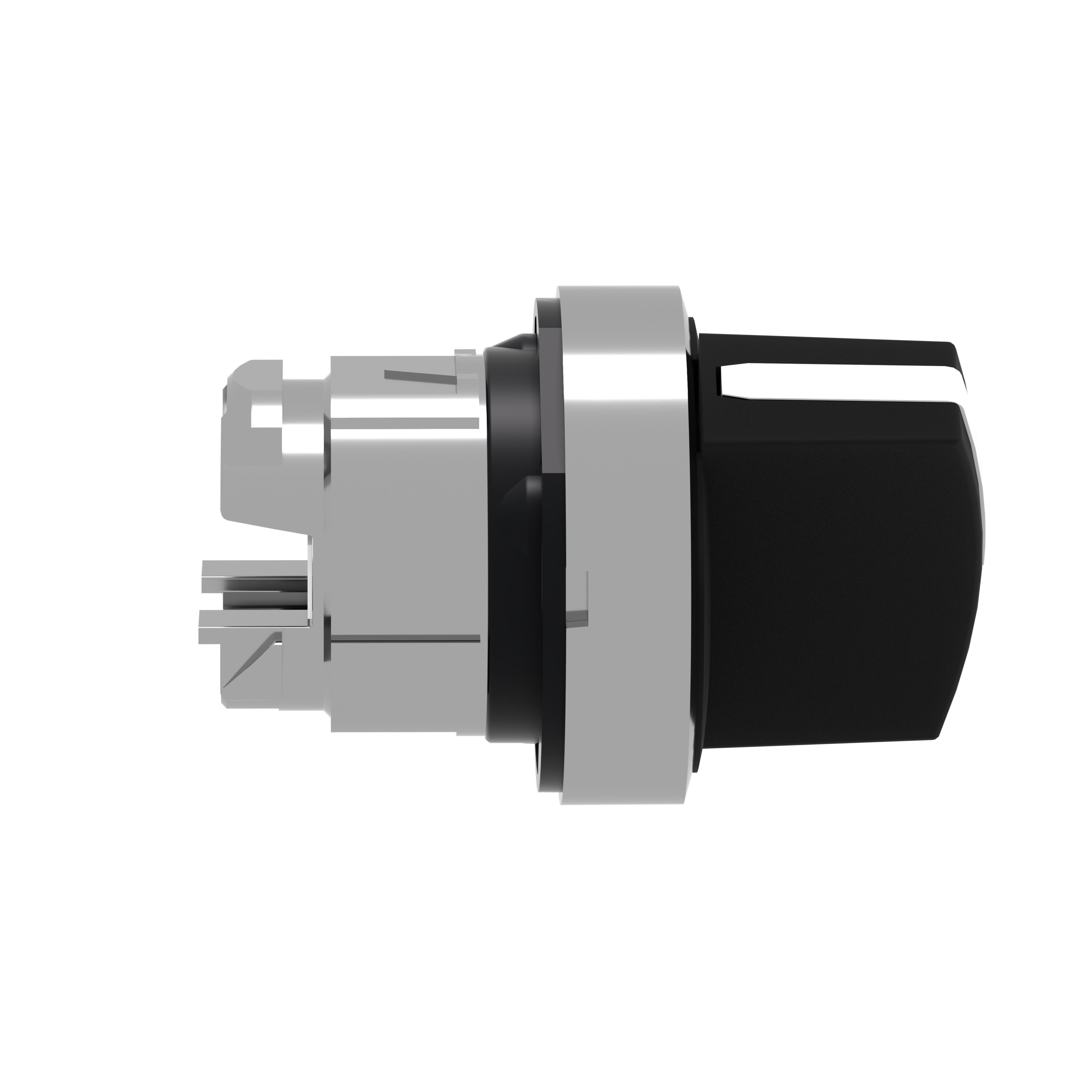

Description: Schneider Electric Harmony™ Square D™ Non-Illuminated Selector Switch Operator, Series: ZB4, 22 mm Size, Momentary Contact Mode, Knob Operator, 2 Positions, 90 deg Left/Right Throw, NEMA 1/2/3/4/4X/13/IP65/IP66 Enclosure, Panel Mounting, Bezel/Housing: Chromium Plated Metal, -40 to 158 deg F, Black

Manufacturer PN: ZB4BD4

UPC:  38911088895

Kendall Electric Inc PN: 4001052

Invoice Description:

ZB4BD4 SQD SEL SWITCH


SPEC SHEET

▸ See All in Non-Illumin. Selector Switch Operators


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ ZB4BD4 Non-Illuminated Selector Switch Operator, 22 mm, Knob Operator, 2 Positions, Black

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB4, black selector switch head with standard handle has 2 positions, operates with spring return from right to left mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40C to 70C allows versatility in usage of product.
Schneider Electric Harmony™ Square D™ Non-Illuminated Selector Switch Operator, Series: ZB4, 22 mm Size, Momentary Contact Mode, Knob Operator, 2 Positions, 90 deg Left/Right Throw, NEMA 1/2/3/4/4X/13/IP65/IP66 Enclosure, Panel Mounting, Bezel/Housing: Chromium Plated Metal, -40 to 158 deg F, Black

Specifications

 Bezel Housing Chromium Plated Metal
 Brand Name Square D
 Color Black
 Enclosure NEMA 1/2/3/4/4X/13/IP65/IP66
 Manufacturer Part Number ZB4BD4
 Mounting Type Panel
 Number of Positions 2
 PART NUMBER KEYWORDS ZB4BD4 ; 7999148 ; 785901354536 ; 78590135453 ; 03389110888959 ; 3389110888959
 Series ZB4
 Size 22 mm
 Standards/Approvals Buy American Act Compliant|CCN NKCR|CE Marked|CSA C22.2 No. 14|CSA File No. LR44087 Class 321103|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|JIS C 4520|RoHS Compliant|UL 508|UL File No. E164353|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 158 deg F
 Throw 90 deg Left/Right
 Type Non-Illuminated
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector or spring terminal
▪ Excellent mechanical connection with operator head
▪ Large set of accessories to customize your panels
