Hubbell

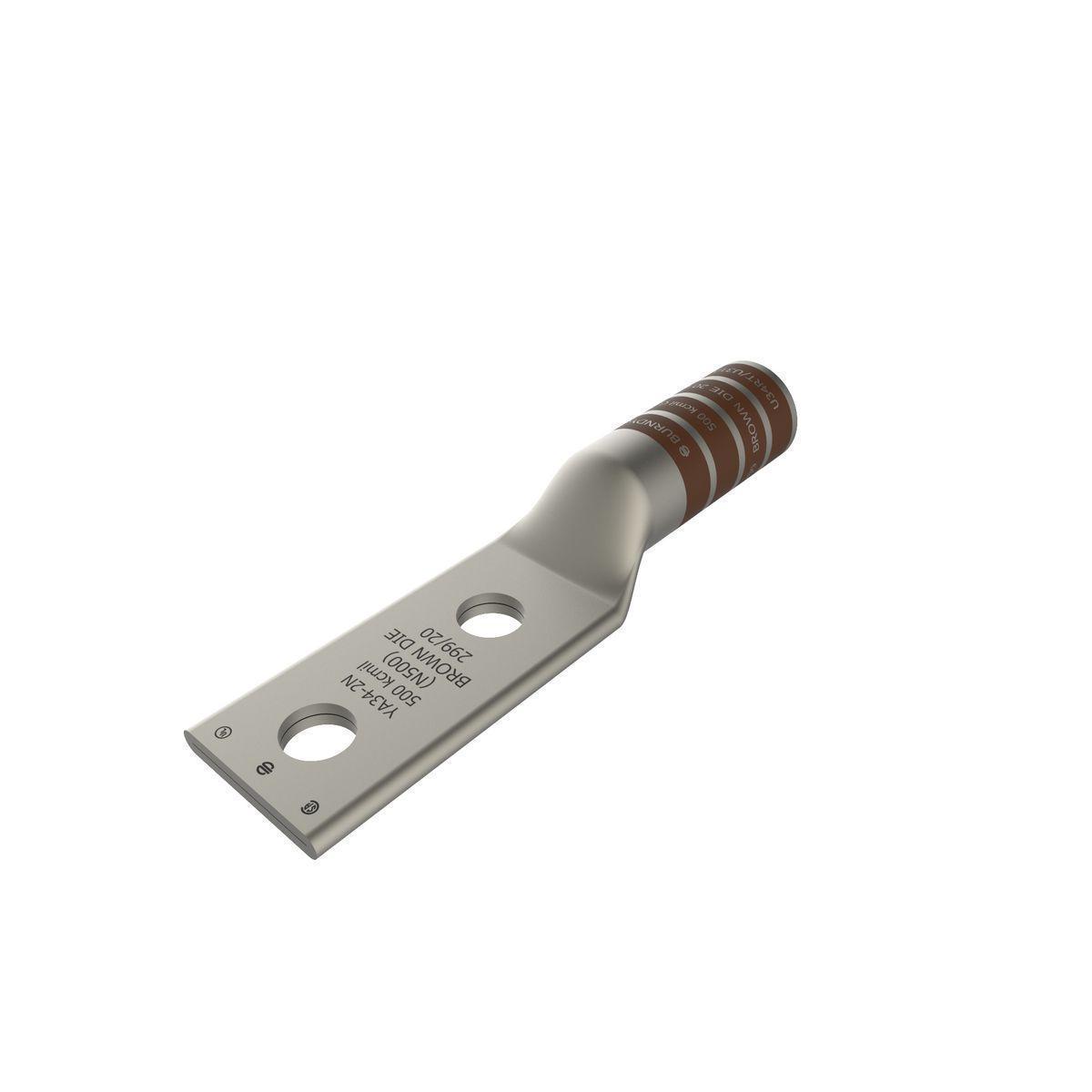

YA34-2N BUR 2 HOLE COMP LUG COPPER 500MCM W/ 1/2"STUD HOLES

Mouse over image to zoom, click to enlarge

  • YA34-2N BUR 2 HOLE COMP LUG COPPER 500MCM W/ 1/2"STUD HOLES
  • YA34-2N BUR 2 HOLE COMP LUG COPPER 500MCM W/ 1/2"STUD HOLES

Description: BURNDY® HYLUG™ Compression Lug, 2-Hole, Stranded Copper Conductor, 500 kcmil Conductor, Die Code: 20, 600 to 35000 VAC, 1/2 in Stud, Straight Tongue, 1.55 in W x 0.23 in THK Tongue, 6.06 in Overall Length, Chamfered/Long Barrel, 2-1/4 in L Barrel, 2-1/2 in L Wire Strip, 90 deg C, 1-3/4 in Mounting Hole, Tin Plated Copper, Brown

Manufacturer PN: YA342N

UPC:  78181050605

Kendall Electric Inc PN: 2020514

Invoice Description:

YA34-2N BUR 2 HOLE COMP LUG COPPER 500MCM W/ 1/2"STUD HOLES


SPEC SHEET

▸ See All in Lug Compression Connectors


How Can We Make This Page Better?

BURNDY® HYLUG™ YA342N 2-Hole Compression Lug, 500 kcmil Stranded Copper Conductor, Die Code: 20, 1/2 in Stud, Tin Plated Copper

Log In for Pricing and Availability




Description

BURNDY® HYLUG™ Compression Lug, 2-Hole, Stranded Copper Conductor, 500 kcmil Conductor, Die Code: 20, 600 to 35000 VAC, 1/2 in Stud, Straight Tongue, 1.55 in W x 0.23 in THK Tongue, 6.06 in Overall Length, Chamfered/Long Barrel, 2-1/4 in L Barrel, 2-1/2 in L Wire Strip, 90 deg C, 1-3/4 in Mounting Hole, Tin Plated Copper, Brown

Specifications

 Application For code conductor
 Barrel Size 2-1/4 in L
 Brand Name BURNDY
 Color Brown
 Conductor Size 500 kcmil
 Conductor Type Stranded Copper
 Die Code 20
 Includes (1) Mechanical MD6, OUR840, MD7-34R Tool, (1) Hydraulic: BCT500HS, Y500CTHS Tool, (1) W34VT, (4) W34RT Die, (1) Y35, Y39, Y750, PAT750 Tool, (4) U31ART Die, (1) U34RT, (4) U31ART Die with PUADP-1 Adapter, Conductor Type Commercial Stranded Copper, (1) Dieless Tools (Number of Crimps): Y644HS Tool, Y81KFT, Y81KFTMBH and (4) PAT81KFT-18V Tool
 Manufacturer Part Number YA342N
 Material Tin Plated Copper
 Mounting Hole Size 1/3/2004 in
 Overall Length 6.06 in
 Specifications 2-1/2 in L Wire Strip
 Standards/Approvals ARRA Compliant|RoHS Compliant|UL 468A/468B|CSA Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|UL 486A|UL 486B|Buy American Act Compliant
 Stud Size 2-Jan in
 Temperature Rating 90 deg C
 Tongue Size 1.55 in W x 0.23 in THK
 Tongue Type Straight
 Type 2-Hole
 Video Links
 Voltage Rating 600 to 35000 VAC

Features

▪ Without inspection window
