Eaton

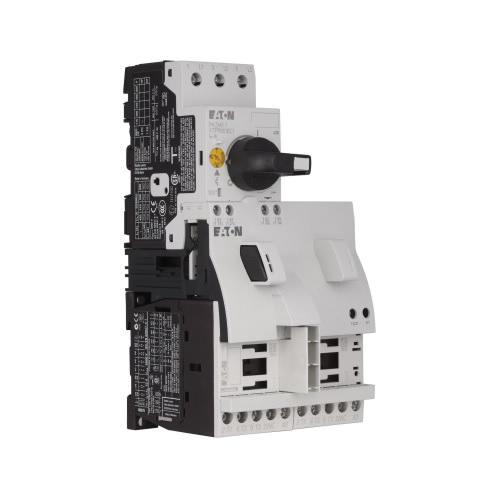

XTSR001BBTD CH MMC FVR 0.63-1A B-MMP B-CONT 24VDC

Mouse over image to zoom, click to enlarge

  • XTSR001BBTD CH MMC FVR 0.63-1A B-MMP B-CONT 24VDC
  • XTSR001BBTD CH MMC FVR 0.63-1A B-MMP B-CONT 24VDC
  • XTSR001BBTD CH MMC FVR 0.63-1A B-MMP B-CONT 24VDC
  • XTSR001BBTD CH MMC FVR 0.63-1A B-MMP B-CONT 24VDC

Description: EATON Manual Motor Controller, Full Voltage Reversing, Series: XT Series, 600 V AC, 1 A, 50 Hz, 1/2 hp Motor, 24 VDC Coil, 3 Pole, Manual Reset, 3 ph, 1NO 1NC Auxiliary, 3.55 in W x 3.75 in D x 7.3 in H

Manufacturer PN: XTSR001BBTD

UPC:  78211661532

Kendall Electric Inc PN: 4218515

Invoice Description:

XTSR001BBTD CH MMC FVR 0.63-1A B-MMP B-CONT 24VDC


SPEC SHEET

▸ See All in NEMA & IEC Contactors


How Can We Make This Page Better?

EATON XTSR001BBTD Full Voltage Reversing Manual Motor Controller, 24 VDC V Coil, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.
EATON Manual Motor Controller, Full Voltage Reversing, Series: XT Series, 600 V AC, 1 A, 50 Hz, 1/2 hp Motor, 24 VDC Coil, 3 Pole, Manual Reset, 3 ph, 1NO 1NC Auxiliary, 3.55 in W x 3.75 in D x 7.3 in H

Specifications

 Amperage Rating 1 A
 Auxiliary Contact Rating 1NO 1NC
 Brand Name EATON
 Coil Voltage 24 V DC
 Dimensions 3.55 in W x 3.75 in D x 7.3 in H
 Frequency Rating 50 Hz
 Manufacturer Part Number XTSR001BBTD
 Motor Power 1/2 hp
 Number of Poles 3
 PART NUMBER KEYWORDS XTSR001BBTD ; 9210485 ; 782116615322 ; 78211661532 ; 00782116615322
 Phase 3
 Reset Type Manual
 Series XT Series
 Standards/Approvals IEC 60947,UL 508,CSA file No. 229767, Class 3211-05,UL Listed file E245398,CE Marked,DIN VDE 0600
 Type Full Voltage Reversing
 Voltage Rating 600 V AC

Features

▪ ON/off rotary handle with lockout provision
▪ Visible trip indication
▪ Test trip function
▪ Built-in heater and magnetic trip elements to protect the motor
▪ Phase loss sensitivity
▪ Short circuit trip at 14 times the maximum setting of the FLA adjustment dial
▪ 45 mm frame
