Eaton

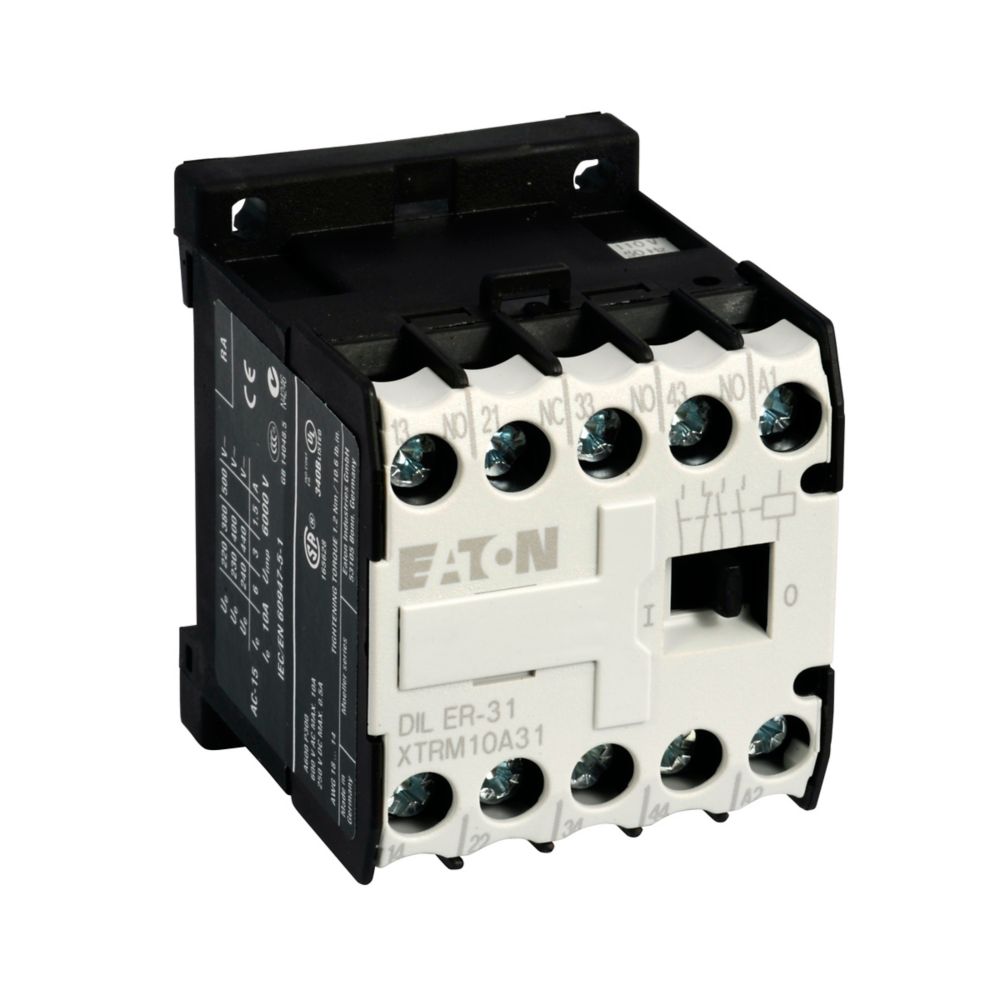

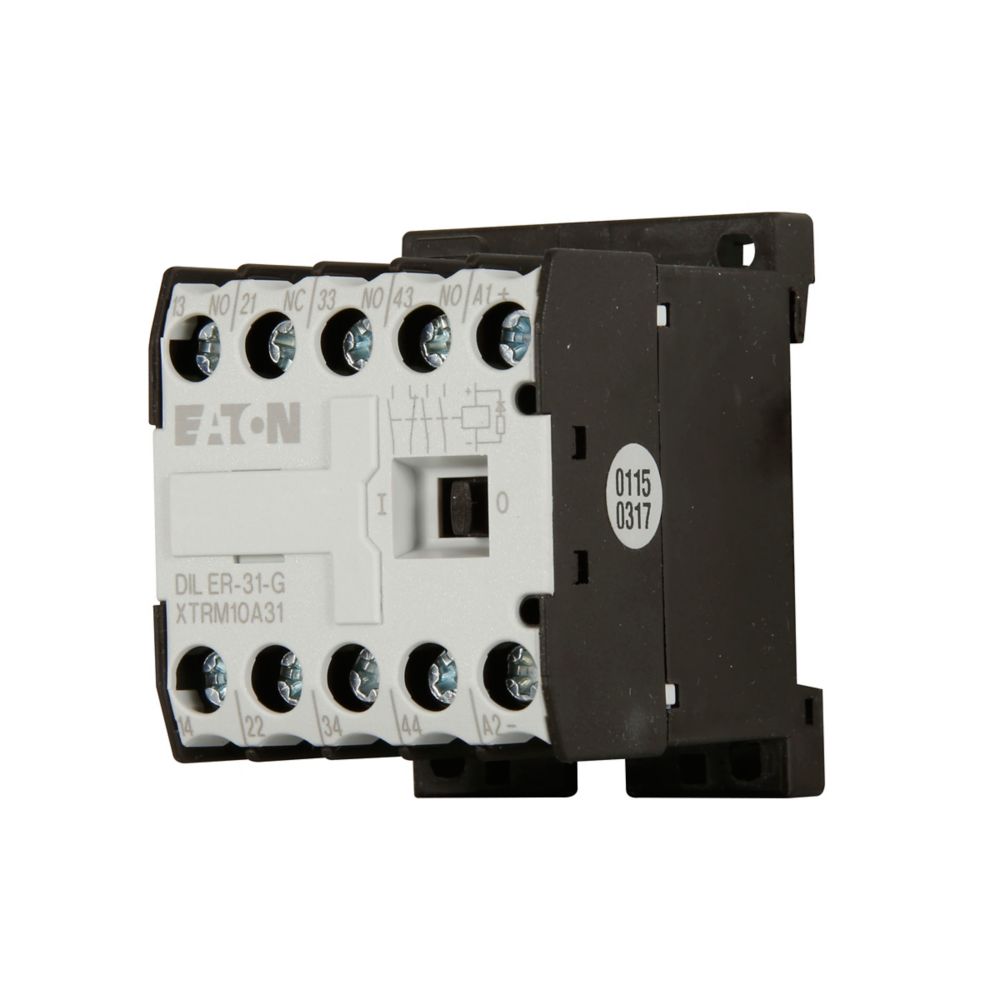

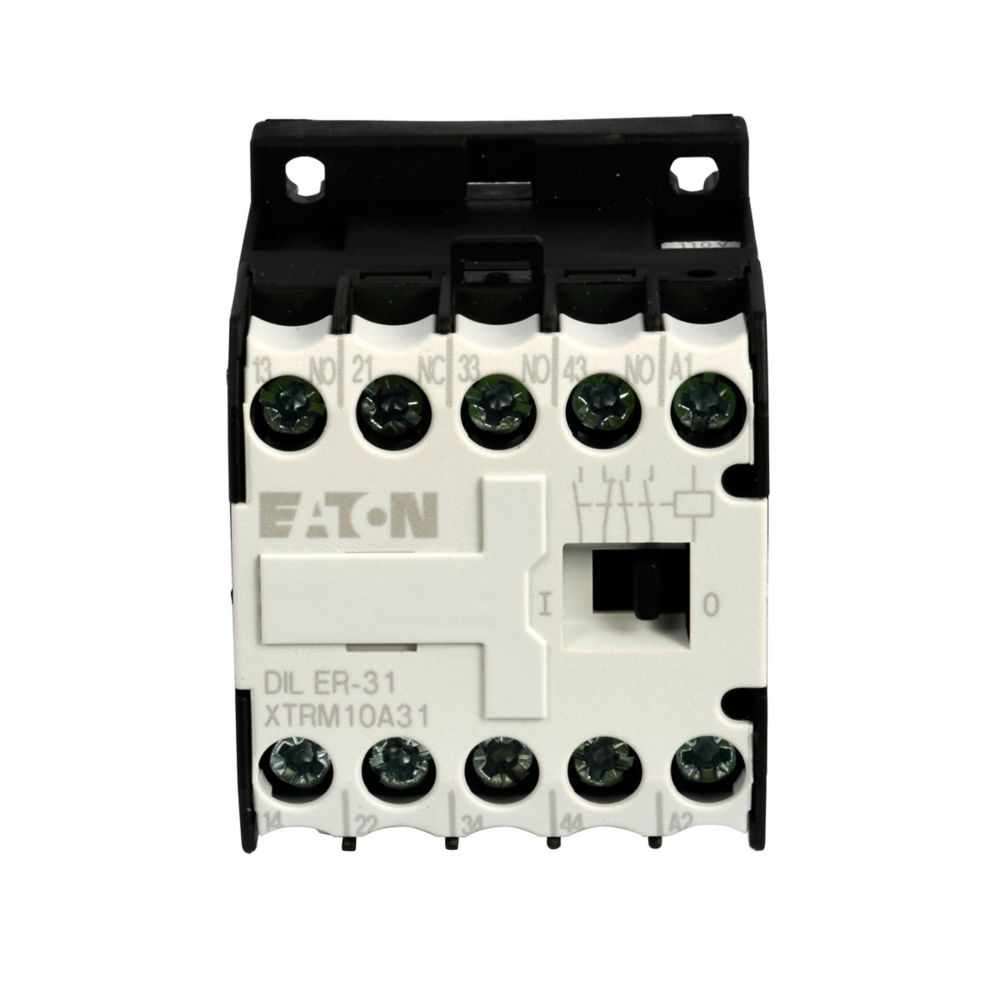

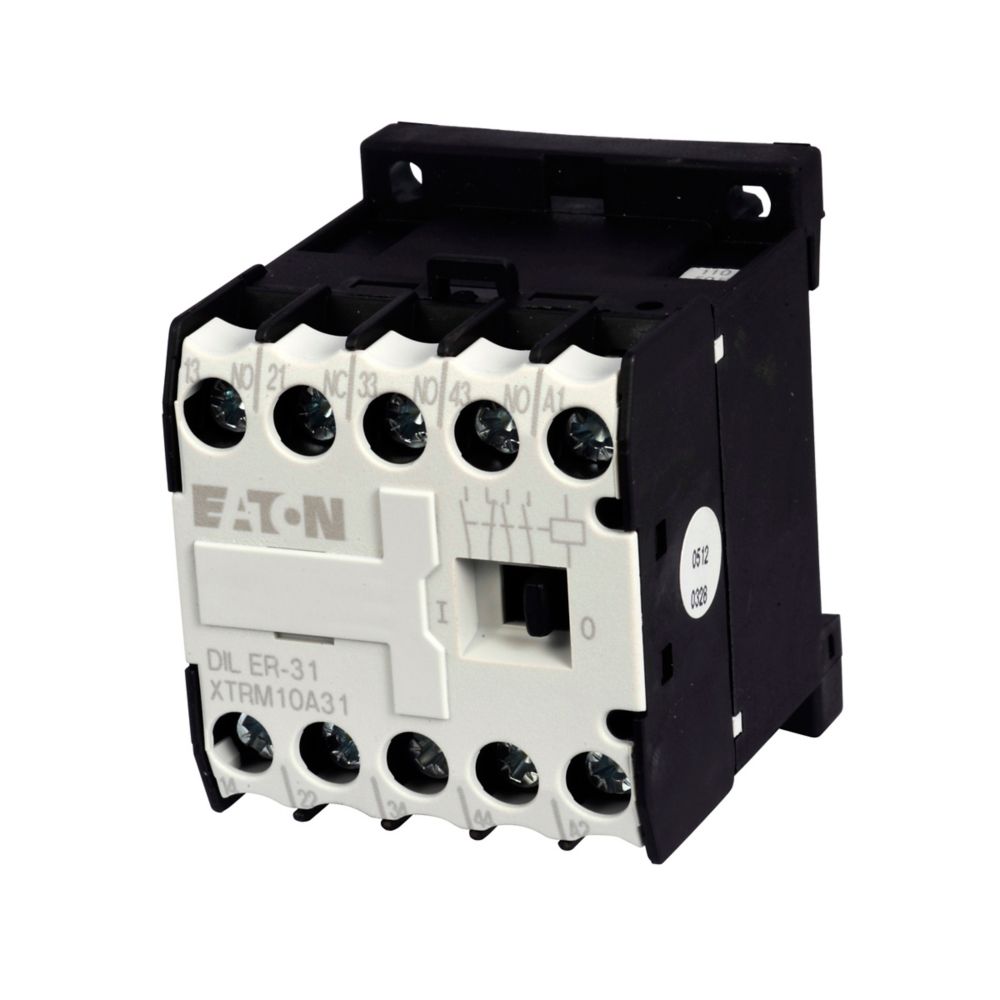

XTRM10A31TD CH MINI CONTROL RELAY 10A FRAME A 3NO1NC 24VDC COIL

Mouse over image to zoom, click to enlarge

Description: EATON, XTRM10A31TD, IEC Control Relay, Mini Frame, Series: XT Series, 10 A, 50/60 Hz Frequency, 24 V DC Coil, 4NO 4 Form A Contact Form, 4 Pole, DIN Rail/Screw Mounting, Screw Terminal, -13 to 122 deg F

Manufacturer PN: XTRM10A31TD

UPC: 78211636372

Kendall Electric Inc PN: 2635999

Invoice Description:

XTRM10A31TD CH MINI CONTROL RELAY 10A FRAME A 3NO1NC 24VDC COIL

SPEC SHEET

▸ See All in IEC Control Relays

How Can We Make This Page Better?

EATON XTRM10A31TD XT Series Mini Frame IEC Control Relay, 10 A, 4NO 4 Form A Contact, 24 V DC V Coil

Description Specifications Resources

Description

Three basic versions of the XTMR contactor relay are available: 4NO contacts; 3NO contacts and 1NC contact; and 2NO contacts and 2NC contacts. The devices can be expanded to up to eight contacts and come with two pole and four pole top-mounting auxiliary contacts. The relays are ideally suited for use as coupling or interface contactors, especially if used to control large contactors directly from a PLC.

EATON, XTRM10A31TD, IEC Control Relay, Mini Frame, Series: XT Series, 10 A, 50/60 Hz Frequency, 24 V DC Coil, 4NO 4 Form A Contact Form, 4 Pole, DIN Rail/Screw Mounting, Screw Terminal, -13 to 122 deg F

Specifications

Amperage Rating	10 A
Application	For Institutional Buildings and Structures - Power Distribution and Controls, Commercial
Brand Name	EATON
Coil Voltage	24 V DC
Contact Form	4NO 4 Form A
Frequency Rating	50/60 Hz
Manufacturer Part Number	XTRM10A31TD
Mounting Type	DIN Rail/Screw
Number of Poles	4
PART NUMBER KEYWORDS	XTRM10A31TD ; 20892650 ; 782116363728 ; 78211636372
Series	XT Series
Standards/Approvals	UL Listed
Temperature Rating	-13 to 122 deg F
Terminal Type	Screw
Type	Mini Frame
