Eaton

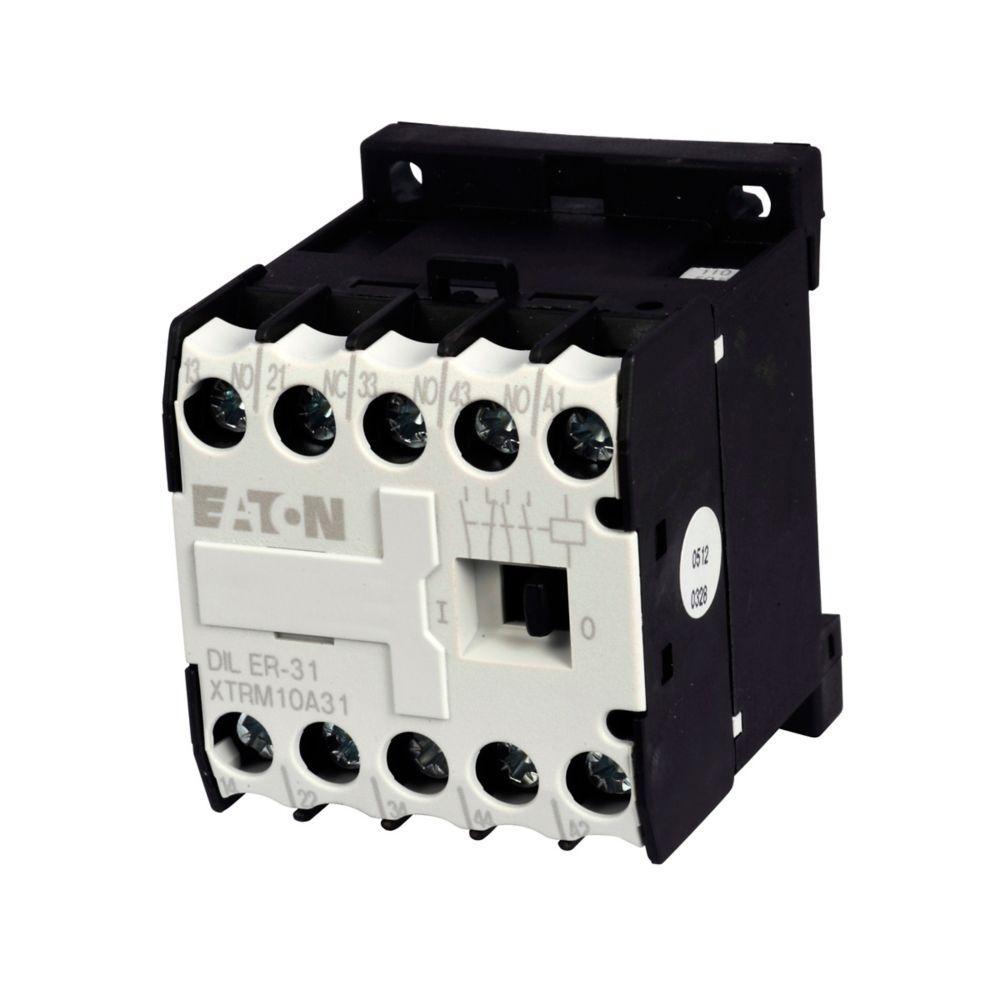

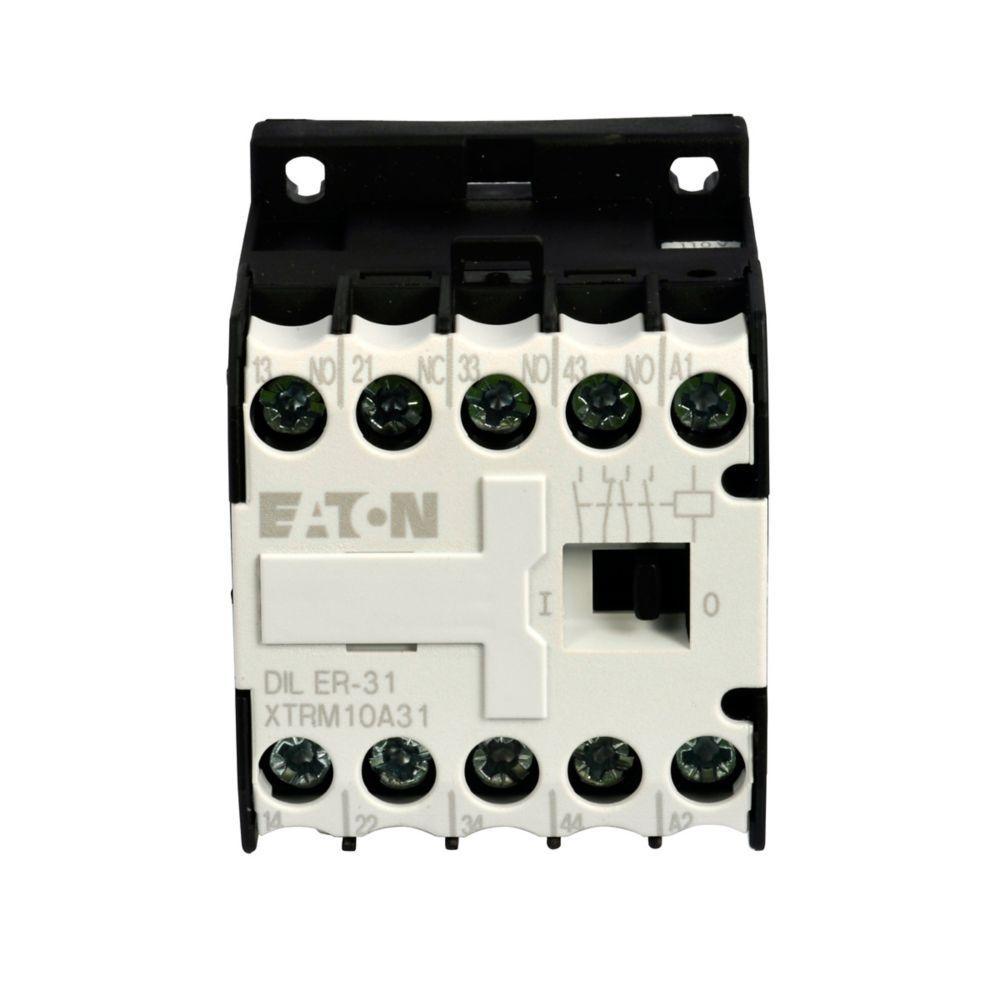

XTRM10A31A CH MINI CONTROL RELAY 10A FRAME A 3NO1NC 110/50 120/60 COIL

Mouse over image to zoom, click to enlarge

Description: EATON IEC Control Relay, Miniature, Series: XT Series, 10 A, 50/60 Hz Frequency, 110/120 V AC Coil, 3NO-1NC 3 Form A/1 Form B Contact Form, 4 Pole, DIN Rail/Threaded Mounting, Screw Terminal, IP20 Enclosure, -13 to 122 deg F, 54 mm L x 45 mm W x 58 mm H Dimensions

Manufacturer PN: XTRM10A31A

UPC: 01508051765

Kendall Electric Inc PN: 2680889

Invoice Description:

XTRM10A31A CH MINI CONTROL RELAY 10A FRAME A 3NO1NC 110/50 120/60 COIL

SPEC SHEET

▸ See All in IEC Control Relays

How Can We Make This Page Better?

EATON XTRM10A31A Miniature IEC Control Relay, 10 A, 3NO-1NC 3 Form A/1 Form B Contact, 110/120 V AC V Coil

Description Specifications Features Resources

Description

Three basic versions of the XTMR contactor relay are available: 4NO contacts; 3NO contacts and 1NC contact; and 2NO contacts and 2NC contacts. The devices can be expanded to up to eight contacts and come with two pole and four pole top-mounting auxiliary contacts. The relays are ideally suited for use as coupling or interface contactors, especially if used to control large contactors directly from a PLC.

EATON IEC Control Relay, Miniature, Series: XT Series, 10 A, 50/60 Hz Frequency, 110/120 V AC Coil, 3NO-1NC 3 Form A/1 Form B Contact Form, 4 Pole, DIN Rail/Threaded Mounting, Screw Terminal, IP20 Enclosure, -13 to 122 deg F, 54 mm L x 45 mm W x 58 mm H Dimensions

Specifications

Amperage Rating	10 A
Application	For use with mini and standard frame size contactors and starters, commercial, institutional buildings and structures
Brand Name	EATON
Coil Voltage	110/120 V AC
Contact Form	3NO-1NC 3 Form A/1 Form B
Dimensions	54 mm L x 45 mm W x 58 mm H
Enclosure	IP20
Frequency Rating	50/60 Hz
Manufacturer Part Number	XTRM10A31A
Mounting Type	DIN Rail/Threaded
Number of Poles	4
PART NUMBER KEYWORDS	XTRM10A31A ; 11233721 ; 04015080517658 ; 4015080517658
Series	XT Series
Standards/Approvals	UL Listed
Temperature Rating	-13 to 122 deg F
Terminal Type	Screw
Type	Miniature

Features

▪ IP20 finger and back of hand proof

▪ The XTRE control relays have positively driven contacts between the relay and the auxiliary contact modules as well as within the auxiliary contact modules
