Eaton

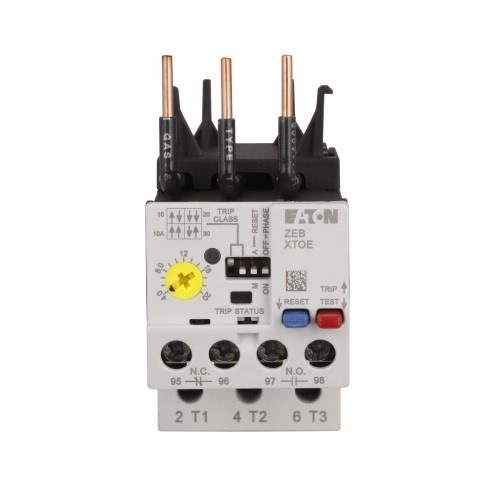

XTOE045CCSS CH XTOE OL (9-45A) IEC STAND ALONE STANDARD

Mouse over image to zoom, click to enlarge

  • XTOE045CCSS CH XTOE OL (9-45A) IEC STAND ALONE STANDARD
  • XTOE045CCSS CH XTOE OL (9-45A) IEC STAND ALONE STANDARD
  • XTOE045CCSS CH XTOE OL (9-45A) IEC STAND ALONE STANDARD
  • XTOE045CCSS CH XTOE OL (9-45A) IEC STAND ALONE STANDARD

Description: EATON Electronic Overload Relay, Class 10/20/30, Series: XTOE, 9/45 A, 50/60 Hz Frequency, 600 VAC, 12 VDC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 5 A at 690 VAC Contact, 3 Pole, Frame/Separate Mounting, Screw Terminal, LED Display, 4.32 in L x 1.8 in W x 6.5 in H Dimensions

Manufacturer PN: XTOE045CCSS

UPC:  78668541250

Kendall Electric Inc PN: 2783961

Invoice Description:

XTOE045CCSS CH XTOE OL (9-45A) IEC STAND ALONE STANDARD


SPEC SHEET

▸ See All in Overload Relays


How Can We Make This Page Better?

EATON XTOE045CCSS Class 10/20/30 Electronic Overload Relay, 9/45 A, 1NO-1NC 1 Form A/1 Form B Contact, 600 VAC, 12 VDC V Coil

Log In for Pricing and Availability




Description

The C440/XTOE?electronic?overload?relay delivers enhanced motor protection and communications capabilities in a single compact device, directly monitoring motor current in each phase. Thermal modeling is performed electronically with precision solid-state components.
EATON Electronic Overload Relay, Class 10/20/30, Series: XTOE, 9/45 A, 50/60 Hz Frequency, 600 VAC, 12 VDC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 5 A at 690 VAC Contact, 3 Pole, Frame/Separate Mounting, Screw Terminal, LED Display, 4.32 in L x 1.8 in W x 6.5 in H Dimensions

Specifications

 Amperage Rating 9/45 A
 Application Contactors, Motor and Power Control Equipment, Industrial Facilities, Factories - Power Distribution, Control Applications
 Brand Name EATON
 Coil Voltage 600 V AC 12 V DC
 Contact Form 1NO-1NC 1 Form A/1 Form B
 Contact Rating 5 A at 690 V AC
 Dimensions 4.32 in L x 1.8 in W x 6.5 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number XTOE045CCSS
 Mounting Type Frame/Separate
 Number of Poles 3
 PART NUMBER KEYWORDS XTOE045CCSS ; 11051330 ; 786685412504 ; 78668541250 ; 00786685412504
 Series XTOE
 Standards/Approvals CSA Certified,UL Listed,CE Marked
 Terminal Type Screw
 Type Class 10/20/30

Features

▪ Tamperproof cover
▪ Separate mount
▪ Reliable, accurate, electronic motor protection
▪ Easy to select, install and maintain
▪ Flexible, intelligent design
▪ Compact size
▪ Large FLA selection dial
▪ Trip status indicator
▪ Operating mode led
▪ Dip switch selectable trip class, phase unbalance and ground fault
▪ Selectable auto/manual reset after trip
