Eaton

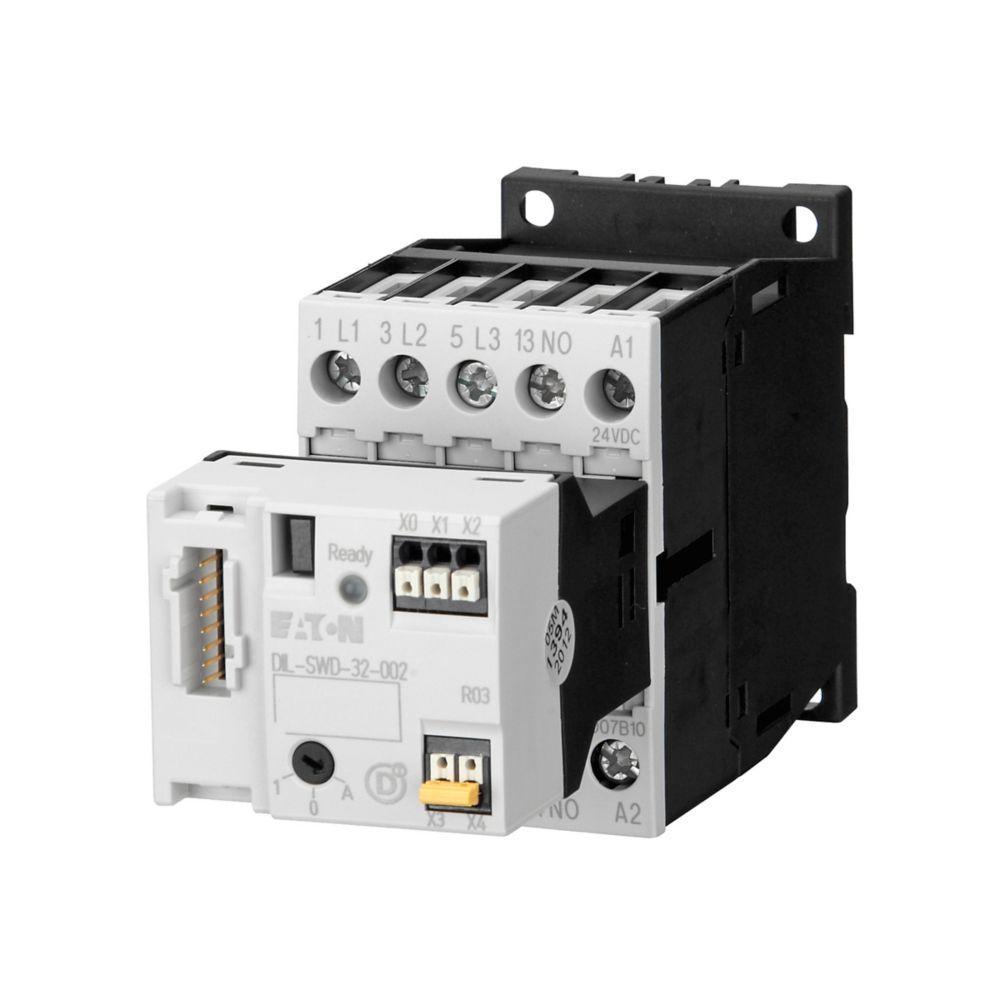

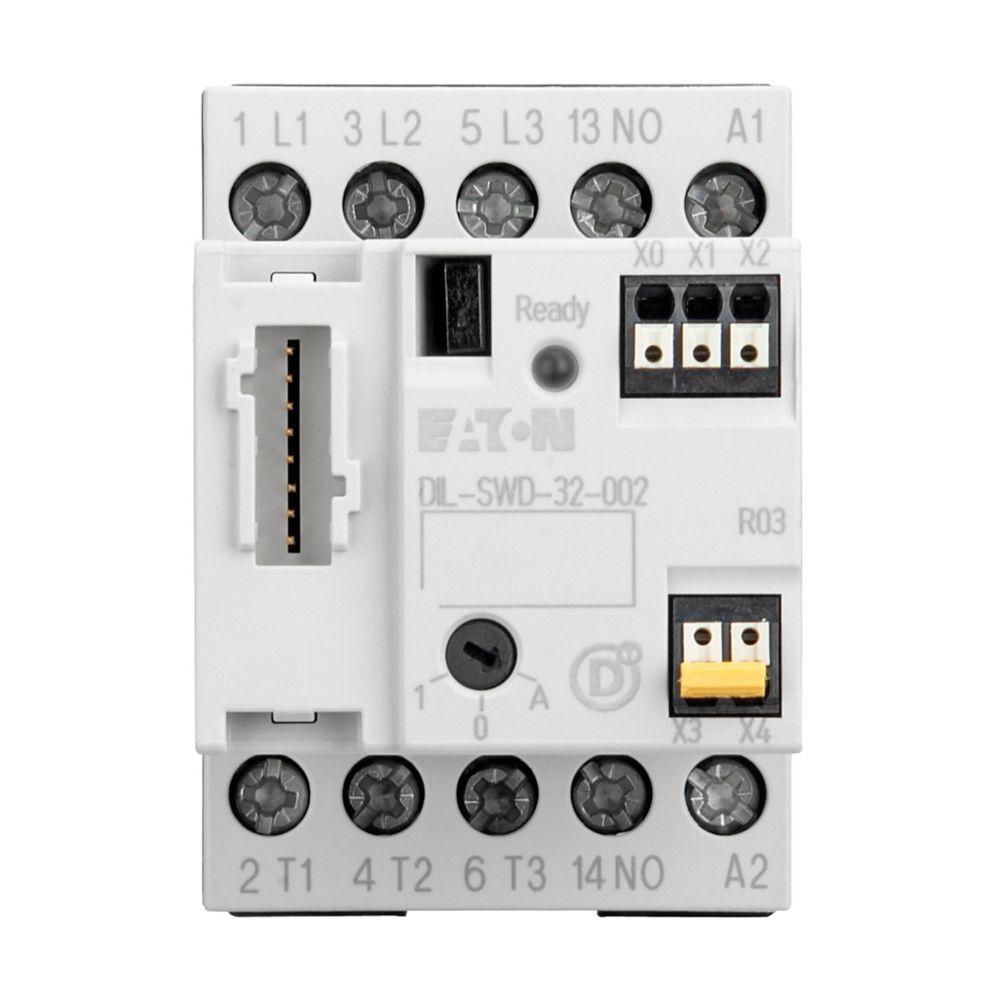

XTCE032C10B CH CONTACTOR 3P FVNR 32A FRAME C 1NO 220/50 240/60 COIL

Mouse over image to zoom, click to enlarge

  • XTCE032C10B CH CONTACTOR 3P FVNR 32A FRAME C 1NO 220/50 240/60 COIL
  • XTCE032C10B CH CONTACTOR 3P FVNR 32A FRAME C 1NO 220/50 240/60 COIL
  • XTCE032C10B CH CONTACTOR 3P FVNR 32A FRAME C 1NO 220/50 240/60 COIL

Description: EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 220 to 240 V AC Coil, 32 A Maximum Load Current, 3 hp at 115 VAC 1 ph, 5 hp at 200/230 VAC 1 ph, 10 hp at 200/230 VAC 3 ph, 20 hp at 460 VAC 3 ph, 25 hp at 575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contacts, 45 mm Size, Screw Terminal, IP20 Enclosure, -13 to 122 deg F Operating, DIN Rail/Panel Mounting, 4 x 3-1/2 x 2 in Dimensions

Manufacturer PN: XTCE032C10B

UPC:  01508277259

Kendall Electric Inc PN: 2271793

Invoice Description:

XTCE032C10B CH CONTACTOR 3P FVNR 32A FRAME C 1NO 220/50 240/60 COIL


SPEC SHEET

▸ See All in NEMA & IEC Contactors


How Can We Make This Page Better?

EATON XTCE032C10B Full Voltage Non-Reversing IEC Contactor, 220 to 240 V AC V Coil, 32 A, 1NO Contact, 3 Poles

Log In for Pricing and Availability




Description

Small size. Big impact. The XT IEC contactors are powerful, efficient and versatile, and can be combined with our full range of electronic overload relays and bimetal relays. These DC devices stand out for their reduced power consumption, which makes them more energy efficient and also reduces the size of the power supply units. XT IEC contactors are suitable for global use and cover the entire output range, from mini contactor relays (up to 7 A) all the way to vacuum contactors (up to 3180 A).
EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 220 to 240 V AC Coil, 32 A Maximum Load Current, 3 hp at 115 VAC 1 ph, 5 hp at 200/230 VAC 1 ph, 10 hp at 200/230 VAC 3 ph, 20 hp at 460 VAC 3 ph, 25 hp at 575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contacts, 45 mm Size, Screw Terminal, IP20 Enclosure, -13 to 122 deg F Operating, DIN Rail/Panel Mounting, 4 x 3-1/2 x 2 in Dimensions

Specifications

 Application Electrical Assemblies, Panels and EOEMs and Other Applications
 Brand Name EATON
 Coil Power Rating 3 hp at 115 VAC 1 ph, 5 hp at 200/230 VAC 1 ph, 10 hp at 200/230 VAC 3 ph, 20 hp at 460 VAC 3 ph, 25 hp at 575 VAC 3 ph
 Coil Voltage 220 to 240 V AC
 Contact Configuration 1NO
 Dimensions 4 x 3-1/2 x 2 in
 Enclosure IP20
 Frequency Rating 50/60 Hz
 Manufacturer Part Number XTCE032C10B
 Maximum Load Current 32 A
 Mounting Type DIN Rail/Panel
 Number of Auxiliary Contacts 1
 Number of Poles 3
 Operating Temperature -13 to 122 deg F
 PART NUMBER KEYWORDS XTCE032C10B ; 11232551 ; 04015082772598 ; 4015082772598
 Series XT Series
 Size 45 mm
 Standards/Approvals EN 60947,IEC 60947,UL Listed,CSA Certified,CE Marked,RoHS Compliant
 Terminal Type Screw
 Type Full Voltage Non-Reversing

Features

▪ Electronic coil controller allows contactors to reduce power consumption and generate less heat, resulting in lower cooling requirements, the ability to mount more contactors/starters per cabinet and an extended life on pilot devices that carry control signals
▪ AC and DC devices with the same dimensions achieved with an electronically controlled coil system allow for space savings and reduced engineering design time
▪ Integrated suppressors in DC controlled contactors offers reductions in total logistics and inventory costs by limiting the number of products ordered and stocked
▪ Wiring is not required, therefore increasing installation and maintenance efficiency
▪ Expanded range of DC coil control voltages, allows reliable operation through fluctuations in control voltages
▪ Twin terminals with separate sockets in contactors up to 400 A offer installation and application flexibility when using different size wires
▪ The improved integrity of the connections reduces cabling faults
▪ 10 kW at 220/230 VAC, 15 kW at 380/400 VAC, 18 kW at 415 VAC, 17 kW at 660/690 VAC maximum power ratings
