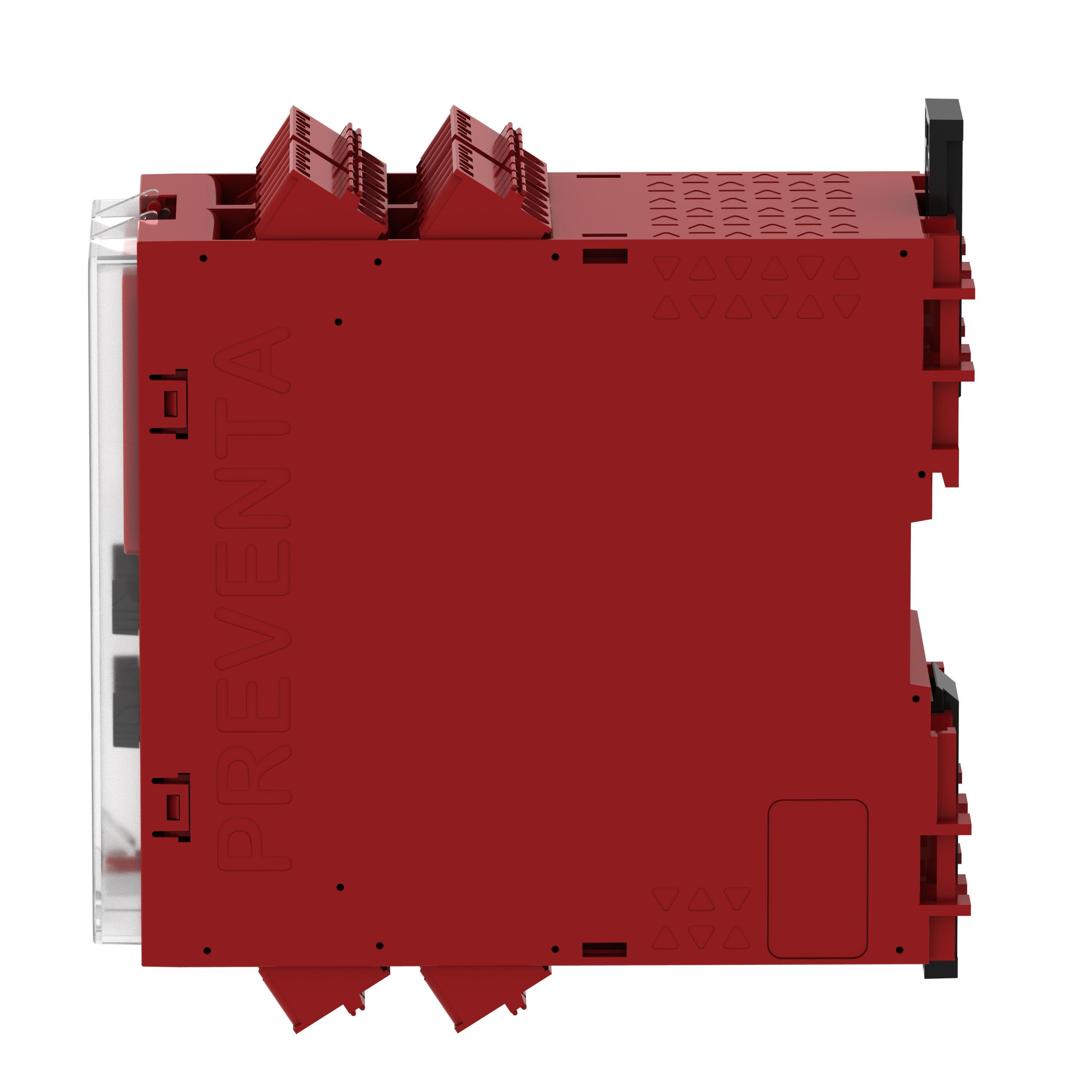

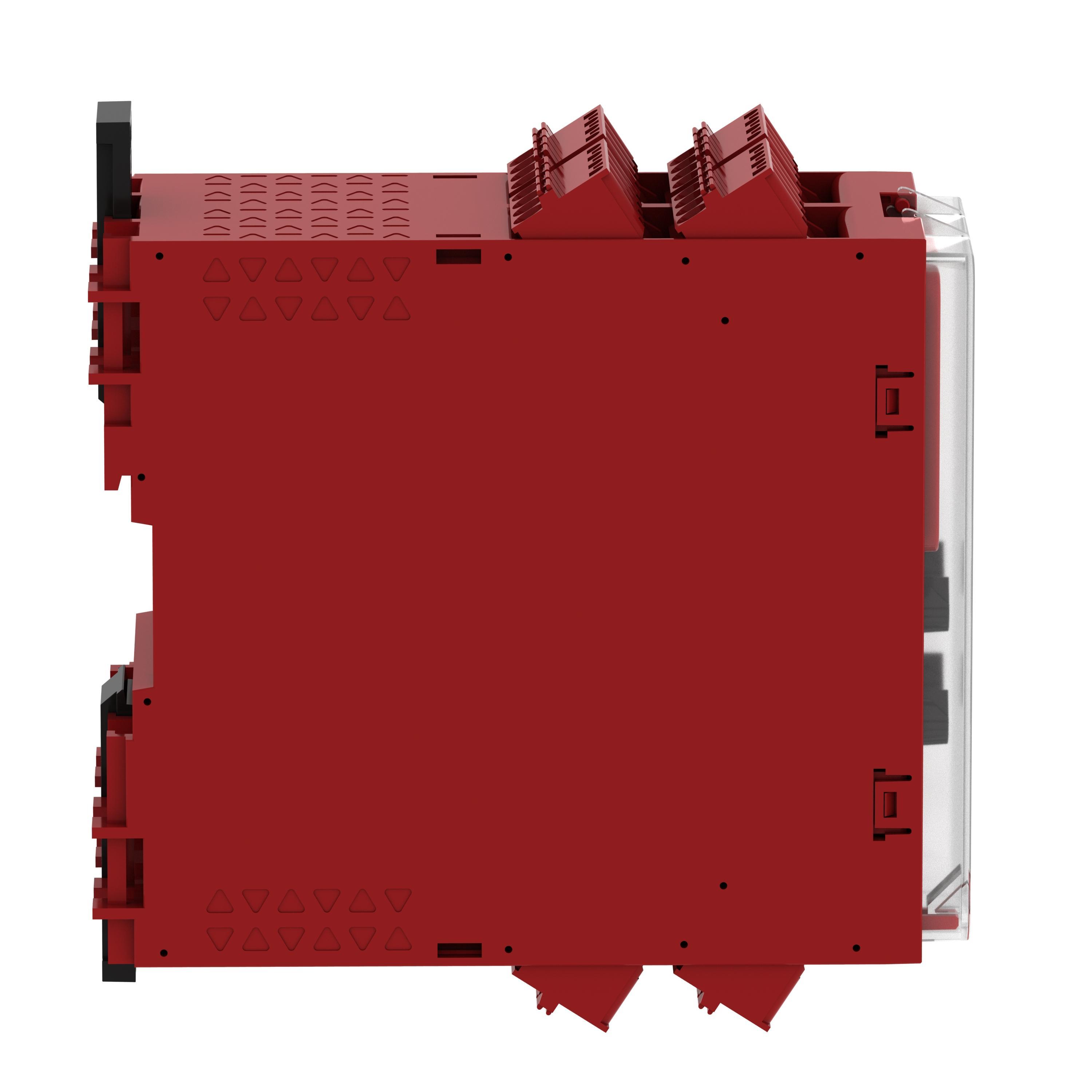

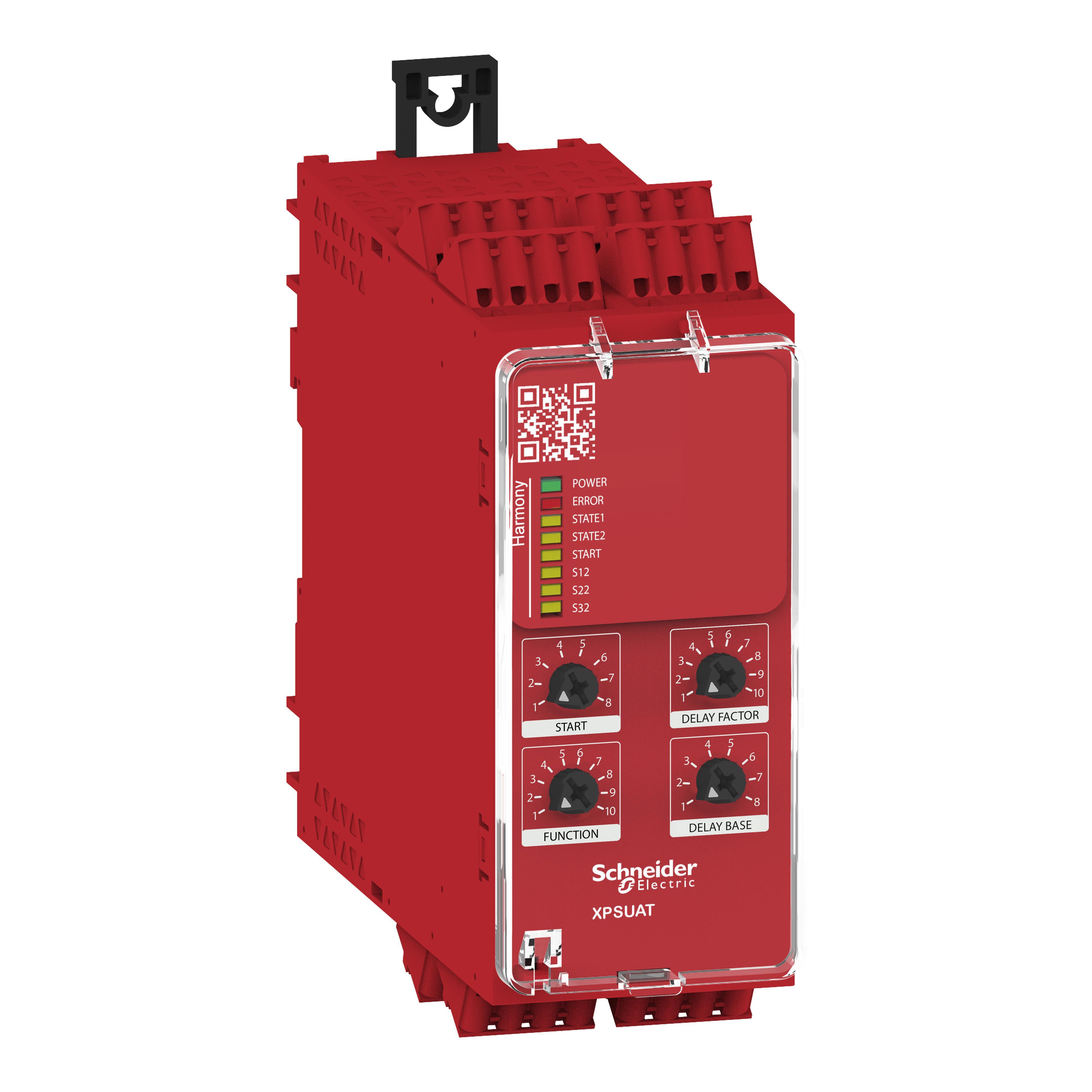

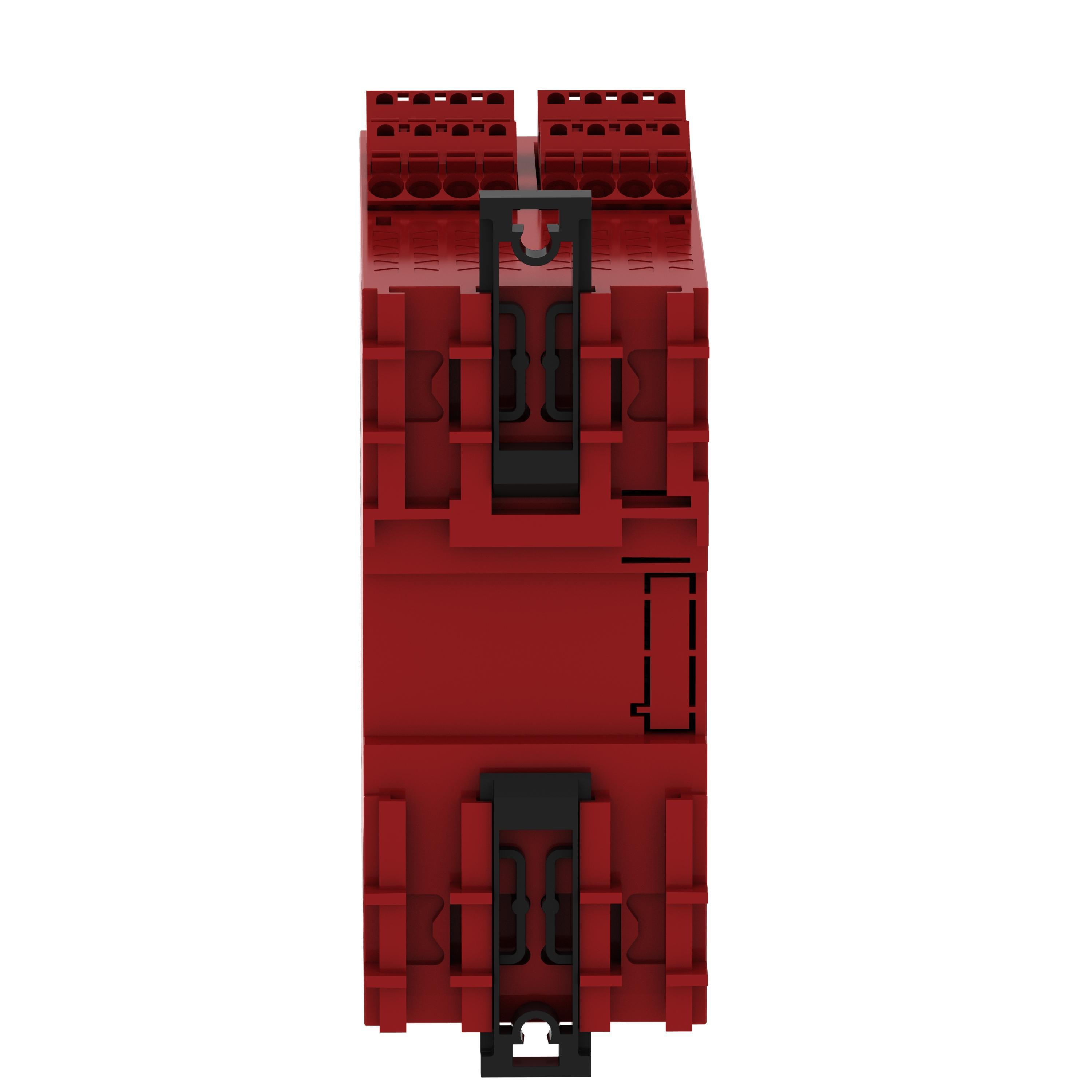

| This product is part of the Preventa™ XPS universal safety relays. This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensor, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 24 VAC/DC and equipped with a spring removable terminal block. XPS universal safety relay can forward more than 40 different messages between the solid state output of the relay and a standard digital input of a PLC, reducing the down time of the machine, precising the root cause of production stop. This safety relay embeds 2 positive 1 negative safety inputs, 4 ON/OFF configurable pulsed outputs, 3 NO Immediate, 3 NO configurable, 1 NC configurable safety outputs, 2 solid state diagnostic outputs. The maximum safety level achieved by this safety relay is PL e/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,350 kg. Its dimensions are 45 mm W x 120 mm D x 100 mm H. This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging, Mainly designed for a broad range of machine of the general mechanical engineering. This safety relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2, IEC 61508-3, ISO 13849-1, IEC 62061, IEC 60947-5-1, IEC 61508-1, IEC 61508-2, IEC 61508-3, ISO 13849-1, IEC 62061 standards and certified by cULus and TUV. This relay is mounted on a 35 mm symmetrical DIN rail. Preventa™ XPS universal safety relays are the first choice for managing single safety functions easily, typically in machine of simple to medium complexity. |
| Schneider Electric Square D™ Preventa® Safety Module, Series: XPSUAT, 1.77 in W x 4.61 in D x 4.68 in H Size, 24 VAC/VDC, 16 A, 6NO-3NC Contact Configuration, LED Indicator, IP20/IP40/IP54 Enclosure, DIN Rail Mounting |
