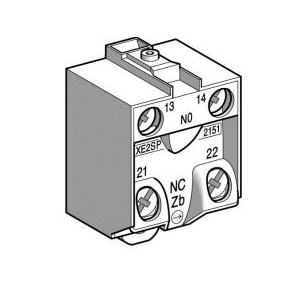

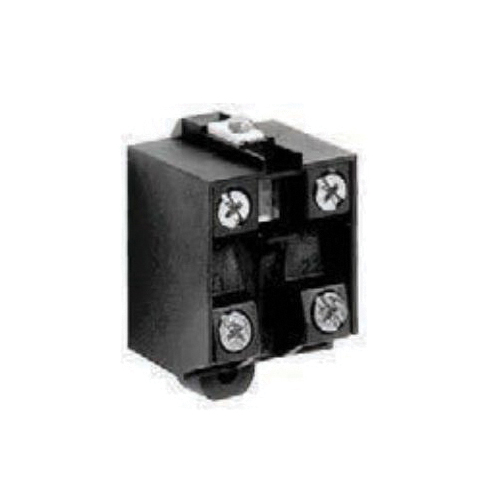

XE2SP2151 TELEMECANIQUE LIMIT SWITCH 2

Mouse over image to zoom, click to enlarge

  • XE2SP2151 TELEMECANIQUE LIMIT SWITCH 2
  • XE2SP2151 TELEMECANIQUE LIMIT SWITCH 2
  • XE2SP2151 TELEMECANIQUE LIMIT SWITCH 2

Description: Telemecanique, XE2SP2151, Limit Switch Contact Block, 2-Pole, Series: XE2S, 1NO-1NC Contact Configuration, For Use With: XCKL, XCKD, XCKS, XCKM, XCKP, XCKJ, XCR, XE2S, XE2S Limit Switch, 10 A at 600 V AC Contact, Screw Clamp Terminal Connection, -77 to 158 deg F, Plastic, Silver

Manufacturer PN: XE2SP2151

UPC:  38911019296

Kendall Electric Inc PN: 4072504

Invoice Description:

XE2SP2151 TELEMECANIQUE LIMIT SWITCH 2


SPEC SHEET

▸ See All in Limit Switch Contact Blocks


How Can We Make This Page Better?

Telemecanique XE2SP2151 XE2S 2-Pole Limit Switch Contact Block, 1NO-1NC Contact, For Use With XCKL, XCKD, XCKS, XCKM, XCKP, XCKJ, XCR, XE2S, XE2S Limit Switch, 10 A at 600 V AC Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

limit switch contact block - 1NC+1NO - snap action
Telemecanique, XE2SP2151, Limit Switch Contact Block, 2-Pole, Series: XE2S, 1NO-1NC Contact Configuration, For Use With: XCKL, XCKD, XCKS, XCKM, XCKP, XCKJ, XCR, XE2S, XE2S Limit Switch, 10 A at 600 V AC Contact, Screw Clamp Terminal Connection, -77 to 158 deg F, Plastic, Silver

Specifications

 Application Industrial, Power Management, Automation and Process Control Applications
 Brand Name Telemecanique
 Color Silver
 Connection Type Screw Clamp Terminal
 Contact Configuration 1NO-1NC
 Contact Rating 10 A at 600 V AC
 Manufacturer Part Number XE2SP2151
 Material Plastic
 Series XE2S
 Standards/Approvals CSA Certified|UL Listed|VDE 0660|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|IEC 947-5-1|RoHS Compliant
 Suitable For Use With XCKL, XCKD, XCKS, XCKM, XCKP, XCKJ, XCR, XE2S, XE2S Limit Switch
 Temperature Rating -77 to 158 deg F
 Type 2-Pole

Features

▪ <25 mOhm resistance across terminals
▪ 0.01 mm/sec minimum actuation speed
▪ Snap action, break before make
▪ Silver contact
▪ 2-pole
▪ Zb contact insulation form
▪ 5000000 operating cycles
