Description: Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Monolithic Round Unmarked, Series: XB7, 22 mm Size, 1NC Contact Configuration, Slow Break Contact, Projecting Push Contact Mode, 0.6 A at 120 V AC, 0.3 A at 240 V AC, 0.22 A at 125 V DC, 0.1 A at 250 V DC Contact, Integral LED Lamp, Bezel/Housing: Plastic Bezel, Screw Clamp Terminal, NEMA 12/IP20/IP65 Enclosure, Red, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Manufacturer PN: XB7NW34B2

UPC:  60648047080

Kendall Electric Inc PN: 3962956

Invoice Description:

XB7NW34B2 SQD ILLUM. P.B - LED -


SPEC SHEET

▸ See All in Illuminated Pushbuttons


How Can We Make This Page Better?

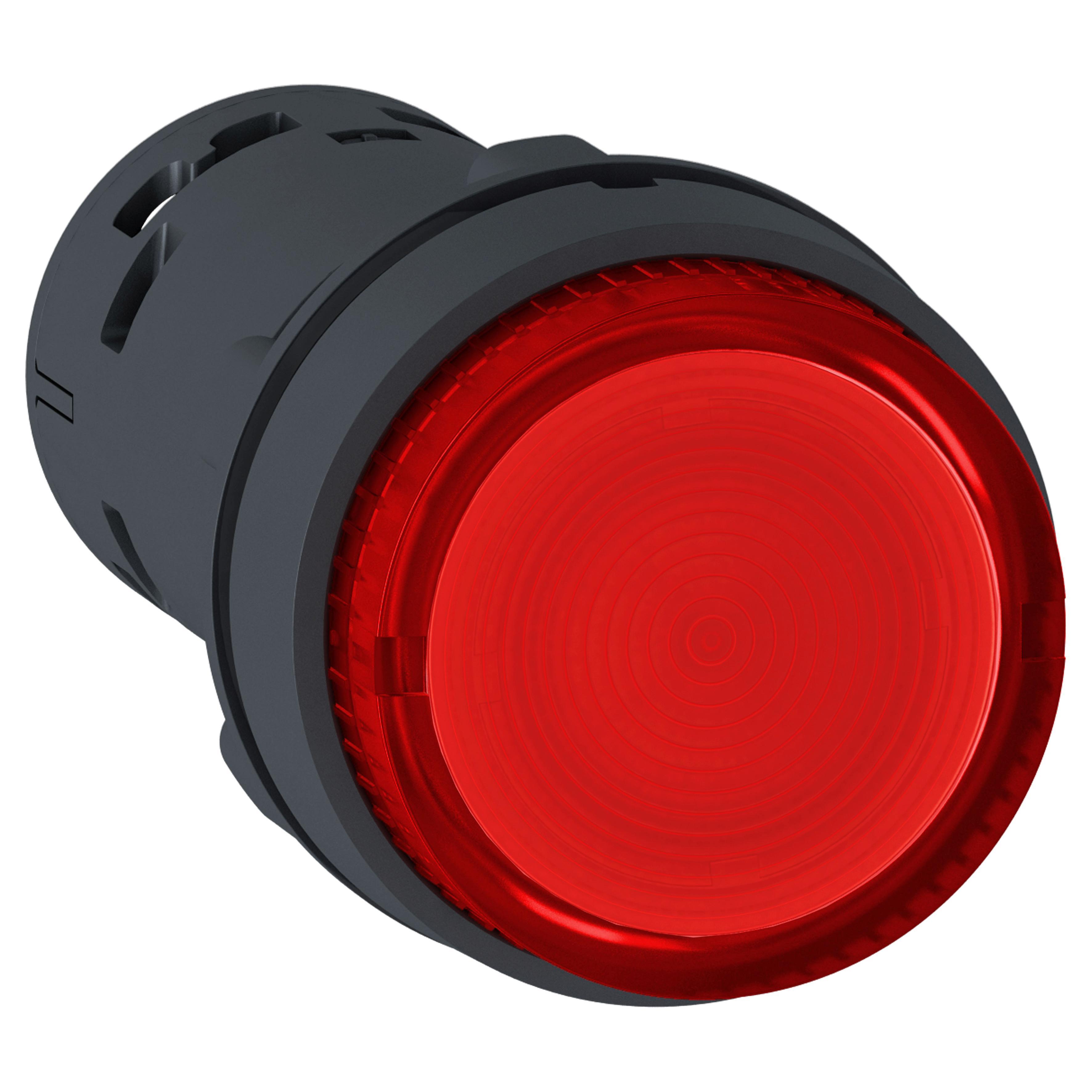

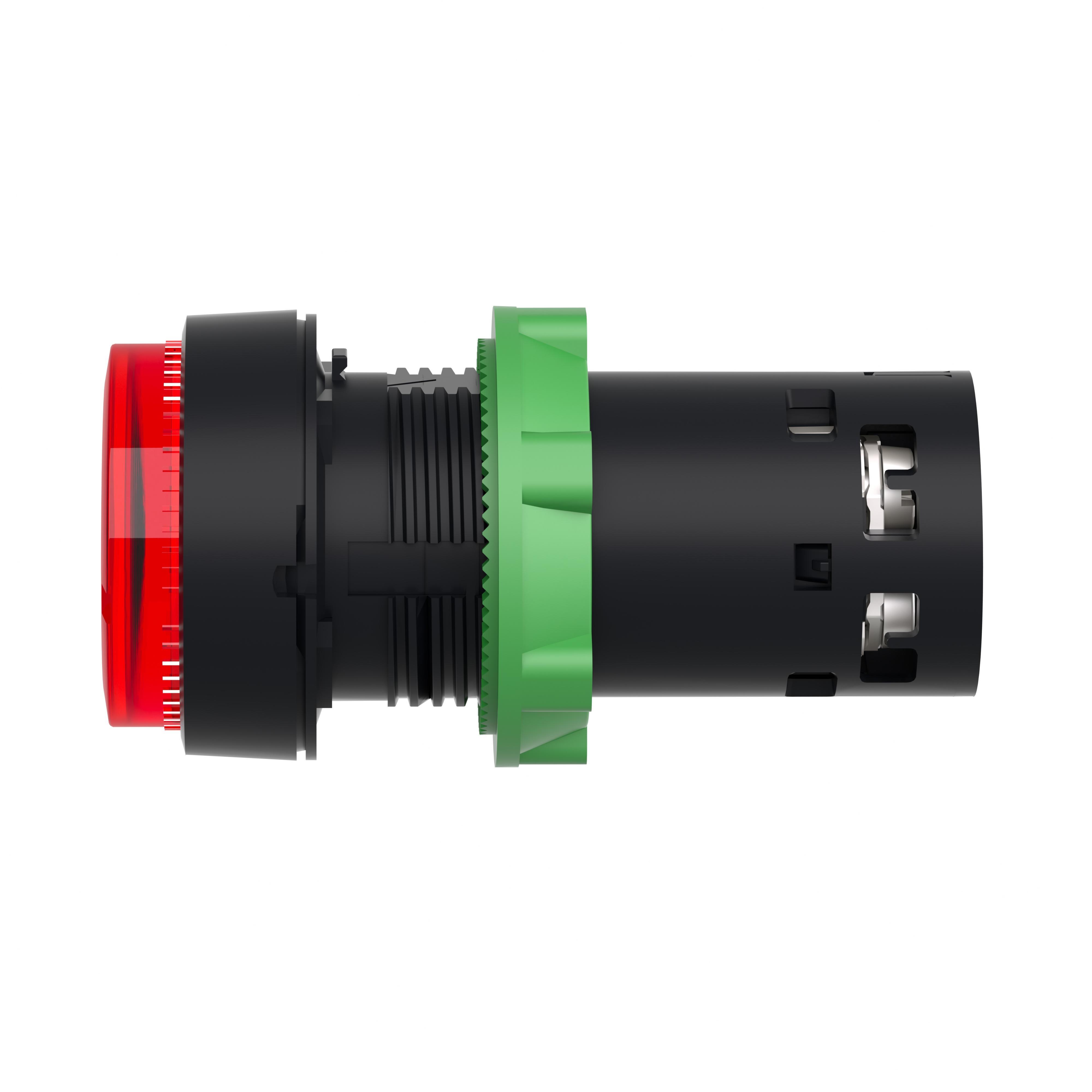

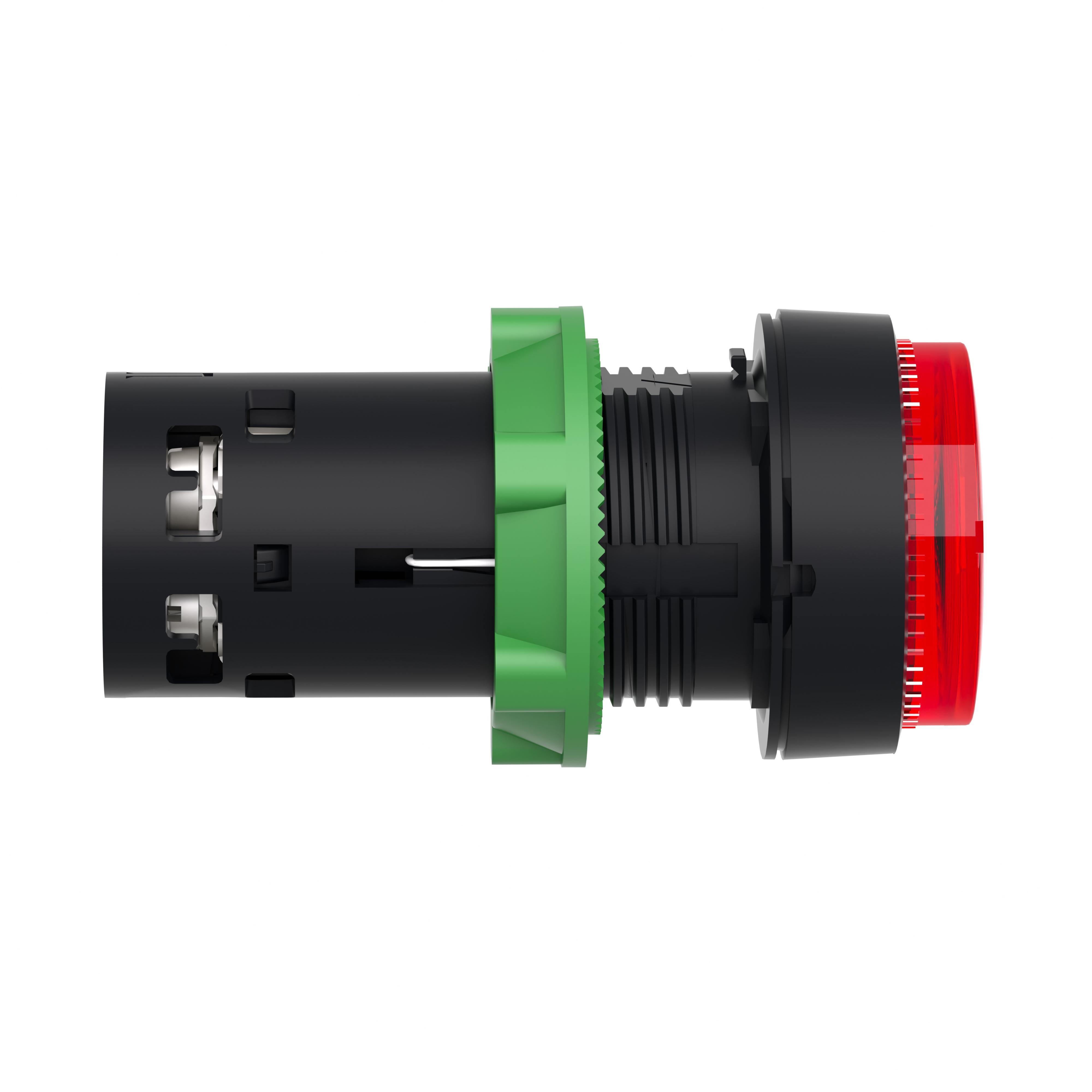

Schneider Electric Harmony™ Square D™ XB7NW34B2 Monolithic Round Unmarked Illuminated Pushbutton With Plain Lens, 22 mm, 1NC Contact, Slow Break Contact, Red

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB7, illuminated projecting monolithic red push button operates with a spring return / impulse mechanism, is supplied with 24V AC/DC, uses an integral LED and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Monolithic Round Unmarked, Series: XB7, 22 mm Size, 1NC Contact Configuration, Slow Break Contact, Projecting Push Contact Mode, 0.6 A at 120 V AC, 0.3 A at 240 V AC, 0.22 A at 125 V DC, 0.1 A at 250 V DC Contact, Integral LED Lamp, Bezel/Housing: Plastic Bezel, Screw Clamp Terminal, NEMA 12/IP20/IP65 Enclosure, Red, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Specifications

 Application Industry, Service Sector and Infrastructure Applications
 Bezel Housing Plastic Bezel
 Brand Name Square D
 Color Red
 Contact Configuration 1NC
 Contact Rating 0.6 A at 120 V AC, 0.3 A at 240 V AC, 0.22 A at 125 V DC, 0.1 A at 250 V DC
 Contact Type Slow Break
 Enclosure NEMA 12/IP20/IP65
 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
 Lamp Type Integral LED
 Manufacturer Part Number XB7NW34B2
 PART NUMBER KEYWORDS XB7NW34B2 ; 8090713 ; 785901219033 ; 78590121903 ; 03606480470806 ; 3606480470806
 Series XB7
 Size 22 mm
 Standards/Approvals UL 508|UL File No. E164353|CCN NKCR|CSA File No. LR44087-122|CSA C22.2 No. 14|Class 3211-03|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-5|EN/IEC 60204-1|EN/IEC 60364-5-53|EN/ISO 13850|CCC Certified|GB 14048.5|Green Premium|REACH Compliant|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

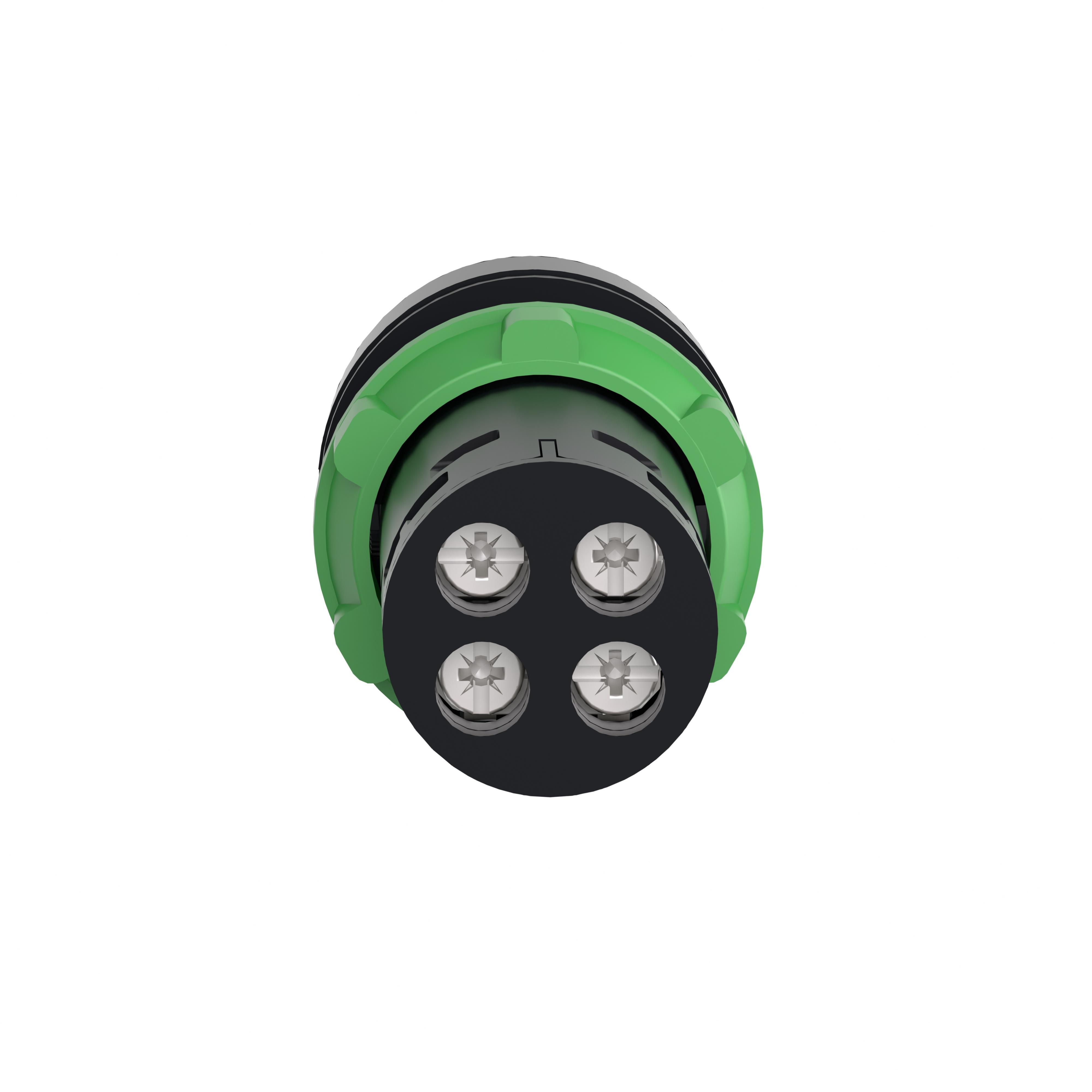

 Terminal Type Screw Clamp
 Type Monolithic Round Unmarked

Features

▪ Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
▪ Wide range of operating temperatures from -25 deg C to 70 deg C/-13 to +158 deg F
▪ Clear and resilient symbol marking on the button
▪ Wide availability throughout an extensive distribution network
