Description: Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Monolithic Round Unmarked, Series: XB7, 22 mm Size, 1NO Contact Configuration, Slow Break Contact, Projecting Push Contact Mode, 0.6 A at 120 V AC, 0.3 A at 240 V AC, 0.22 A at 125 V DC, 0.1 A at 250 V DC Contact, Integral LED Lamp, Bezel/Housing: Plastic Bezel, Screw Clamp Terminal, NEMA 12/IP20/IP65 Enclosure, Green, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Manufacturer PN: XB7NW33B1

UPC:  60648047074

Kendall Electric Inc PN: 3962955

Invoice Description:

XB7NW33B1 SQD ILLUM. P.B - LED -


SPEC SHEET

▸ See All in Illuminated Pushbuttons


How Can We Make This Page Better?

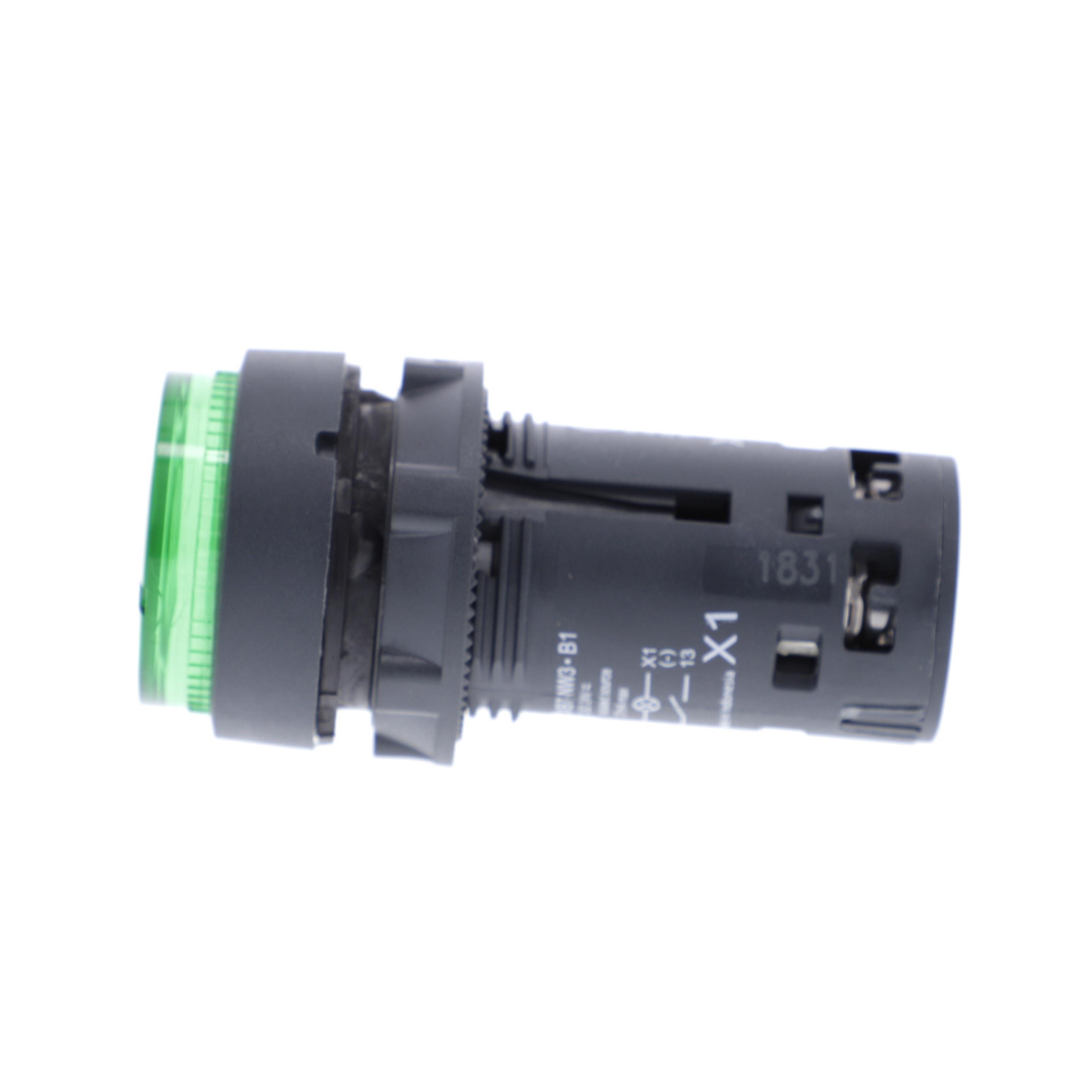

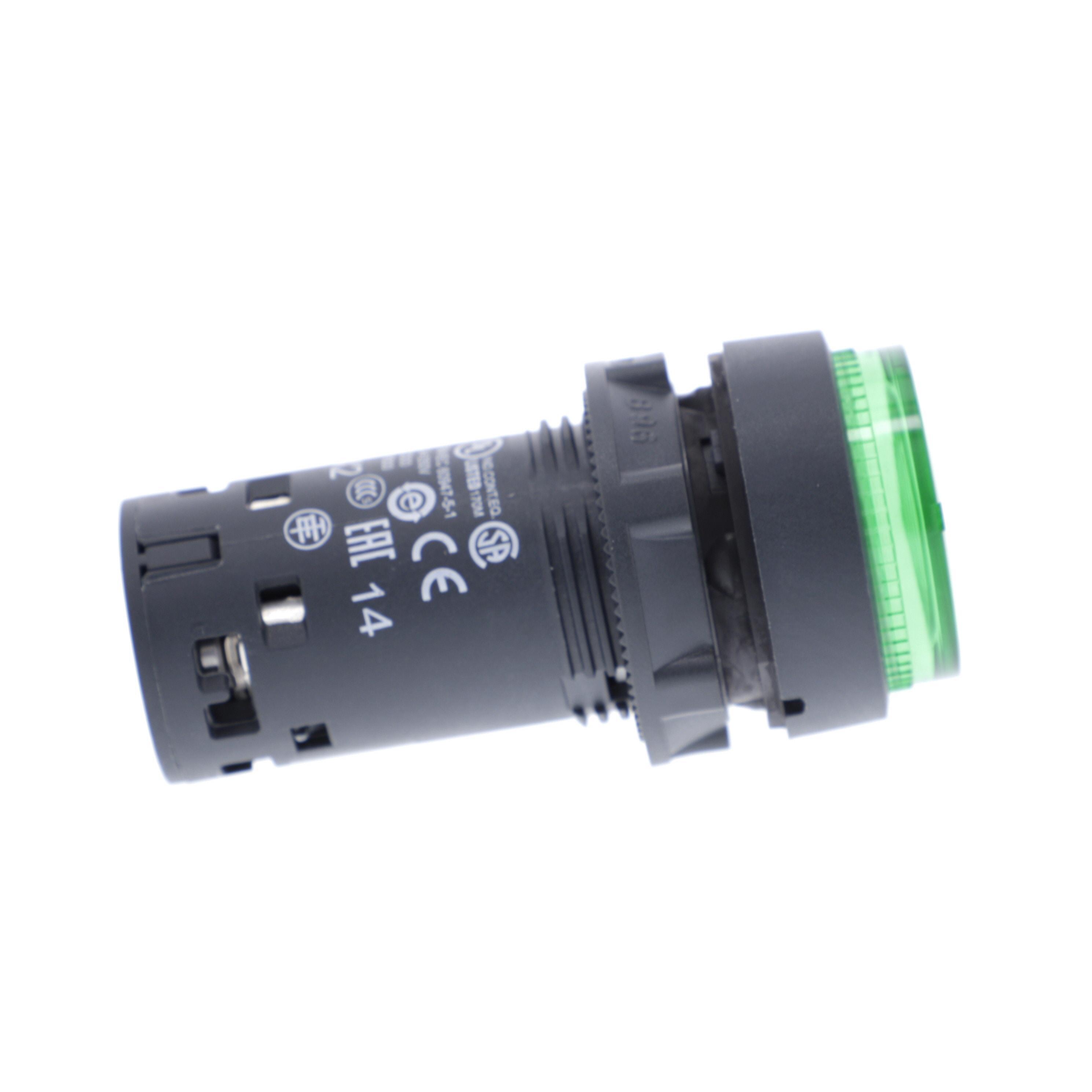

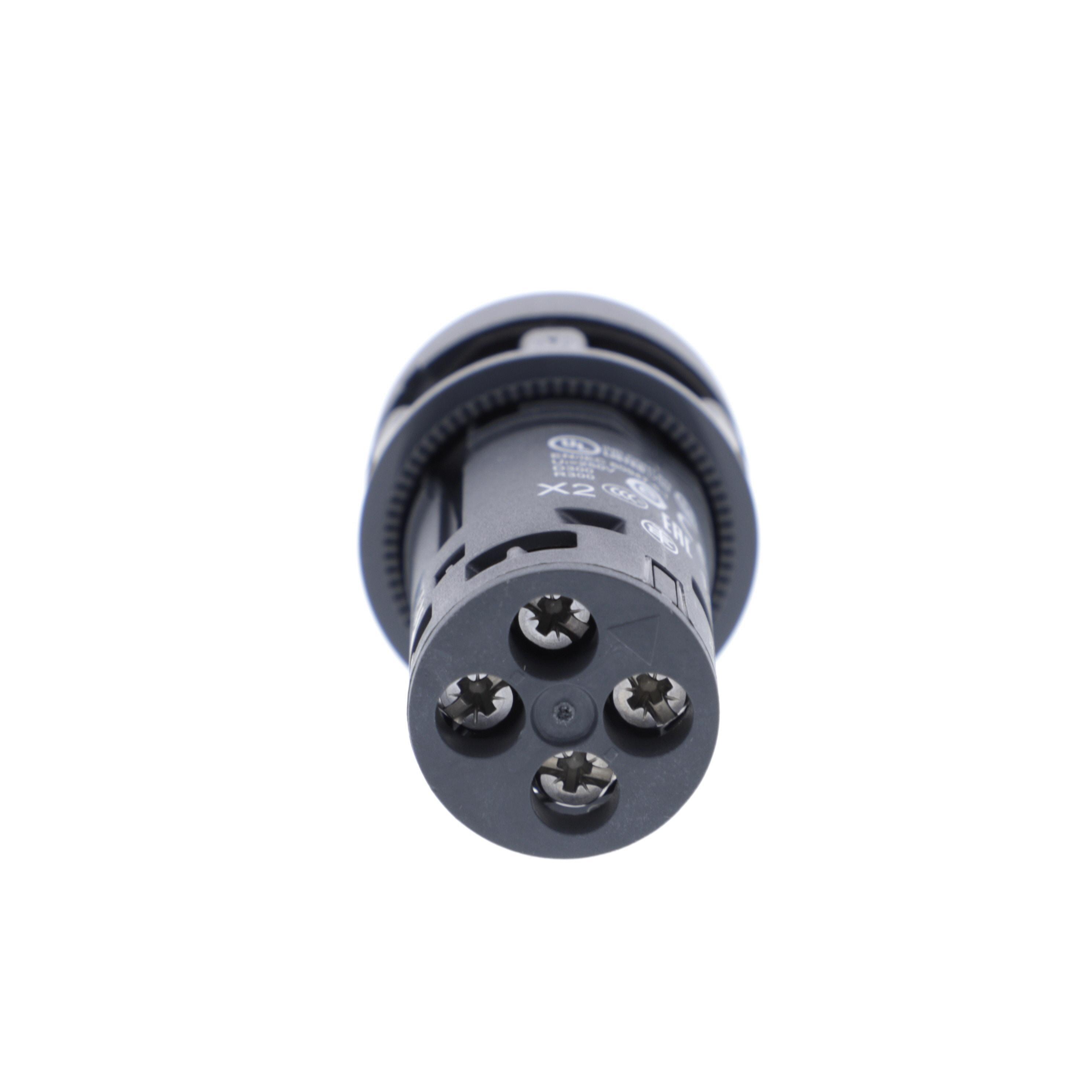

Schneider Electric Harmony™ Square D™ XB7NW33B1 Monolithic Round Unmarked Illuminated Pushbutton With Plain Lens, 22 mm, 1NO Contact, Slow Break Contact, Green

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB7, illuminated projecting monolithic green push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Monolithic Round Unmarked, Series: XB7, 22 mm Size, 1NO Contact Configuration, Slow Break Contact, Projecting Push Contact Mode, 0.6 A at 120 V AC, 0.3 A at 240 V AC, 0.22 A at 125 V DC, 0.1 A at 250 V DC Contact, Integral LED Lamp, Bezel/Housing: Plastic Bezel, Screw Clamp Terminal, NEMA 12/IP20/IP65 Enclosure, Green, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Specifications

 Application Industry, Service Sector and Infrastructure Applications
 Bezel Housing Plastic Bezel
 Brand Name Square D
 Color Green
 Contact Configuration 1NO
 Contact Rating 0.6 A at 120 V AC, 0.3 A at 240 V AC, 0.22 A at 125 V DC, 0.1 A at 250 V DC
 Contact Type Slow Break
 Enclosure NEMA 12/IP20/IP65
 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
 Lamp Type Integral LED
 Manufacturer Part Number XB7NW33B1
 PART NUMBER KEYWORDS XB7NW33B1 ; 8090689 ; 785901219002 ; 78590121900 ; 03606480470745 ; 3606480470745
 Series XB7
 Size 22 mm
 Standards/Approvals UL 508|UL File No. E164353|CCN NKCR|CSA File No. LR44087-122|CSA C22.2 No. 14|Class 3211-03|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-5|EN/IEC 60204-1|EN/IEC 60364-5-53|EN/ISO 13850|CCC Certified|GB 14048.5|Green Premium|REACH Compliant|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Terminal Type Screw Clamp
 Type Monolithic Round Unmarked

Features

▪ Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation

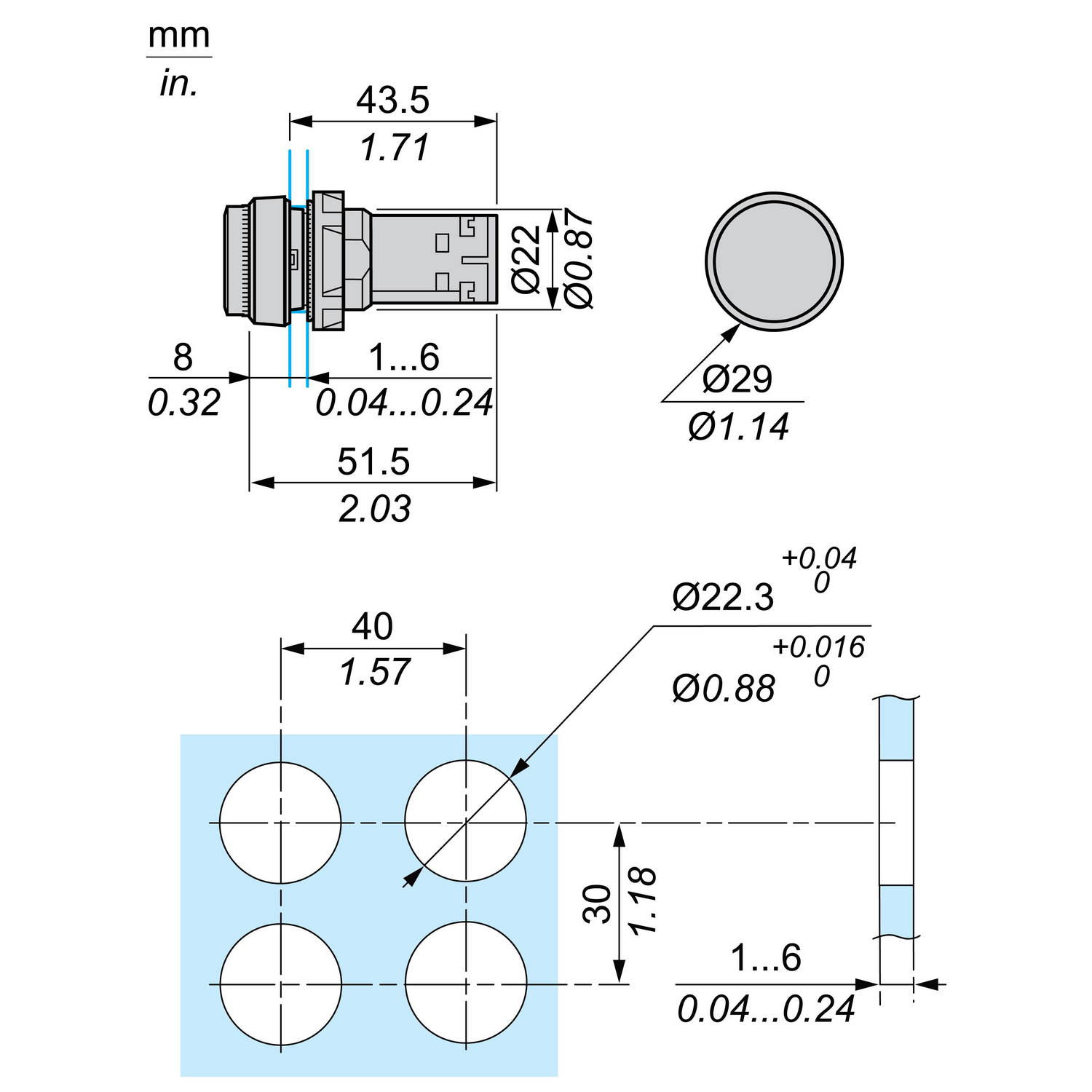

▪ Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
▪ Wide range of operating temperatures from -25 deg C to 70 deg C/-13 to +158 deg F
▪ Wide availability throughout an extensive distribution network
