Schneider Electric
  • XB5DTB23 SQD DOOR-MNTD TIMER 3S 60S, 24VDC
  • XB5DTB23 SQD DOOR-MNTD TIMER 3S 60S, 24VDC
  • XB5DTB23 SQD DOOR-MNTD TIMER 3S 60S, 24VDC
  • XB5DTB23 SQD DOOR-MNTD TIMER 3S 60S, 24VDC
  • XB5DTB23 SQD DOOR-MNTD TIMER 3S 60S, 24VDC

Description: Schneider Electric Harmony™ Timer, Mono-Function, 24 V DC, 10 A, 3 to 60 s Time Setting, LED Display, Screw Terminal Electrical Connections, IP20/IP65 Enclosure, -4 to 140 deg F, Panel Mounting, 1.14 in Dia x 2.44 in H Dimensions

Manufacturer PN: XB5DTB23

UPC:  60648120547

Kendall Electric Inc PN: 4140886

Invoice Description:

XB5DTB23 SQD DOOR-MNTD TIMER 3S 60S, 24VDC


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Harmony™ XB5DTB23 Mono-Function Timer, 3 to 60 s Setting, 24 V DC

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

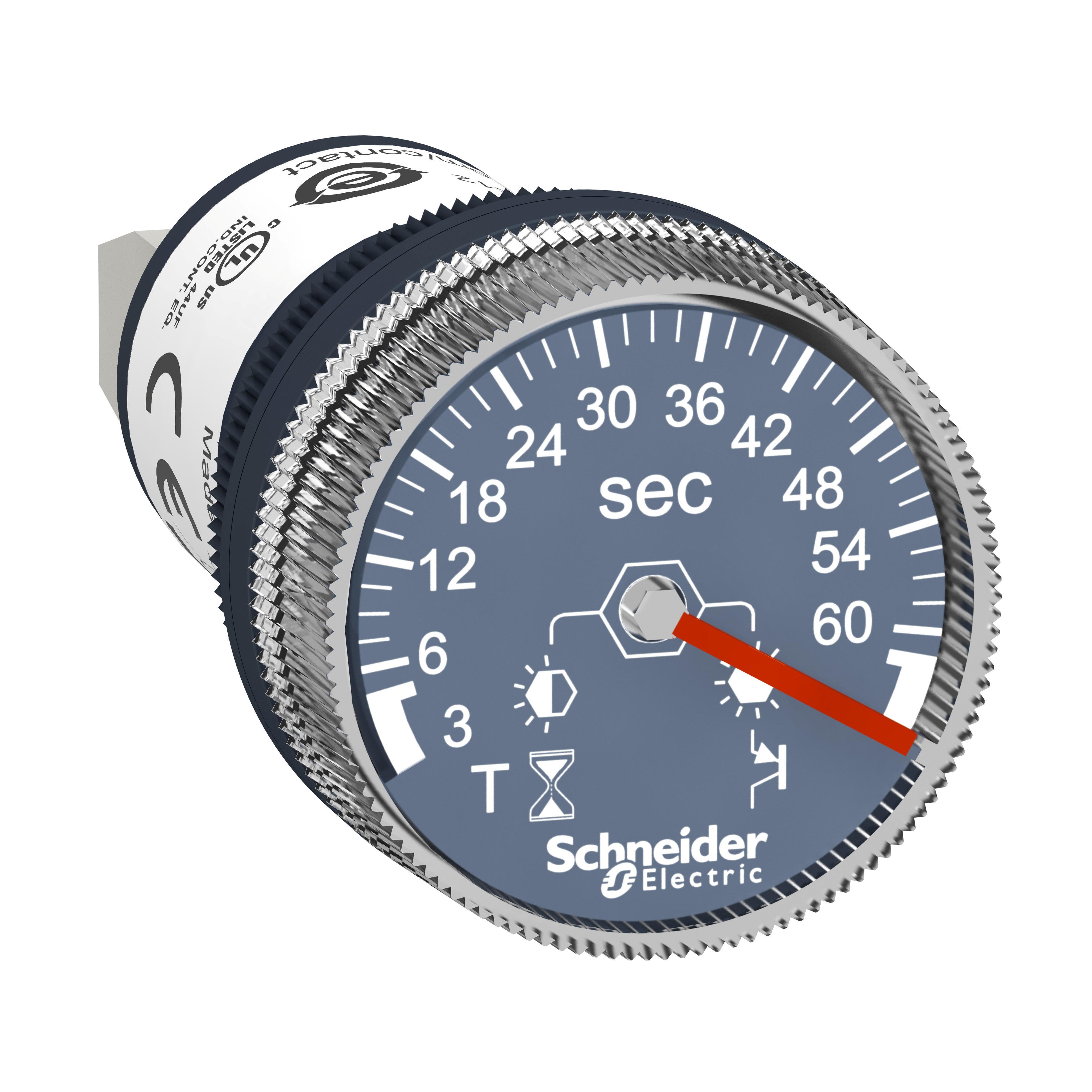

This Harmony XB5, monolithic analog timer can be set for timing intervals between 3 to 60 seconds and is supplied with a 24V DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.
Schneider Electric Harmony™ Timer, Mono-Function, 24 V DC, 10 A, 3 to 60 s Time Setting, LED Display, Screw Terminal Electrical Connections, IP20/IP65 Enclosure, -4 to 140 deg F, Panel Mounting, 1.14 in Dia x 2.44 in H Dimensions

Specifications

 Amperage Rating 10 A
 Brand Name Square D
 Dimensions 1.14 in Dia x 2.44 in H
 Electrical Connections Screw Terminal
 Enclosure IP20/IP65
 Manufacturer Part Number XB5DTB23
 Mounting Type Panel
 PART NUMBER KEYWORDS XB5DTB23 ; 15647378 ; 785901956983 ; 78590195698 ; 03606481205476 ; 3606481205476
 Standards/Approvals UL Listed;CE;IEC 61812-1;UL 508;0.15 mm 10-60 Hz)IEC 60068-2-6;2 gn 60-150 Hz)IEC 60068-2-6;+/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27;Electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2;electromagnetic emission class B conforming to IEC 55011;IP65 front: conforming to IEC 60529;IP20 back: conforming to IEC 60529
 Temperature Rating -4 to 140 deg F
 Time Setting 3 to 60 s
 Type Mono-Function
 Video Links
 Voltage Rating 24 V DC

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
▪ Excellent mechanical connection with operator head
▪ A large set of accessories to customize your panels
