Description: Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Double Headed Rectangular, Series: XB5, 22 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Momentary Contact Mode, 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC Contact, Integral LED Lamp, Bezel/Housing: Plastic Bezel, Flush Actuator, Screw Clamp Terminal, NEMA 4X/13/IP66/IP69/IP69K Enclosure, Panel Mounting, Green/Red, Environmental Conditions: -40 to 158 deg F Operating/Storage Temperature

Manufacturer PN: XB5AW73731B5

UPC:  38911904354

Kendall Electric Inc PN: 3962945

Invoice Description:

XB5AW73731B5 SQD PLASTIC ILLUM


SPEC SHEET

▸ See All in Illuminated Pushbuttons


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ XB5AW73731B5 Double Headed Rectangular Illuminated Pushbutton, 22 mm, 1NO-1NC Contact, Slow Break Contact, Green/Red

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

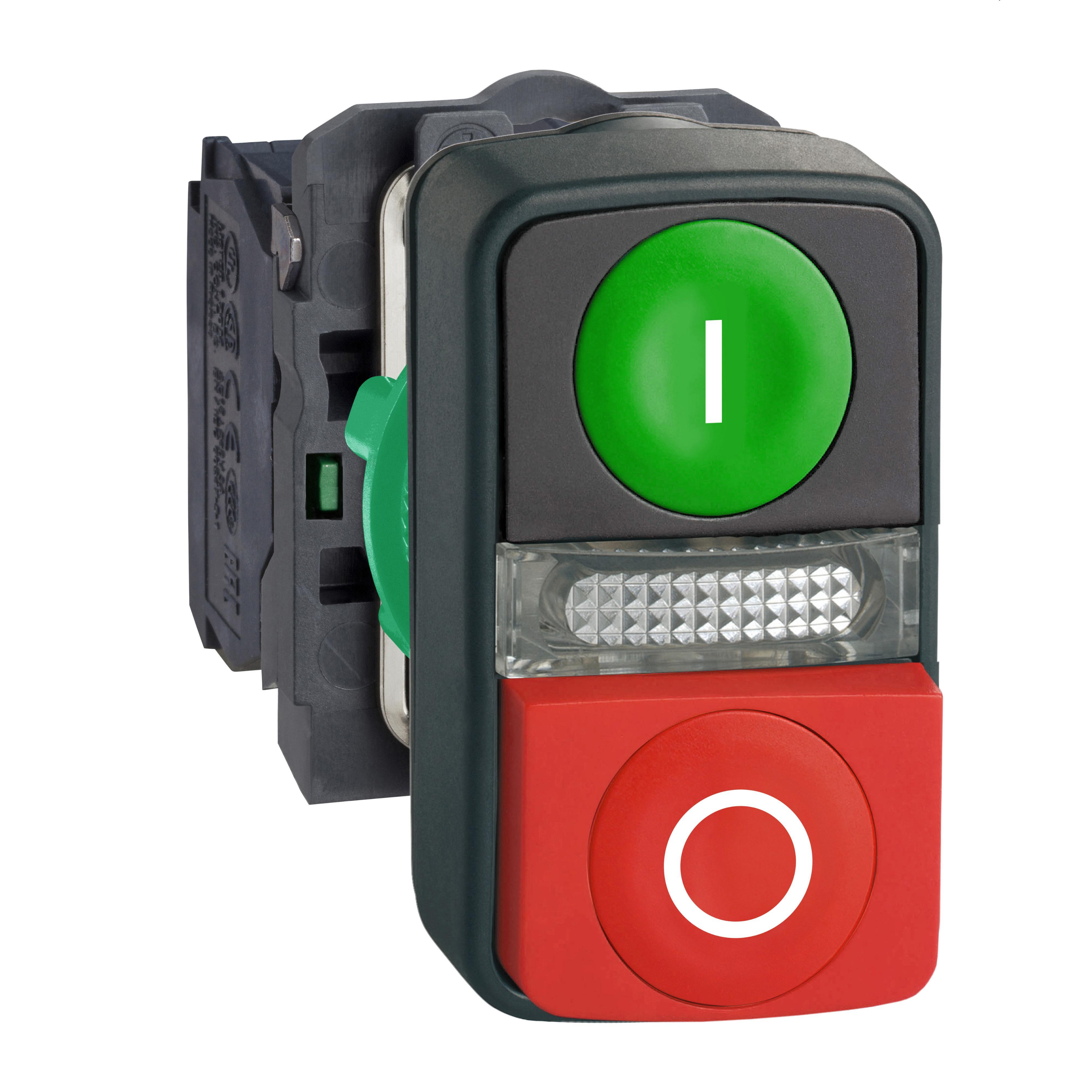

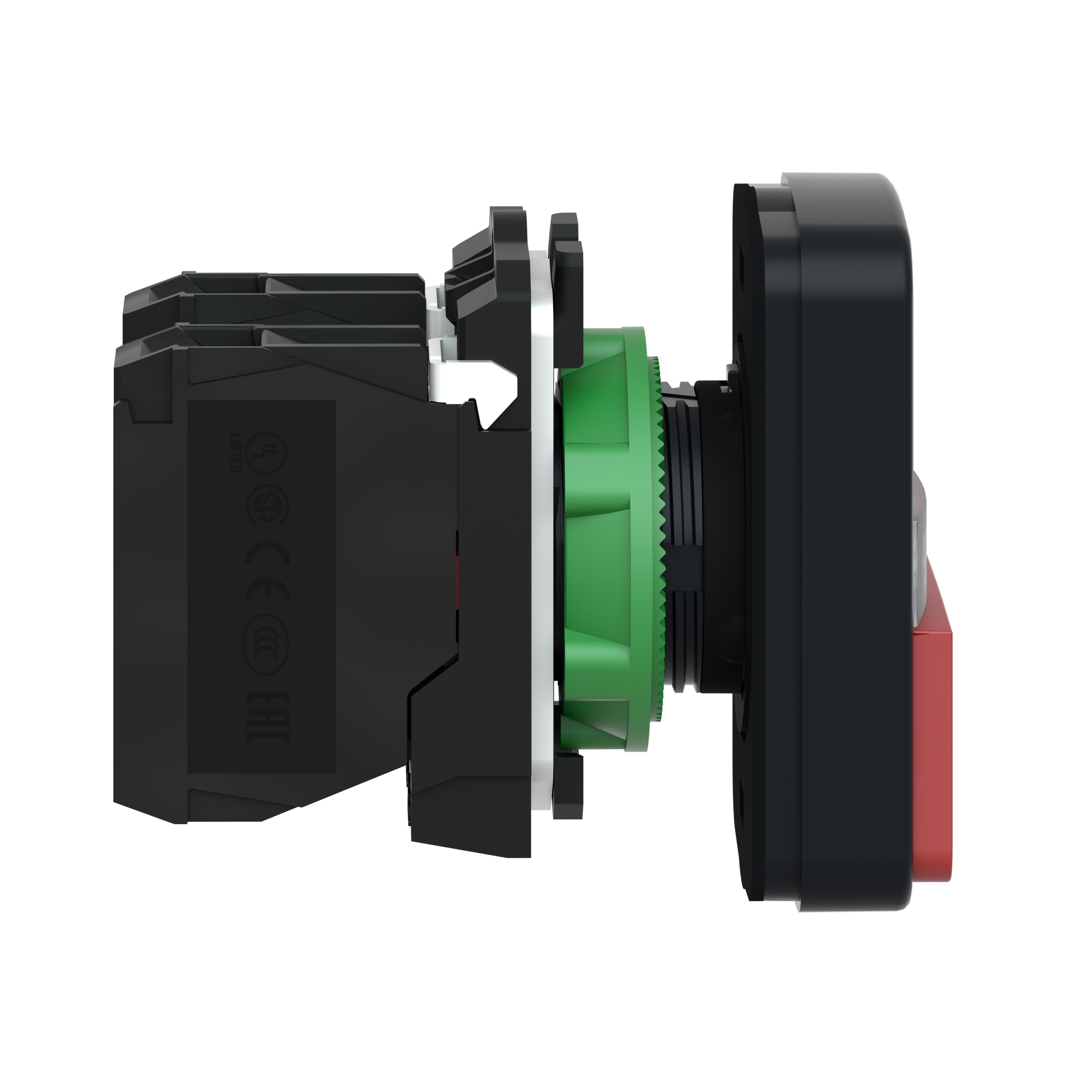

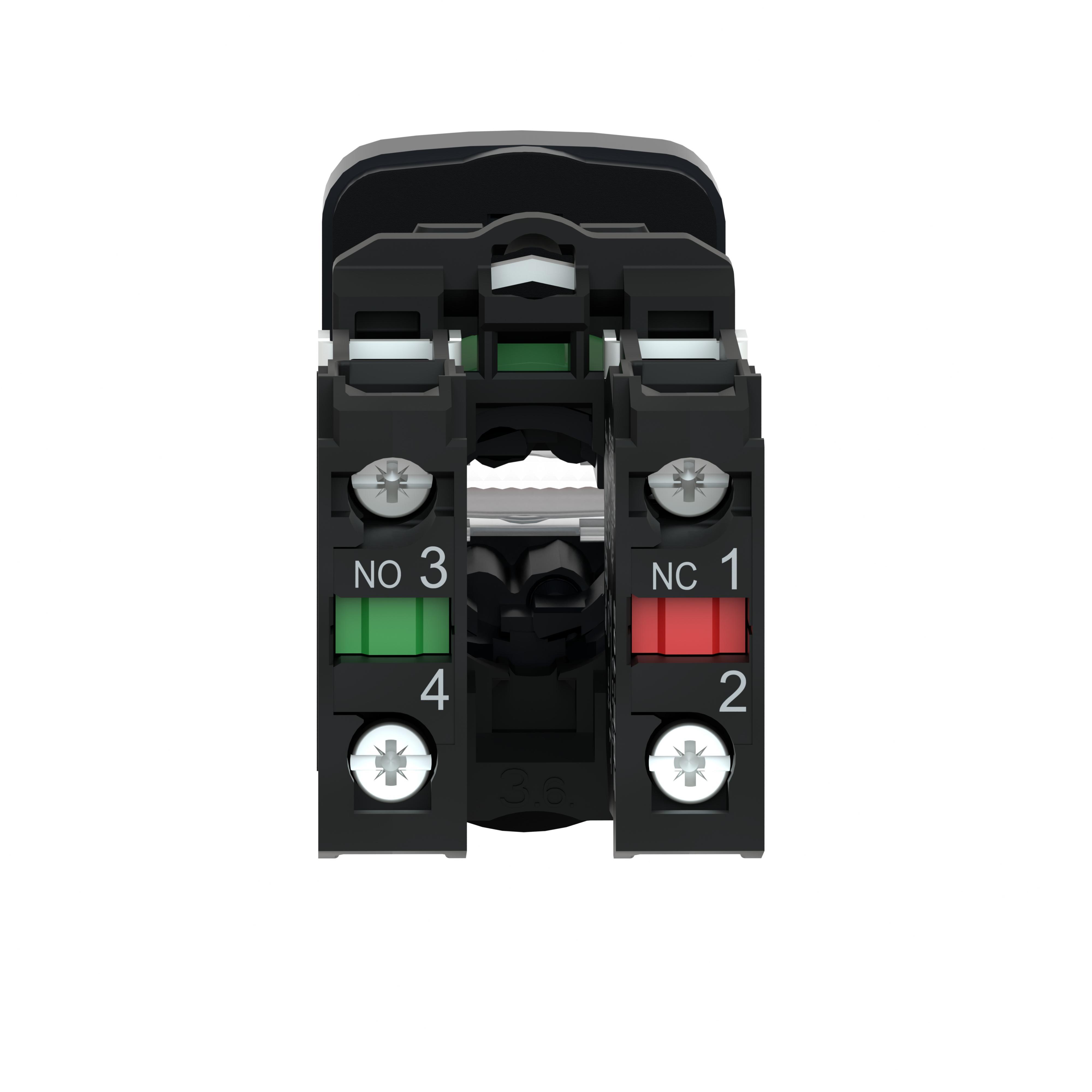

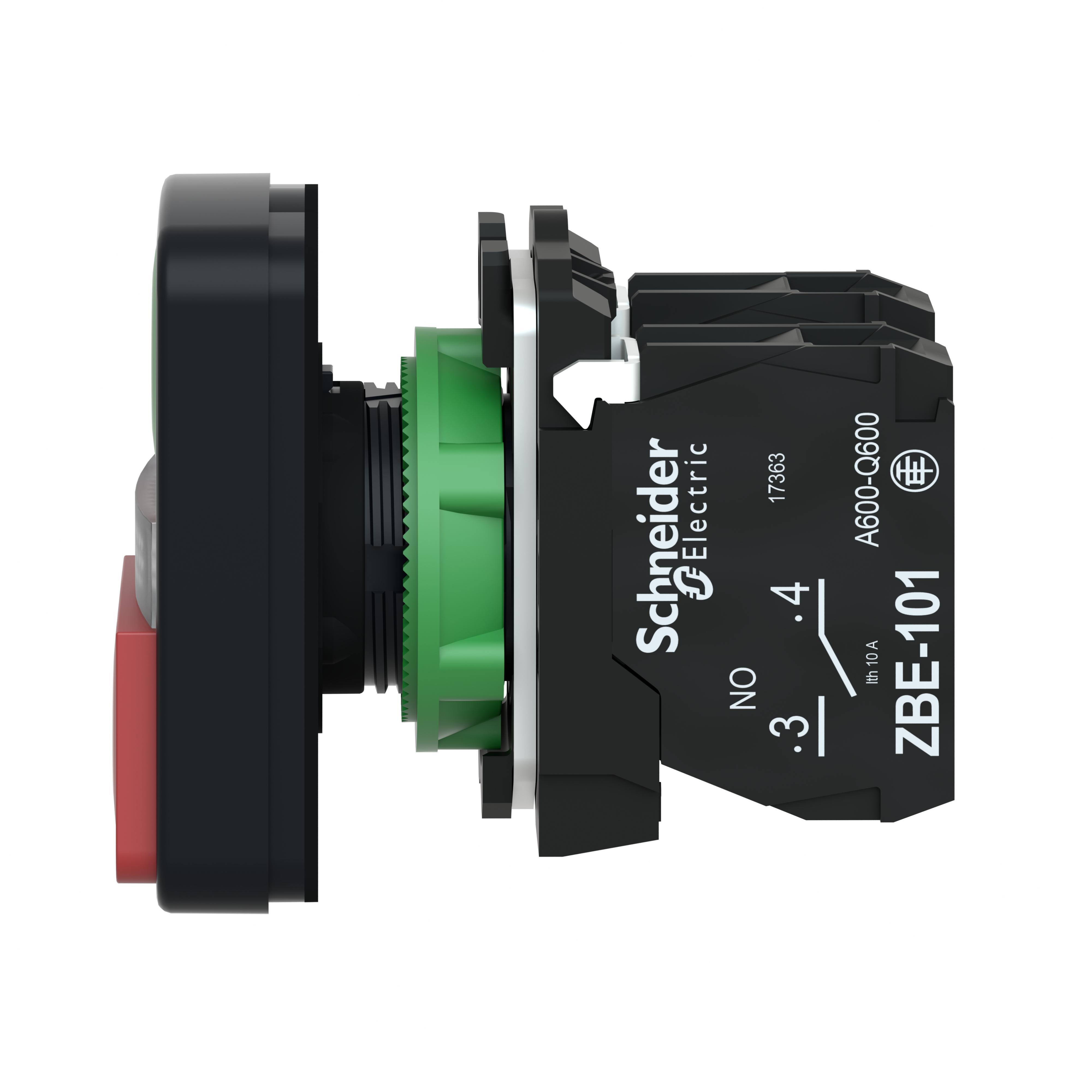

This Harmony XB5, double-headed modular push button has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism, is supplied with 24V AC/DC and uses screw clamp terminals. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Double Headed Rectangular, Series: XB5, 22 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Momentary Contact Mode, 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC Contact, Integral LED Lamp, Bezel/Housing: Plastic Bezel, Flush Actuator, Screw Clamp Terminal, NEMA 4X/13/IP66/IP69/IP69K Enclosure, Panel Mounting, Green/Red, Environmental Conditions: -40 to 158 deg F Operating/Storage Temperature

Specifications

 Actuator Flush
 Application Industry, Service Sector and Infrastructure Applications
 Bezel Housing Plastic Bezel
 Brand Name Square D
 Color Green/Red
 Contact Configuration 1NO-1NC
 Contact Rating 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC
 Contact Type Slow Break
 Enclosure NEMA 4X/13/IP66/IP69/IP69K
 Environmental Conditions -40 to 158 deg F Operating/Storage Temperature
 Lamp Type Integral LED
 Manufacturer Part Number XB5AW73731B5
 Mounting Type Panel
 PART NUMBER KEYWORDS XB5AW73731B5 ; 12029304 ; 785901965572 ; 78590196557 ; 03389119043540 ; 3389119043540
 Series XB5
 Size 22 mm
 Standards/Approvals RoHS Compliant|UL 508|UL File No. E164353|CCN NKCR|CSA File No. LR44087|CSA C22.2 No. 14|Class 3211-03|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|EN/IEC 60204-1|EN/IEC 60364-5-53|EN/ISO 13850: 2006|EN81-1|JIS C 4520|GoST-R Certified|CCC Certified|BV Certified|GL Certified|DNV Certified|RINA Certified|Lloyd's Register Certified|Green Premium|REACH Compliant|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Terminal Type Screw Clamp
 Type Double Headed Rectangular
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
▪ Excellent mechanical connection with operator head
▪ A large set of accessories to customize your panels
