Schneider Electric
  • XB5AW33G5 SQD PUSHBUTTON LED 120VAC
  • XB5AW33G5 SQD PUSHBUTTON LED 120VAC
  • XB5AW33G5 SQD PUSHBUTTON LED 120VAC
  • XB5AW33G5 SQD PUSHBUTTON LED 120VAC
  • XB5AW33G5 SQD PUSHBUTTON LED 120VAC
  • XB5AW33G5 SQD PUSHBUTTON LED 120VAC

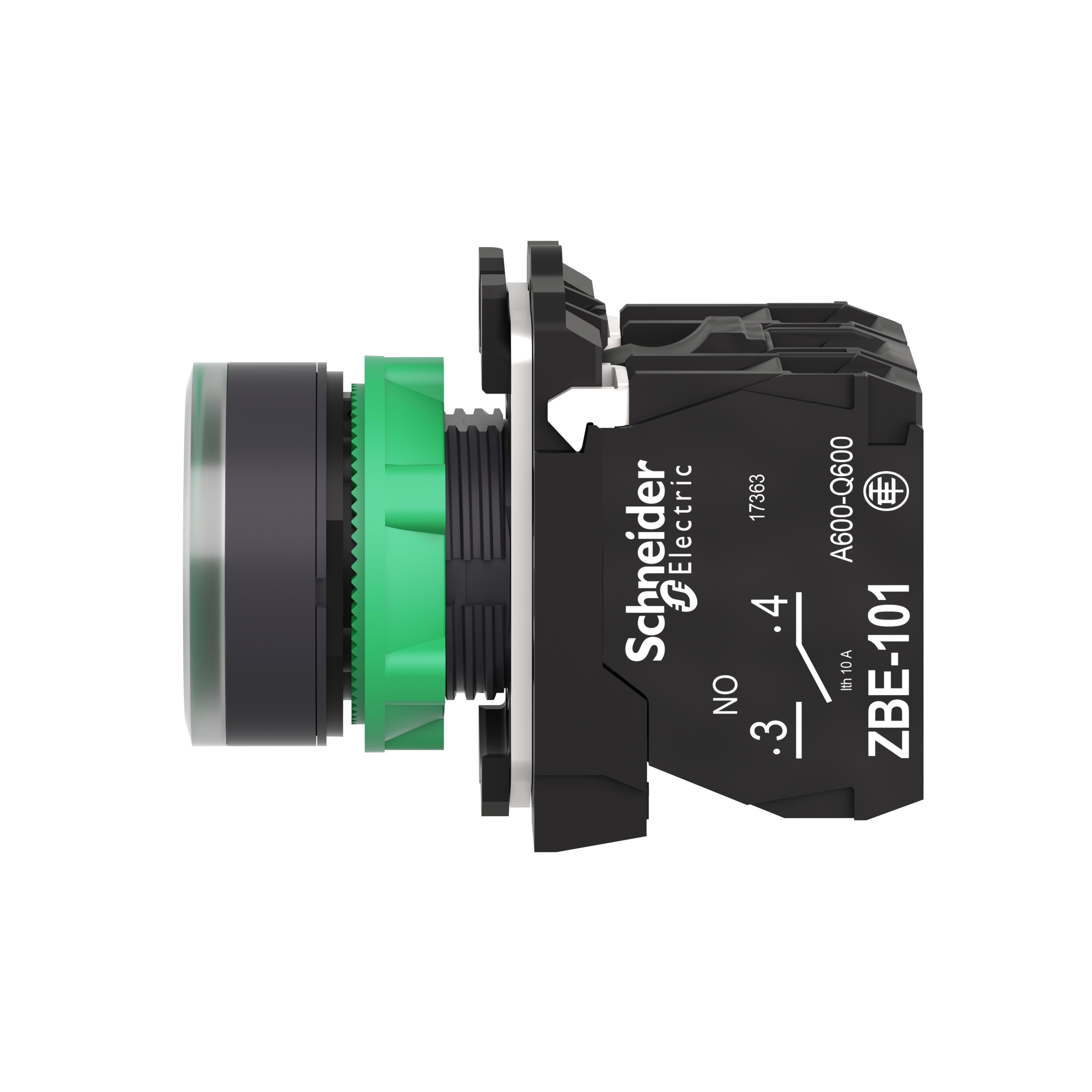

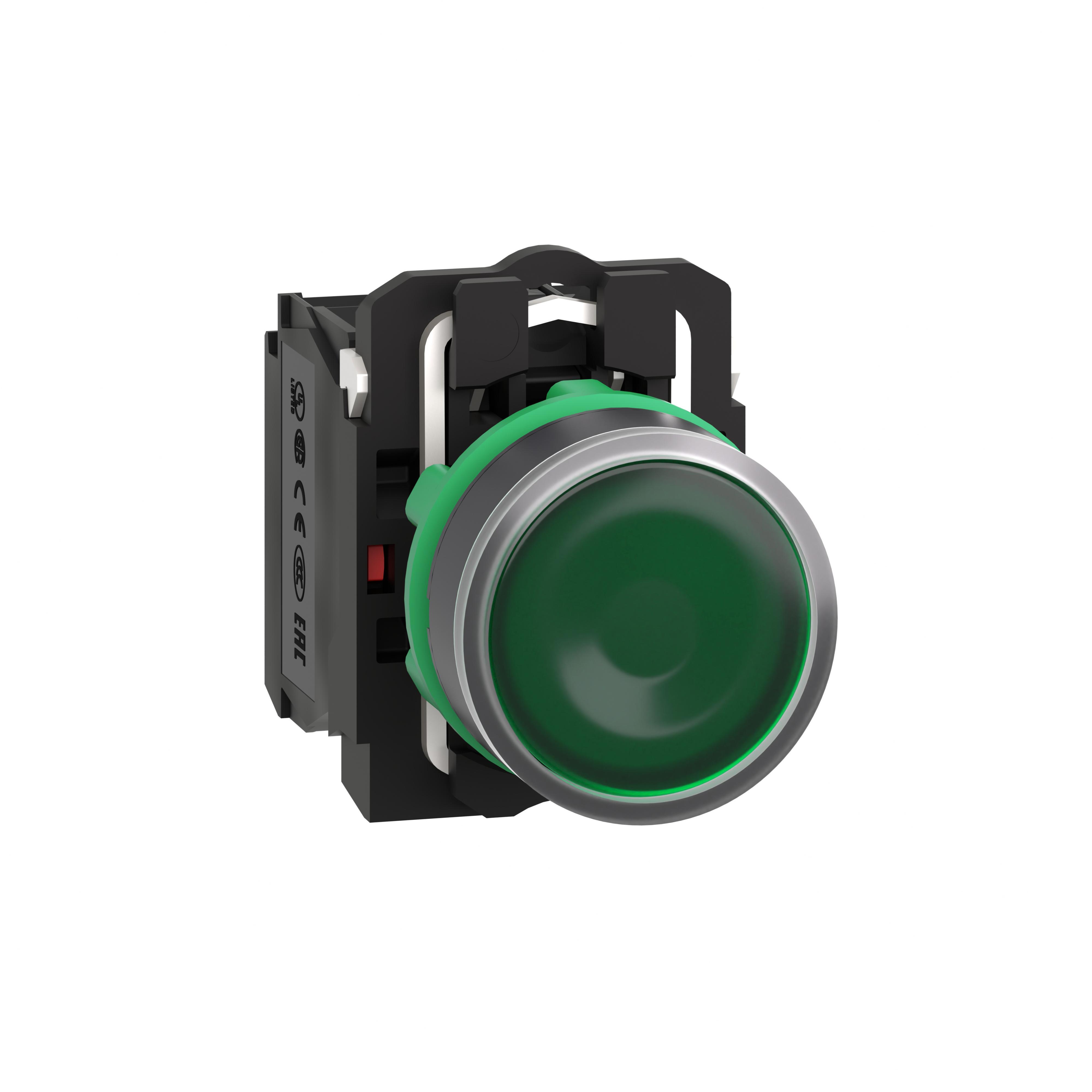

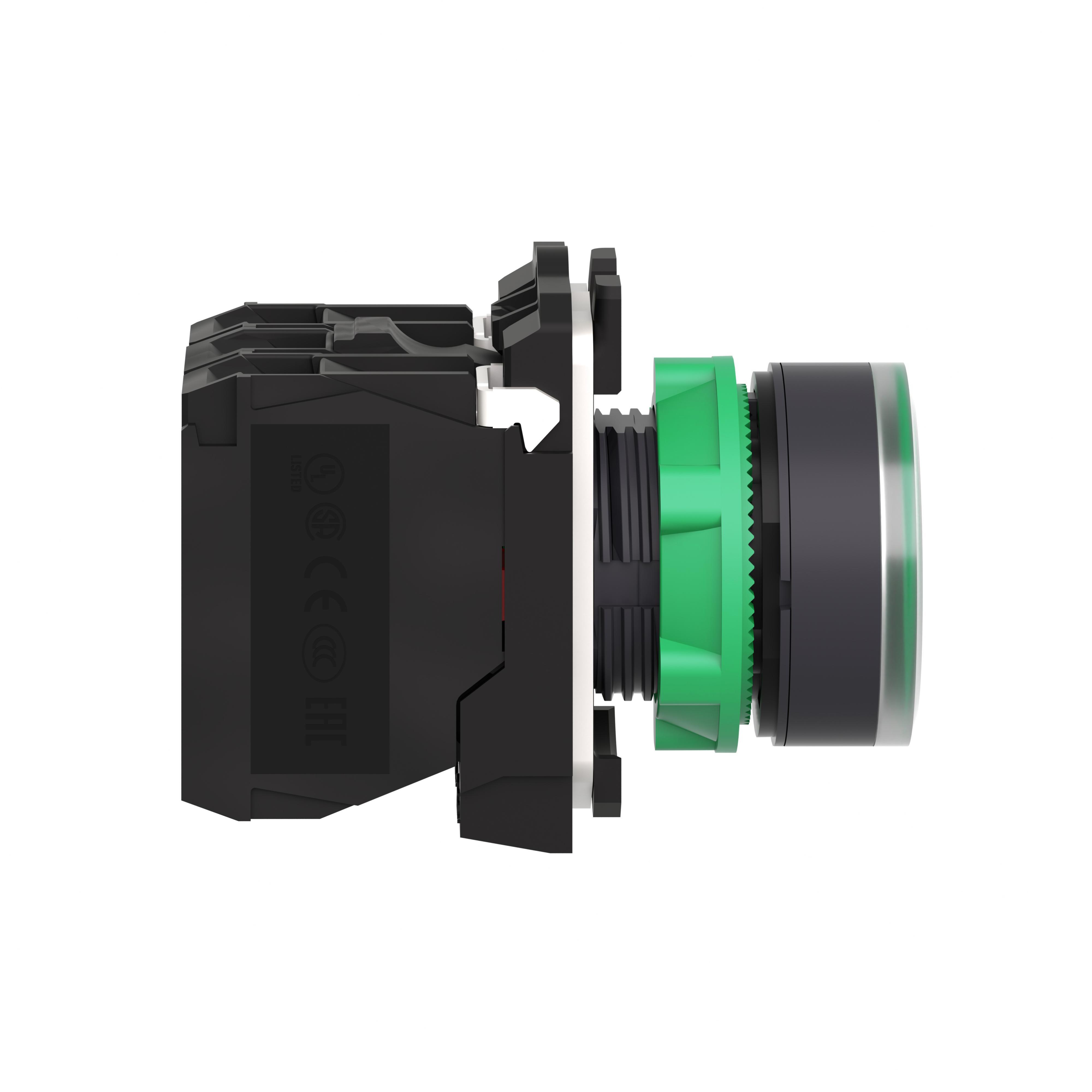

Description: Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Series: XB5, 22 mm Size, 1NC-1NO Contact Configuration, Momentary/Slow Break Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Flush/Spring Return/Unmarked Operator, Integral LED Lamp, Bezel/Housing: Plastic Bezel, Round Actuator, Screw Clamp Terminal, NEMA 4/4X/13/IP66/IP67/IP69/IP69K Enclosure, Panel Mounting, Green, Environmental Conditions: -40 to 158 deg F Operating/Storage Temperature

Manufacturer PN: XB5AW33G5

UPC:  38911090407

Kendall Electric Inc PN: 3959633

Invoice Description:

XB5AW33G5 SQD PUSHBUTTON LED 120VAC


SPEC SHEET

▸ See All in Illuminated Pushbuttons


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ XB5AW33G5 Illuminated Pushbutton With Plain Lens, 22 mm, 1NC-1NO Contact, Flush/Spring Return/Unmarked Operator, Green

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Illuminated Pushbutton provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22 mm Dia panel cut-outs and connected to control circuits with classic screw clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Series: XB5, 22 mm Size, 1NC-1NO Contact Configuration, Momentary/Slow Break Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Flush/Spring Return/Unmarked Operator, Integral LED Lamp, Bezel/Housing: Plastic Bezel, Round Actuator, Screw Clamp Terminal, NEMA 4/4X/13/IP66/IP67/IP69/IP69K Enclosure, Panel Mounting, Green, Environmental Conditions: -40 to 158 deg F Operating/Storage Temperature

Specifications

 Actuator Round
 Application Industry, Service Sector, Infrastructure and Indoor/Outdoor Applications
 Bezel Housing Plastic Bezel
 Brand Name Square D
 Color Green

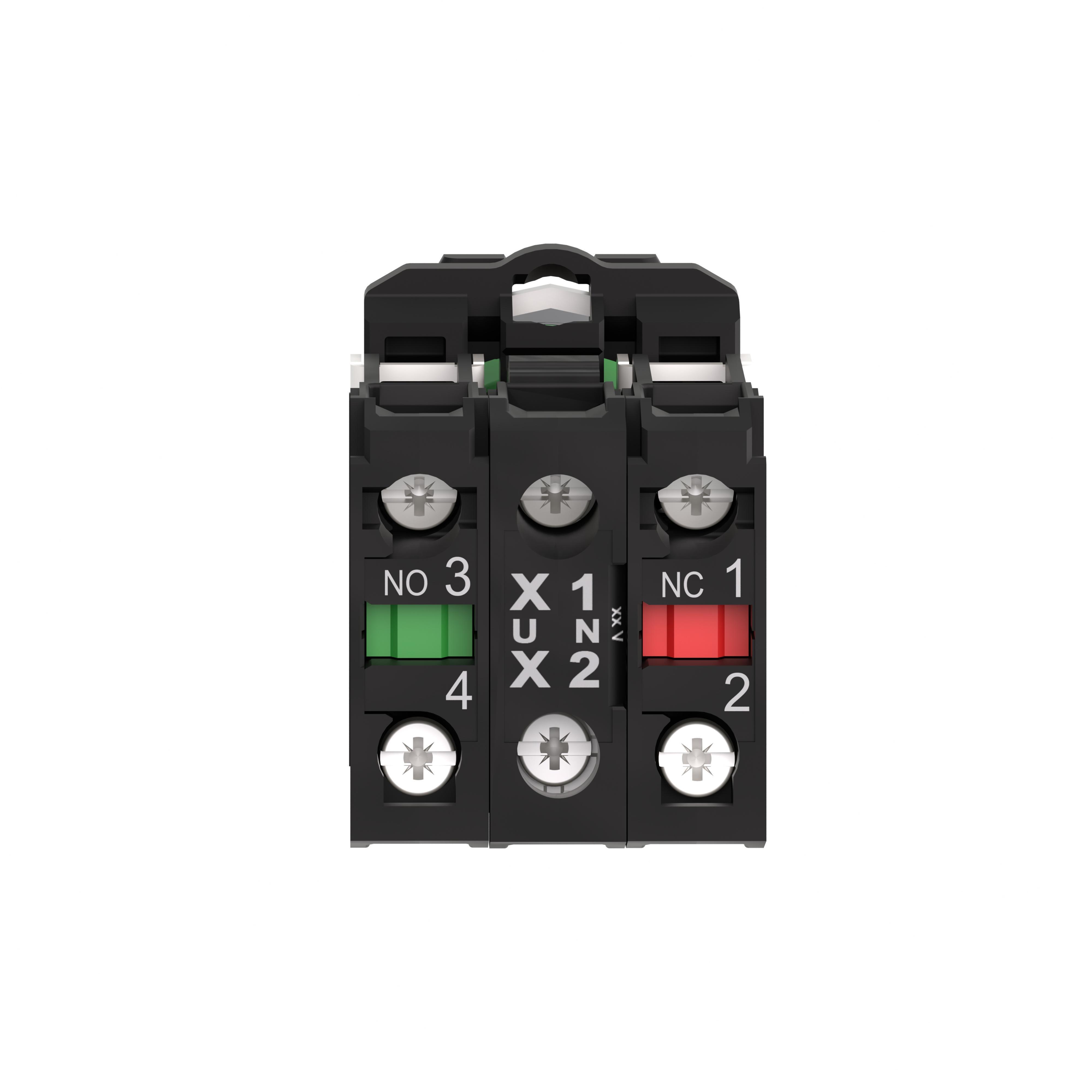

 Contact Configuration 1NC-1NO
 Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC
 Enclosure NEMA 4/4X/13/IP66/IP67/IP69/IP69K
 Environmental Conditions -40 to 158 deg F Operating/Storage Temperature
 Lamp Type Integral LED
 Manufacturer Part Number XB5AW33G5
 Mounting Type Panel
 Series XB5
 Size 22 mm
 Standards/Approvals BV Certified|CCC Certified|CCN NKCR|CE Marked|Class 321103|CSA C22.2 No. 14|CSA File No. LR44087 Class 321103|DNV Certified|ECCN: EAR99|EN 81-1|EN/IEC 60204-1|EN/IEC 60364-5-53|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|GL Certified|GOST-R Certified|Green Premium|JIS C 4520|Lloyd's Register Certified|REACH Compliant|RINA Certified|RoHS Compliant|UL 508|UL File No. E164353|WEEE Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Terminal Type Screw Clamp
 Video Links

Features

▪ It has 1 x NO + 1 x NC contacts and a double insulated plast
▪ Robust design meeting worldwide standards
▪ Low load electrical contact and high power
▪ Only one installer required with mounting by a single nut
▪ Designed for industry, this range combines simplicity of setup and flexibility
▪ It is ideal for applications requiring good-resistance to chemical agents and/or double electrical insulation
▪ Water, dust and corrosion-resistant (indoor/outdoor) environmental conditions
