Schneider Electric

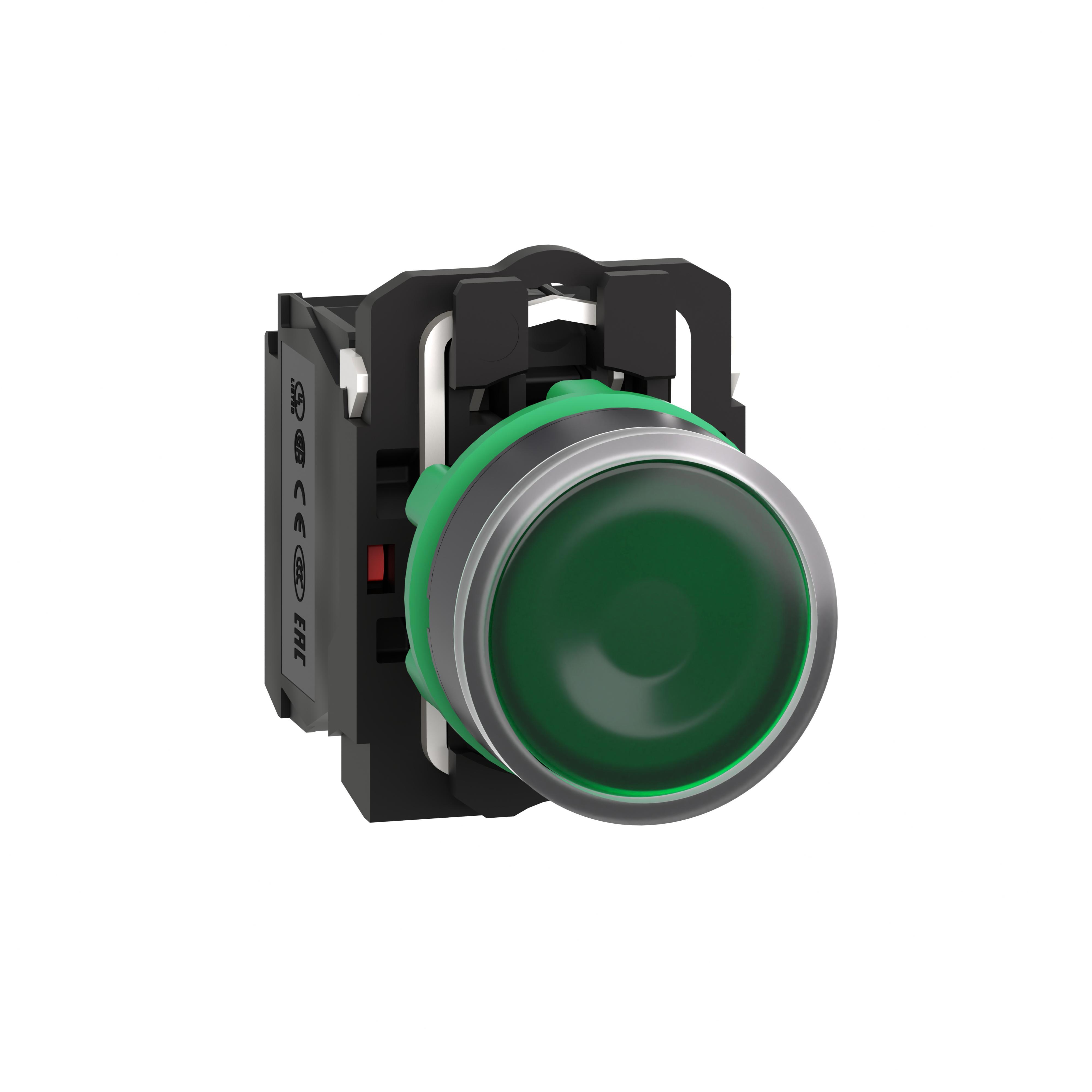

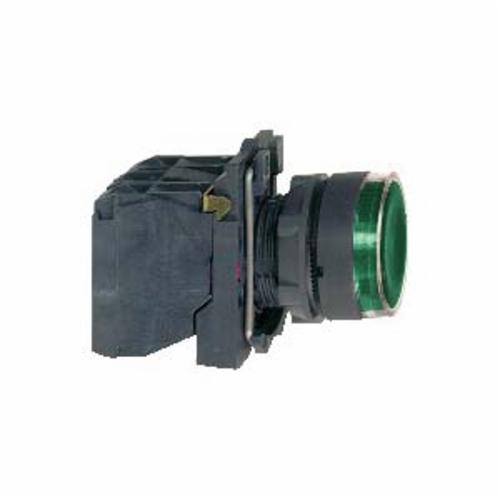

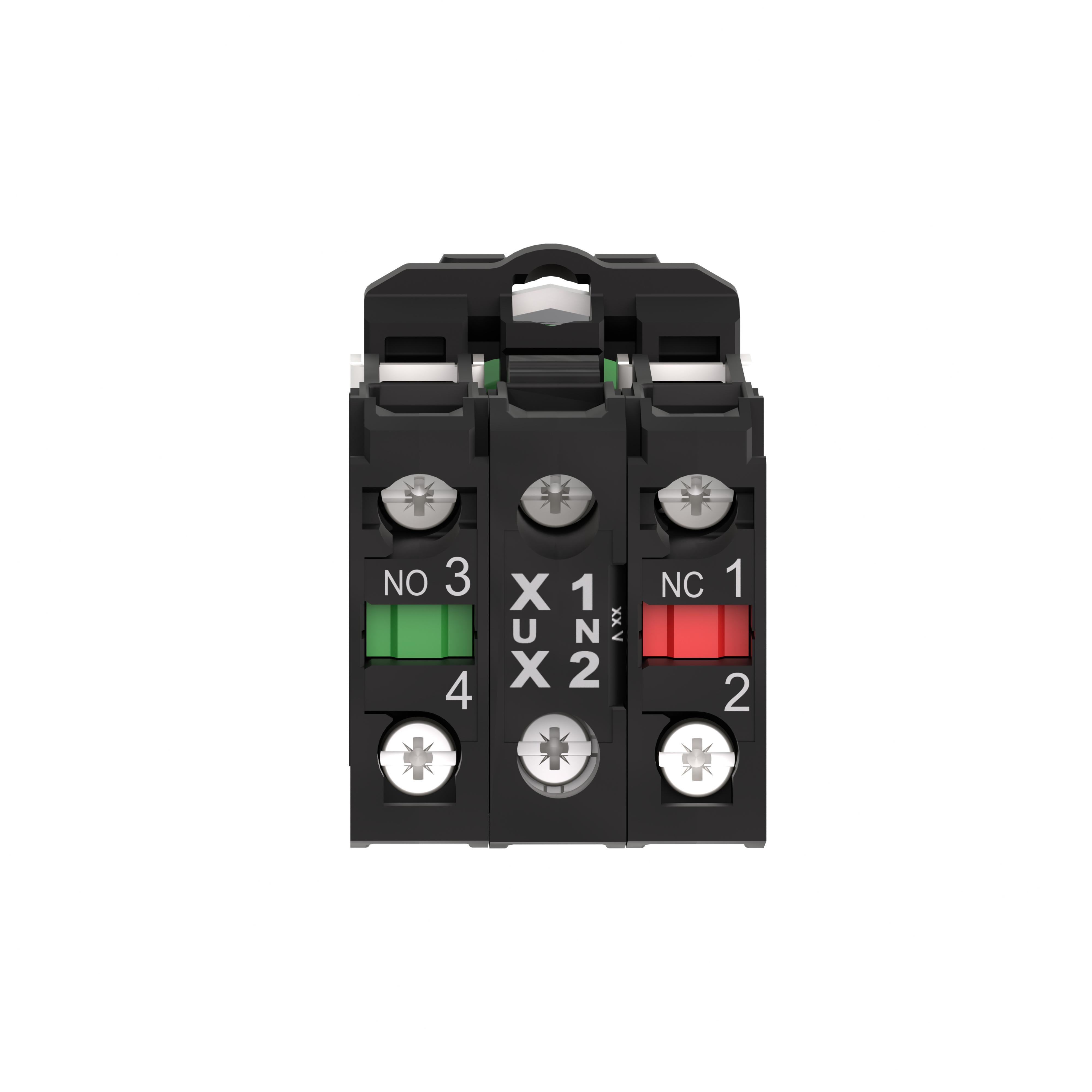

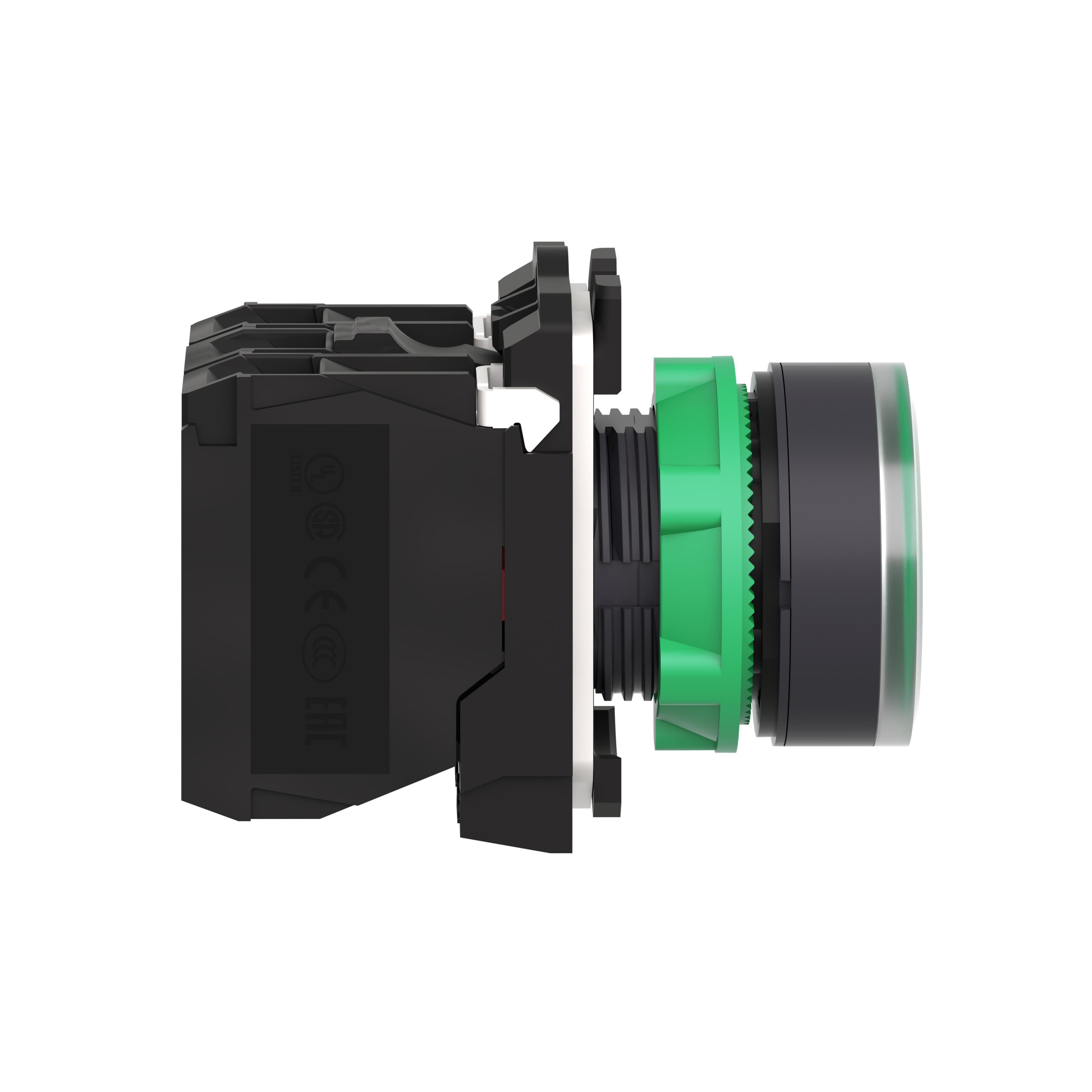

  • XB5AW33B5 SQD PUSHBUTTON LED 24V
  • XB5AW33B5 SQD PUSHBUTTON LED 24V
  • XB5AW33B5 SQD PUSHBUTTON LED 24V
  • XB5AW33B5 SQD PUSHBUTTON LED 24V
  • XB5AW33B5 SQD PUSHBUTTON LED 24V
  • XB5AW33B5 SQD PUSHBUTTON LED 24V

Description: Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Complete Multiple Headed, Series: XB5, 22 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, Flush Operator, LED Lamp, Bezel/Housing: Plastic, Round Actuator, Screw Clamp Terminal, NEMA 4/4X/13/IP65/IP66/IP67/IP69/IP69K Enclosure, Panel Mounting, Green, Environmental Conditions: -40 to 70 deg C Operating Temperature

Manufacturer PN: XB5AW33B5

UPC:  38911090406

Kendall Electric Inc PN: 3960136

Invoice Description:

XB5AW33B5 SQD PUSHBUTTON LED 24V


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ XB5AW33B5 Complete Multiple Headed Illuminated Pushbutton, 22 mm, 1NO-1NC Contact, Flush Operator, Green

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB5, illuminated modular green push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Complete Multiple Headed, Series: XB5, 22 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, Flush Operator, LED Lamp, Bezel/Housing: Plastic, Round Actuator, Screw Clamp Terminal, NEMA 4/4X/13/IP65/IP66/IP67/IP69/IP69K Enclosure, Panel Mounting, Green, Environmental Conditions: -40 to 70 deg C Operating Temperature

Specifications

 Actuator Round
 Application Indoor/Outdoor Applications
 Bezel Housing Plastic
 Brand Name Square D
 Color Green
 Contact Configuration 1NO-1NC
 Contact Rating 10 A at 600 V AC
 Enclosure NEMA 4/4X/13/IP65/IP66/IP67/IP69/IP69K
 Environmental Conditions -40 to 70 deg C Operating Temperature
 Lamp Type LED
 Legend Unmarked
 Manufacturer Part Number XB5AW33B5
 Mounting Type Panel
 PART NUMBER KEYWORDS XB5AW33B5 ; 8019868 ; 785901384342 ; 78590138434 ; 03389110904062 ; 3389110904062
 Series XB5
 Size 22 mm
 Standards/Approvals CCN NKCR|CE Marked|CSA C22.2 No. 14 Class 321103|CSA File No. LR44087|CSA File No. LR44087 Class 321103|DNV Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|GL Certified|JIS C 4520|Lloyd's Register Certified|RINA Certified|RoHS Compliant|UL 508|UL File No. E164353|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Terminal Type Screw Clamp
 Type Complete Multiple Headed
 Video Links

Features

▪ Universal LED block to be used for all colors
▪ Improved color intensity and brightness
▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
