Schneider Electric
  • XB5AK133G5C0 SQD GR ILLUM SS 3 POS MNT 120VSC CP GR
  • XB5AK133G5C0 SQD GR ILLUM SS 3 POS MNT 120VSC CP GR
  • XB5AK133G5C0 SQD GR ILLUM SS 3 POS MNT 120VSC CP GR
  • XB5AK133G5C0 SQD GR ILLUM SS 3 POS MNT 120VSC CP GR
  • XB5AK133G5C0 SQD GR ILLUM SS 3 POS MNT 120VSC CP GR
  • XB5AK133G5C0 SQD GR ILLUM SS 3 POS MNT 120VSC CP GR

Description: Schneider Electric Square D™ Selector Switch, Illuminated Round Head, Series: Harmony XB5, 22 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Stay Put Contact Mode, 3 A at 240 V, 6 A at 120 V, 0.1 A at 600 V, 0.27 A at 250 V, 0.55 A at 125 V, 1.2 A at 600 V Contact, Lever Operator, 3 Positions, 45 deg Throw, LED Lamp, Class B/II Insulation, Legend: BLANK, Bezel/Housing: Plastic, Screw Clamp Connection, Screw Clamp Terminal, LED Indicator, NEMA 4X/13/IP66/IP67 Enclosure, Plastic, Gray/Green, Environmental Conditions: -40 to 70 deg C Operating/Storage

Manufacturer PN: XB5AK133G5C0

Kendall Electric Inc PN: 4191853

Invoice Description:

XB5AK133G5C0 SQD GR ILLUM SS 3 POS MNT 120VSC CP GR


SPEC SHEET

▸ See All in Illuminated Selector Switches


How Can We Make This Page Better?

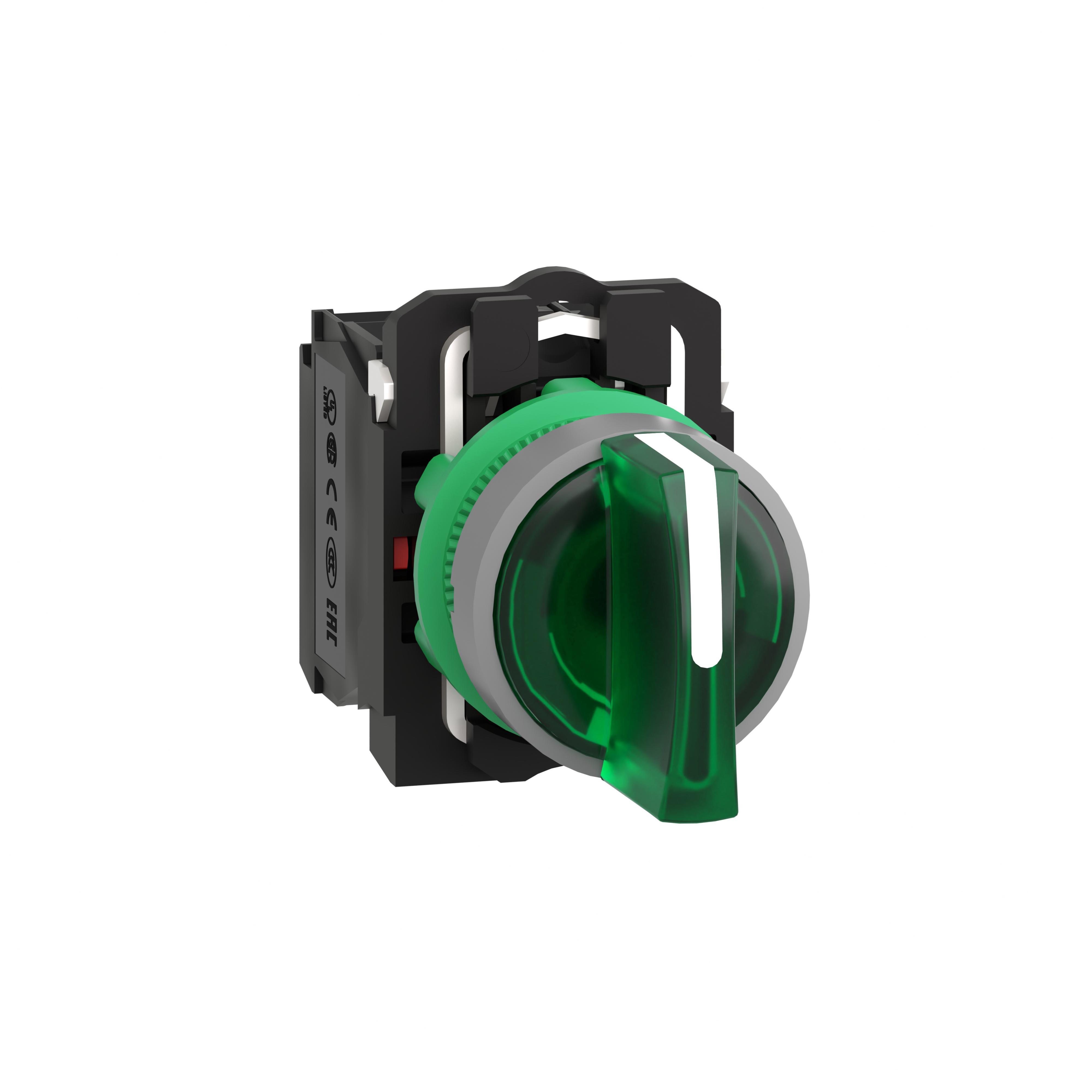

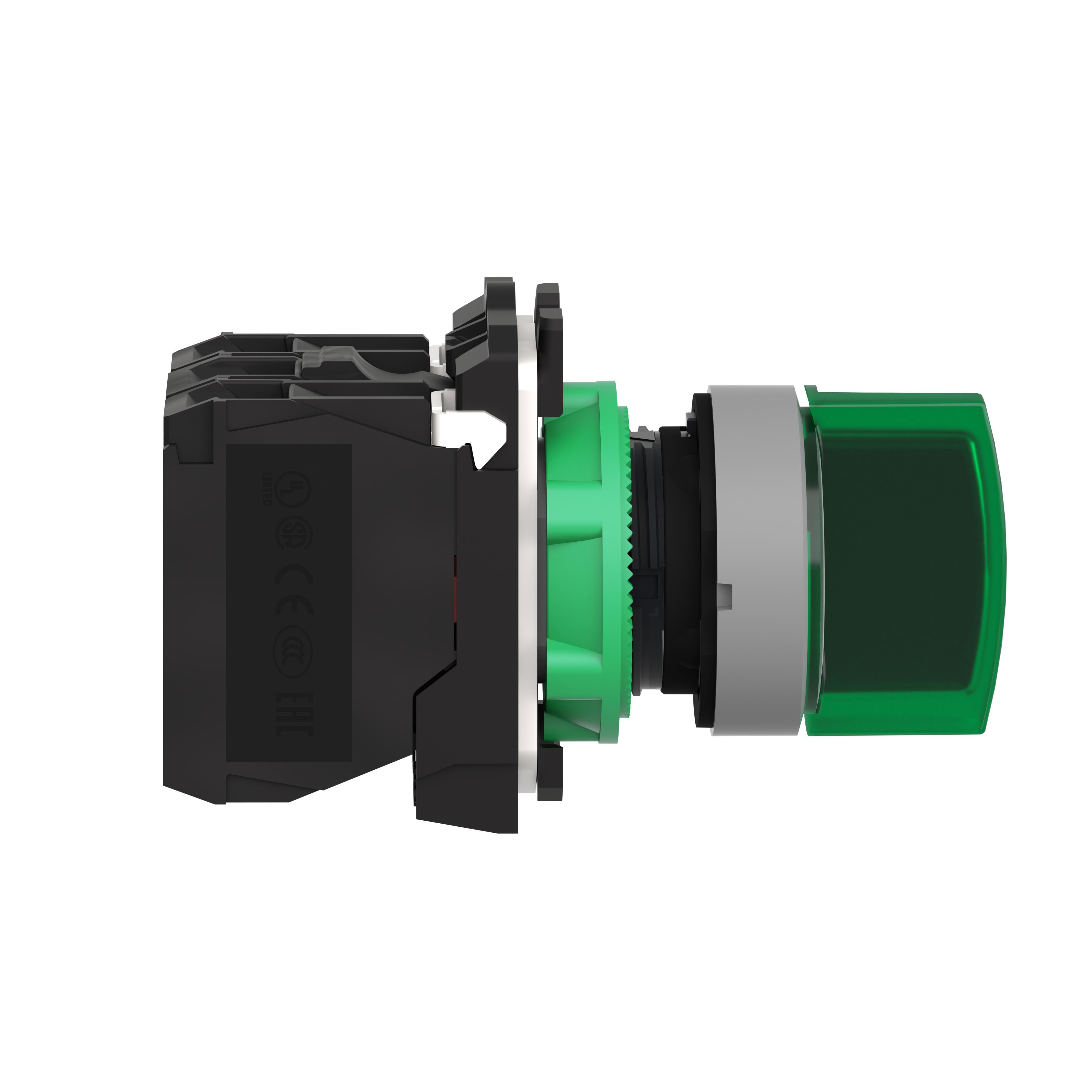

Schneider Electric Square D™ XB5AK133G5C0 Harmony XB5 Illuminated Round Head Selector Switch With Standard Handle, Integral LED, 22 mm, 1NO-1NC Contact, Slow Break Contact, Lever Operator, Gray/Green

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help to set up your machines in various operating modes, even in darker rooms with clear visual feedback.
Schneider Electric Square D™ Selector Switch, Illuminated Round Head, Series: Harmony XB5, 22 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Stay Put Contact Mode, 3 A at 240 V, 6 A at 120 V, 0.1 A at 600 V, 0.27 A at 250 V, 0.55 A at 125 V, 1.2 A at 600 V Contact, Lever Operator, 3 Positions, 45 deg Throw, LED Lamp, Class B/II Insulation, Legend: BLANK, Bezel/Housing: Plastic, Screw Clamp Connection, Screw Clamp Terminal, LED Indicator, NEMA 4X/13/IP66/IP67 Enclosure, Plastic, Gray/Green, Environmental Conditions: -40 to 70 deg C Operating/Storage

Specifications

 Application Industrial and Outdoor Applications
 Bezel Housing Plastic
 Brand Name Square D
 Color Gray/Green
 Connection Type Screw Clamp
 Contact Configuration 1NO-1NC
 Contact Rating 3 A at 240 V, 6 A at 120 V, 0.1 A at 600 V, 0.27 A at 250 V, 0.55 A at 125 V, 1.2 A at 600 V
 Contact Type Slow Break
 Enclosure NEMA 4X/13/IP66/IP67
 Environmental Conditions -40 to 70 deg C Operating/Storage
 Indicator LED
 Lamp Type LED
 Legend BLANK
 Manufacturer Part Number XB5AK133G5C0
 Material Plastic
 Number of Positions 3
 Series Harmony XB5
 Size 22 mm
 Standards/Approvals RoHS Compliant|EN/IEC 60947-5-4/60947-1/60947-5-5/60947-5-1|JIS C8201-5-1/C8201-1|UL 508|CSA C22.2 File No. 14|UL Listed|BV Certified|GL Certified|Lloyd's Registered|CSA Certified|DNV Certified|RINA Certified|IEC 60536/60529/60068-2-6/60068-2-27/61000-4-4/61000-4-2/61000-4-2/61000-4-2/55011|REACH Compliant|WEEE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.gov
 Terminal Type Screw Clamp
 Throw 45 deg
 Type Illuminated Round Head
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
▪ Large set of accessories to customize your panels
