Schneider Electric
  • XB5AA86202 SQD PUSH BUTTON OPERATOR
  • XB5AA86202 SQD PUSH BUTTON OPERATOR
  • XB5AA86202 SQD PUSH BUTTON OPERATOR
  • XB5AA86202 SQD PUSH BUTTON OPERATOR
  • XB5AA86202 SQD PUSH BUTTON OPERATOR
  • XB5AA86202 SQD PUSH BUTTON OPERATOR

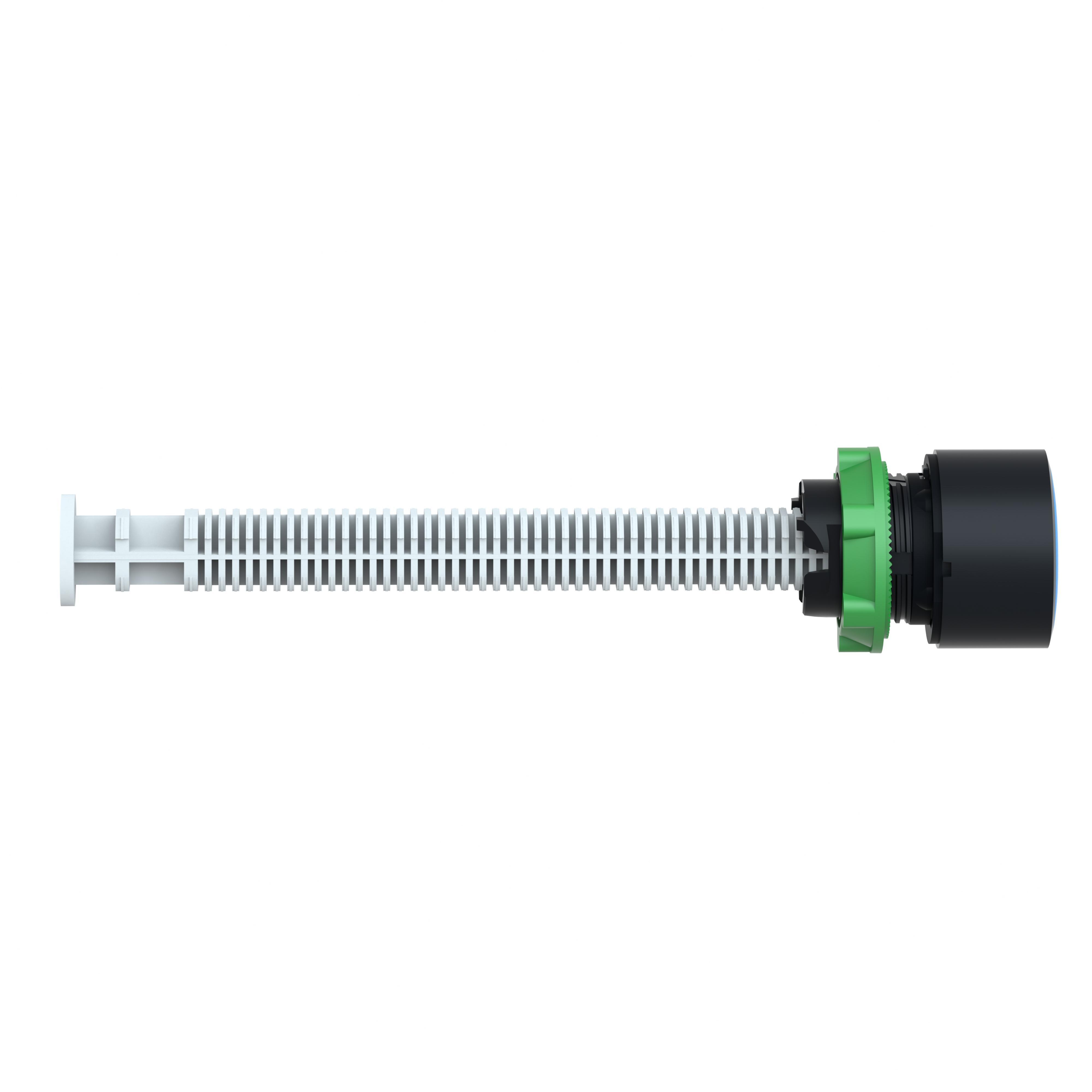

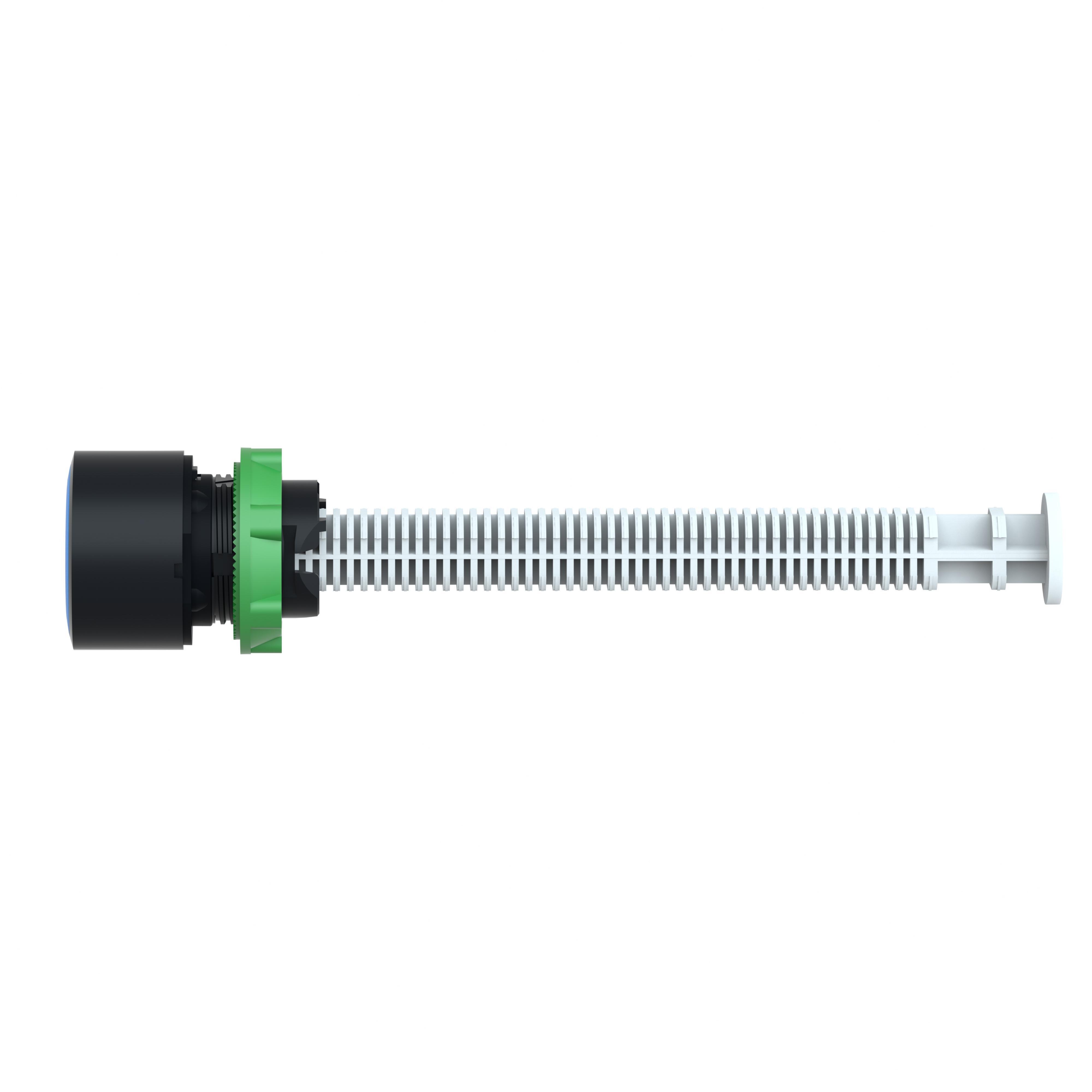

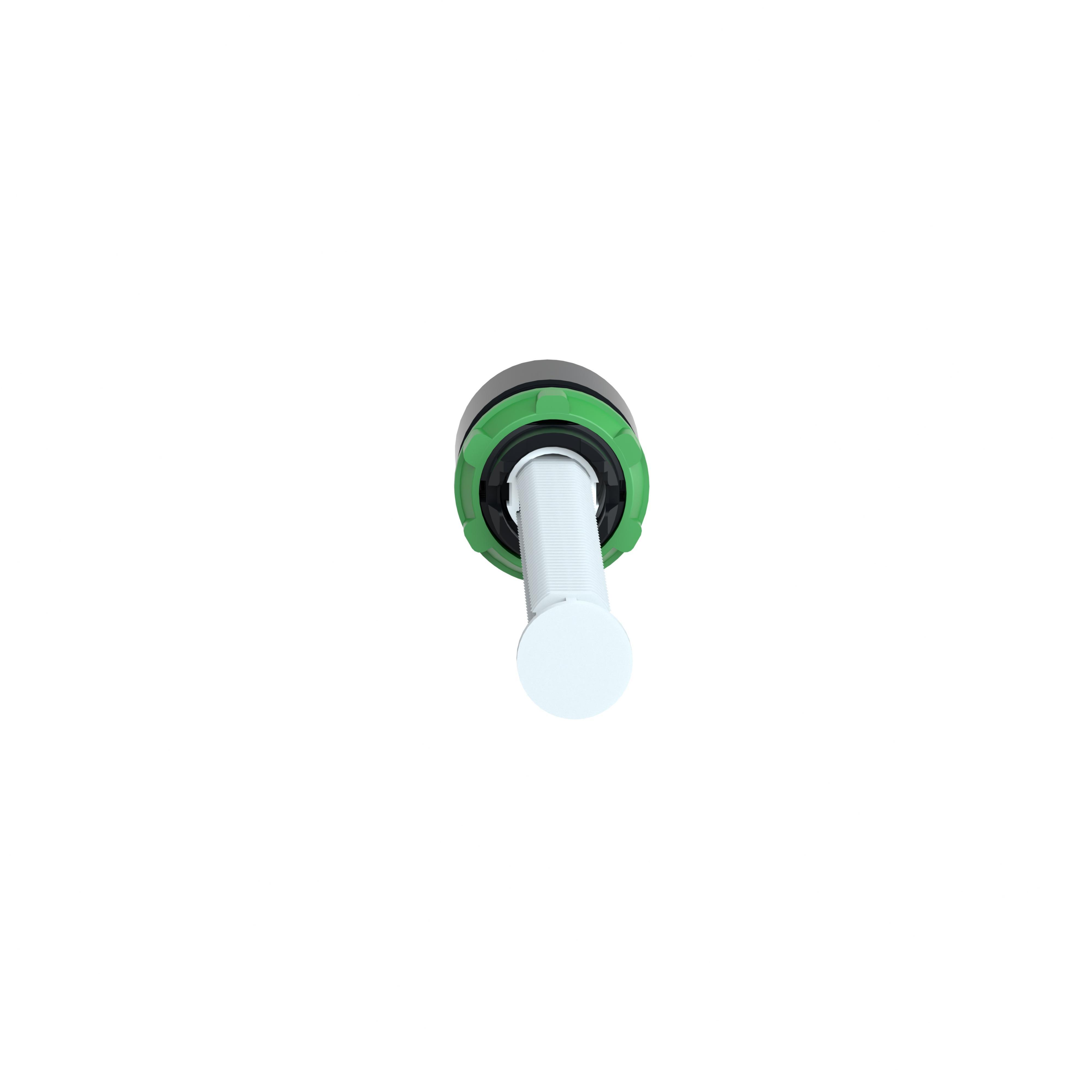

Description: Schneider Electric Square D™ Harmony™ Pushbutton Operator, Complete Manual Overload Reset Non-Illuminated, Series: XB5, 10.12 in, Flush/Round Operator, NEMA 4X/IP66, Screw Terminal, Panel Mount, Bezel/Housing: Plastic, -40 to 70 deg C, Blue/Dark Gray

Manufacturer PN: XB5AA86202

UPC:  38911010248

Kendall Electric Inc PN: 3959933

Invoice Description:

XB5AA86202 SQD PUSH BUTTON OPERATOR


SPEC SHEET

▸ See All in Trip Indicator & Reset Devices


How Can We Make This Page Better?

Schneider Electric Square D™ Harmony™ XB5AA86202 Complete Manual Overload Reset Non-Illuminated Pushbutton Operator, 10.12 in, Blue/Dark Gray

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

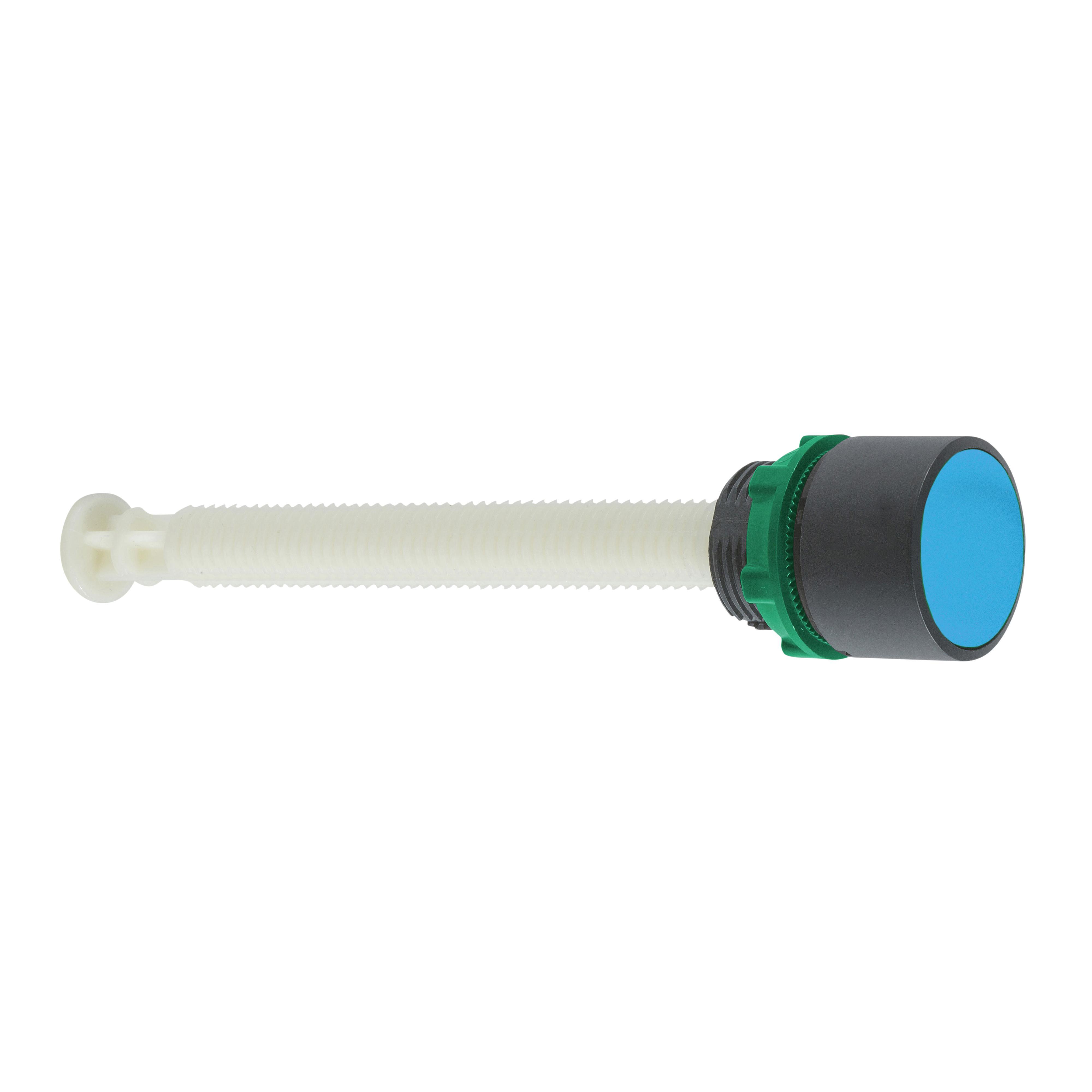

This Schneider Electric Harmony XB5 flush manual overload reset pushbutton is blue. The actuation distance is from 120 to 257 mm. It has a round shape and a plastic bezel. It is marked with "R" symbol. This complete manual overload reset pushbutton provides an ergonomic interface for controlling your machines thanks to its flush push head. It provides a robust and precise control when it is required to reset your machines and processes. It is easily installed into a standard 22mm diameter panel cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. High performance, International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X). Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Clear and resilient symbol marking on the button.
Schneider Electric Square D™ Harmony™ Pushbutton Operator, Complete Manual Overload Reset Non-Illuminated, Series: XB5, 10.12 in, Flush/Round Operator, NEMA 4X/IP66, Screw Terminal, Panel Mount, Bezel/Housing: Plastic, -40 to 70 deg C, Blue/Dark Gray

Specifications

 Bezel Housing Plastic
 Brand Name Square D
 Color Blue/Dark Gray
 Enclosure NEMA 4X/IP66
 Manufacturer Part Number XB5AA86202
 Mounting Type Panel
 PART NUMBER KEYWORDS XB5AA86202 ; 8019580 ; 785901383635 ; 78590138363 ; 03389110102482 ; 3389110102482
 Series XB5
 Size 10.12 in
 Standards/Approvals BV Certified|CCC Certified|CCN NKCR|CCN NKCR2|CE Marked|Class 321103|CSA C22.2 No. 14|CSA File No. LR44087|DNV Certified|ECCN: EAR99|EN 81-1|EN/IEC 60204-1|EN/IEC 60364-5-53|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|GL Certified|GOST-R Certified|Green Premium|JIS C 4520|Lloyd's Register Certified|REACH Compliant|RINA Certified|RoHS Compliant|UL File No. E164353|UL Listed|WEEE Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating -40 to 70 deg C
 Terminal Type Screw
 Type Complete Manual Overload Reset Non-Illuminated
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
▪ Excellent mechanical connection with operator head
▪ A large set of accessories to customize your panels
