Schneider Electric
  • XB5AA21 SQD PUSHBUTTON 230VAC 2AMP
  • XB5AA21 SQD PUSHBUTTON 230VAC 2AMP
  • XB5AA21 SQD PUSHBUTTON 230VAC 2AMP
  • XB5AA21 SQD PUSHBUTTON 230VAC 2AMP
  • XB5AA21 SQD PUSHBUTTON 230VAC 2AMP

Description: Schneider Electric Harmony™ Square D™ Non-Illuminated Pushbutton, Series: XB5, 22 mm Size, 1NO Contact Configuration, Momentary Contact Mode, 10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC Contact, Flush Operator, Bezel/Housing: Plastic, Round Button Actuator, Screw Clamp Terminal, NEMA 4/4X/13 Enclosure, Panel Mounting, Black, Environmental Conditions: -40 to 70 deg C Operating Temperature

Manufacturer PN: XB5AA21

UPC:  38911090338

Kendall Electric Inc PN: 3959503

Invoice Description:

XB5AA21 SQD PUSHBUTTON 230VAC 2AMP


SPEC SHEET

▸ See All in Non-Illuminated Pushbuttons


How Can We Make This Page Better?

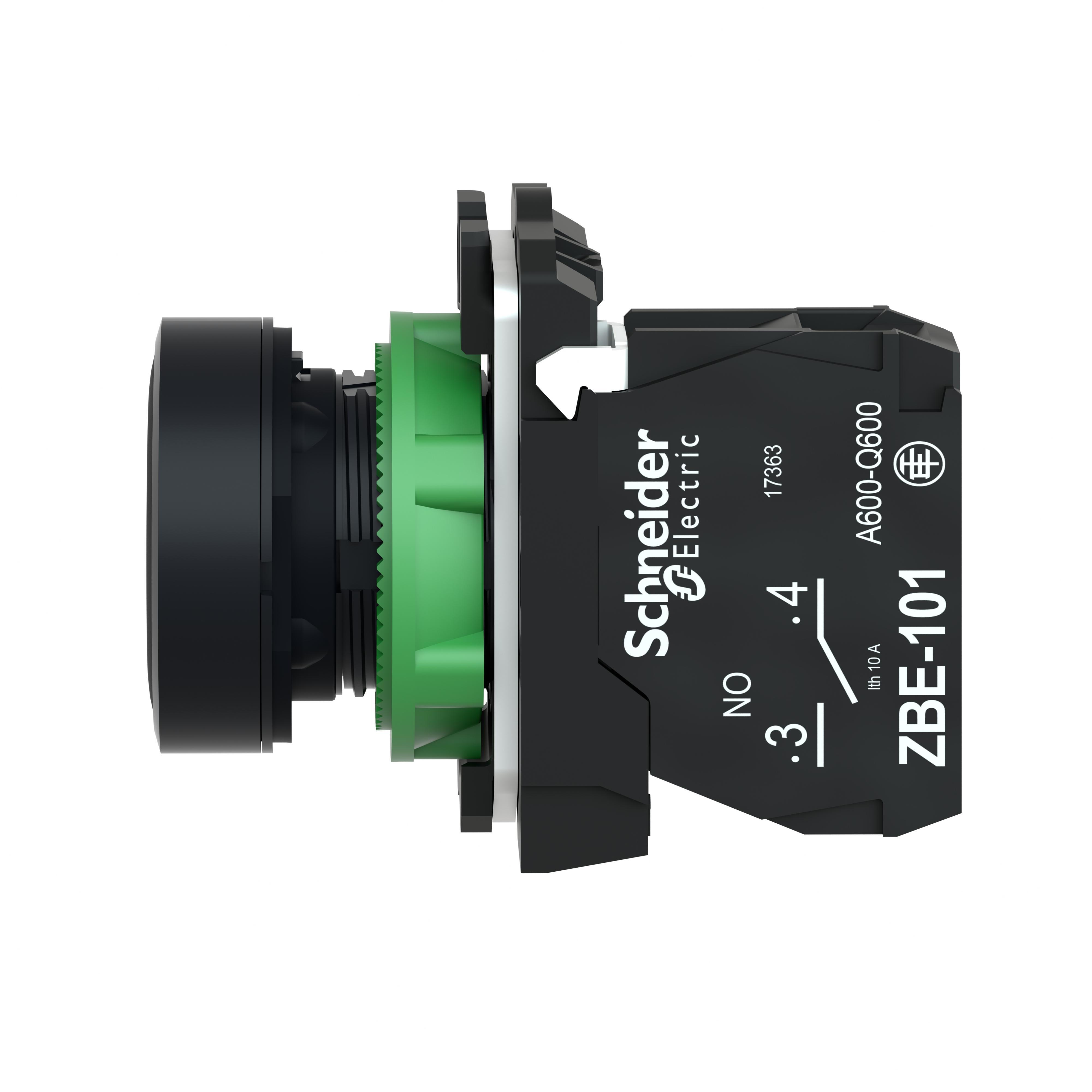

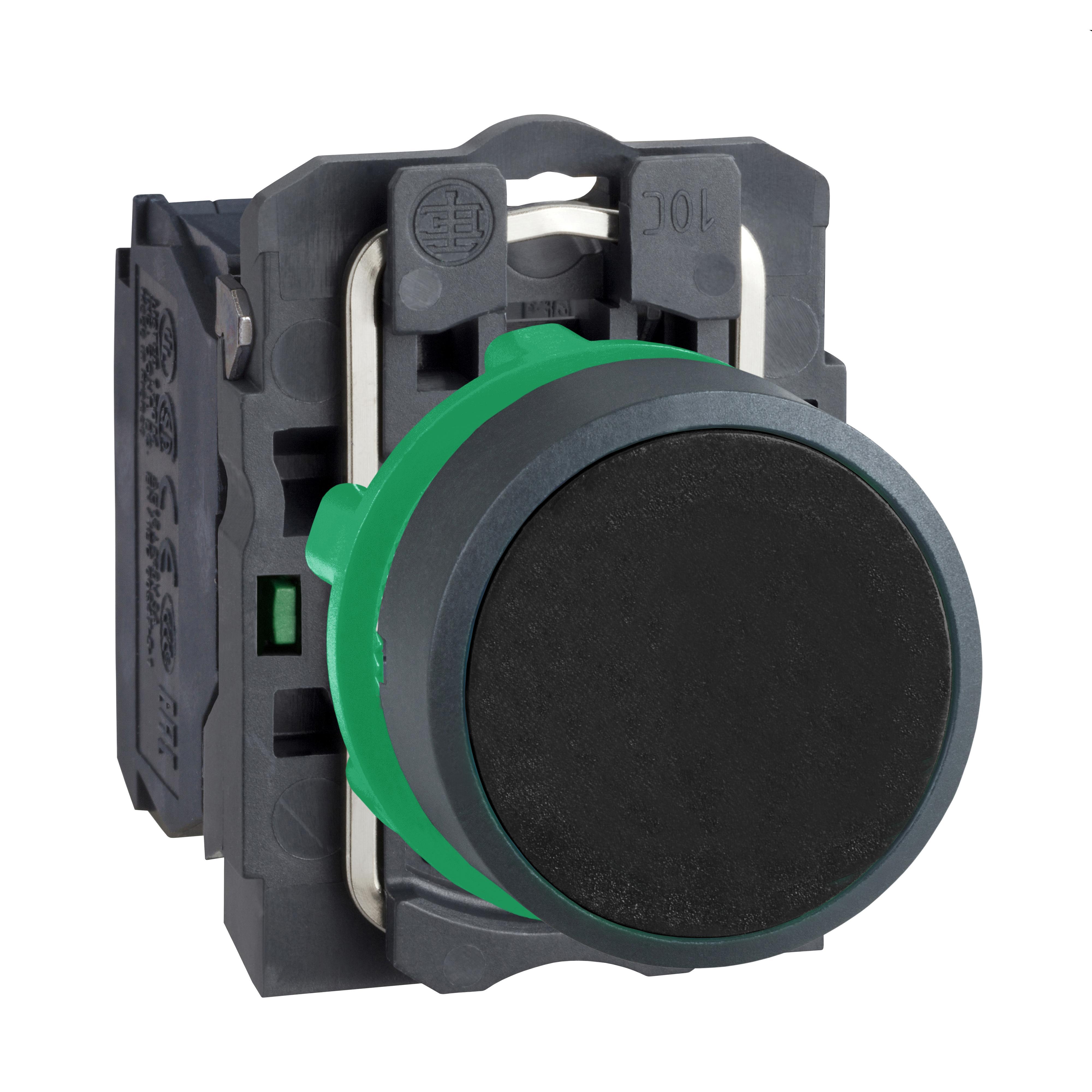

Schneider Electric Harmony™ Square D™ XB5AA21 Non-Illuminated Pushbutton, 22 mm, 1NO Contact, Flush Operator, Black

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB5, modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Schneider Electric Harmony™ Square D™ Non-Illuminated Pushbutton, Series: XB5, 22 mm Size, 1NO Contact Configuration, Momentary Contact Mode, 10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC Contact, Flush Operator, Bezel/Housing: Plastic, Round Button Actuator, Screw Clamp Terminal, NEMA 4/4X/13 Enclosure, Panel Mounting, Black, Environmental Conditions: -40 to 70 deg C Operating Temperature

Specifications

 Actuator Round Button
 Application Indoor/Outdoor Applications
 Bezel Housing Plastic
 Brand Name Square D
 Color Black
 Contact Configuration 1NO
 Contact Rating 10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC
 Enclosure NEMA 4/4X/13
 Environmental Conditions -40 to 70 deg C Operating Temperature
 Legend Unmarked
 Manufacturer Part Number XB5AA21
 Mounting Type Panel
 PART NUMBER KEYWORDS XB5AA21 ; 8019519 ; 785901383475 ; 78590138347 ; 03389110903386 ; 3389110903386
 Series XB5
 Size 22 mm
 Standards/Approvals Buy American Act Compliant|BV Certified|CCN NKCR|CE Marked|CSA C22.2 No. 14|CSA File No. LR44087 Class 321103|DNV Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|GL Certified|JIS C 4520|Lloyd's Register Certified|RINA Certified|RoHS Compliant|UL 508|UL File No. E164353|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Terminal Type Screw Clamp
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
▪ Excellent mechanical connection with operator head
▪ A large set of accessories to customize your panels
