Schneider Electric

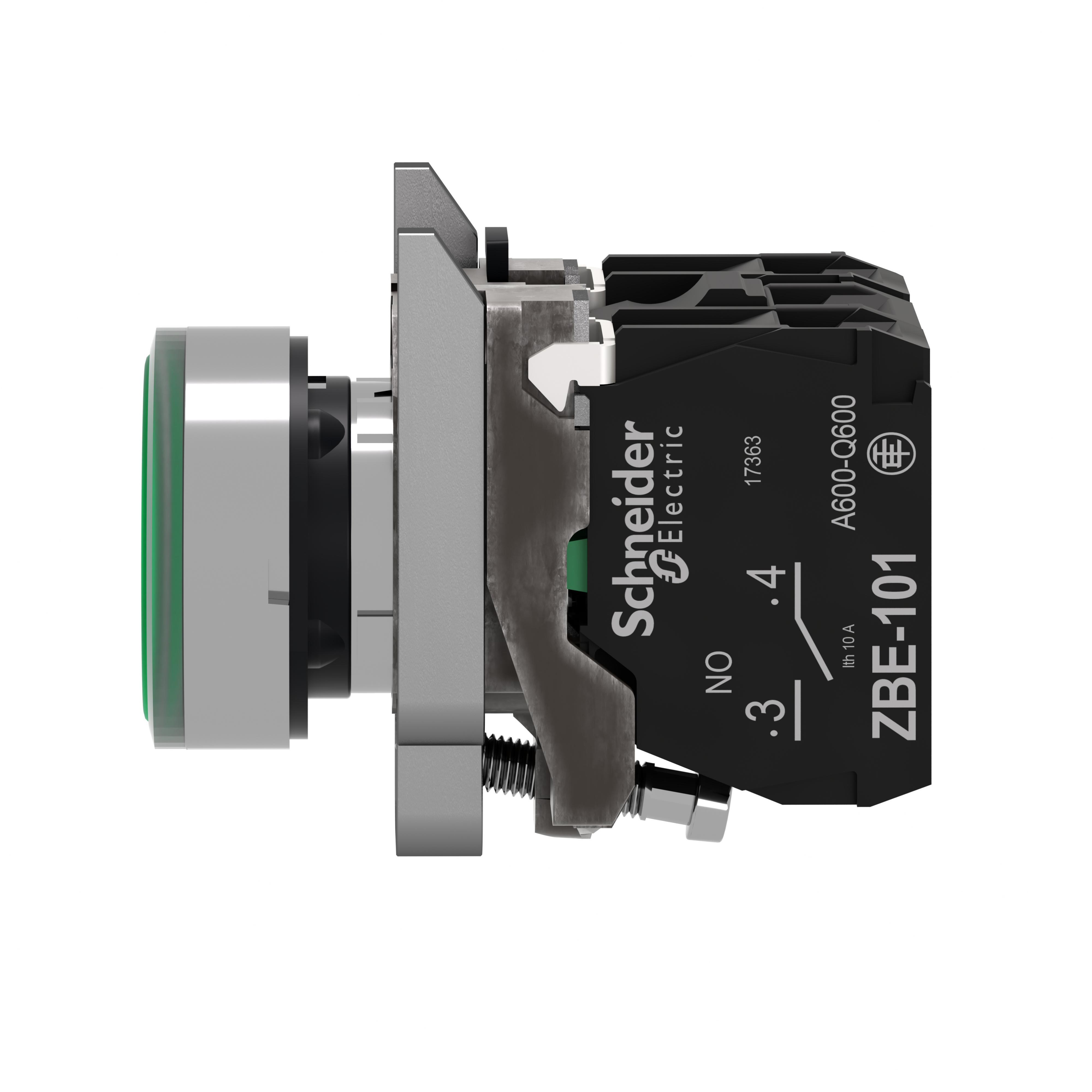

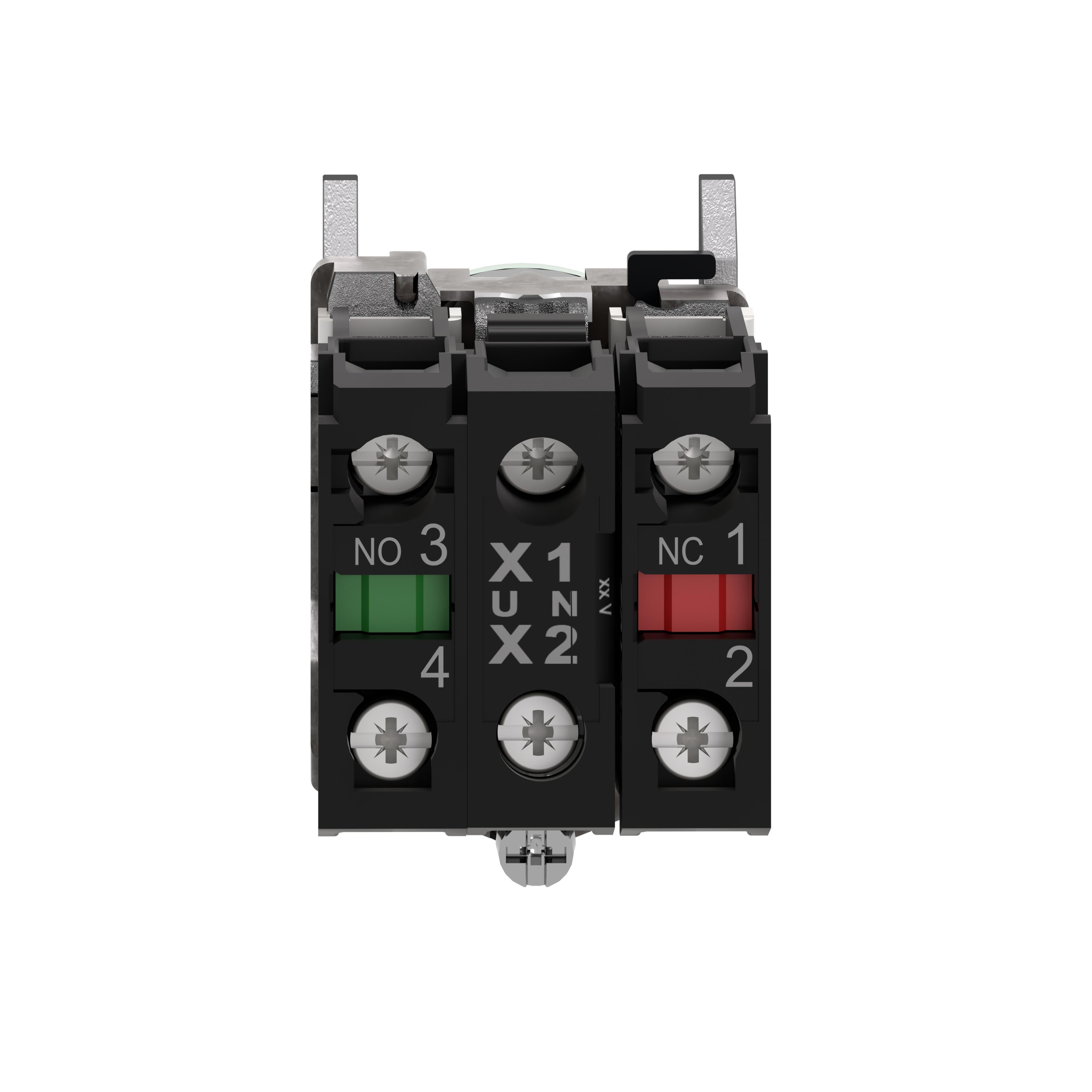

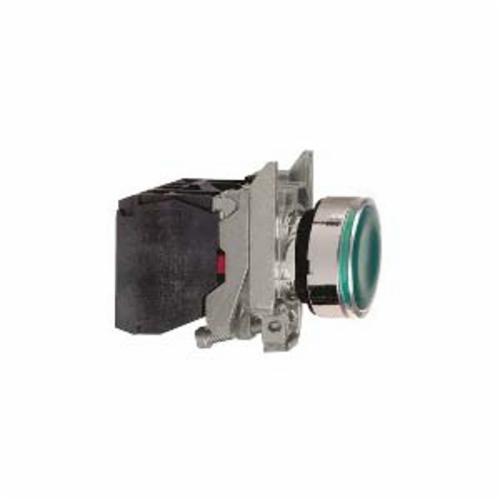

  • XB4BW33G5 SQD PUSHBUTTON LED 120VAC
  • XB4BW33G5 SQD PUSHBUTTON LED 120VAC
  • XB4BW33G5 SQD PUSHBUTTON LED 120VAC
  • XB4BW33G5 SQD PUSHBUTTON LED 120VAC
  • XB4BW33G5 SQD PUSHBUTTON LED 120VAC

Description: Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Complete, Series: XB4, 22 mm Size, 1NO-1NC Contact Configuration, Maintained/Momentary Contact Mode, 10 A at 110 to 120 V AC Contact, Flush Operator, LED Lamp, Bezel/Housing: Chromium Plated Metal, Round Actuator, Screw Clamp Terminal, NEMA 4/4X/13/IP66/IP67/IP69/IP69K Enclosure, Panel Mounting, Green, Environmental Conditions: -40 to 158 deg F Operating/Storage Temperature

Manufacturer PN: XB4BW33G5

UPC:  38911089208

Kendall Electric Inc PN: 3959586

Invoice Description:

XB4BW33G5 SQD PUSHBUTTON LED 120VAC


SPEC SHEET

▸ See All in Illuminated Pushbuttons


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ XB4BW33G5 Complete Illuminated Pushbutton, 22 mm, 1NO-1NC Contact, Flush Operator, Green

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB4 illuminated modular green push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Schneider Electric Harmony™ Square D™ Illuminated Pushbutton, Complete, Series: XB4, 22 mm Size, 1NO-1NC Contact Configuration, Maintained/Momentary Contact Mode, 10 A at 110 to 120 V AC Contact, Flush Operator, LED Lamp, Bezel/Housing: Chromium Plated Metal, Round Actuator, Screw Clamp Terminal, NEMA 4/4X/13/IP66/IP67/IP69/IP69K Enclosure, Panel Mounting, Green, Environmental Conditions: -40 to 158 deg F Operating/Storage Temperature

Specifications

 Actuator Round
 Application Indoor/Outdoor Applications
 Bezel Housing Chromium Plated Metal
 Brand Name Square D
 Color Green
 Contact Configuration 1NO-1NC
 Contact Rating 10 A at 110 to 120 V AC
 Enclosure NEMA 4/4X/13/IP66/IP67/IP69/IP69K
 Environmental Conditions -40 to 158 deg F Operating/Storage Temperature
 Lamp Type LED
 Manufacturer Part Number XB4BW33G5
 Mounting Type Panel
 Series XB4
 Size 22 mm
 Standards/Approvals CCN NKCR|CE Marked|CSA C22.2 No. 14 Class 321103|CSA File No. LR44087|CSA File No. LR44087 Class 321103|DNV Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|GL Certified|JIS C 4520|Lloyd's Register Certified|RINA Certified|RoHS Compliant|UL 508|UL File No. E164353|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Terminal Type Screw Clamp
 Type Complete
 Video Links

Features

▪ Universal LED block to be used for all colors
▪ Improved color intensity and brightness
▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
