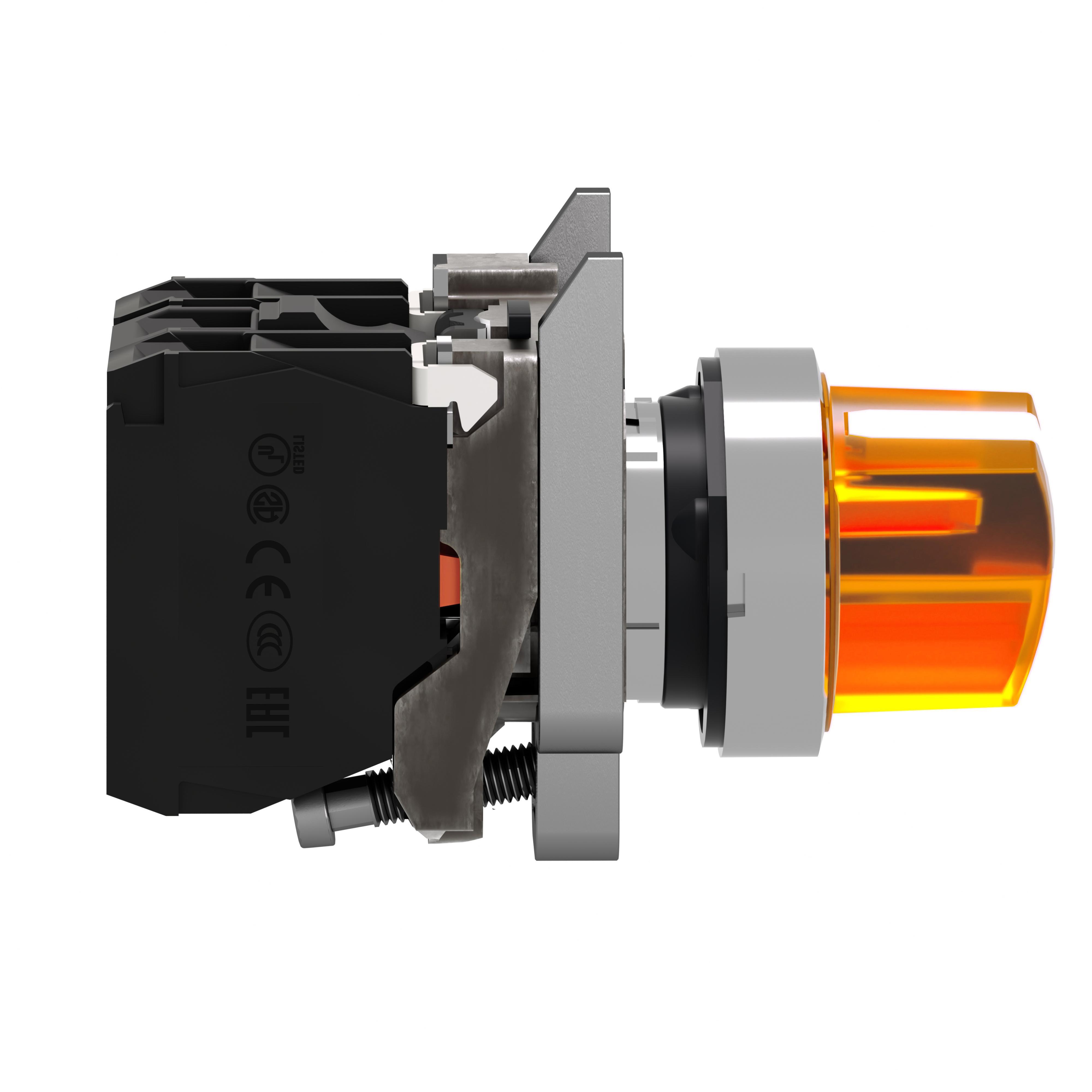

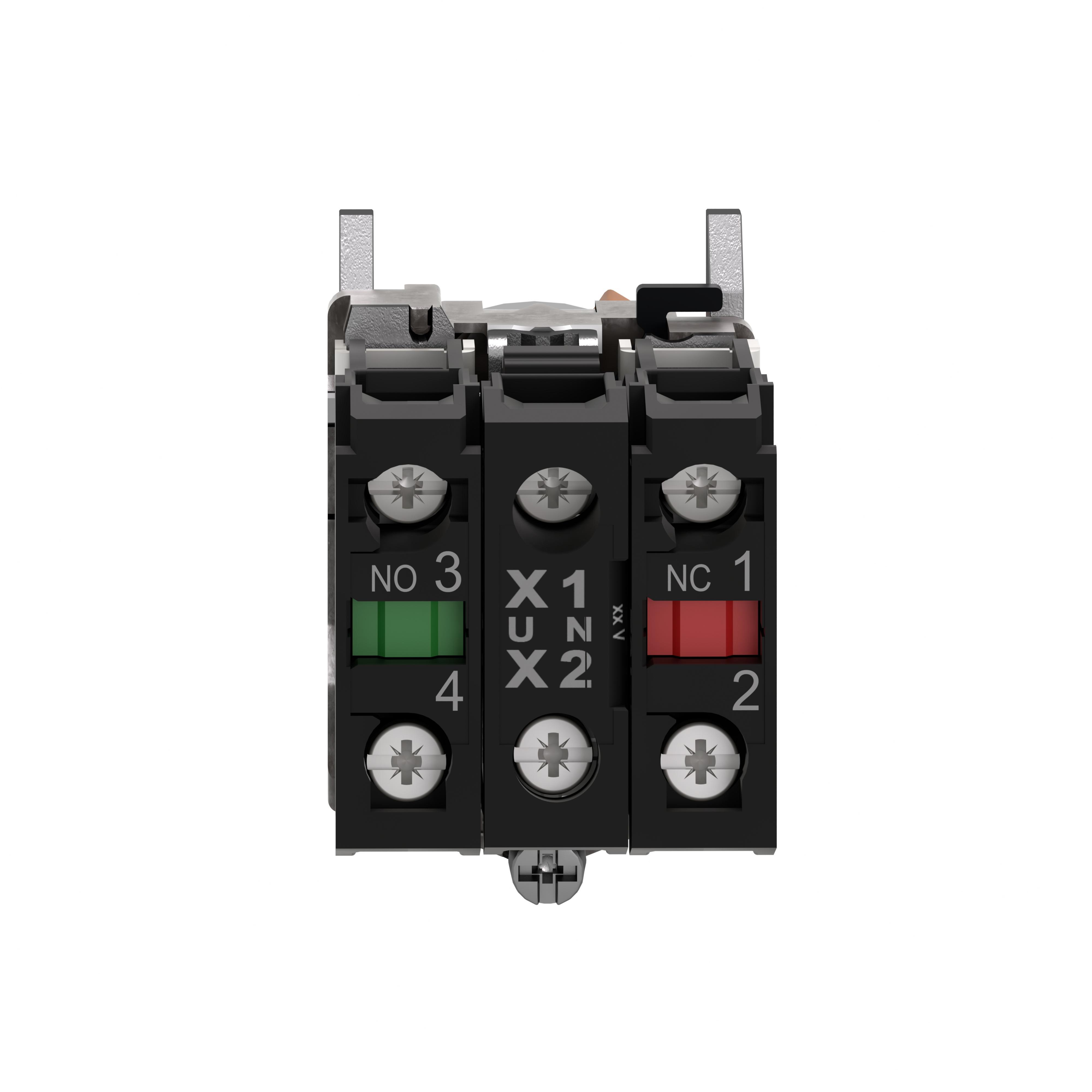

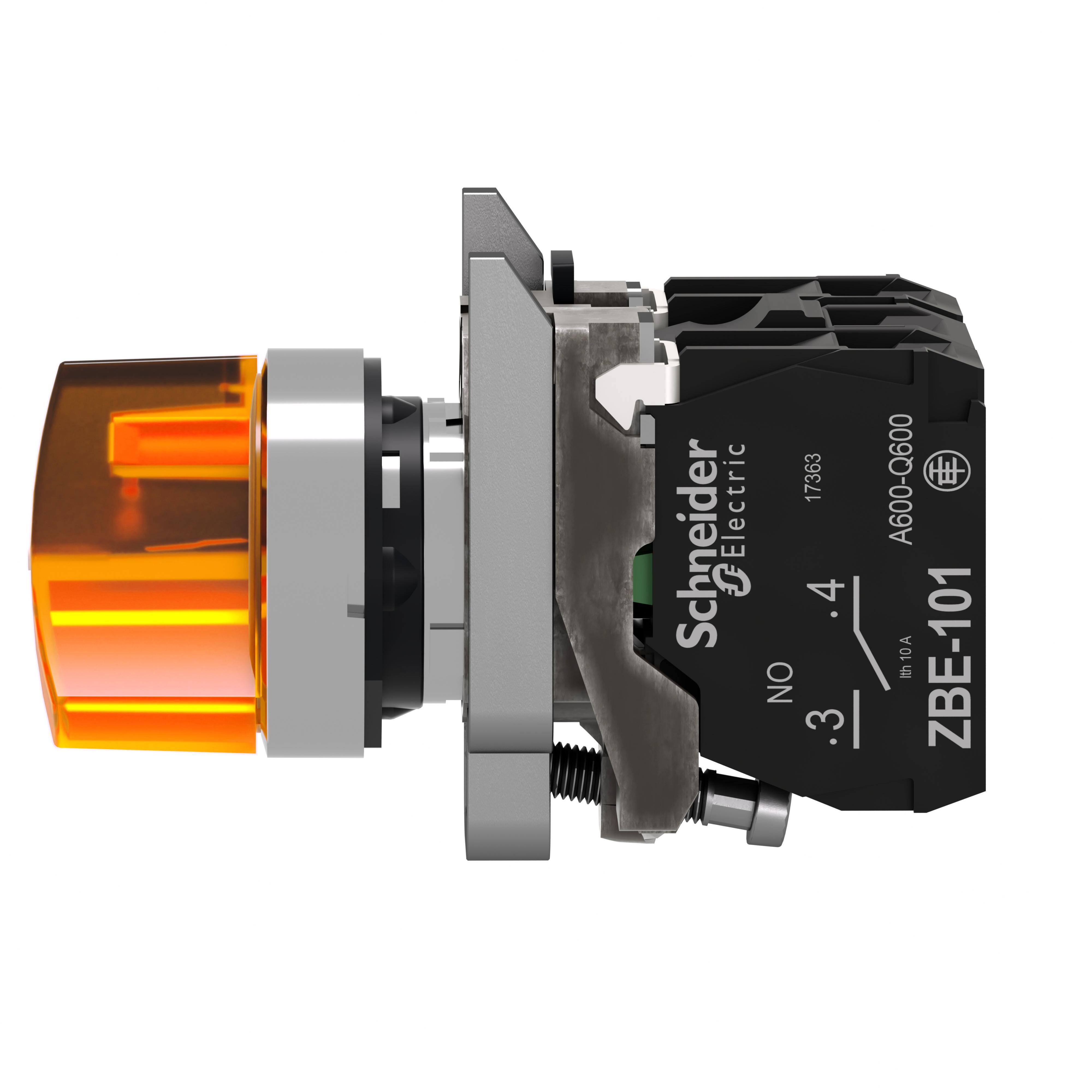

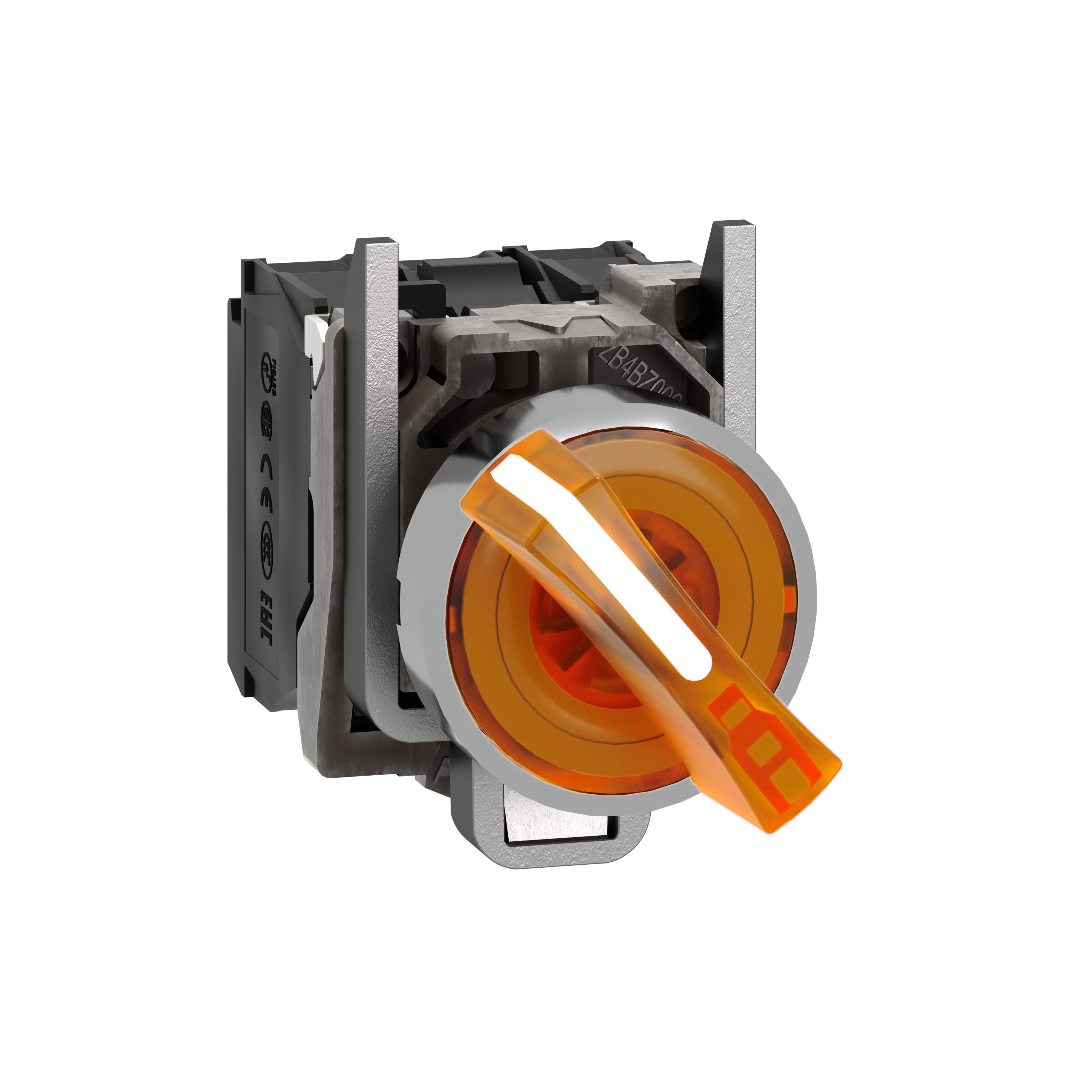

Description: Schneider Electric Harmony™ Square D™ Illuminated Selector Switch, Series: XB4, 22 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Maintained/Latched/Stay Put Contact Mode, 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC Contact, Lever Operator, 2 Positions, 90 deg Throw, LED Lamp, Bezel/Housing: Polished Chrome Metal, Screw Clamp Terminal, NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06 Enclosure, Panel Mounting, Zamak, Orange, Environmental Conditions: -40 to 158 deg F Operating Temperature

Manufacturer PN: XB4BK125B5

UPC:  38911089221

Kendall Electric Inc PN: 4133745

Invoice Description:

XB4BK125B5 SQD GR ILL 2 POS


SPEC SHEET

▸ See All in Illuminated Selector Switches


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ XB4BK125B5 Illuminated Selector Switch, 22 mm, 1NO-1NC Contact, Slow Break Contact, Lever Operator, Orange

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB4 illuminated modular orange selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Schneider Electric Harmony™ Square D™ Illuminated Selector Switch, Series: XB4, 22 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Maintained/Latched/Stay Put Contact Mode, 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC Contact, Lever Operator, 2 Positions, 90 deg Throw, LED Lamp, Bezel/Housing: Polished Chrome Metal, Screw Clamp Terminal, NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06 Enclosure, Panel Mounting, Zamak, Orange, Environmental Conditions: -40 to 158 deg F Operating Temperature

Specifications

 Application For severe environments, especially applications requiring high impact and vibration resistance
 Bezel Housing Polished Chrome Metal
 Brand Name Square D
 Color Orange
 Contact Configuration 1NO-1NC
 Contact Rating 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC
 Contact Type Slow Break
 Enclosure NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06
 Environmental Conditions -40 to 158 deg F Operating Temperature
 Lamp Type LED
 Manufacturer Part Number XB4BK125B5
 Material Zamak
 Mounting Type Panel
 Number of Positions 2
 Series XB4
 Size 22 mm
 Standards/Approvals RoHS Compliant|CSA C22.2 No. 14|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|JIS C 4520|UL 508|Lloyd's Register Certified|DNV Certified|GL Certified|BV Certified|RINA Certified|REACH Compliant|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Terminal Type Screw Clamp
 Throw 90 deg
 Video Links

Features

▪ Universal LED block to be used for all colors
▪ Improved color intensity and brightness
▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
