Schneider Electric

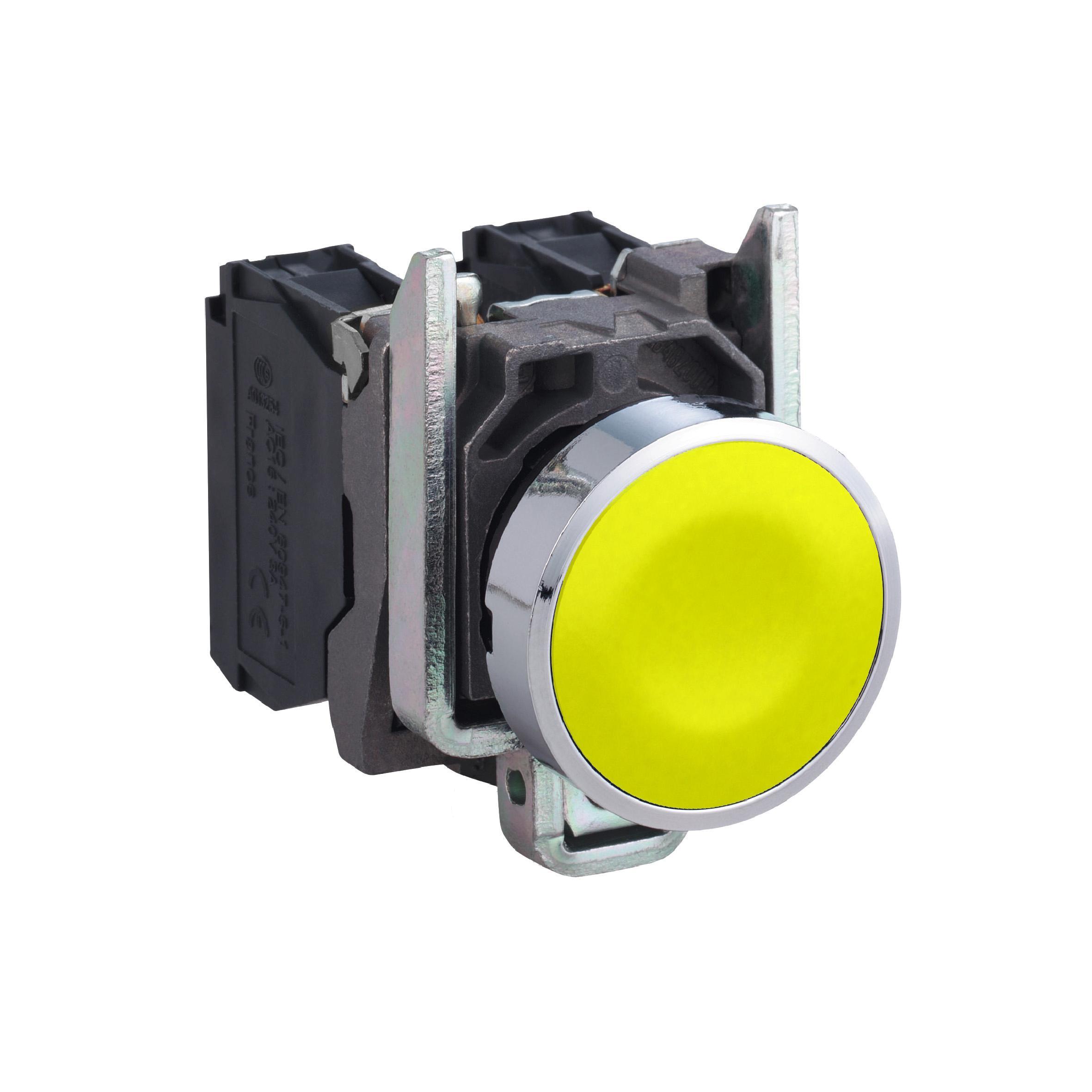

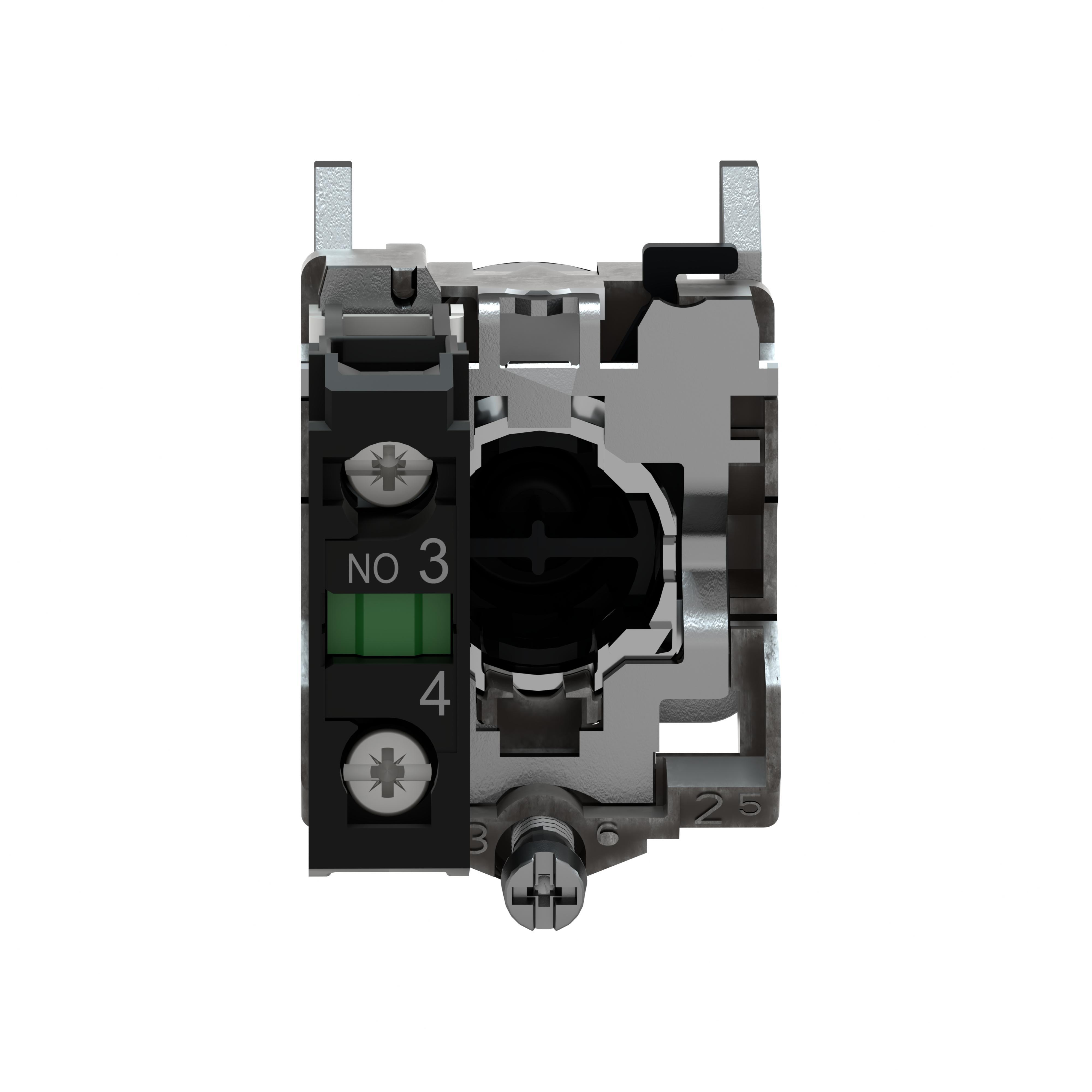

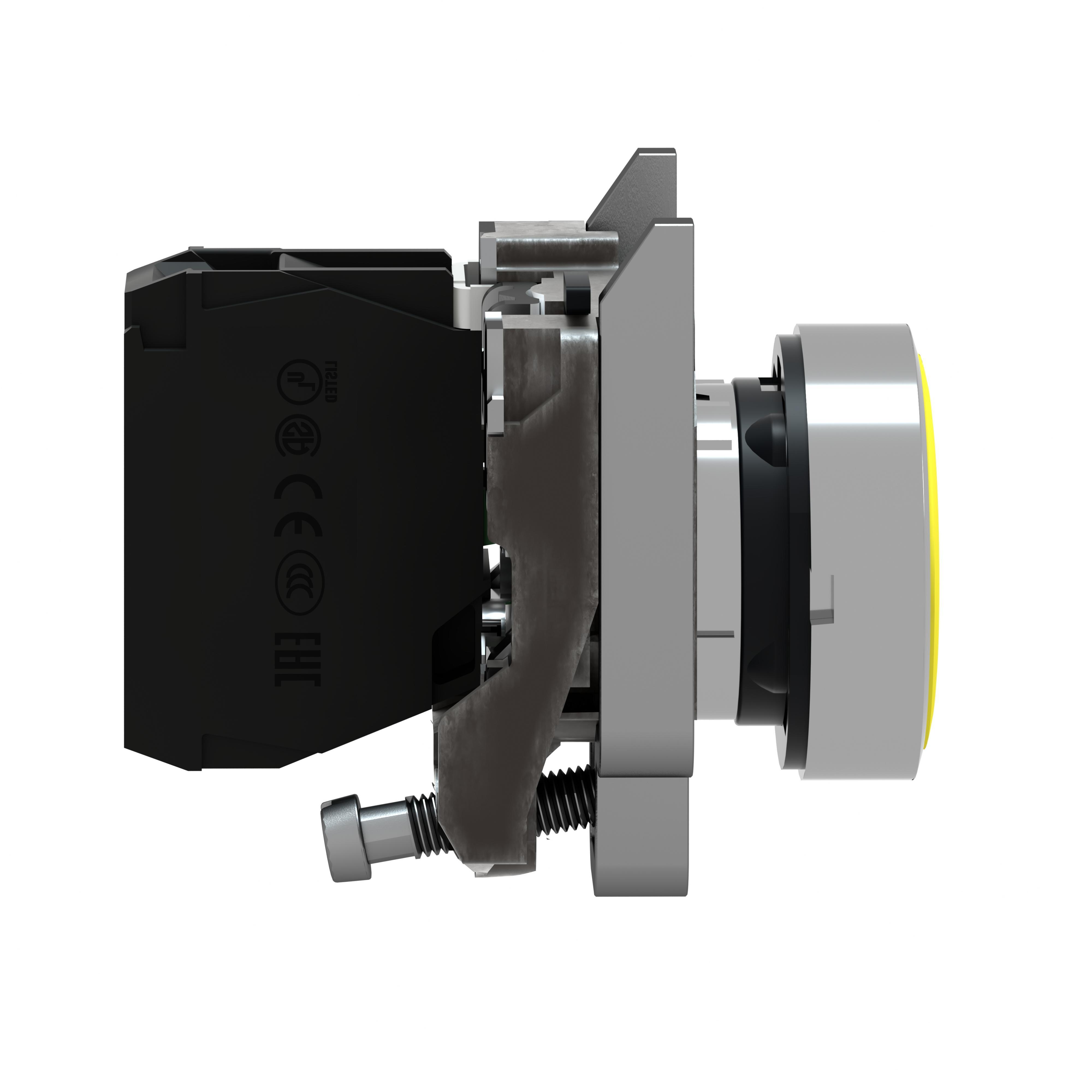

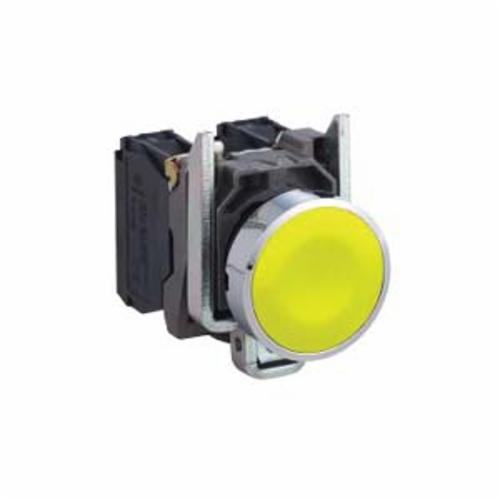

  • XB4BA51 SQD PUSHBUTTON OPERATOR
  • XB4BA51 SQD PUSHBUTTON OPERATOR
  • XB4BA51 SQD PUSHBUTTON OPERATOR
  • XB4BA51 SQD PUSHBUTTON OPERATOR
  • XB4BA51 SQD PUSHBUTTON OPERATOR
  • XB4BA51 SQD PUSHBUTTON OPERATOR

Description: Schneider Electric Harmony™ Square D™ Non-Illuminated Pushbutton, Series: XB4, 22 mm Size, 1NC Contact Configuration, Momentary Contact Mode, 10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC Contact, Flush Operator, Bezel/Housing: Chromium Plated Metal, Round Button Actuator, Screw Clamp Terminal, NEMA 4/4X/13 Enclosure, Panel Mounting, Yellow, Environmental Conditions: -40 to 70 deg C Operating Temperature

Manufacturer PN: XB4BA51

UPC:  38911011838

Kendall Electric Inc PN: 3960011

Invoice Description:

XB4BA51 SQD PUSHBUTTON OPERATOR


SPEC SHEET

▸ See All in Non-Illuminated Pushbuttons


How Can We Make This Page Better?

Schneider Electric Harmony™ Square D™ XB4BA51 Non-Illuminated Pushbutton, 22 mm, 1NC Contact, Flush Operator, Yellow

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Harmony XB4 modular yellow push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Schneider Electric Harmony™ Square D™ Non-Illuminated Pushbutton, Series: XB4, 22 mm Size, 1NC Contact Configuration, Momentary Contact Mode, 10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC Contact, Flush Operator, Bezel/Housing: Chromium Plated Metal, Round Button Actuator, Screw Clamp Terminal, NEMA 4/4X/13 Enclosure, Panel Mounting, Yellow, Environmental Conditions: -40 to 70 deg C Operating Temperature

Specifications

 Actuator Round Button
 Application Indoor/Outdoor Applications
 Bezel Housing Chromium Plated Metal
 Brand Name Square D
 Color Yellow
 Contact Configuration 1NC
 Contact Rating 10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC
 Enclosure NEMA 4/4X/13
 Environmental Conditions -40 to 70 deg C Operating Temperature
 Legend Unmarked
 Manufacturer Part Number XB4BA51
 Mounting Type Panel
 PART NUMBER KEYWORDS XB4BA51 ; 8018185 ; 785901380504 ; 78590138050 ; 03389110118384 ; 3389110118384
 Series XB4
 Size 22 mm
 Standards/Approvals Buy American Act Compliant|BV Certified|CCN NKCR|CE Marked|CSA C22.2 No. 14|CSA File No. LR44087 Class 321103|DNV Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5|GL Certified|JIS C 4520|Lloyd's Register Certified|RINA Certified|RoHS Compliant|UL 508|UL File No. E164353|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Terminal Type Screw Clamp
 Video Links

Features

▪ Quick and easy assembly and disassembly
▪ Robustness to withstand harsh environments
▪ Various types of connection - screw clamp, connector, Faston connector or spring terminal
▪ Excellent mechanical connection with operator head
▪ Large set of accessories to customize your panels
