Schneider Electric

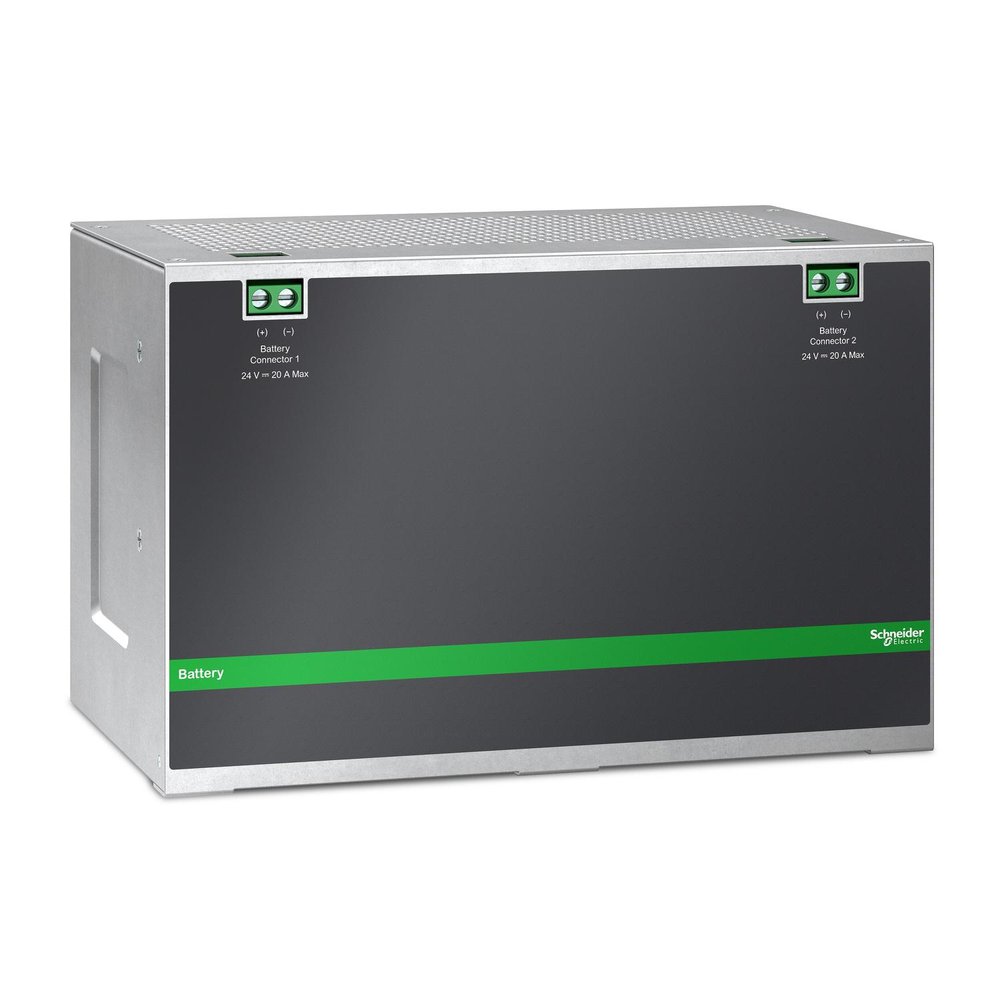

XB005XPDR APC BATTERY MODULE

Mouse over image to zoom, click to enlarge

  • XB005XPDR APC BATTERY MODULE
  • XB005XPDR APC BATTERY MODULE

Description: Schneider Electric, XB005XPDR, UPS Battery Module, 24 V DC, Environmental Conditions: 0 to 95 % Non-Condensing Relative Humidity, 0 to 9842.52 ft Operating Altitude, 5 to 158 deg F Ambient Air Temperature for Storage, 0 to 95 % Non-Condensing Storage Relative Humidity, 0 to 9842.52 ft Storage Altitude, Metal Grey, 5.08 in H x 7.56 in W x 4.69 in D Dimensions

Manufacturer PN: XB005XPDR

UPC:  73130445151

Kendall Electric Inc PN: 4750924

Invoice Description:

XB005XPDR APC BATTERY MODULE


SPEC SHEET

▸ See All in UPS Replacement Batteries


How Can We Make This Page Better?

Schneider Electric XB005XPDR UPS Battery Module, 24 V DC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

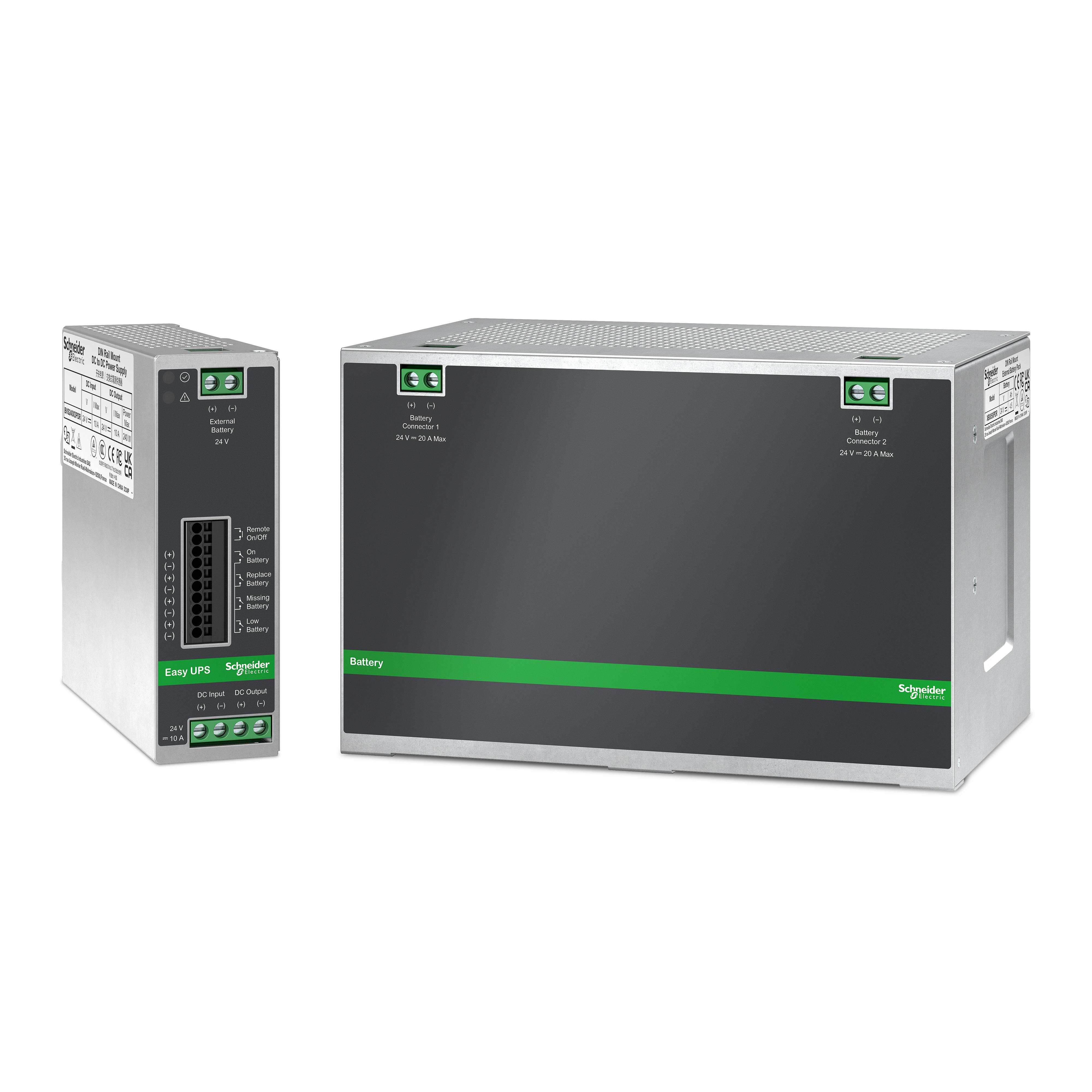

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. The XB005XPDR is an external battery pack designed for the BVS240XDPDR and BVS480XDPDR Industrial UPS models. It allows for daisy chaining of up to a total of 4 battery packs. It offers 10 mins of runtime at 10A of load and 5 mins of runtime at 20A load. It comes with a 2-year standard warranty.
Schneider Electric, XB005XPDR, UPS Battery Module, 24 V DC, Environmental Conditions: 0 to 95 % Non-Condensing Relative Humidity, 0 to 9842.52 ft Operating Altitude, 5 to 158 deg F Ambient Air Temperature for Storage, 0 to 95 % Non-Condensing Storage Relative Humidity, 0 to 9842.52 ft Storage Altitude, Metal Grey, 5.08 in H x 7.56 in W x 4.69 in D Dimensions

Specifications

 Application Designed for the BVS240XDPDR and BVS480XDPDR Industrial UPS models, allows for daisy chaining of up to a total of 4 battery packs
 Brand Name APC
 Color Metal Grey
 Dimensions 5.08 in H x 7.56 in W x 4.69 in D
 Environmental Conditions 0 to 95 % Non-Condensing Relative Humidity, 0 to 9842.52 ft Operating Altitude, 5 to 158 deg F Ambient Air Temperature for Storage, 0 to 95 % Non-Condensing Storage Relative Humidity, 0 to 9842.52 ft Storage Altitude
 Manufacturer Part Number XB005XPDR
 PART NUMBER KEYWORDS XB005XPDR ; 731304451518 ; 73130445151
 Standards/Approvals IEC 62368-1|CE|TUV|IEC 62368-1
 Voltage Rating 24 V DC

Features

▪ Allows for additional runtime during extended power outages
▪ Compatible with Easy UPS BVS-PDR

Resources

 Catalog Page
 Product Data Sheet
