Schneider Electric

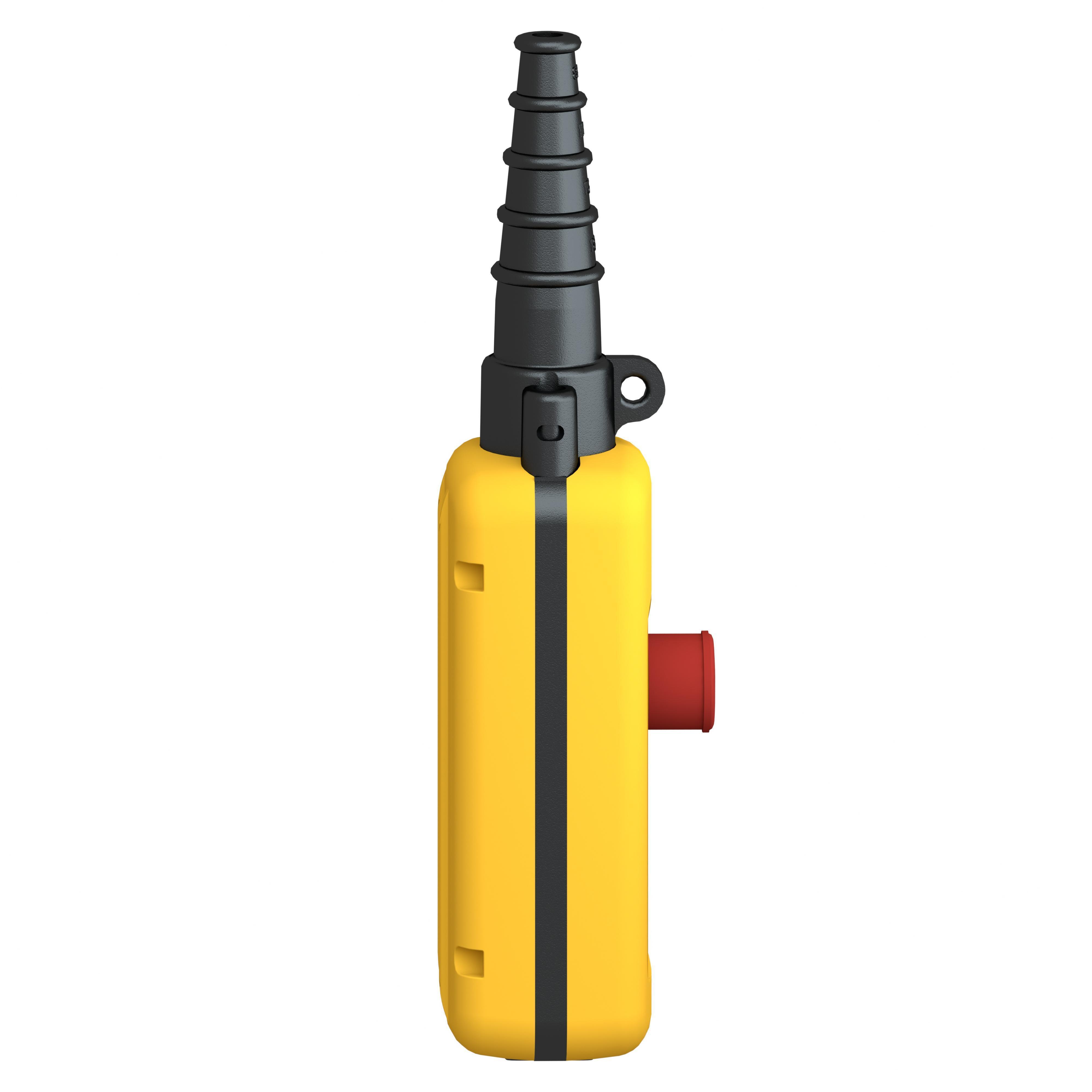

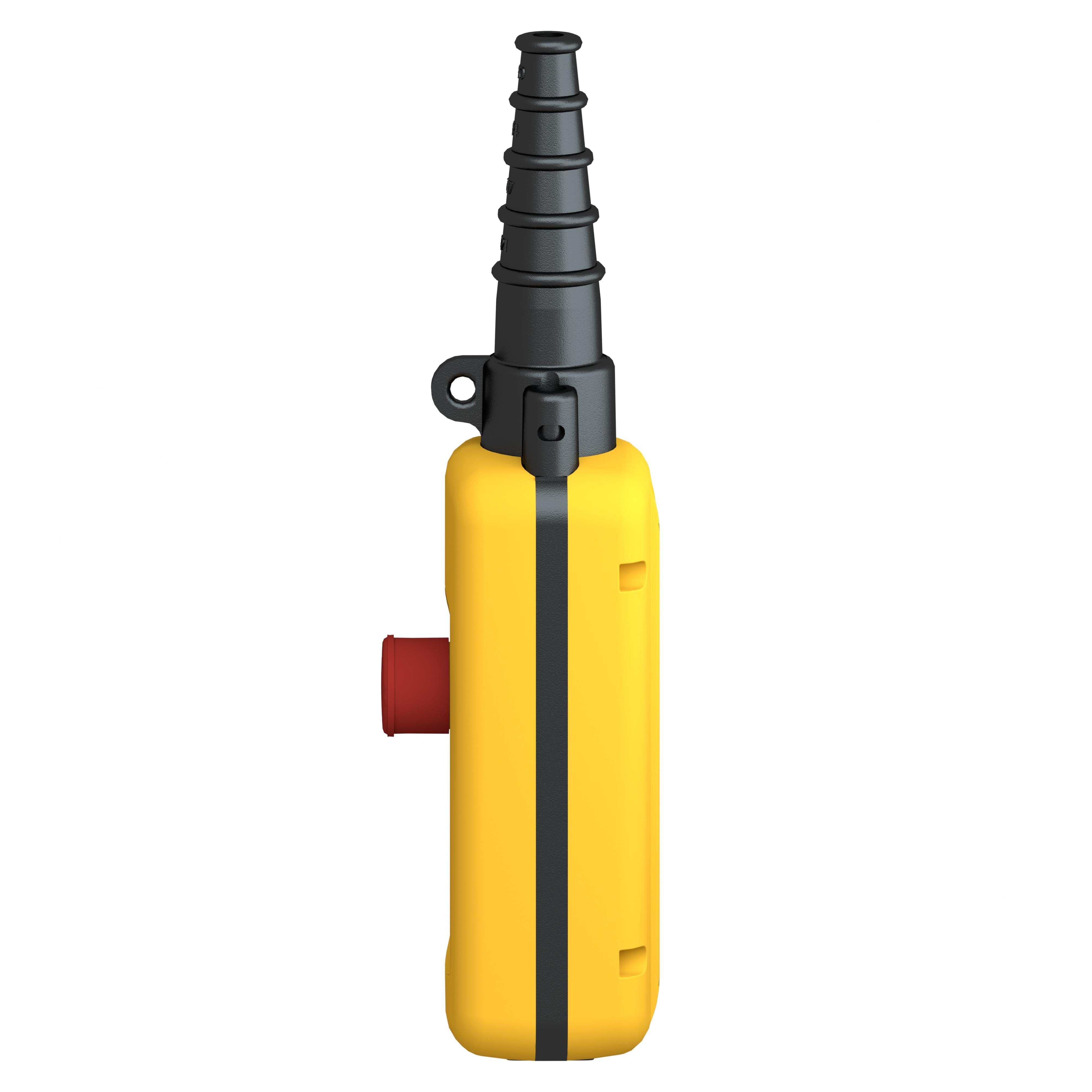

  • XACA2813 SQD PENDANT STATION
  • XACA2813 SQD PENDANT STATION
  • XACA2813 SQD PENDANT STATION
  • XACA2813 SQD PENDANT STATION

Description: Schneider Electric Harmony™ Pendant Control Station, Double Insulated, Series: XACA, 65 W Wattage, 10 A Interrupt, 3 Operators, 2NO-3NC Contact Configuration, Slow-Break Contact Form, 3 A at 240 V Contact, (2) Push Button, (1) 30 mm Dia Emergency Stop Push Button Operator, Legend: RISE/LOW, Push Button Actuator, Screw Clamp Connection, -13 to 158 deg F Operating, Polypropylene, Yellow

Manufacturer PN: XACA2813

UPC:  38911042681

Kendall Electric Inc PN: 4000787

Invoice Description:

XACA2813 SQD PENDANT STATION


SPEC SHEET

▸ See All in Pendant Control Stations


How Can We Make This Page Better?

Schneider Electric Harmony™ XACA2813 XACA Double Insulated Pendant Control Station With Mechanical Interlocking, 2NO-3NC Contact, 3 Operators

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Schneider Electric Harmony XAC yellow pendant station for hoist motor has single speed. It has 1 "raise" + 1 "lower" + 1 emergency stop push-buttons and uses screw-clamp terminals. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push-buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments. Impact- and stain resistant (strength) enclosure for a sustained appearance despite rough usage conditions. No need to damage your machine or system with multiple 22mm hole, thus avoiding common issues like edge corrosion. Yellow enclosure, favoring visual contrast and visibility in dark conditions. Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Schneider Electric Harmony™ Pendant Control Station, Double Insulated, Series: XACA, 65 W Wattage, 10 A Interrupt, 3 Operators, 2NO-3NC Contact Configuration, Slow-Break Contact Form, 3 A at 240 V Contact, (2) Push Button, (1) 30 mm Dia Emergency Stop Push Button Operator, Legend: RISE/LOW, Push Button Actuator, Screw Clamp Connection, -13 to 158 deg F Operating, Polypropylene, Yellow

Specifications

 Actuator Push Button
 Application Overhead Cranes, Tower Cranes, Fixed Hoists and Beam Hoists Applications
 Brand Name Square D
 Color Yellow
 Connection Type Screw Clamp
 Contact Configuration 2NO-3NC
 Contact Form Slow-Break
 Contact Rating 3 A at 240 V
 Legend RISE/LOW
 Manufacturer Part Number XACA2813
 Material Polypropylene
 Number of Operators 3
 Operating Temperature -13 to 158 deg F
 PART NUMBER KEYWORDS XACA2813 ; 14566968 ; 03389110426816 ; 3389110426816
 Series XACA
 Standards/Approvals GOST;CCC;IK08 conforming to IEC 62262;IEC 60947-5-1;CSA C22.2 No 14;UL 508;IEC 60204-32;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
 Type Double Insulated
 Video Links
 Wattage 65 W

Features

▪ Impact- and stain resistant enclosure for a sustained appearance despite rough usage conditions
▪ Eliminates the need to drill multiple 22mm holes in the machine and system
▪ Yellow enclosure, favoring visual contrast and visibility in dark conditions
▪ Wide range of operating temperatures from -25 deg C to 70 deg C allows versatility in usage of product
