Schneider Electric

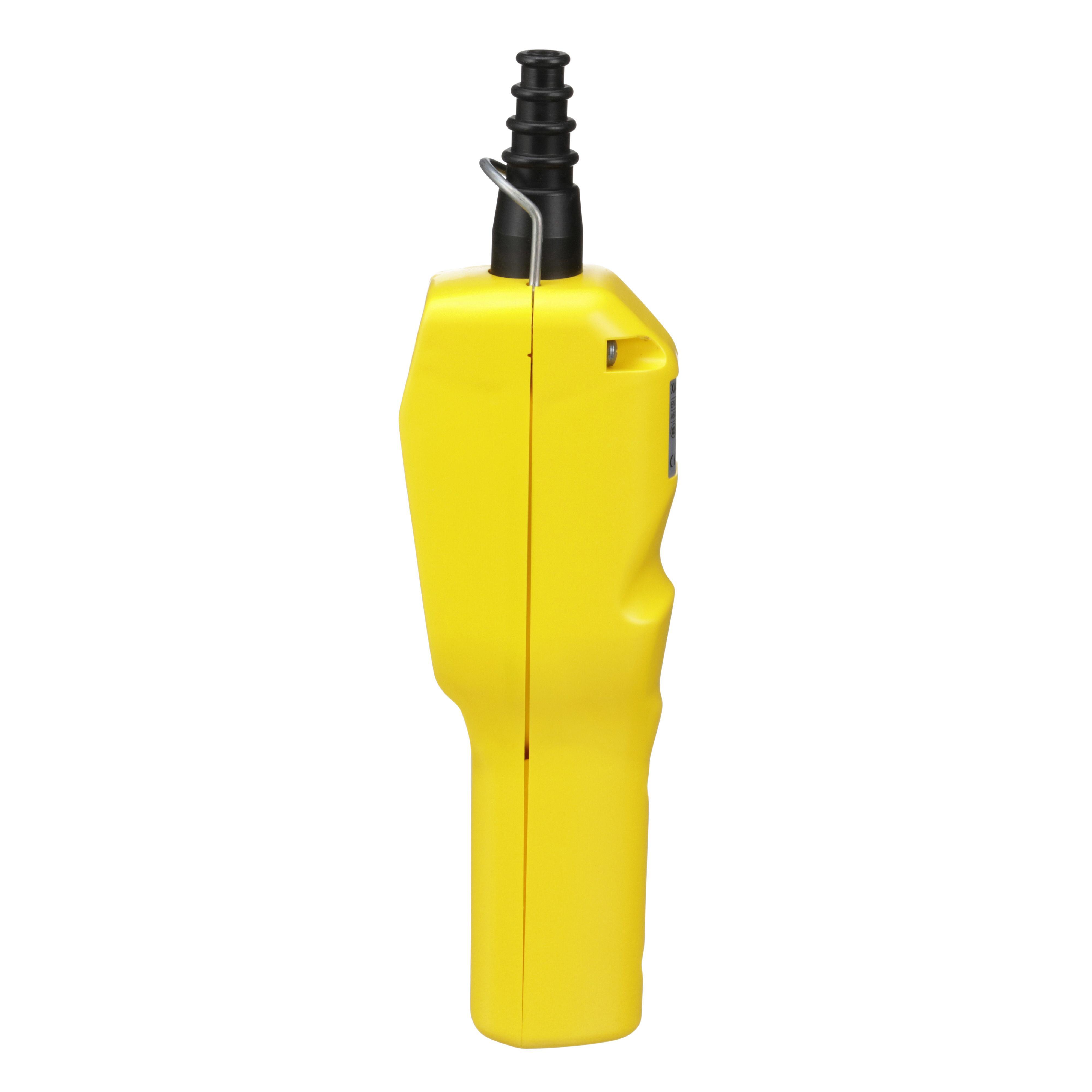

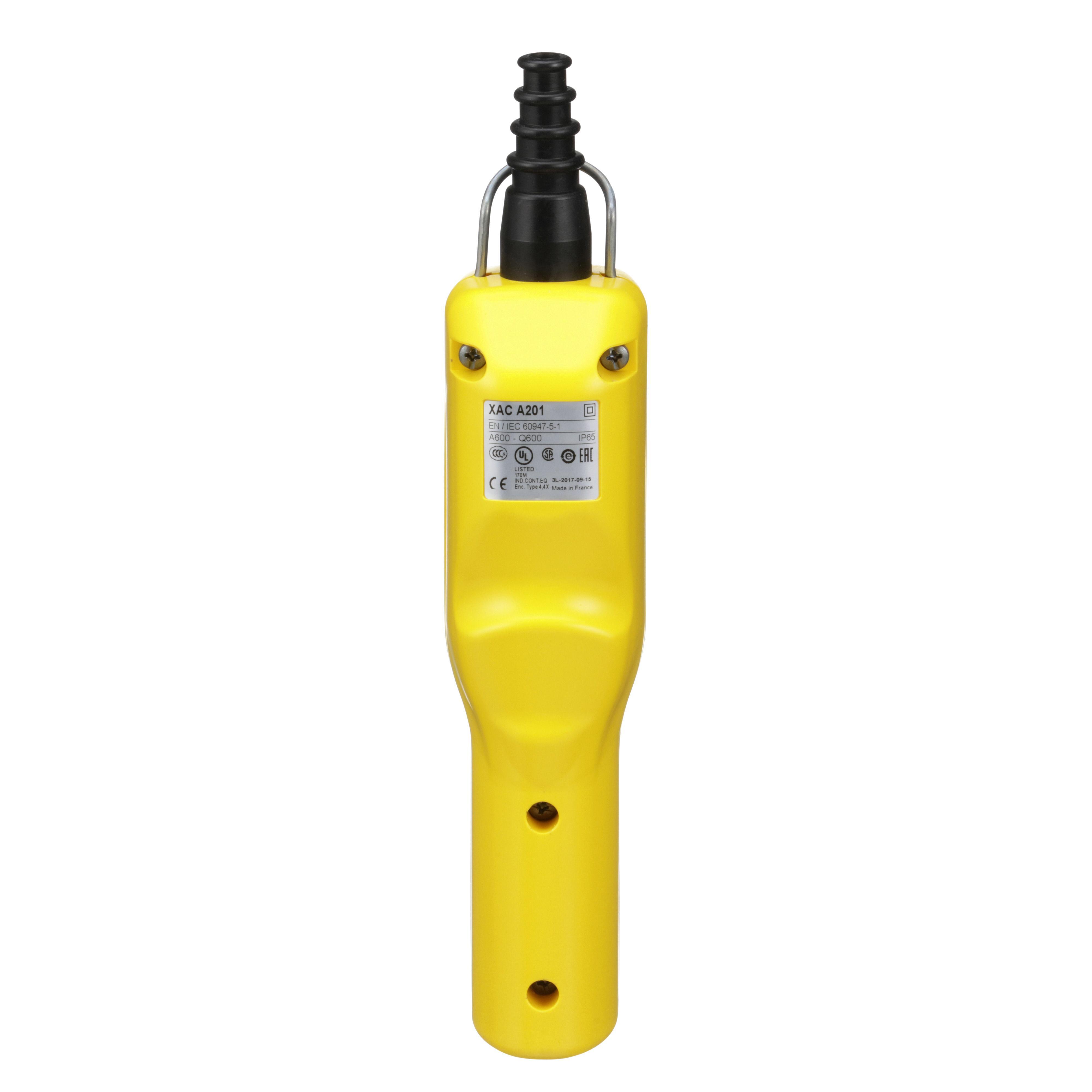

  • XACA201 SQD PENDANT STATION 600VAC
  • XACA201 SQD PENDANT STATION 600VAC
  • XACA201 SQD PENDANT STATION 600VAC
  • XACA201 SQD PENDANT STATION 600VAC

Description: Schneider Electric Harmony™ Pendant Station, Type XACA Pistol Grip Slow-Break, Series: XAC, 600 V AC, 10 A, 1NO 1 Form A Contact Configuration, DPST Contact Form, Pushbutton Actuator, Screw Clamp Connection, 4/4X NEMA Rating, Panel Mounting, -25 to 70 deg C Operating, Polypropylene, Yellow, 80 mm W x 314 mm H Dimensions

Manufacturer PN: XACA201

UPC:  38911064500

Kendall Electric Inc PN: 4000786

Invoice Description:

XACA201 SQD PENDANT STATION 600VAC


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Harmony™ XACA201 Type XACA Pistol Grip Slow-Break Pendant Station, 600 V AC, 10 A, 1NO 1 Form A Contact, 4/4X NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Schneider Electric Harmony™ Pendant Station, Type XACA Pistol Grip Slow-Break, Series: XAC, 600 V AC, 10 A, 1NO 1 Form A Contact Configuration, DPST Contact Form, Pushbutton Actuator, Screw Clamp Connection, 4/4X NEMA Rating, Panel Mounting, -25 to 70 deg C Operating, Polypropylene, Yellow, 80 mm W x 314 mm H Dimensions

Specifications

 Actuator Pushbutton
 Amperage Rating 10 A
 Application For control of 1-speed hoist motor, overhead crane, tower crane, fixed hoist, beam hoist, water tight, dust tight and corrosion-resistant indoor and outdoor application
 Brand Name Square D
 Color Yellow
 Connection Type Screw Clamp
 Contact Configuration 1NO 1 Form A
 Contact Form DPST

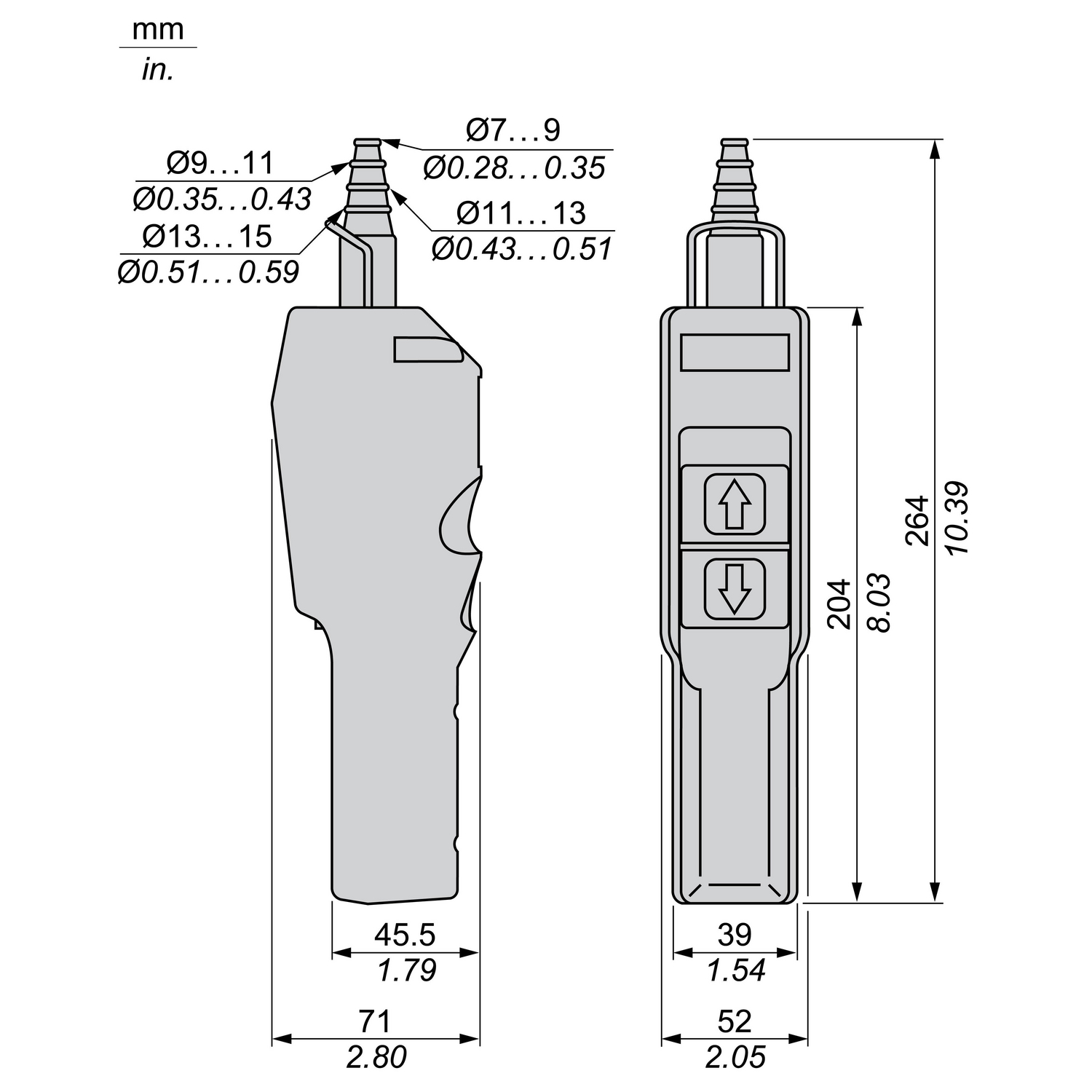

 Dimensions 80 mm W x 314 mm H
 Manufacturer Part Number XACA201
 Material Polypropylene
 Mounting Type Panel
 NEMA Rating 4/4X
 Operating Temperature -25 to 70 deg C
 PART NUMBER KEYWORDS XACA201 ; 8119772 ; 785901645009 ; 78590164500 ; 03389110645002 ; 3389110645002
 Series XAC
 Standards/Approvals CSA;UL;IK08 conforming to IEC 62262;IEC 60947-5-1;CSA C22.2 No 14;IEC 60204-32;UL 508;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
 Type Type XACA Pistol Grip Slow-Break
 Video Links
 Voltage Rating 600 V AC

Features

▪ Impact resistant yellow enclosure for increased visibility
▪ Solid rubber grommet junction, for maximum water tightness
▪ Ergonomic pistol grip allowing for single handed control of your hoist, crane
▪ Wide availability throughout an extensive distribution network
