NSi Industries

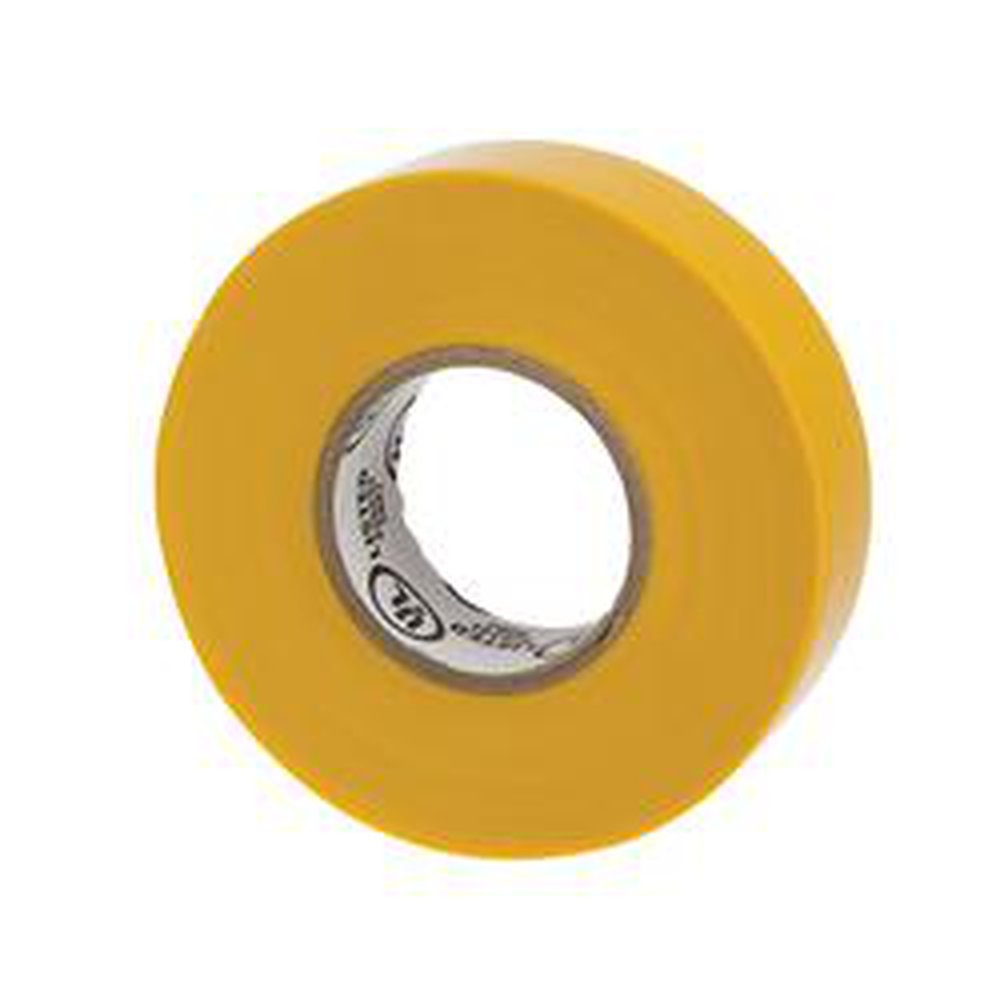

WW-732-4 NSI WARRIORWRAP 7MIL PREMIUM TAPE YELLOW

Mouse over image to zoom, click to enlarge

Description: NSI Electrical Tape, Premium, Series: 732, 66 ft Length, 3/4 in Width, 7 mil Thickness, Yellow, Rubber Adhesive, PVC Backing, 33.2 in-oz Adhesion Strength, 600 V, 1289 V/mil Dielectric Strength, 19.8 in-lb Tensile Strength, 221 deg F Maximum Operating, 0 deg F Minimum Operating

Manufacturer PN: WW-732-YL

UPC:  66238136720

Kendall Electric Inc PN: 3812206

Invoice Description:

WW-732-4 NSI WARRIORWRAP 7MIL PREMIUM TAPE YELLOW


SPEC SHEET

How Can We Make This Page Better?

NSI WW-732-YL Premium Electrical Tape, 66 ft L x 3/4 in W, 7 mil THK, Rubber Adhesive, PVC Backing, Yellow

Log In for Pricing and Availability




Description

Its Warrior Time. At NSI, we put our 45 years of experience in the electrical industry into WarriorWrap, electrical tape strong enough to rise to any challenge.For insulating, splicing or marking cables and wires on the jobsite, choose WarriorWrap, available in 12 colors and 3 grades of quality. That quality starts with strong adhesion to stick to uneven surfaces. But thatâ™s not allâ”it also features the best breaking strength around and unmatched elasticity to hold tight in residential or commercial environments, with options for indoor or exterior installation. Our Professional vinyl electrical tapes come in 12 colors and can knock out any task up to 600V. WarriorWrap Professional Vinyl Electrical tapes are certified by UL Standard 510 and CSA Standard C22.2 for performance. Experience next-generation professional tape, with a comprehensive lineup that gets the job done right the first time, every time.
NSI Electrical Tape, Premium, Series: 732, 66 ft Length, 3/4 in Width, 7 mil Thickness, Yellow, Rubber Adhesive, PVC Backing, 33.2 in-oz Adhesion Strength, 600 V, 1289 V/mil Dielectric Strength, 19.8 in-lb Tensile Strength, 221 deg F Maximum Operating, 0 deg F Minimum Operating

Specifications

 Adhesion Strength 33.2 in-oz
 Adhesive Material Rubber
 Application For primary insulation for wire and cable splices up to 600 V, wire harnessing, jacketing on high voltage splices
 Backing Material PVC
 Brand Name NSI
 Color Yellow
 Dielectric Strength 1289 V/mil
 Length 66 ft
 Manufacturer Part Number WW-732-YL
 Maximum Operating Temperature 221 deg F
 Minimum Operating Temperature 0 deg F
 PART NUMBER KEYWORDS WW-732-YL ; WW732YL ; 14256129 ; 662381367204 ; 66238136720 ; 00662381367204
 Series 732
 Standards/Approvals UL 510|CSA C22.2
 Type Premium
 Voltage Rating 600 V
 Width 3/4 in

Features

▪ Extreme Durability The PVC and rubber-based adhesive design gives WarriorWrap extreme resistance to weather, corrosion, abrasion and UV threats to endure any conditions
▪ Flame Retardant WarriorWrap Professional knocks out any job with a max temperature of 220 deg F 105 C), making it perfect for splicing or jacketing high voltage splices
▪ Better Stretch The better the stretch, the better the seal, and WarriorWrap stretches 34 Percent better than the competition to outperform whatever tape you have been carrying
▪ Range of Uses Choose from 12 different colors and 3 grades of tape for any insulation, splicing or identification job in the demanding environments of electrical construction
