Part # 3550627

instructions how to enable JavaScript in your web browser

Page Loading...

Eaton

Mouse over image to zoom, click to enlarge

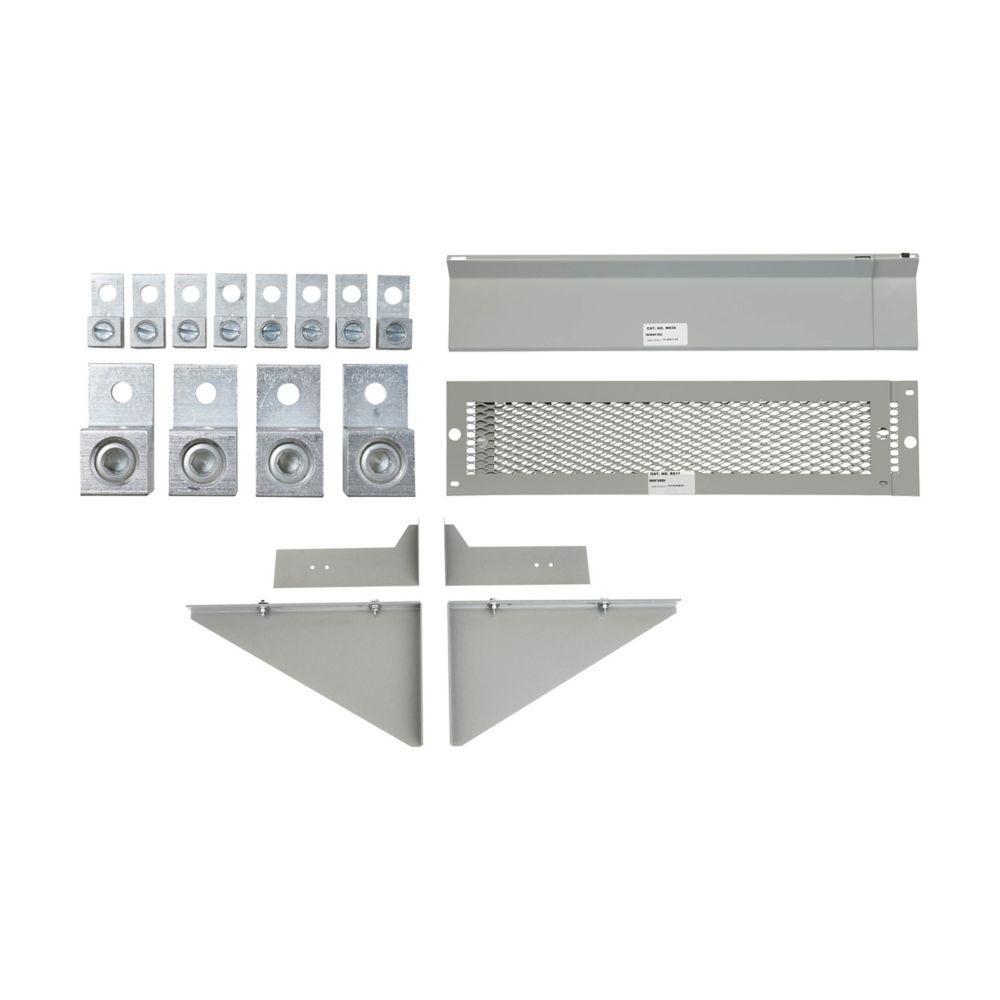

Description: EATON Transformer Weathershield Kit, Dry-Type, For Use With: FR942 Frame Transformer, 30-1/2 in L x 6 in W x 1/2 in H

Manufacturer PN: WS59

UPC: 78668018577

Kendall Electric Inc PN: 3550627

Invoice Description:

WS59 EATON WEATHERSHIELD

SPEC SHEET

▸ See All in Transformer Weathershield Kits

How Can We Make This Page Better?

EATON WS59 Dry-Type Transformer Weathershield Kit, For Use With FR942 Frame Transformer

Description Specifications Resources

Description

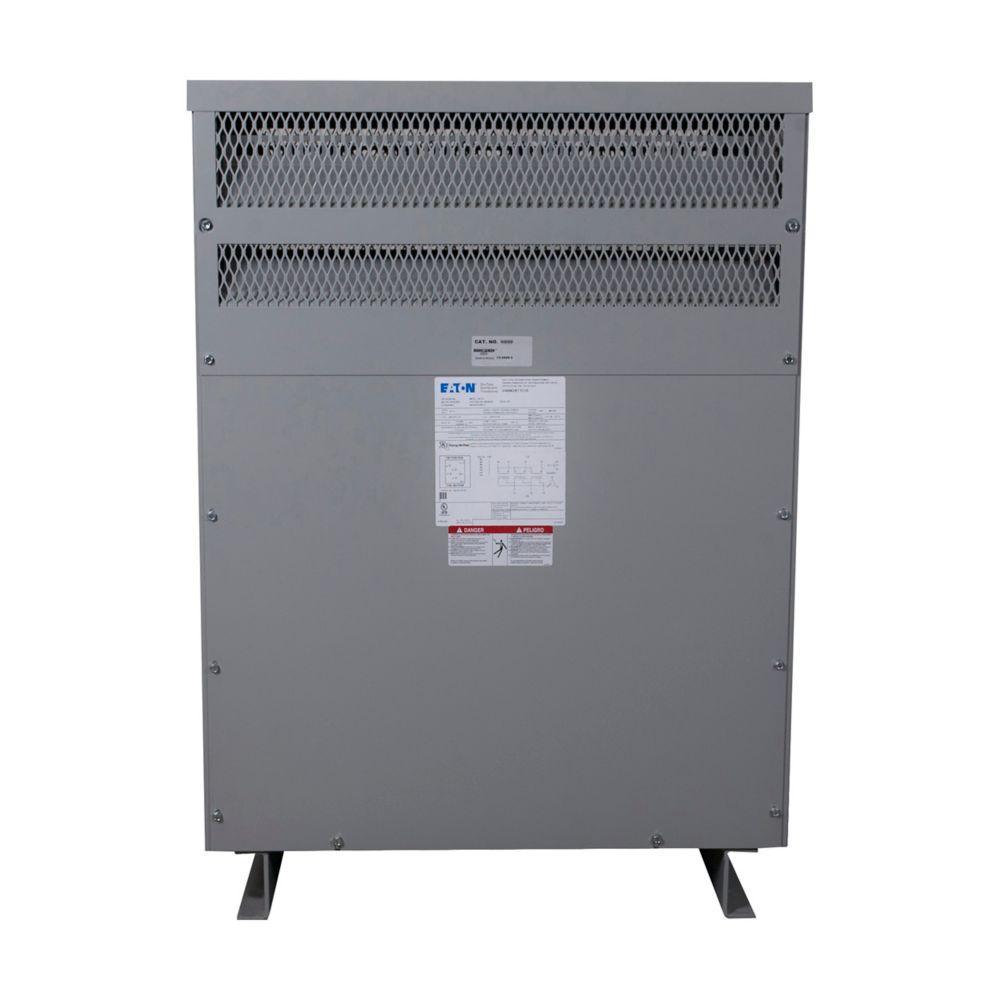

A weather shield kit consisting of a front and rear cover shield must be installed on all ventilated dry-type distribution transformers when the unit is located outdoors. The shields protect the transformer top ventilation openings against rain but allow for proper ventilation. Field installation hardware is not required. Refer to specific transformer listing for selection of weather shield kit. Proper installation provides a NEMA 3R rating.

EATON Transformer Weathershield Kit, Dry-Type, For Use With: FR942 Frame Transformer, 30-1/2 in L x 6 in W x 1/2 in H

Specifications

Application	Outdoor, Electrical Assemblies, Panels and EOEMs, Commercial, Institutional Buildings and Structures Applications
Brand Name	EATON
Dimensions	30-1/2 in L x 6 in W x 1/2 in H
Manufacturer Part Number	WS59
Standards/Approvals	Not Applicable,Not Applicable
Suitable For Use With	FR942 Frame Transformer
Type	Dry-Type
